Corolla & Matrix

NOTE: Idle Air Control (IAC) valve is also referred to as Idle Speed Control (ISC) valve.

For Idle Air Control (IAC) system testing procedures, see Fig 1.

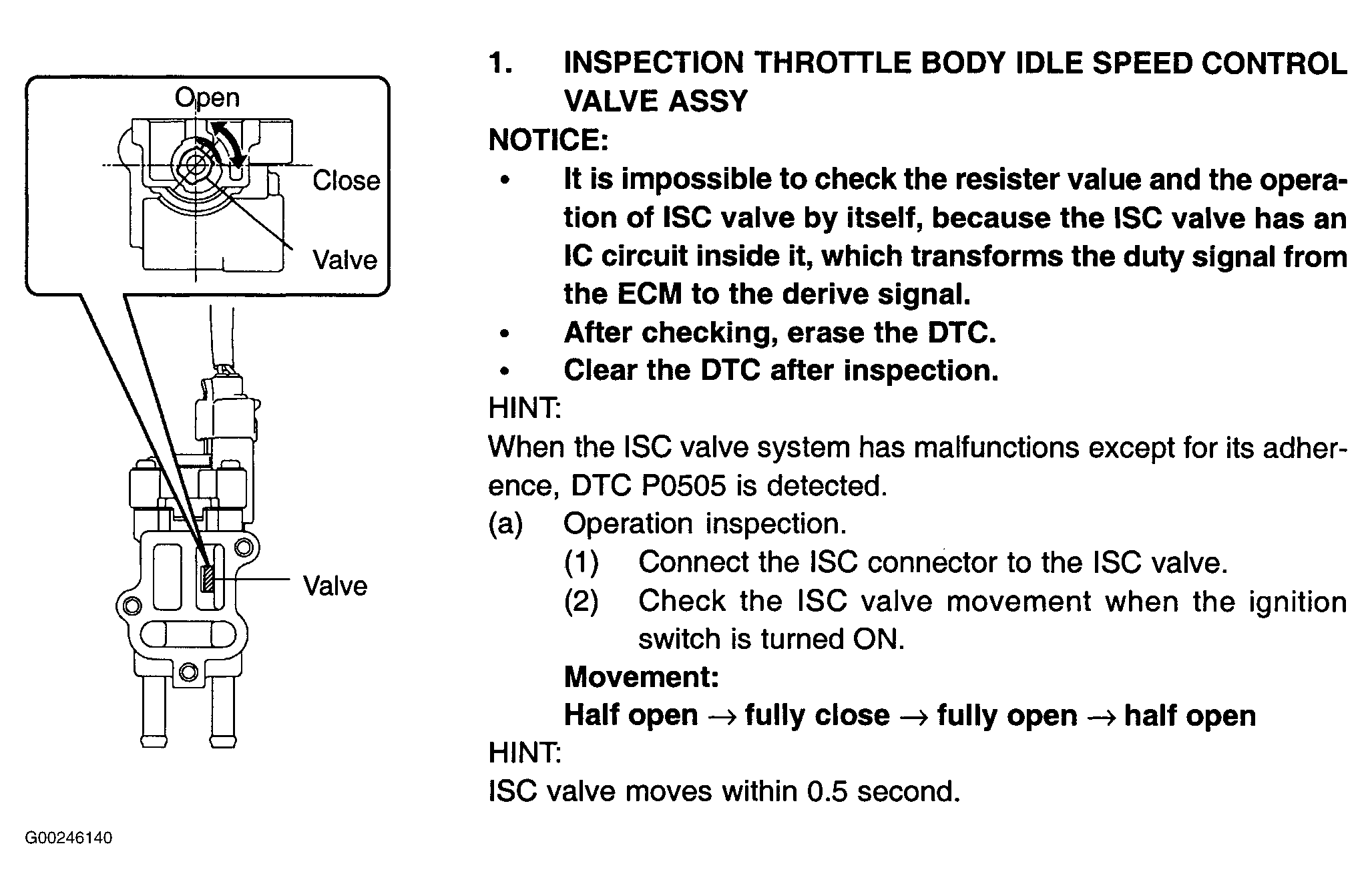

Fig 1: Inspecting Idle Speed Control Valve (Corolla & Matrix)
G00246140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
