Vacuum Diagrams: Introduction

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in appropriate BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses, which may cause driveability and/or computer-indicated malfunctions.

NOTE: When using vacuum diagrams, the charcoal canister may also be referred to as canister or EVAP canister.

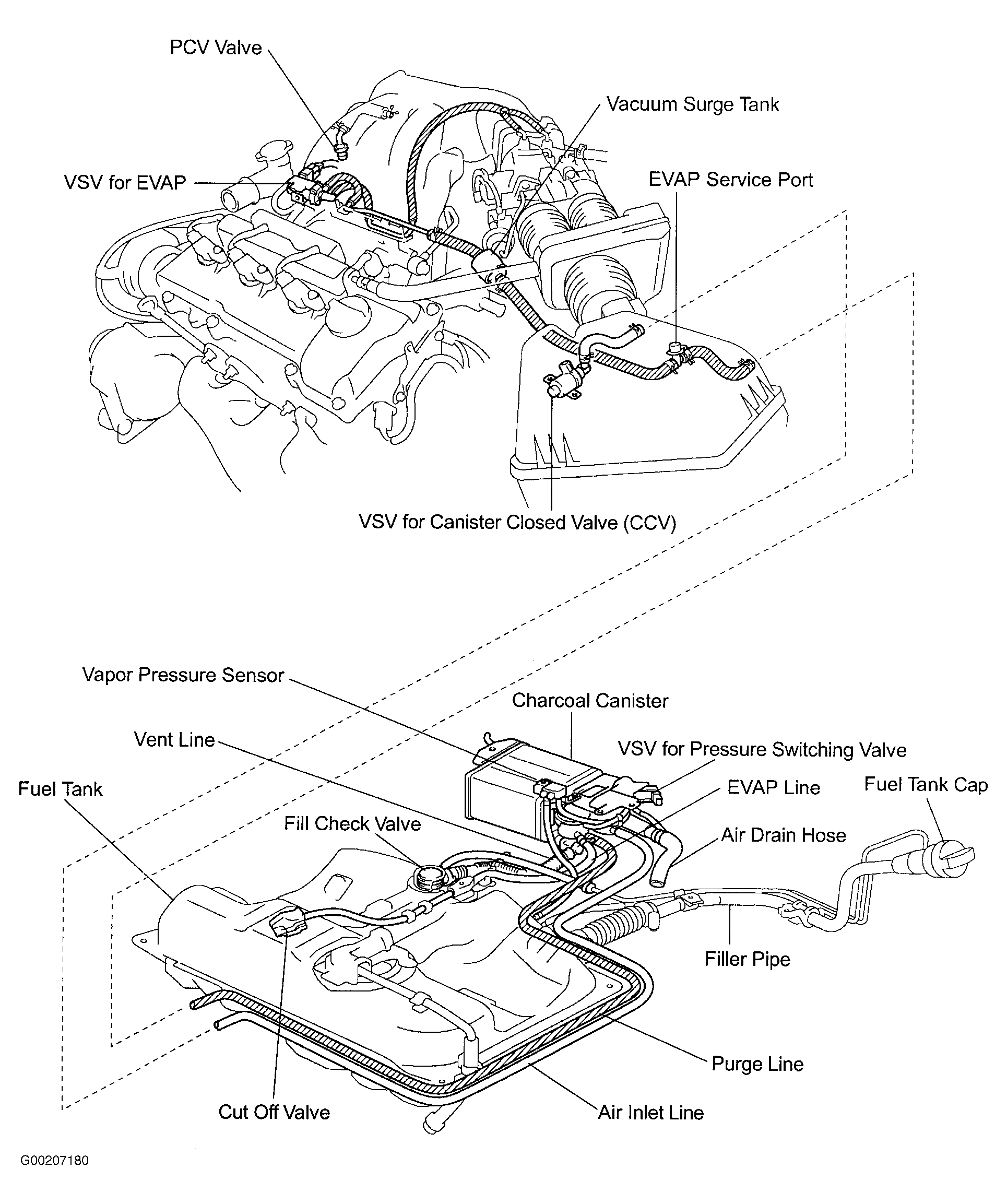

Fig 1: Vacuum Diagram (Avalon - 1 Of 2)

G00207180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

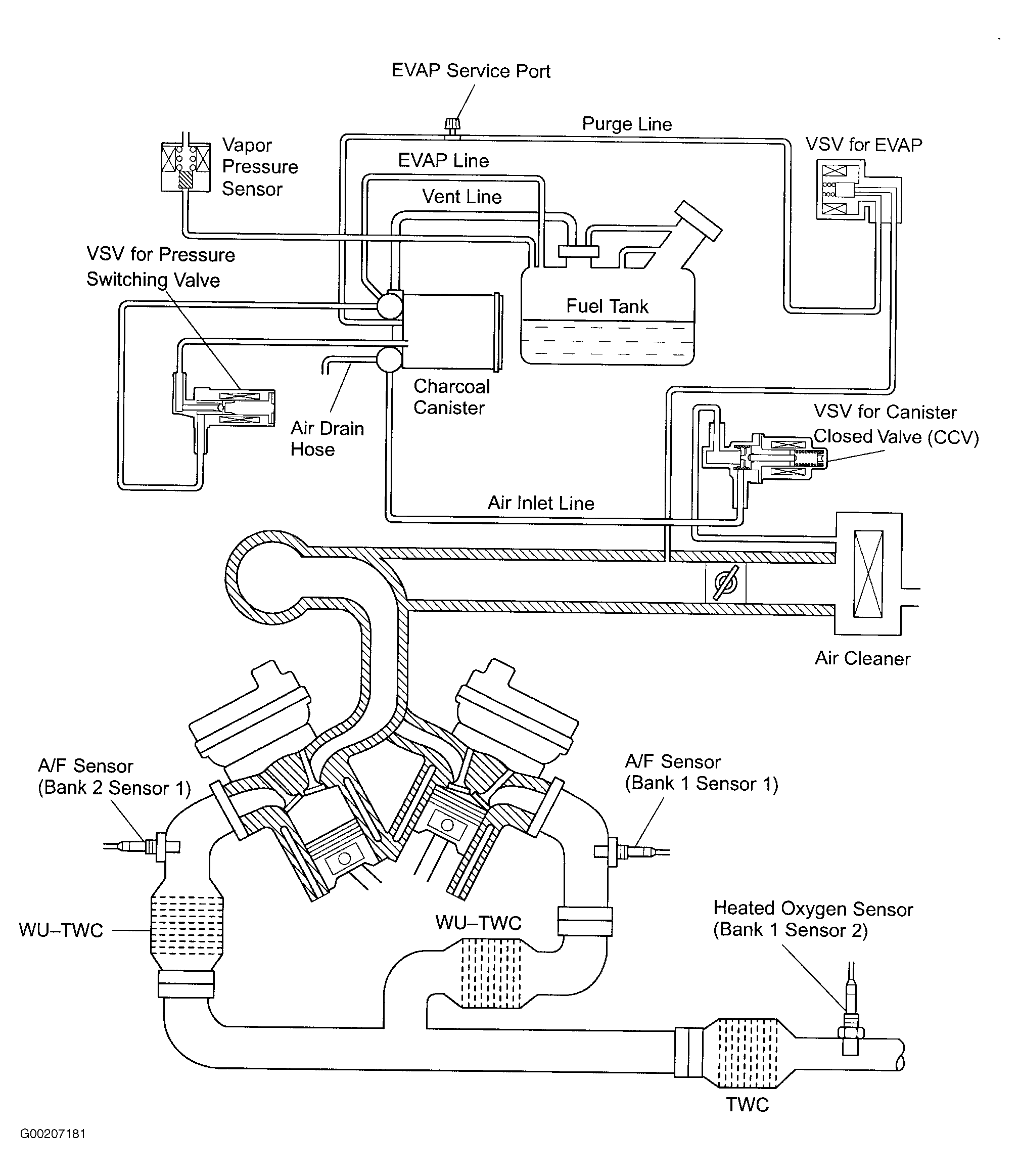

Fig 2: Vacuum Diagram (Avalon - 2 Of 2)

G00207181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

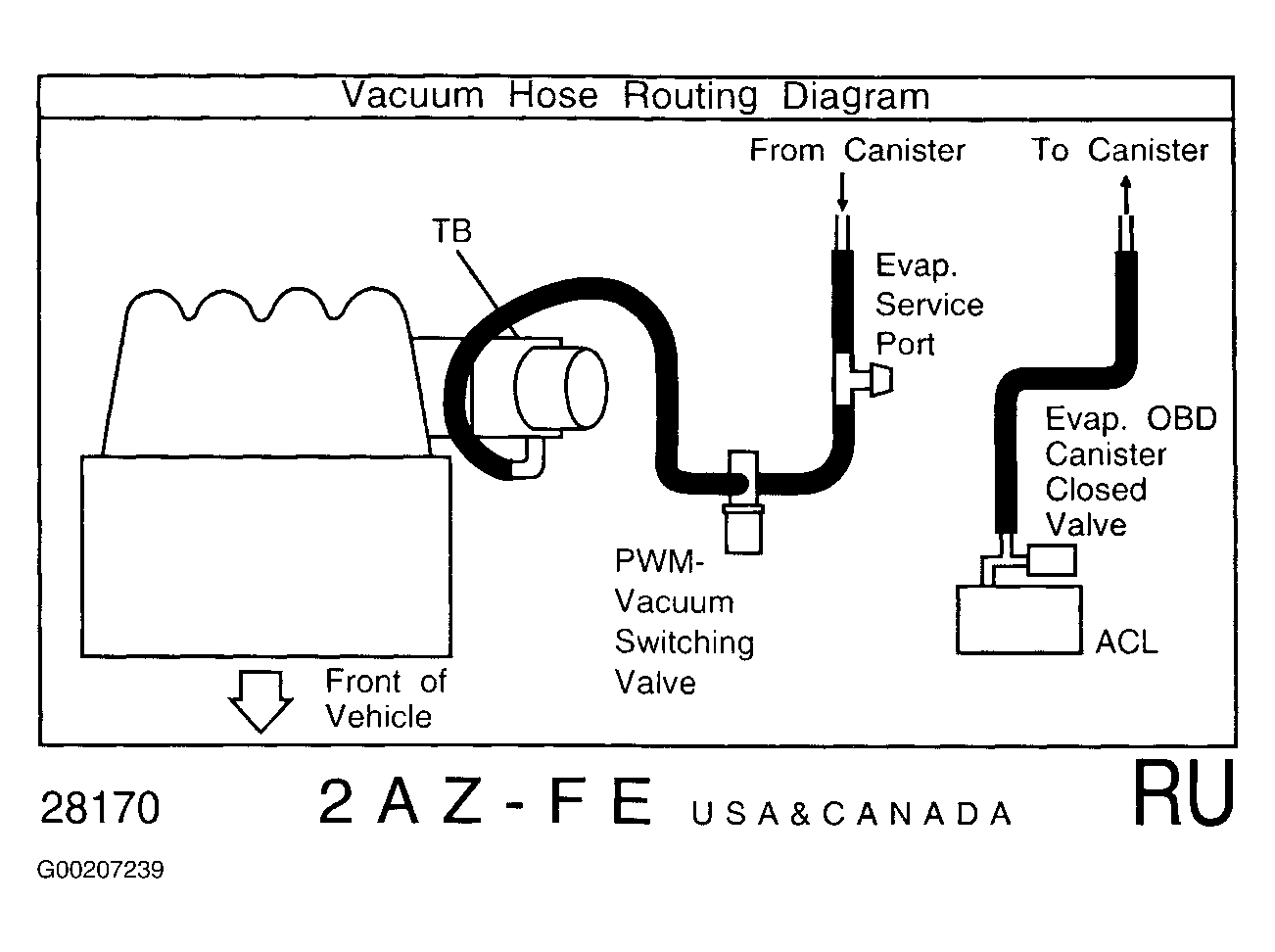

Fig 3: Vacuum Diagram (Camry 2.4L 4-Cyl. - Up To Jan. 2003 Production)

G00207239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

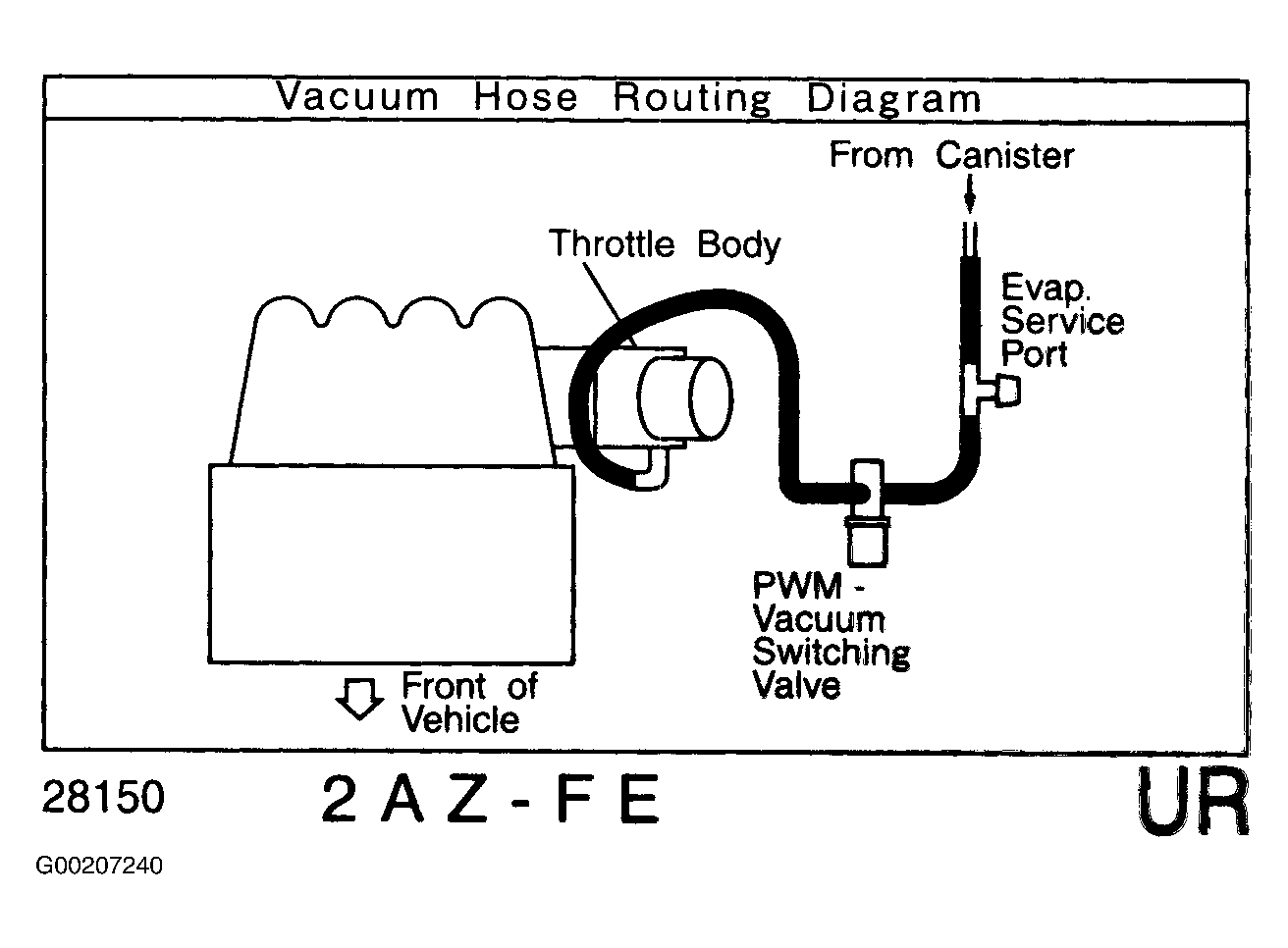

Fig 4: Vacuum Diagram (Camry 2.4L 4-Cyl. - Jan. 2003 & Later Production)

G00207240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

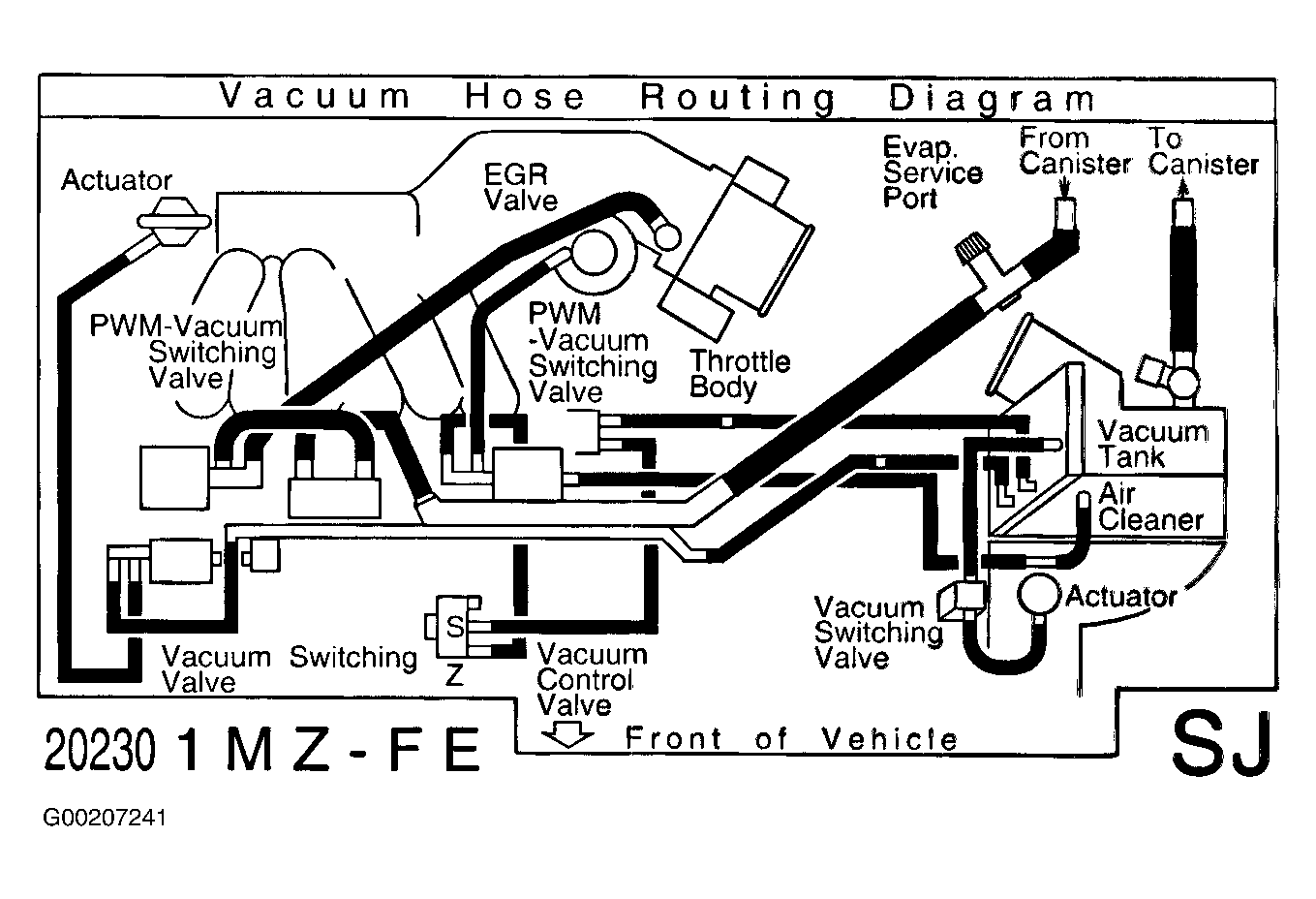

Fig 5: Vacuum Diagram (Camry 3.0L V6 - Up To Jan. 2003 Production)

G00207241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

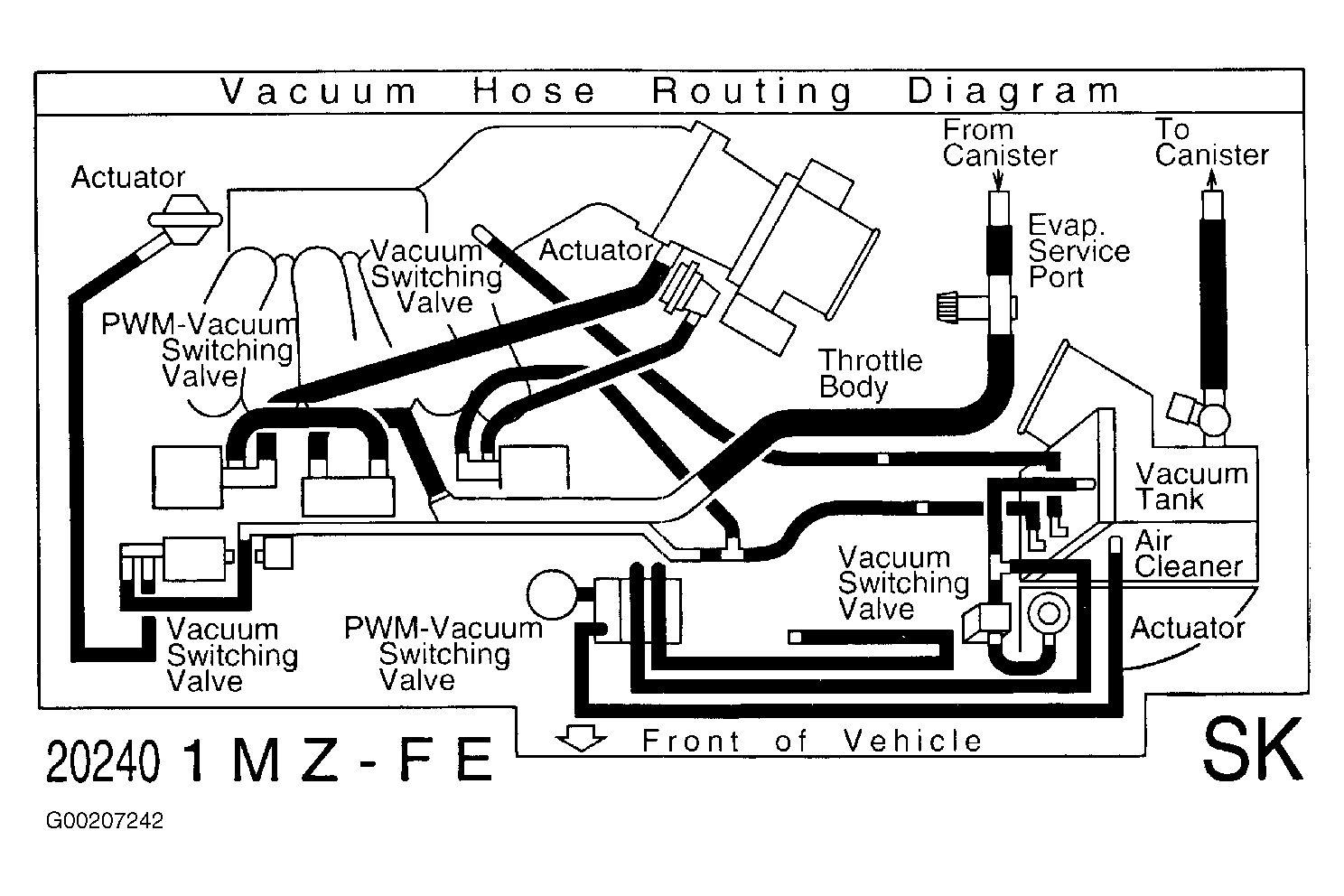

Fig 6: Vacuum Diagram (Camry 3.0L V6 - Jan. 2003 & Later Production)

G00207242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

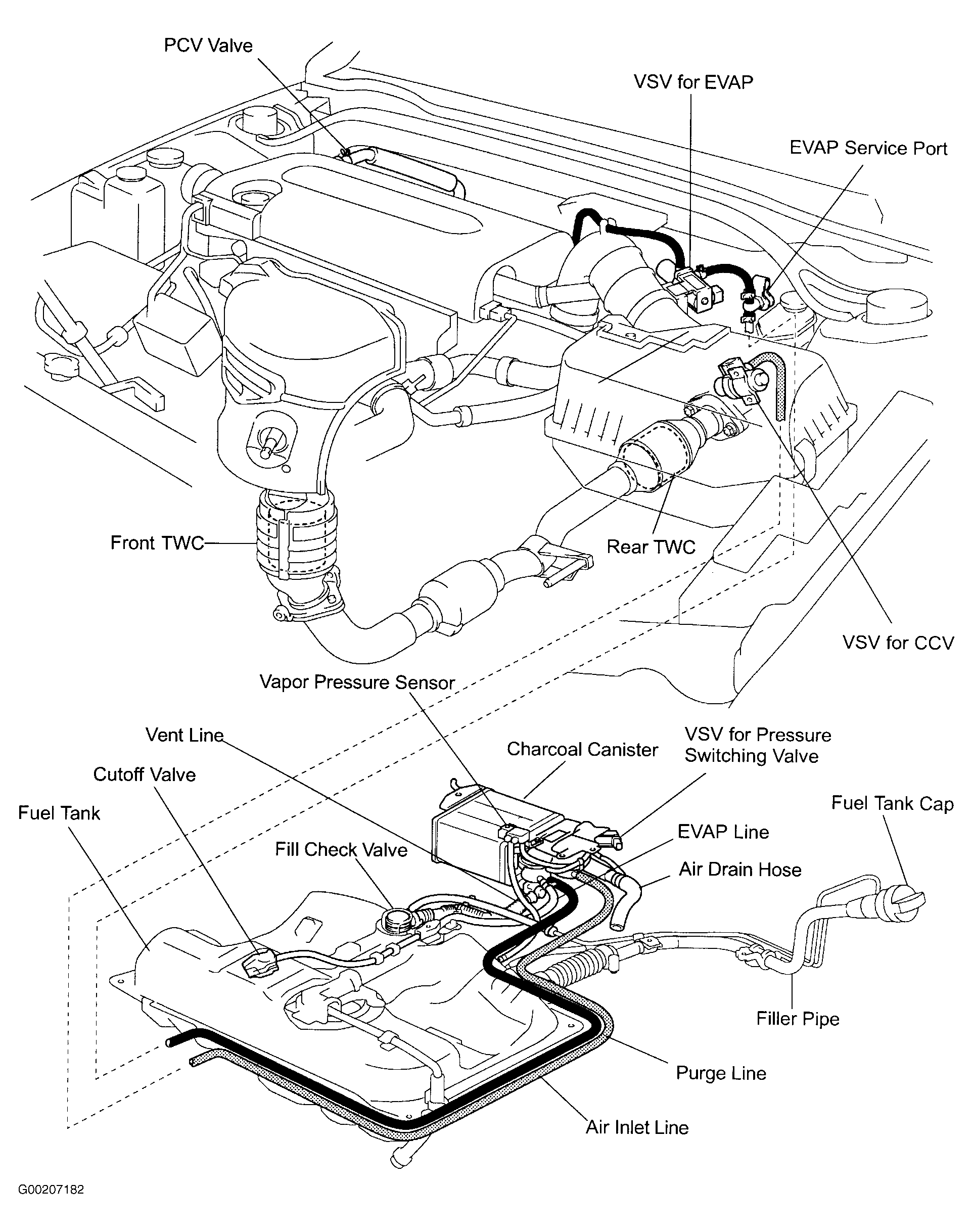

Fig 7: Vacuum Diagram (Camry Solara 2.4L 4-Cyl. - 1 Of 2)

G00207182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

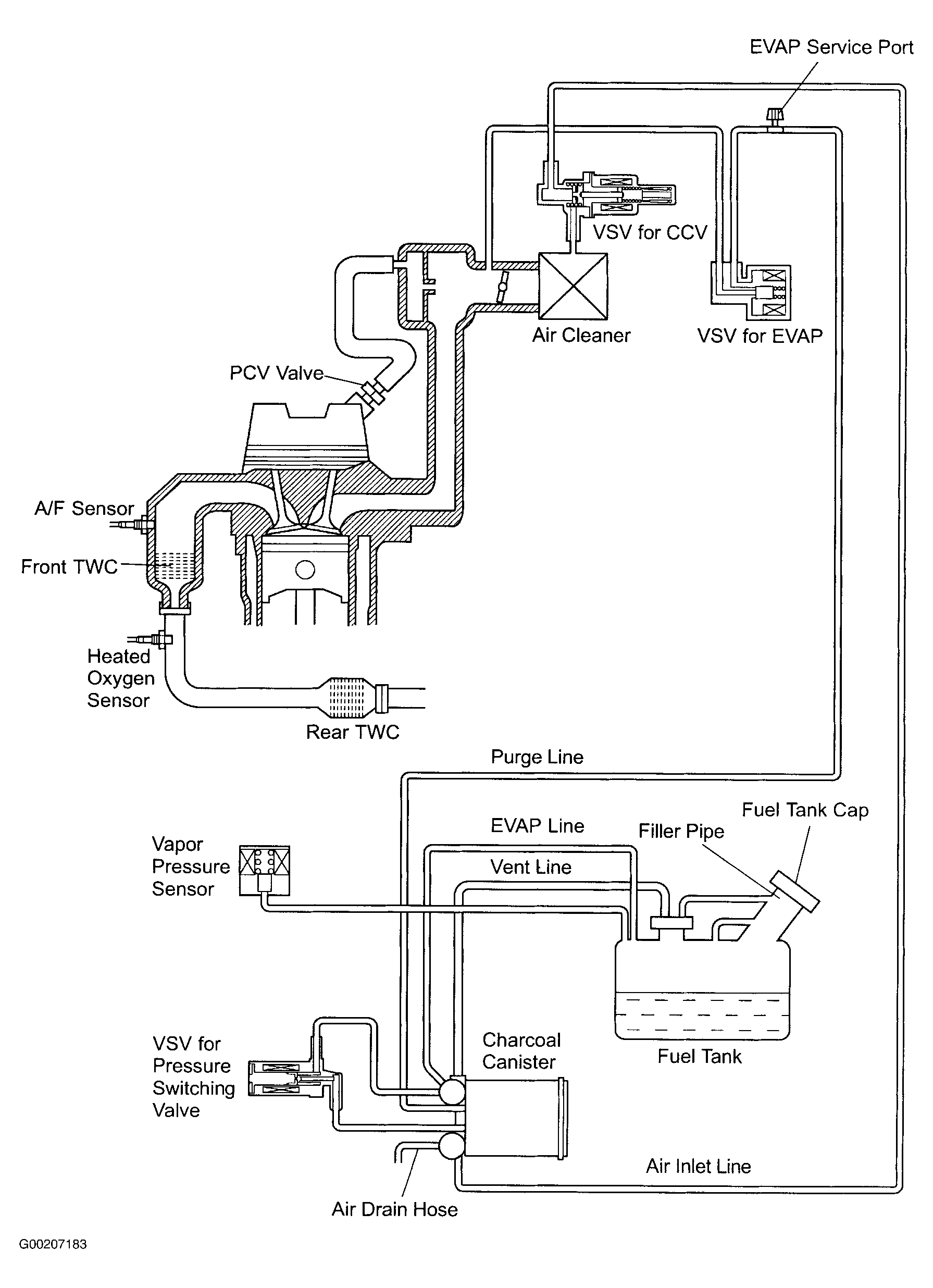

Fig 8: Vacuum Diagram (Camry Solara 2.4L 4-Cyl. - 2 Of 2)

G00207183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

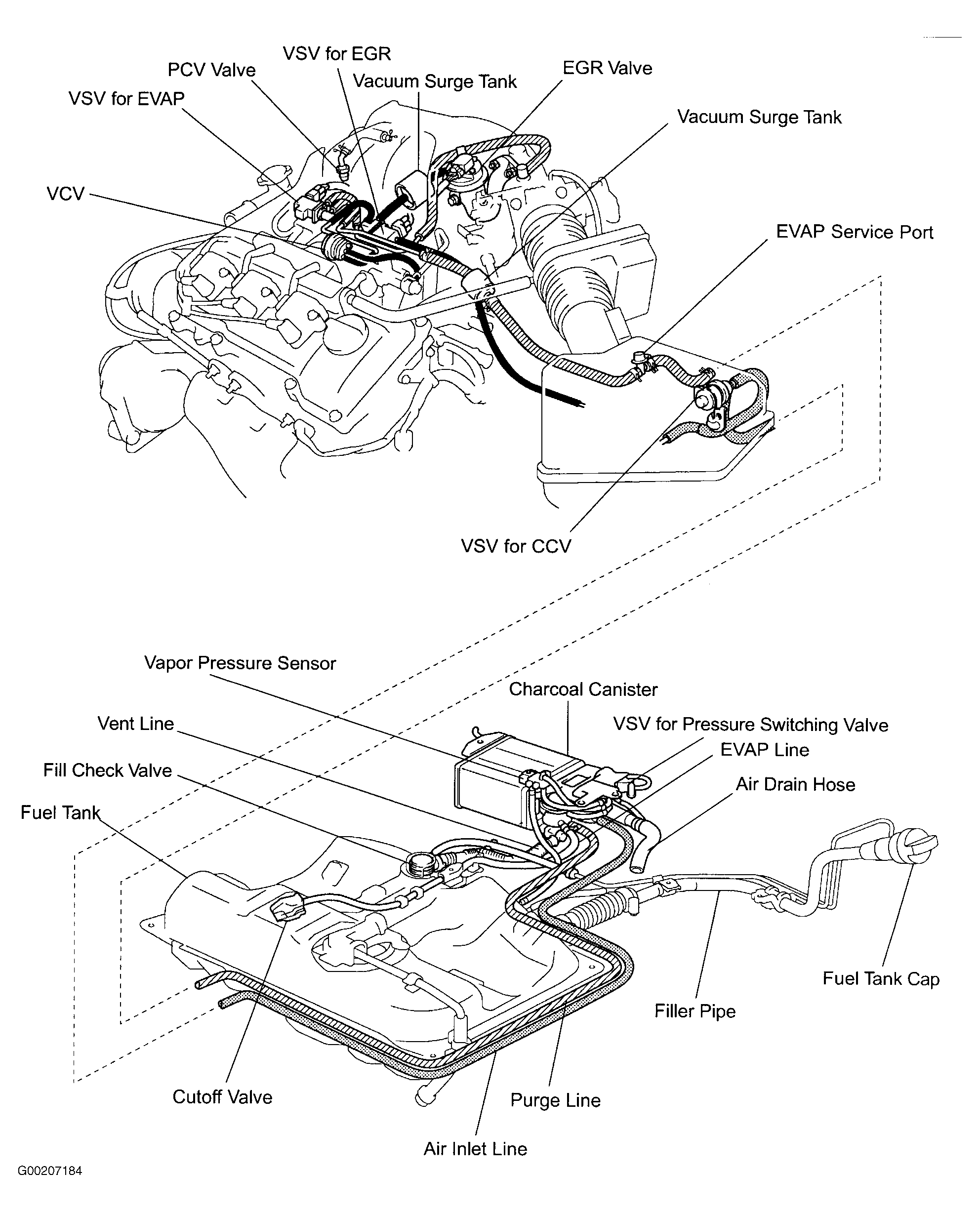

Fig 9: Vacuum Diagram (Camry Solara 3.0L V6 - 1 Of 2)

G00207184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

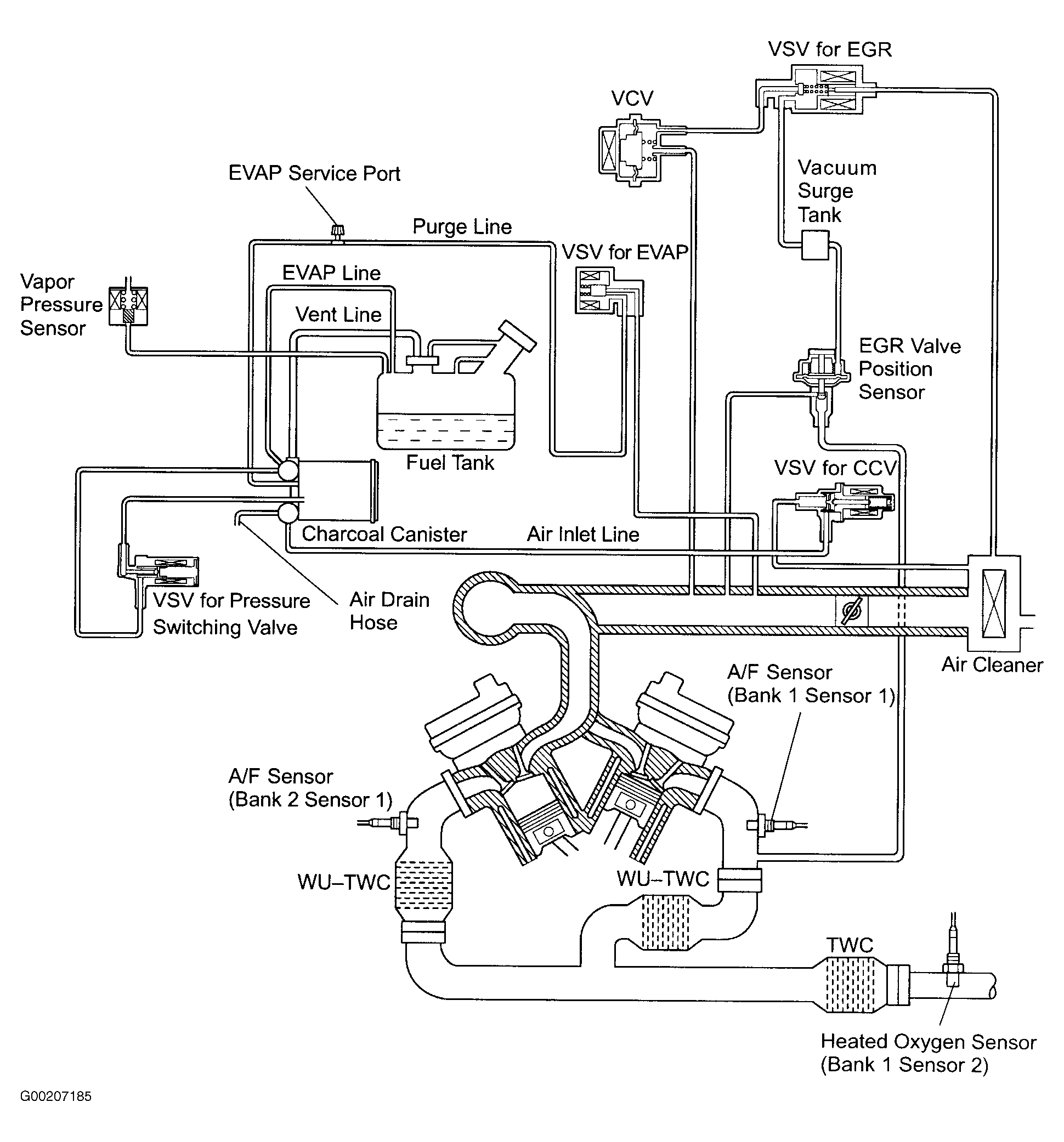

Fig 10: Vacuum Diagram (Camry Solara 3.0L V6 - 2 Of 2)

G00207185

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

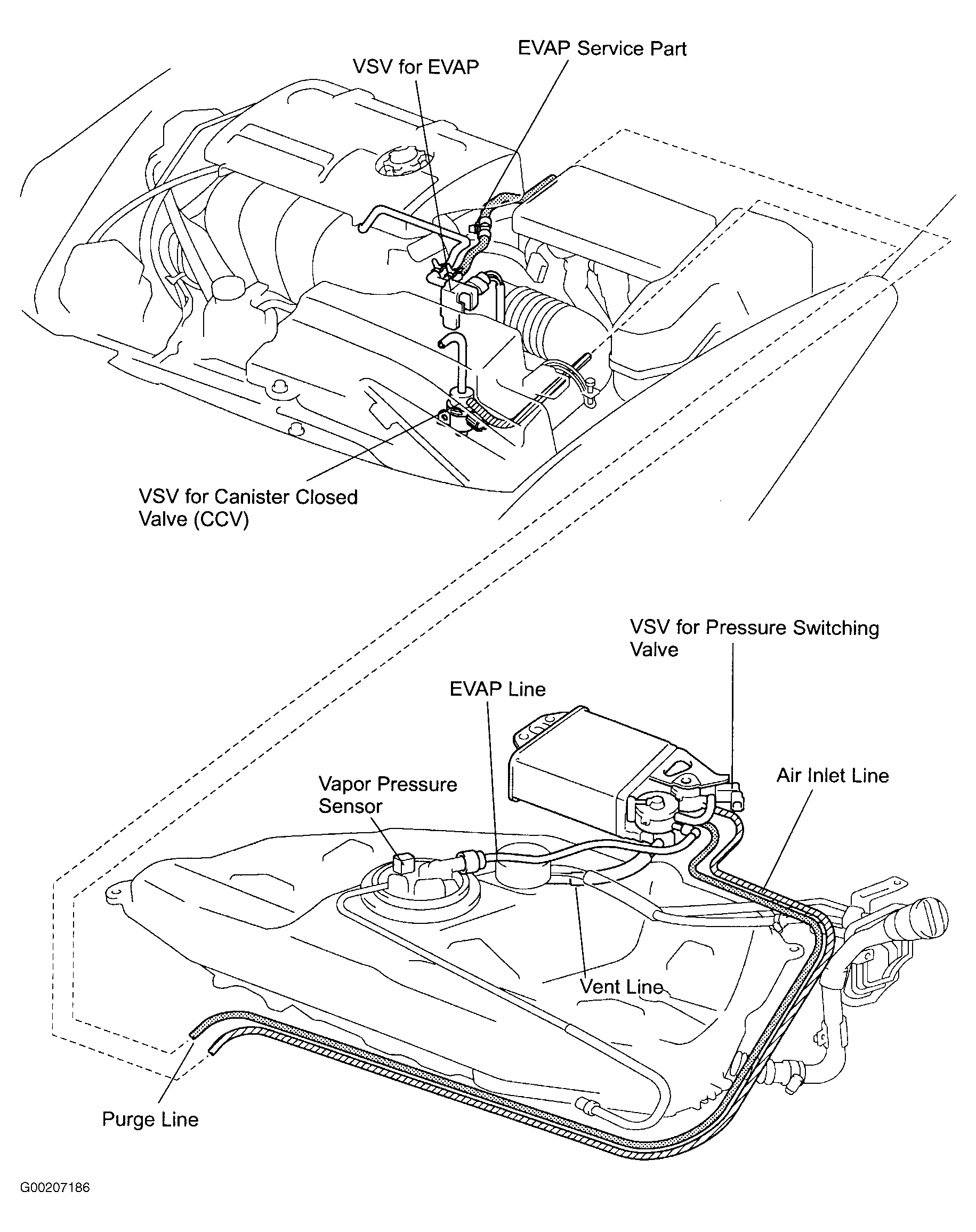

Fig 11: Vacuum Diagram (Celica - 1 Of 2)

G00207186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

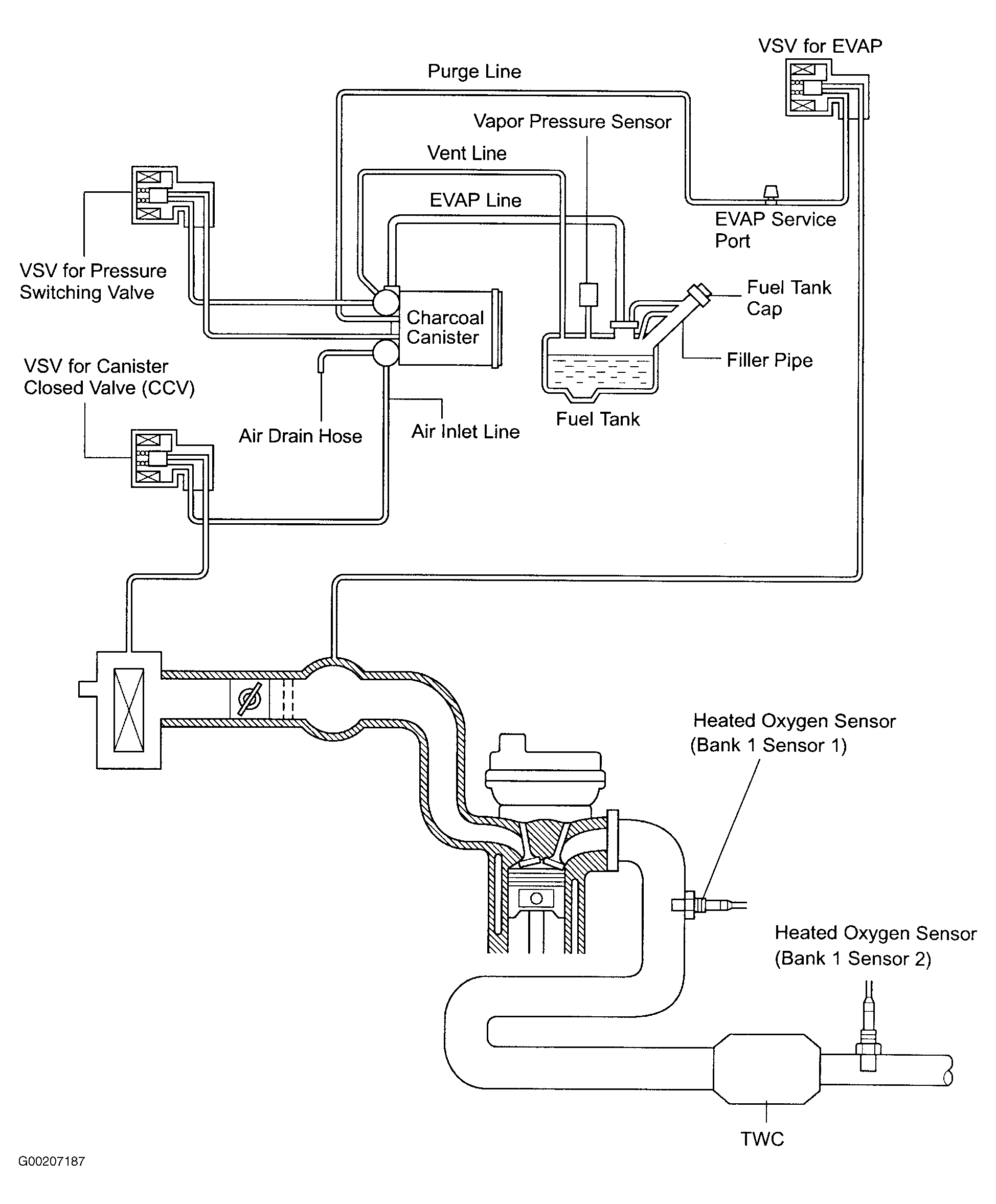

Fig 12: Vacuum Diagram (Celica - 2 Of 2)

G00207187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

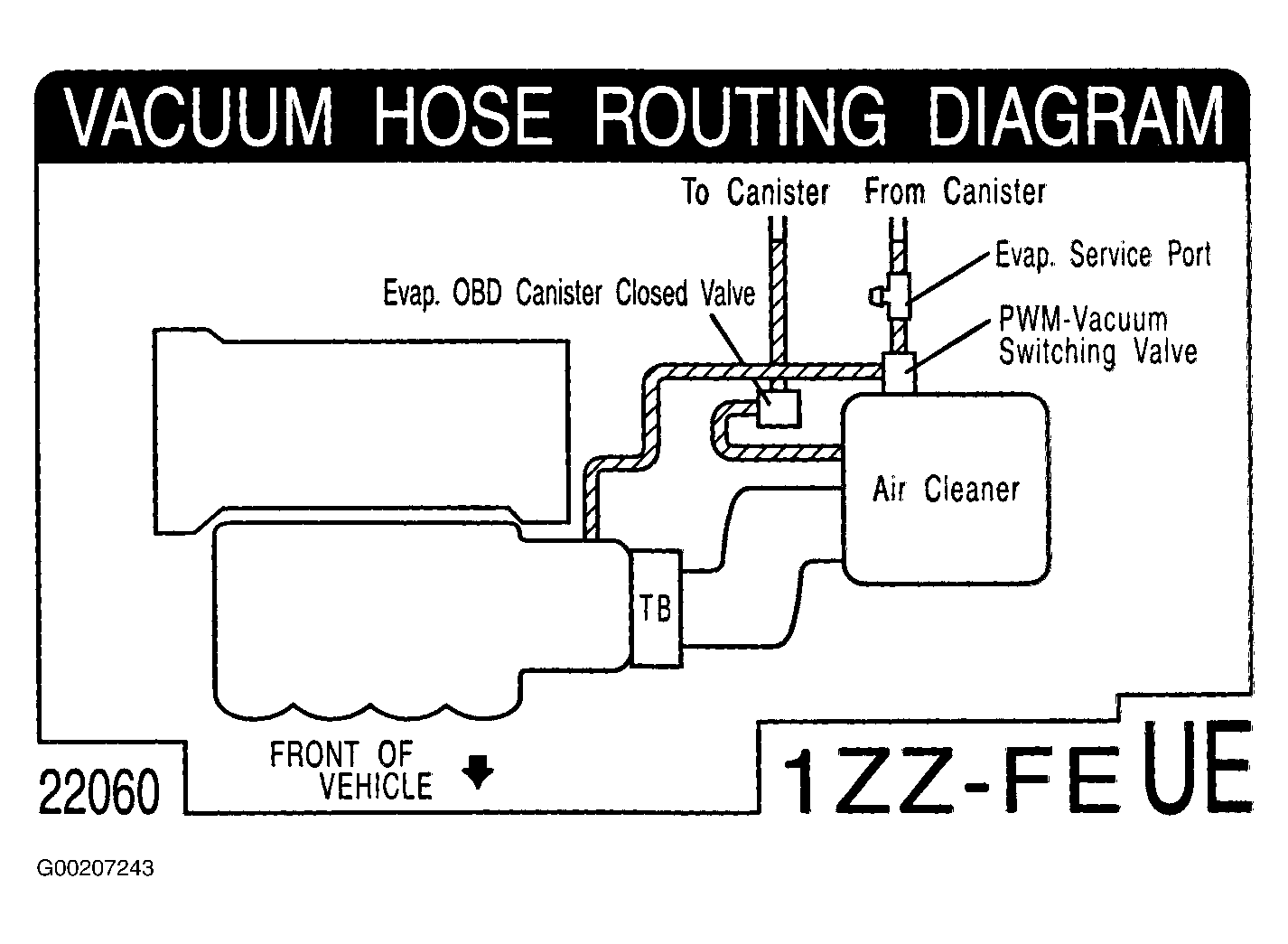

Fig 13: Vacuum Diagram (Corolla 1.8L 4-Cyl. & Matrix 1.8L 4-Cyl.) - 1ZZ-FE Engine

G00207243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

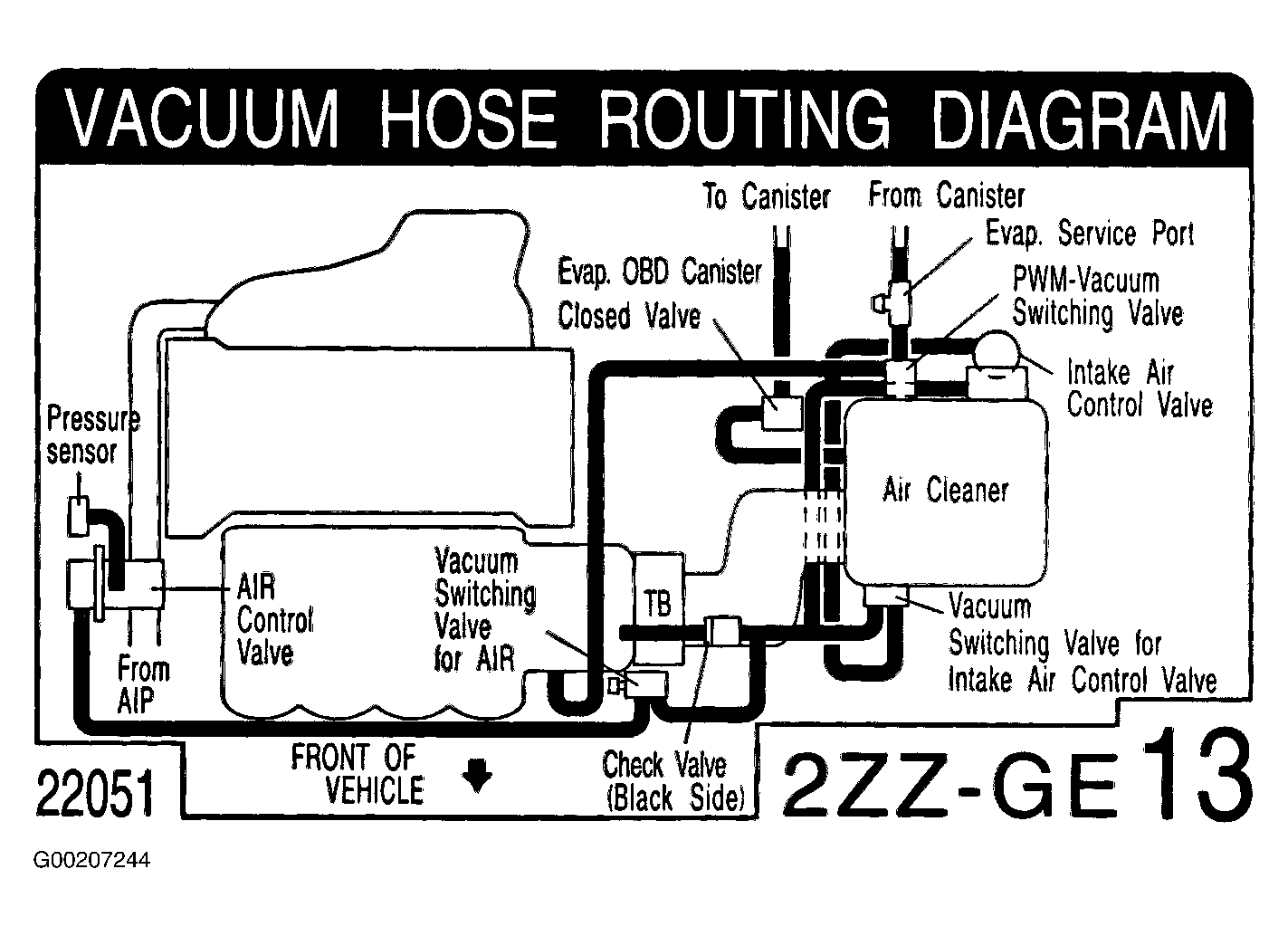

Fig 14: Vacuum Diagram (Corolla 1.8L 4-Cyl. & Matrix 1.8L 4-Cyl.) - 2ZZ-GE Engine

G00207244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

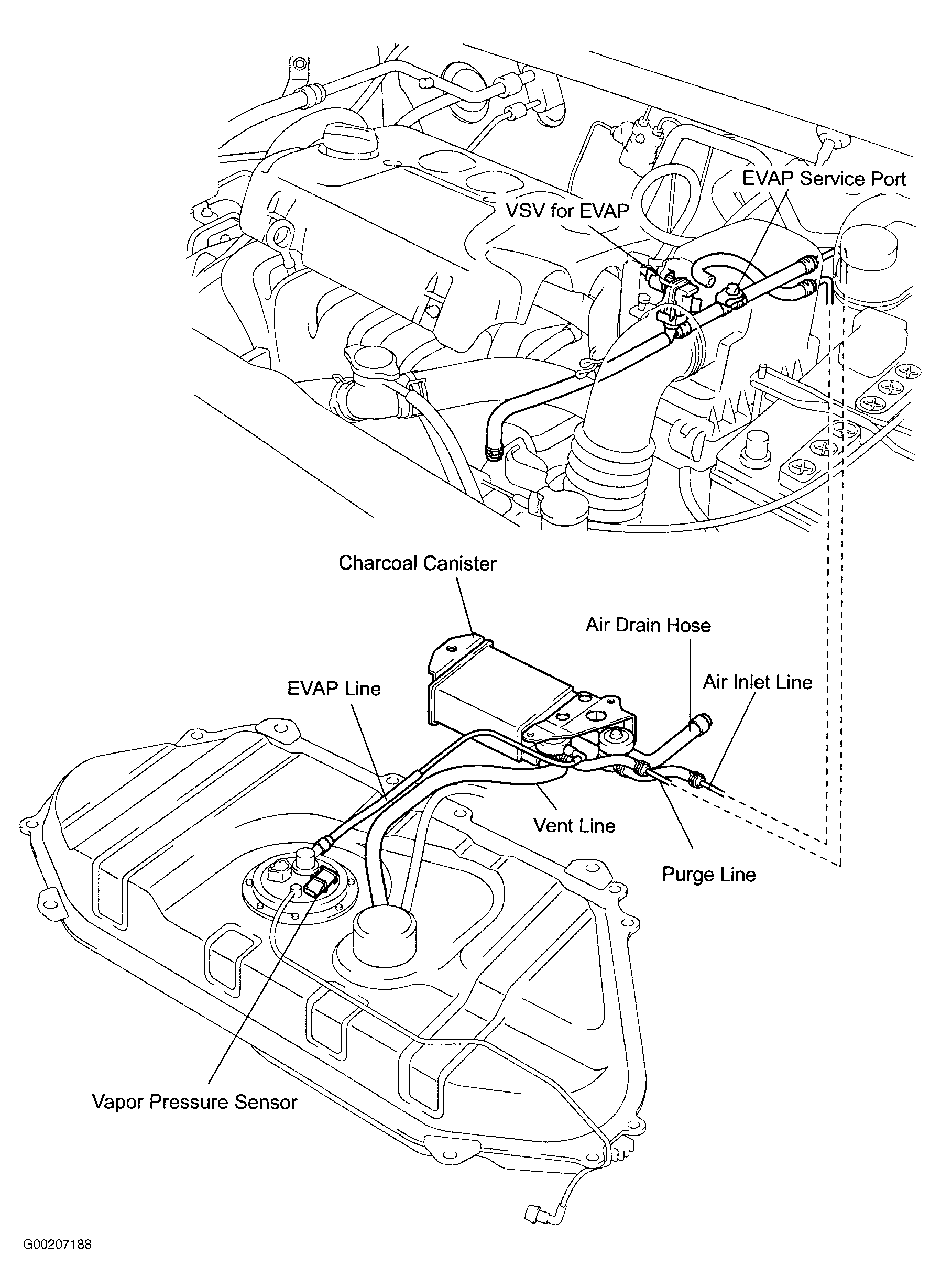

Fig 15: Vacuum Diagram (ECHO - 1 Of 2)

G00207188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

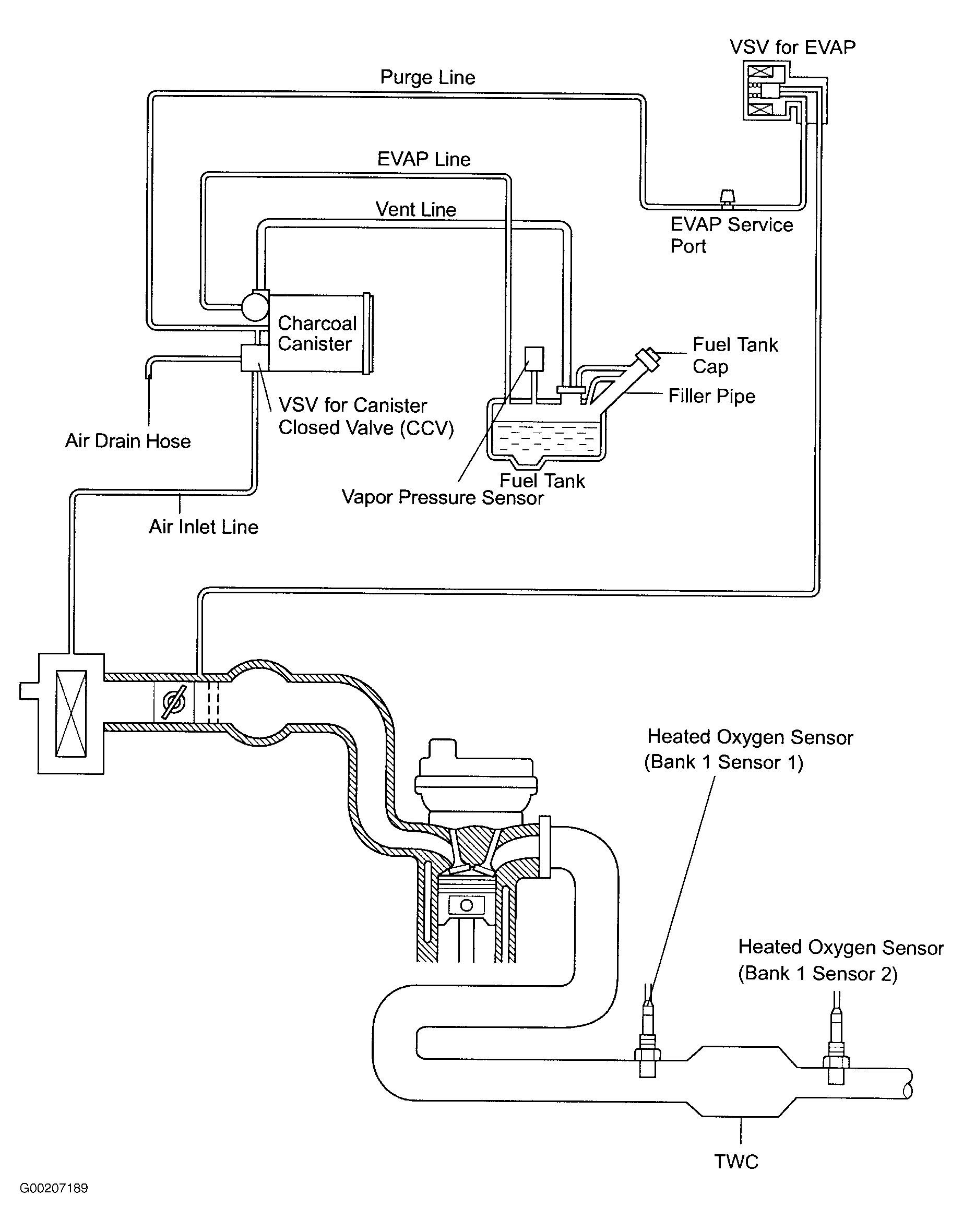

Fig 16: Vacuum Diagram (ECHO - 2 Of 2)

G00207189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

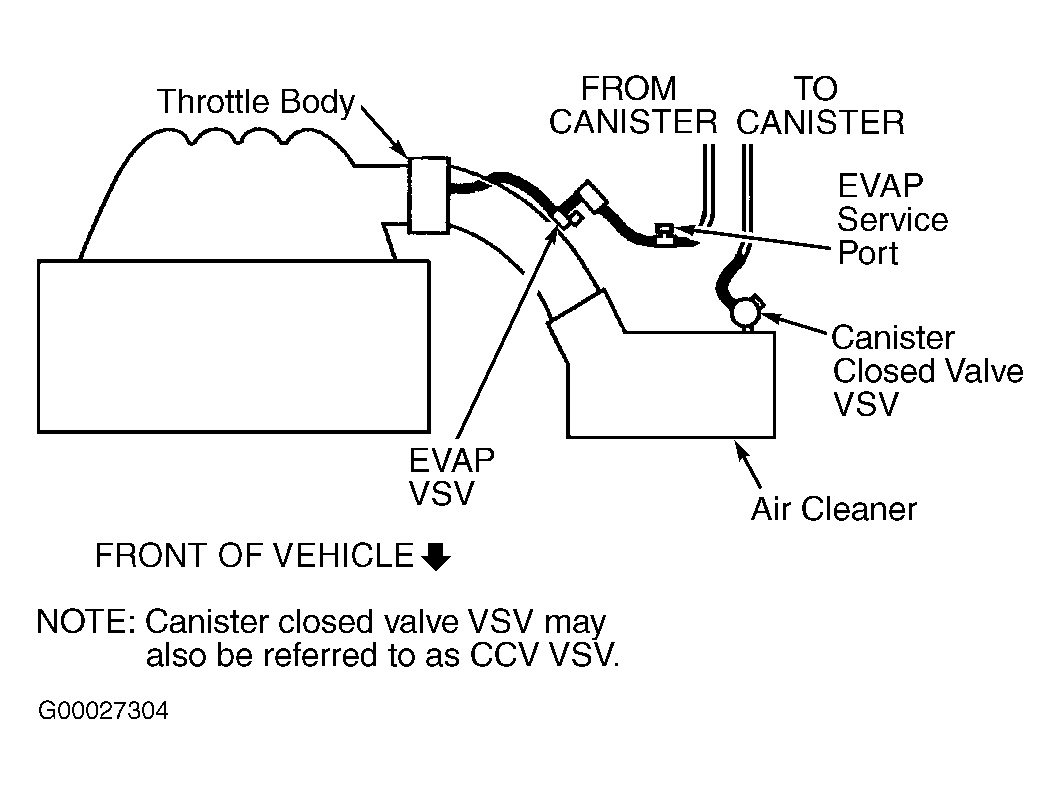

Fig 17: Vacuum Diagram (Highlander 2.4L 4-Cyl.)

G00027304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

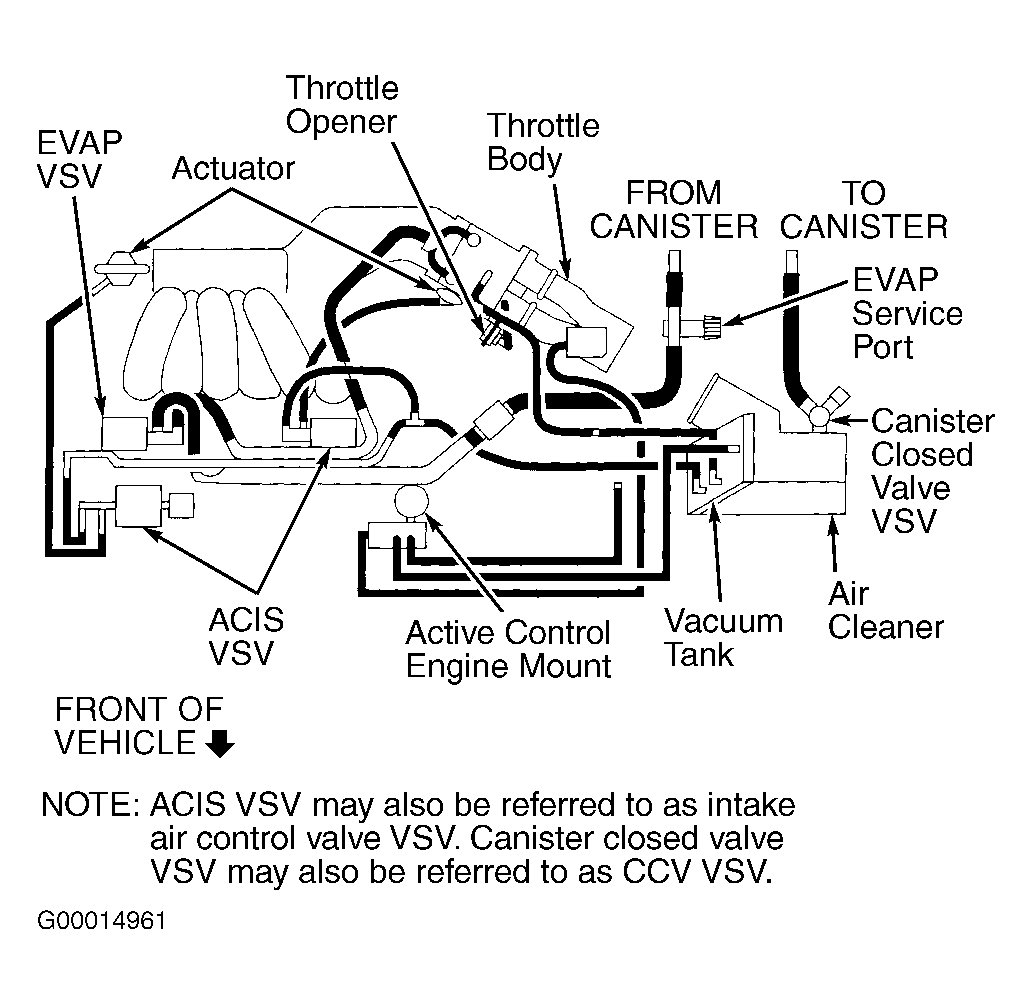

Fig 18: Vacuum Diagram (Highlander 3.0L V6)

G00014961

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

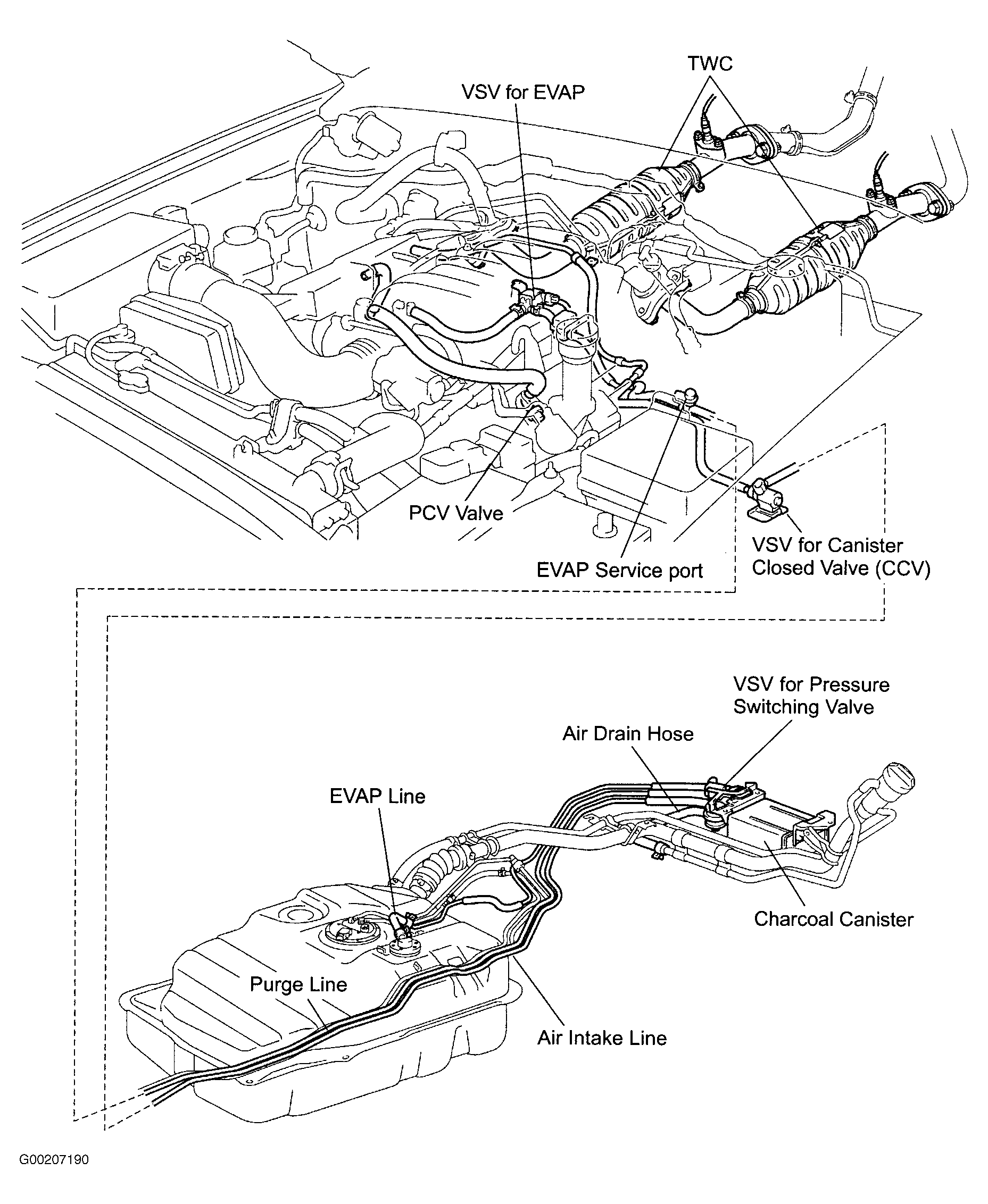

Fig 19: Vacuum Diagram (Land Cruiser - 1 Of 2)

G00207190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

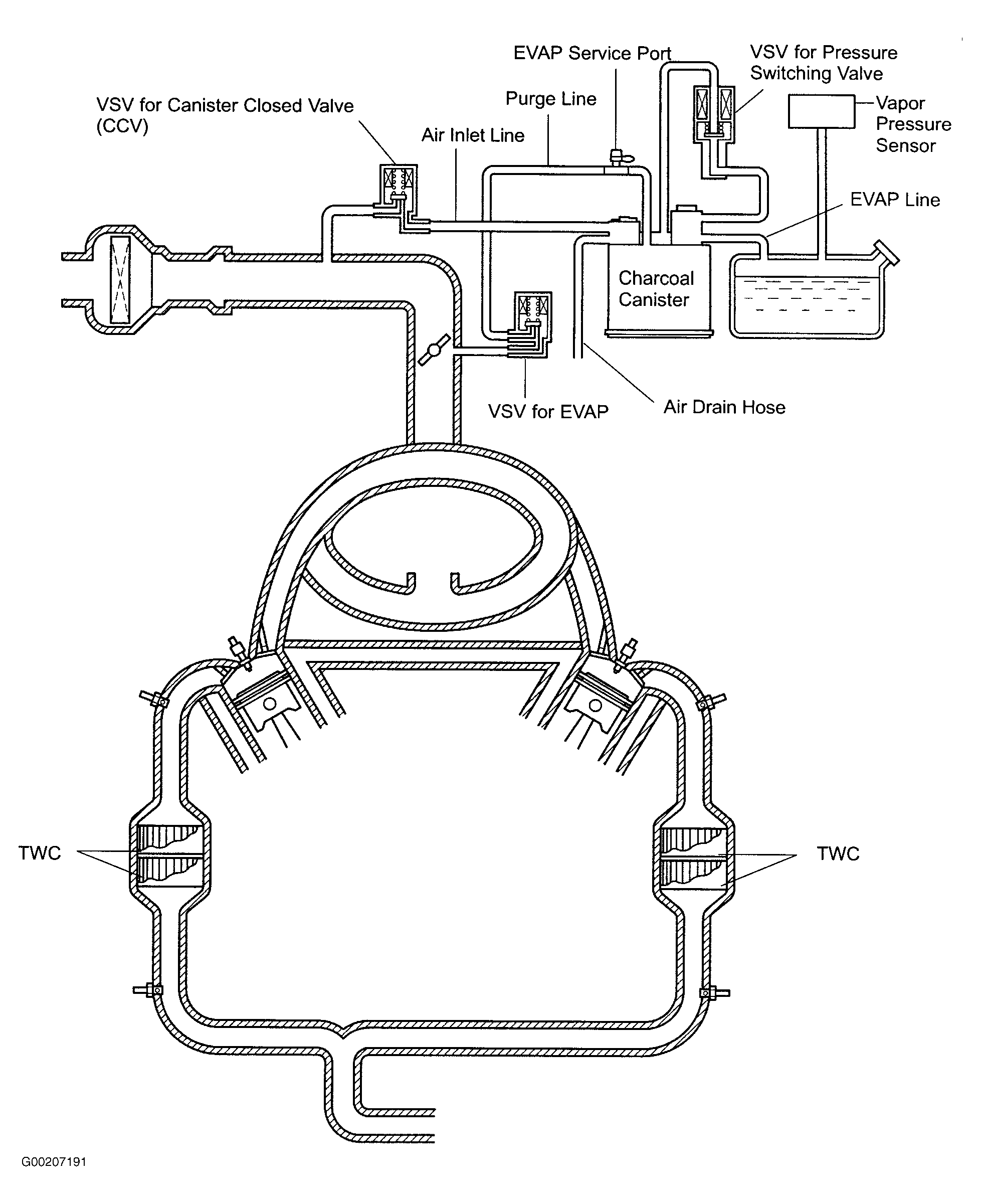

Fig 20: Vacuum Diagram (Land Cruiser - 2 Of 2)

G00207191

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

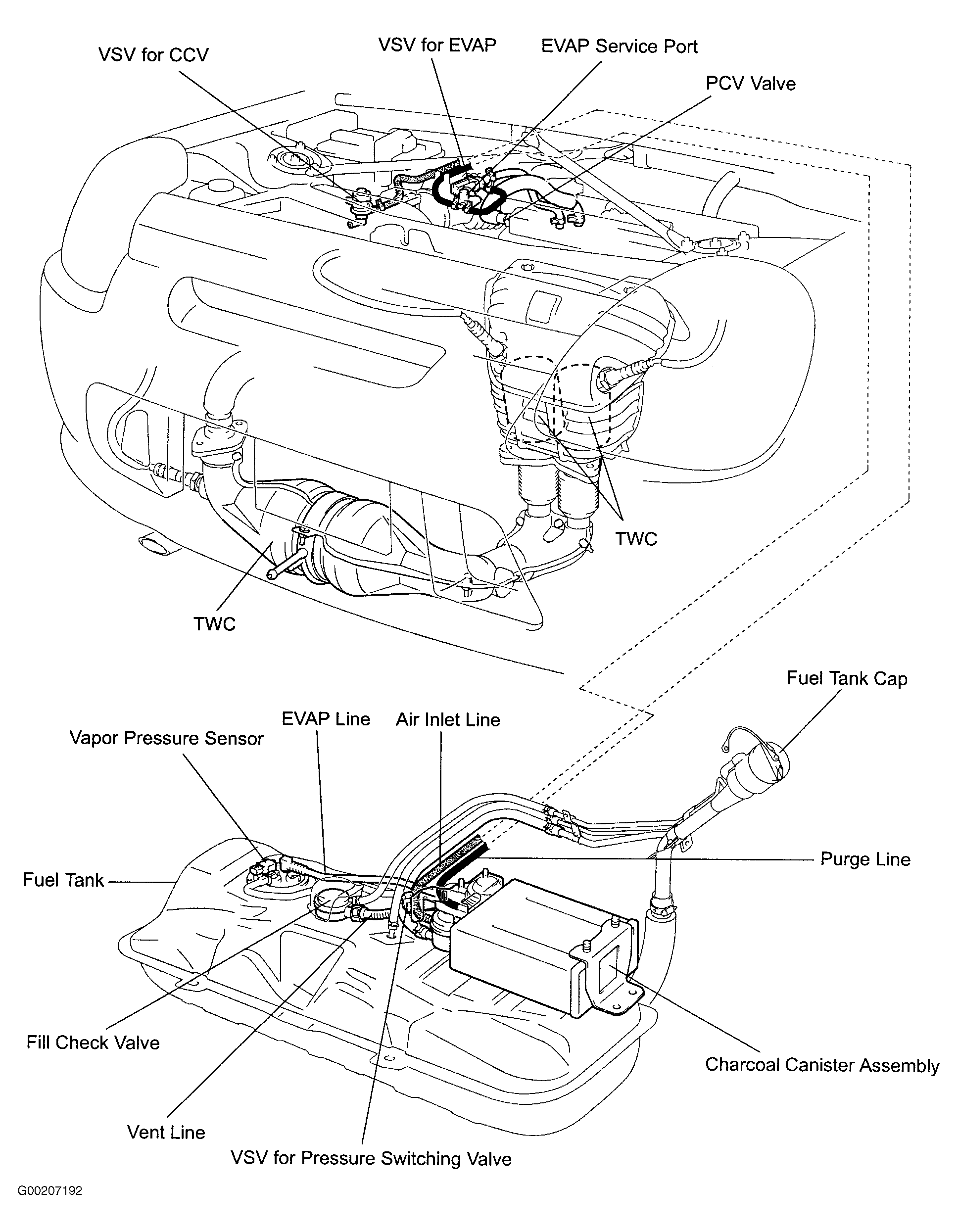

Fig 21: Vacuum Diagram (MR2 - 1 Of 2)

G00207192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

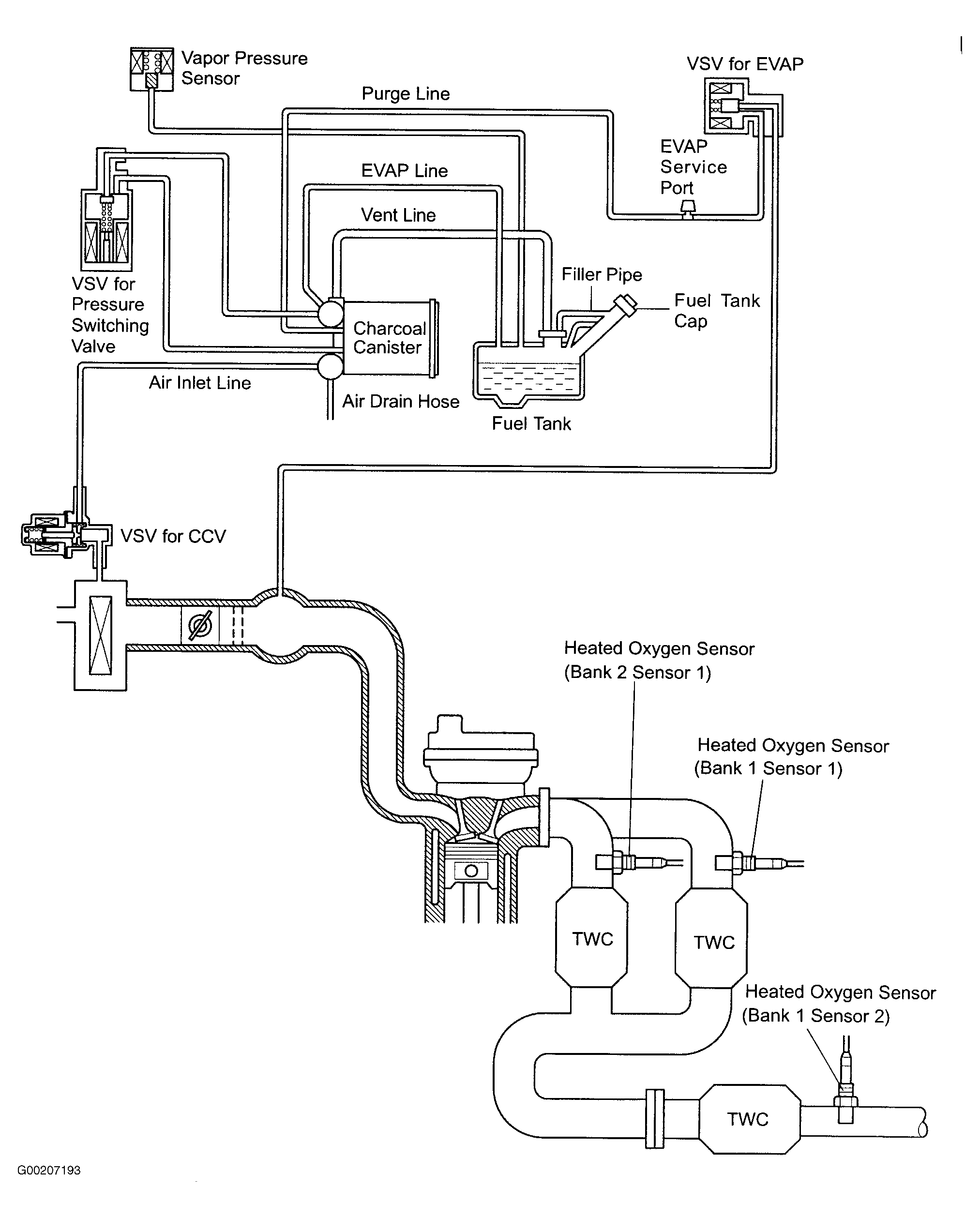

Fig 22: Vacuum Diagram (MR2 - 2 Of 2)

G00207193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

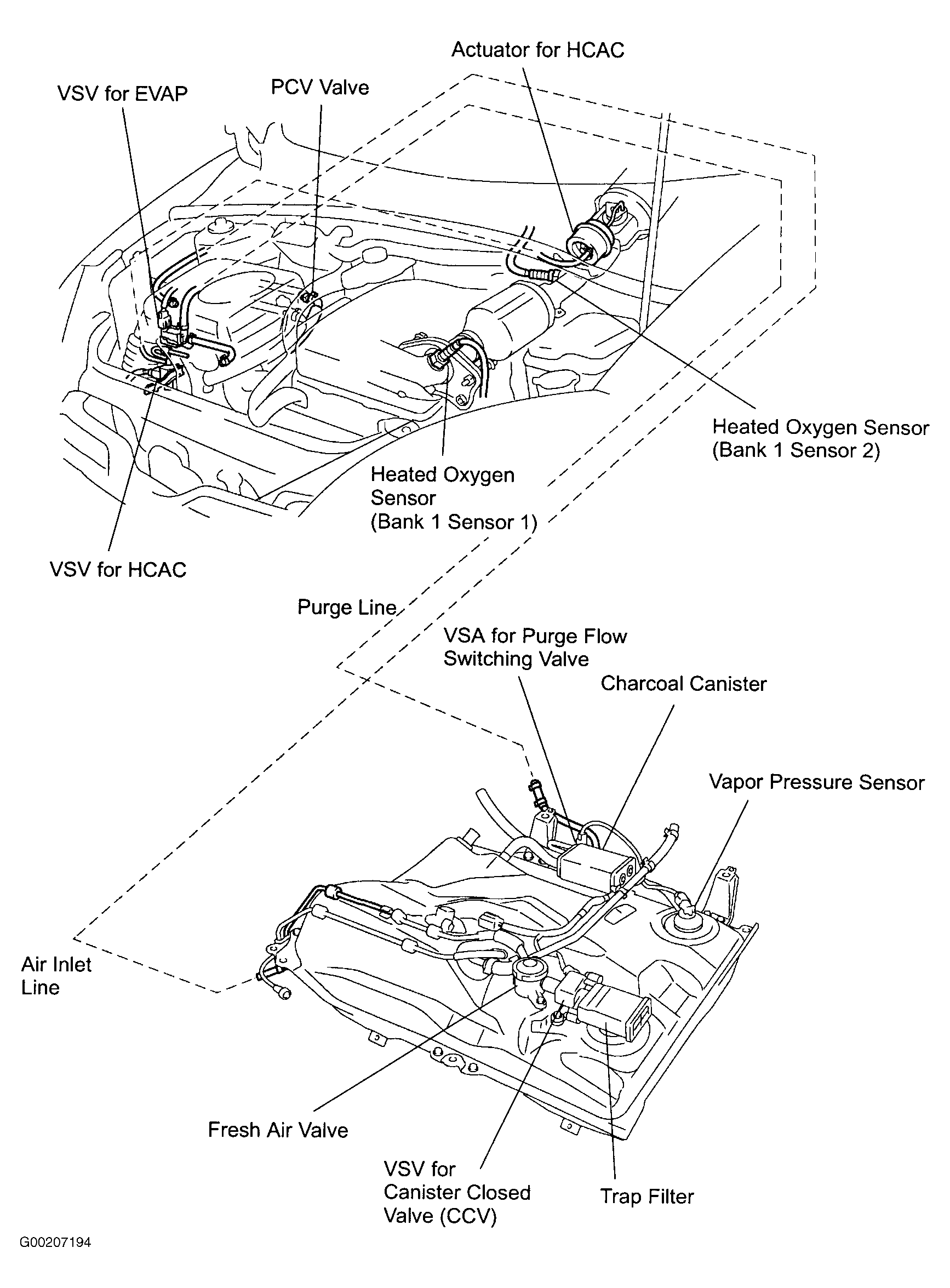

Fig 23: Vacuum Diagram (Prius - 1 Of 3)

G00207194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

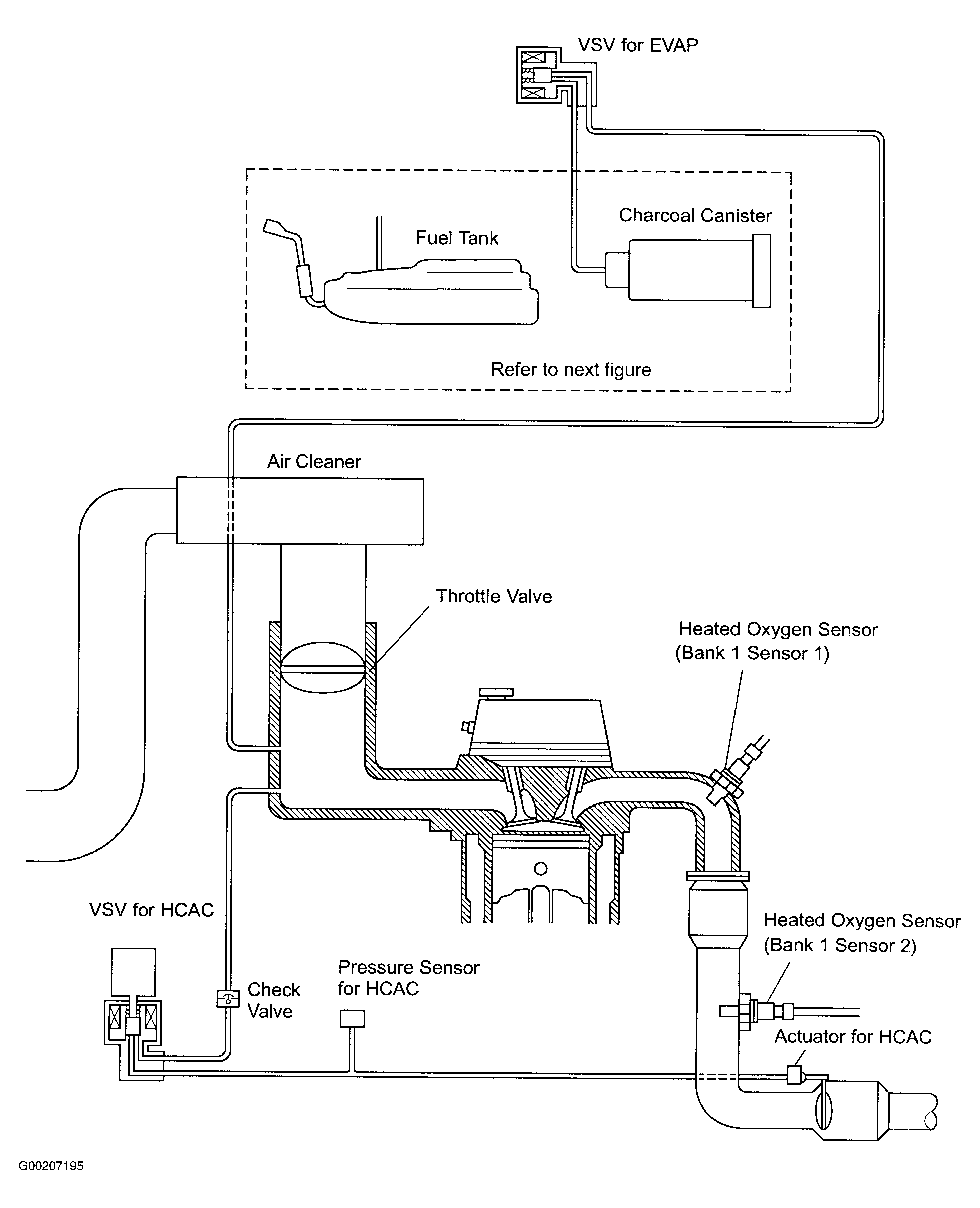

Fig 24: Vacuum Diagram (Prius - 2 Of 3)

G00207195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

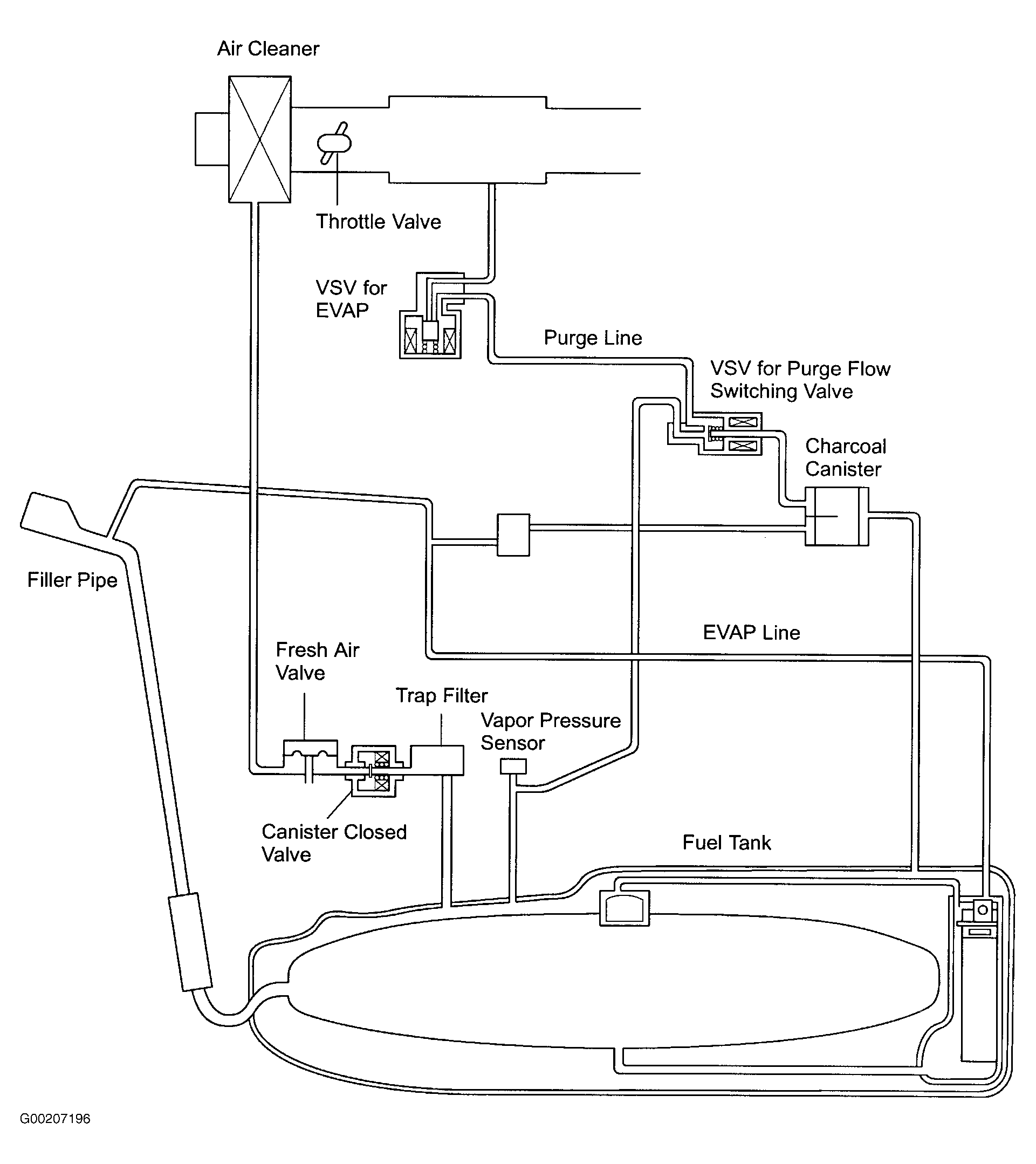

Fig 25: Vacuum Diagram (Prius - 3 Of 3)

G00207196

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

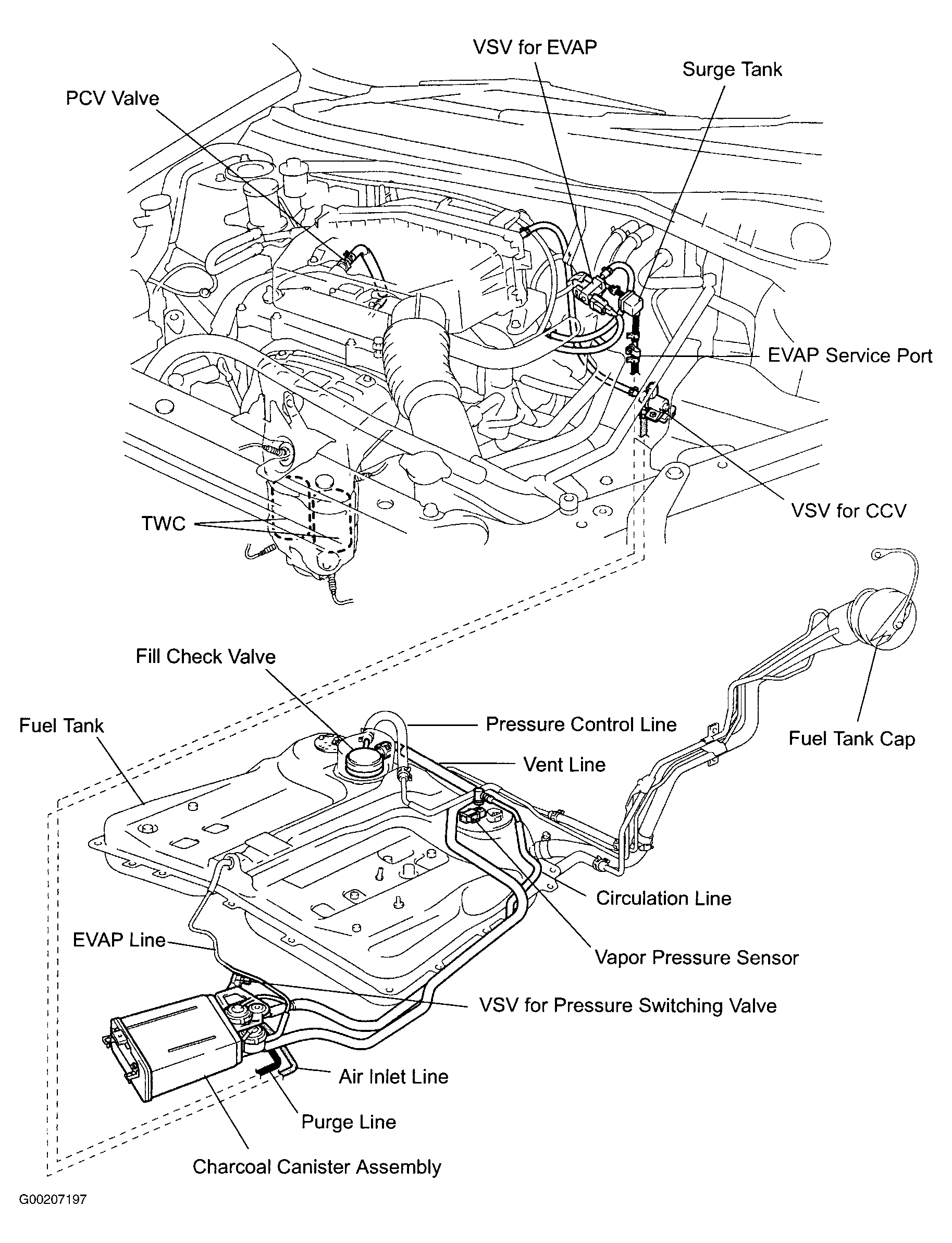

Fig 26: Vacuum Diagram (RAV4 - 1 Of 2)

G00207197

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

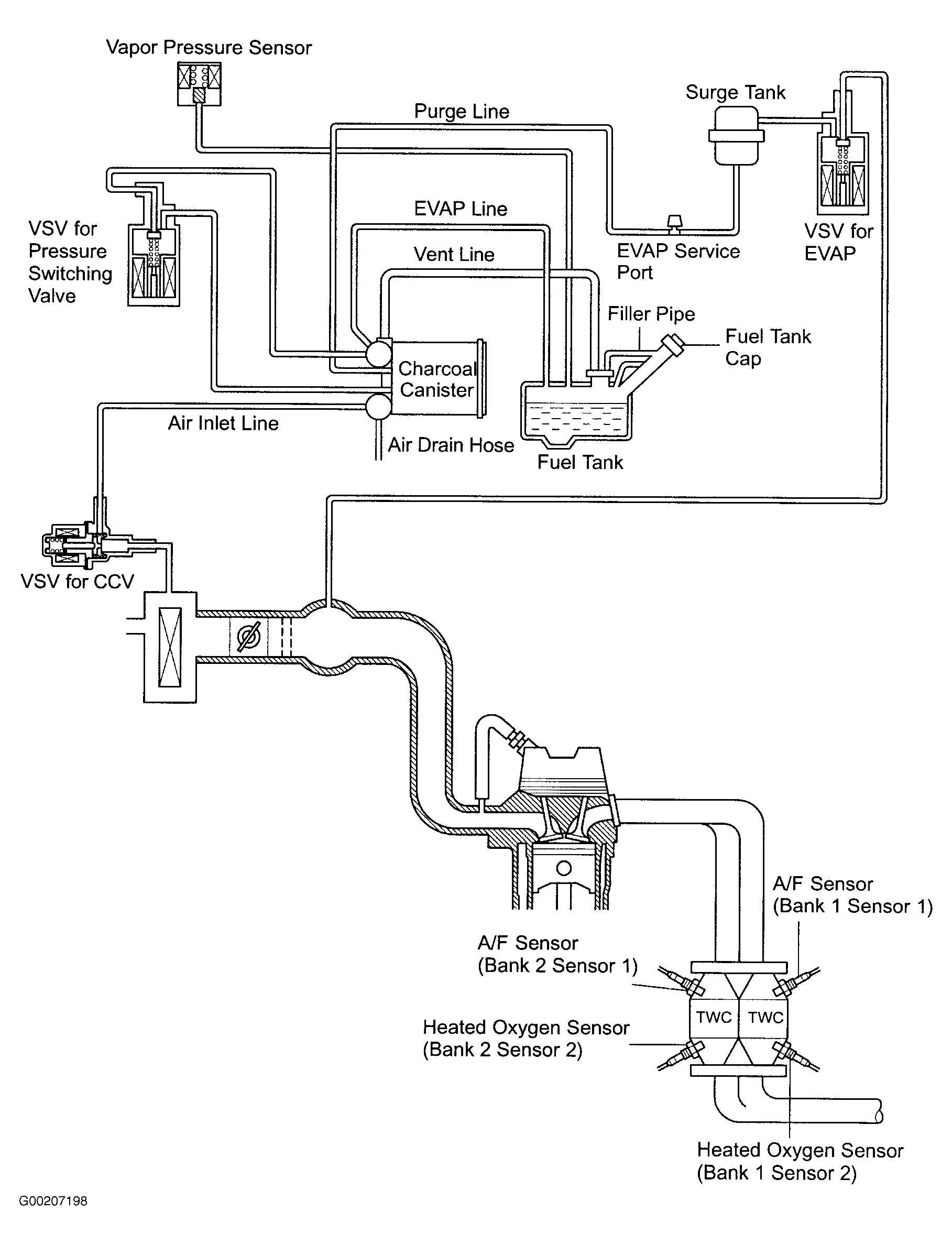

Fig 27: Vacuum Diagram (RAV4 - 2 Of 2)

G00207198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

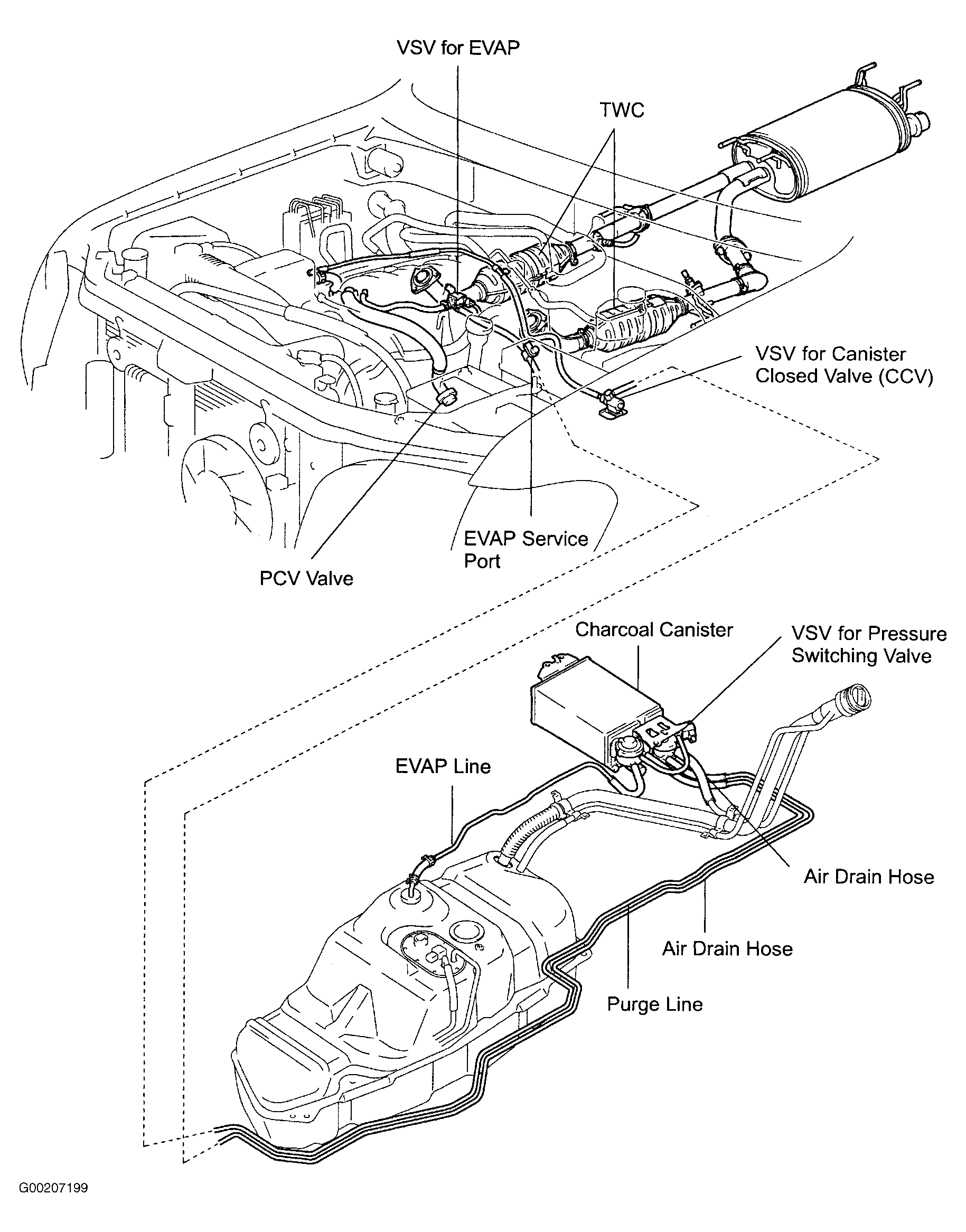

Fig 28: Vacuum Diagram (Sequoia - 1 Of 2)

G00207199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

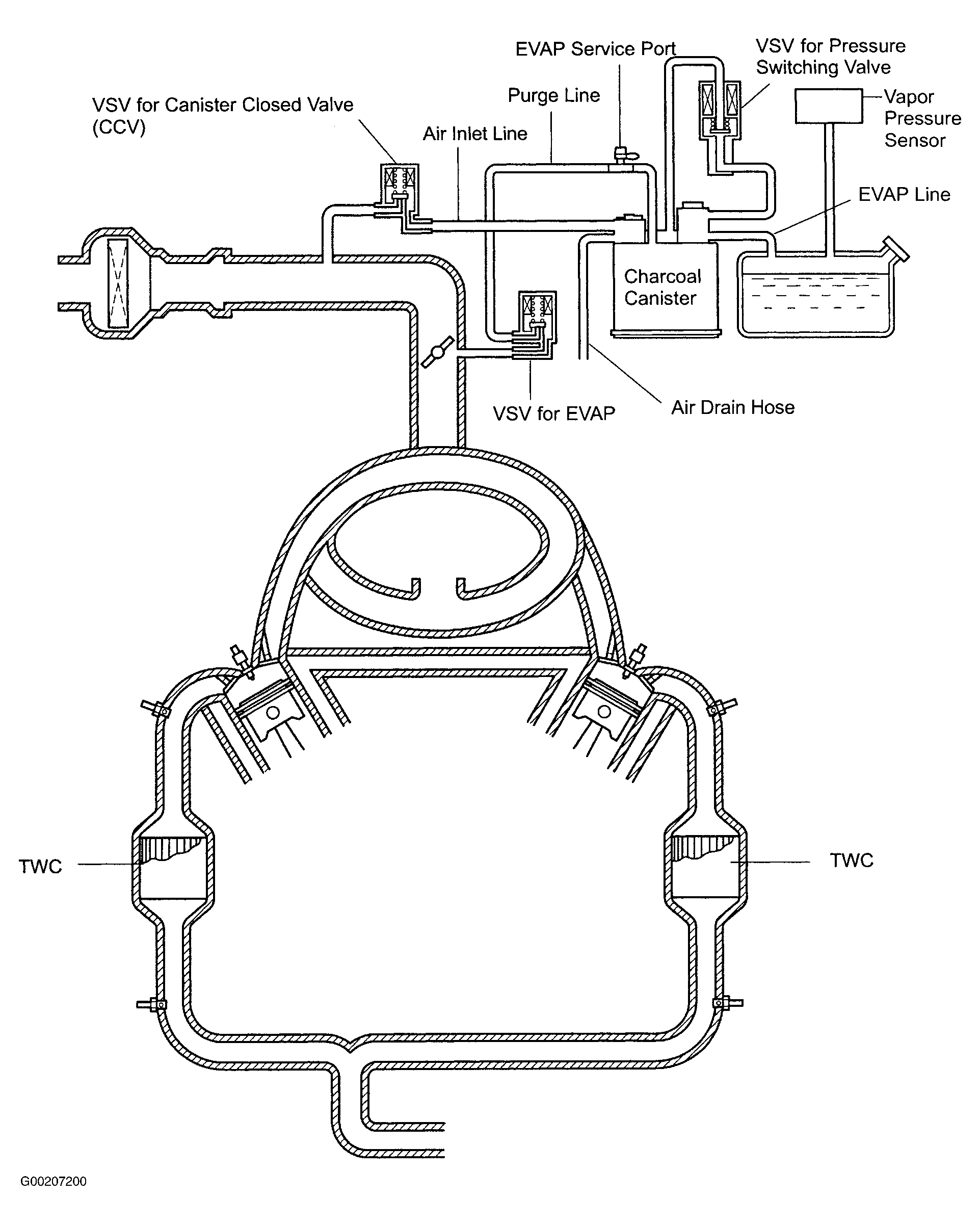

Fig 29: Vacuum Diagram (Sequoia - 2 Of 2)

G00207200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

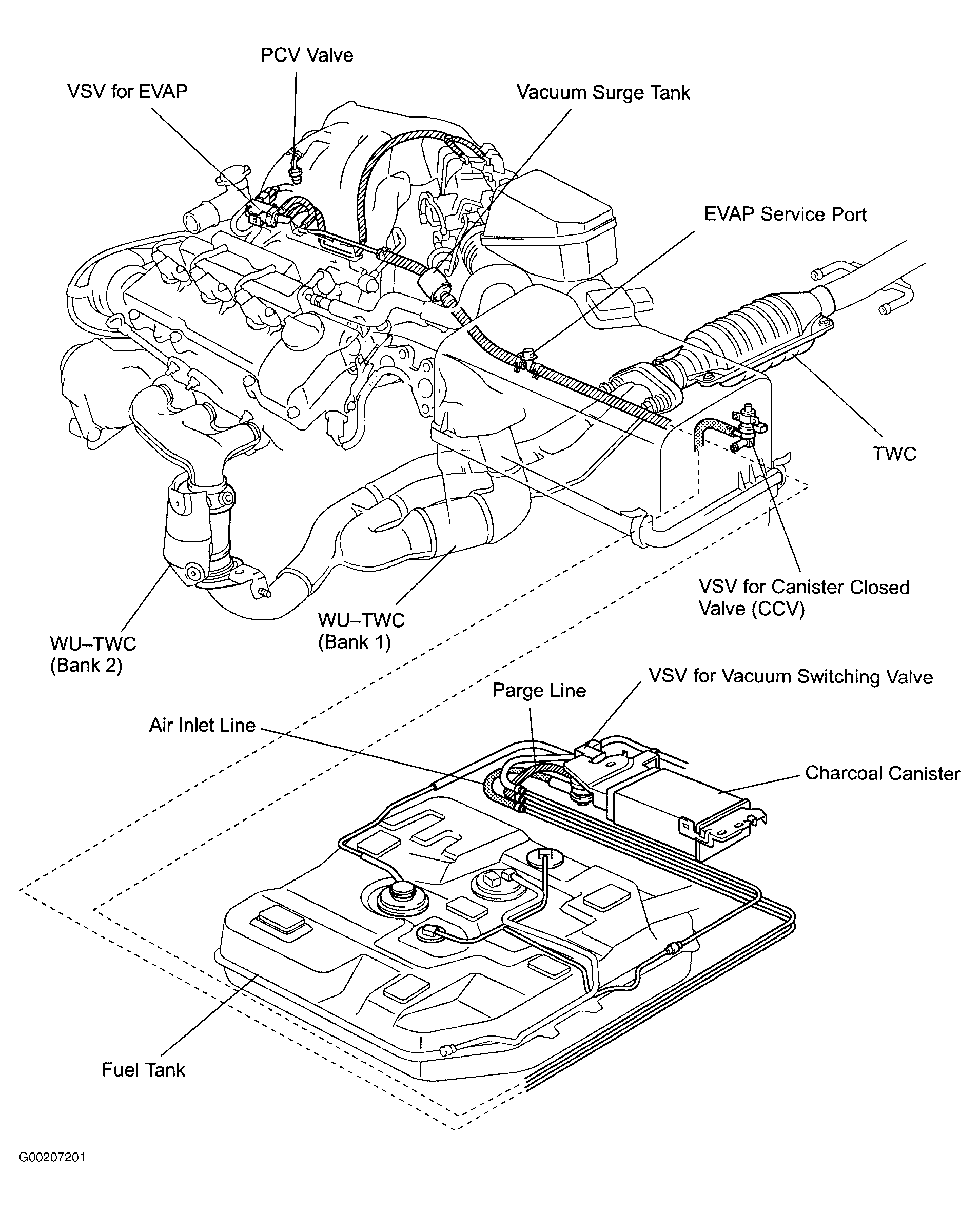

Fig 30: Vacuum Diagram (Sienna - 1 Of 2)

G00207201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

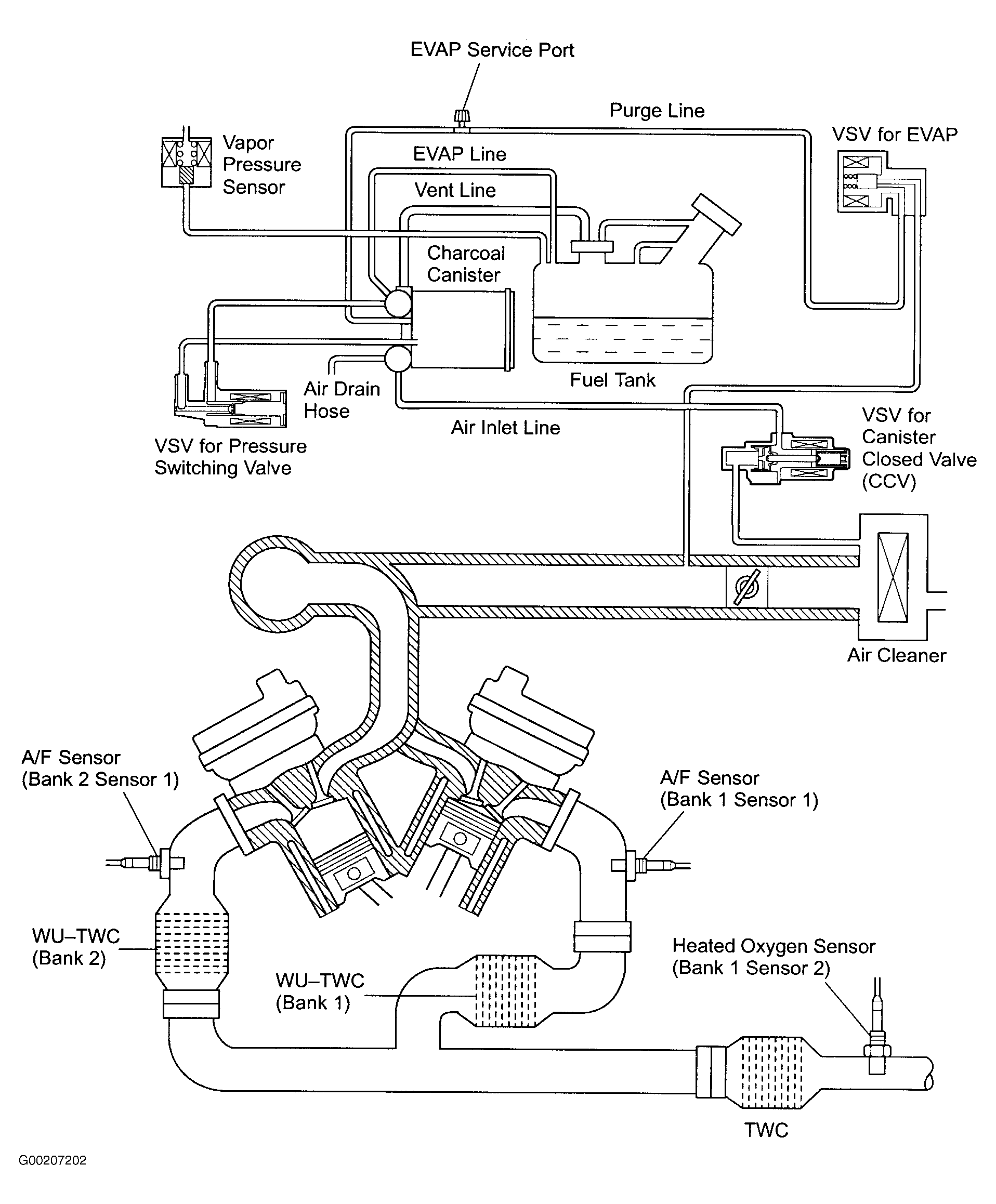

Fig 31: Vacuum Diagram (Sienna - 2 Of 2)

G00207202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

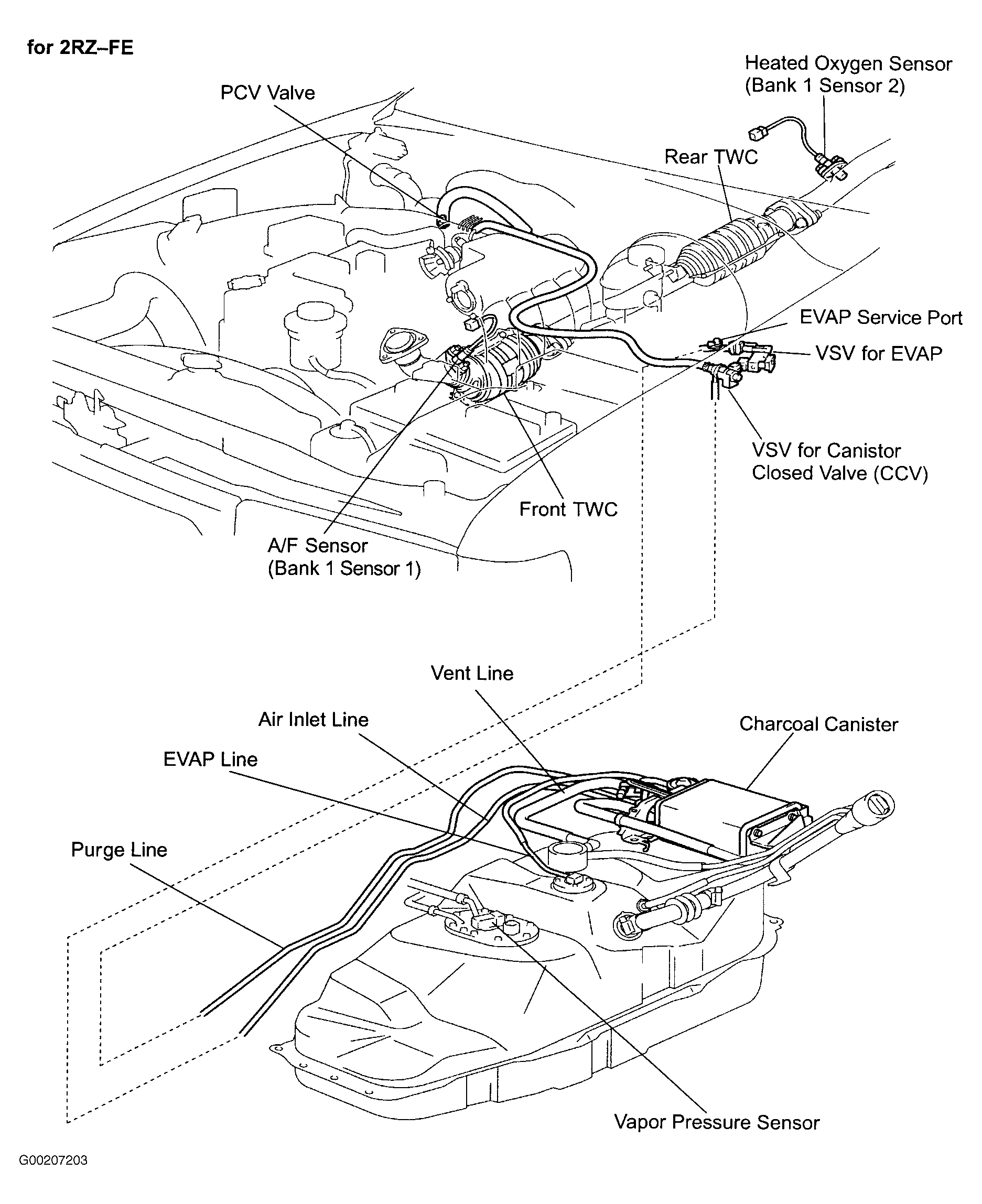

Fig 32: Vacuum Diagram (Tacoma 2.4L 4-Cyl. 2RZ-FE - 1 Of 2)

G00207203

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

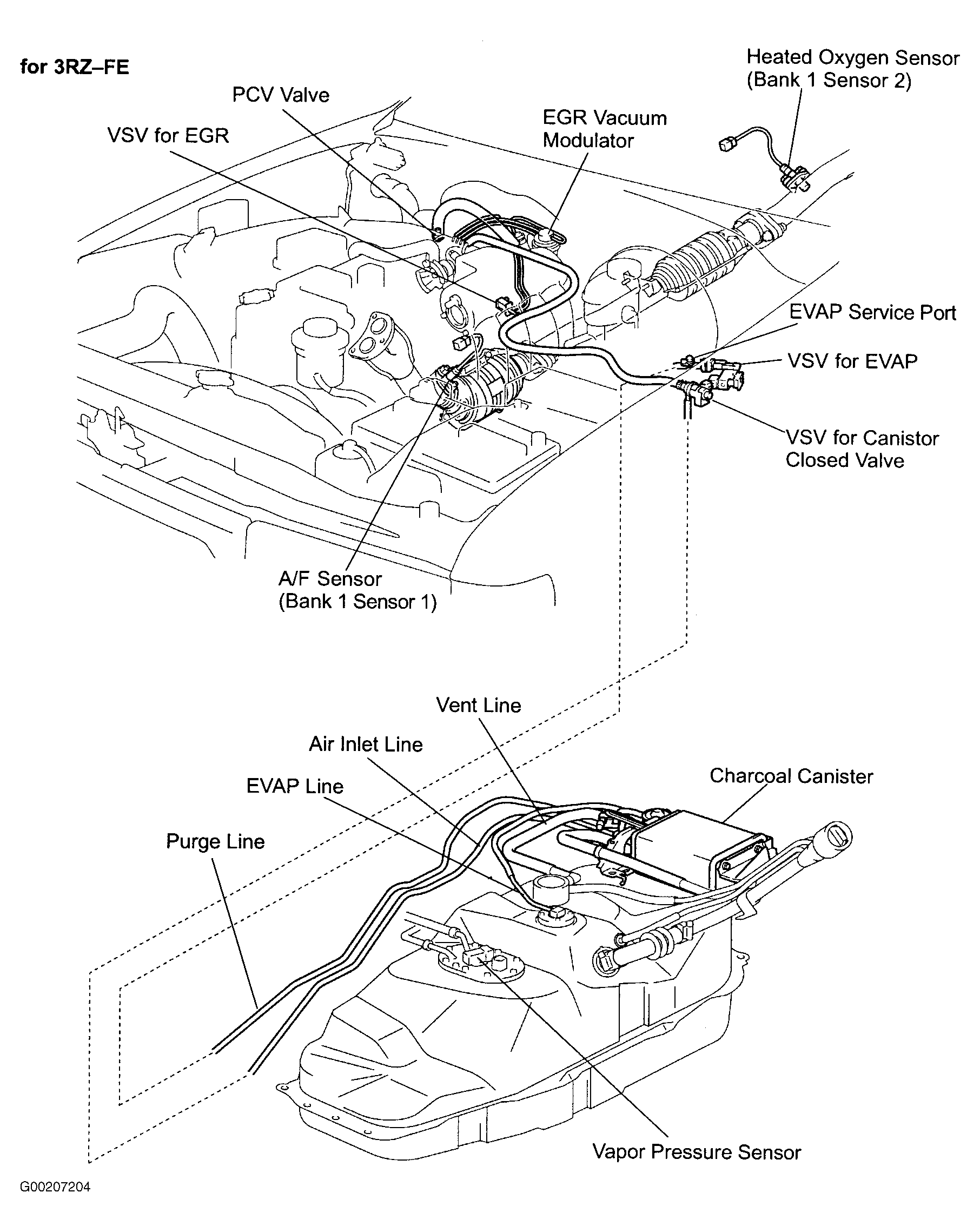

Fig 33: Vacuum Diagram (Tacoma 2.7L 4-Cyl. 3RZ-FE - 1 Of 2)

G00207204

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

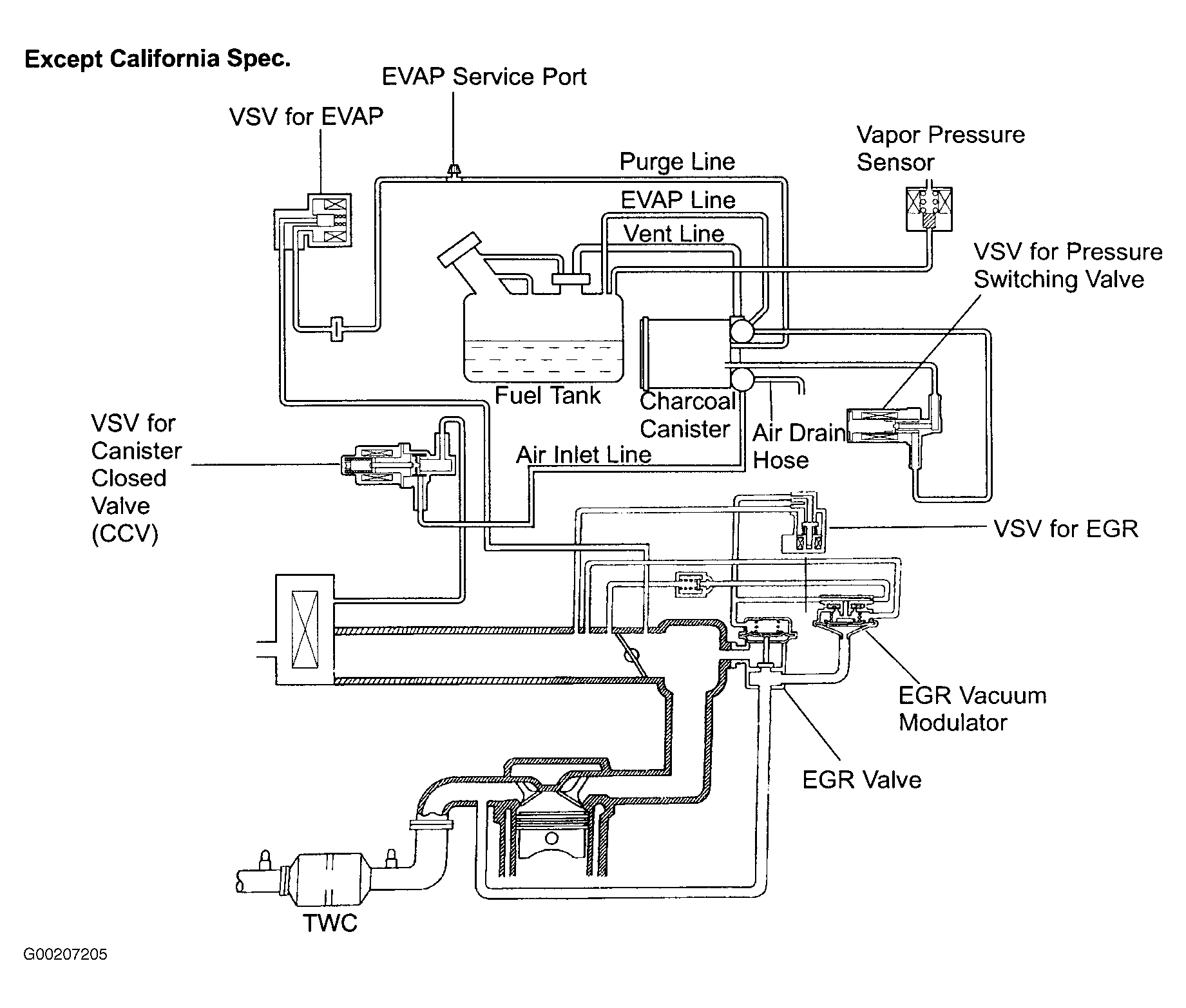

Fig 34: Vacuum Diagram (Tacoma 2.4L 4-Cyl. 2RZ-FE & 2.7L 4-Cyl. 3RZ-FE 4-Cyl. - 2 Of 2 - Except California)

G00207205

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

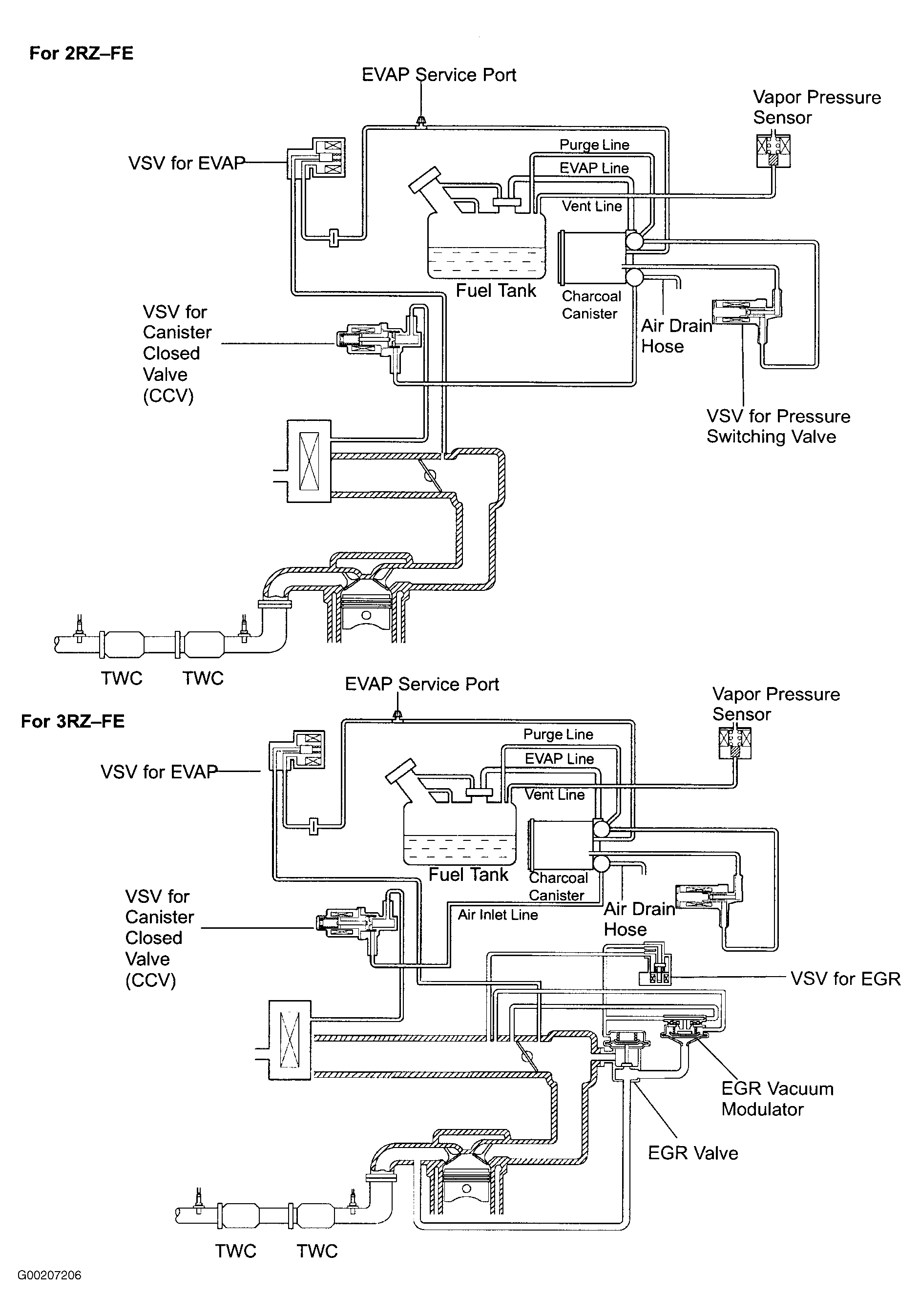

Fig 35: Vacuum Diagram (Tacoma 2.4L 4-Cyl. 2RZ-FE & 2.7L 4-Cyl. 3RZ-FE 4-Cyl. - 2 Of 2 - California)

G00207206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

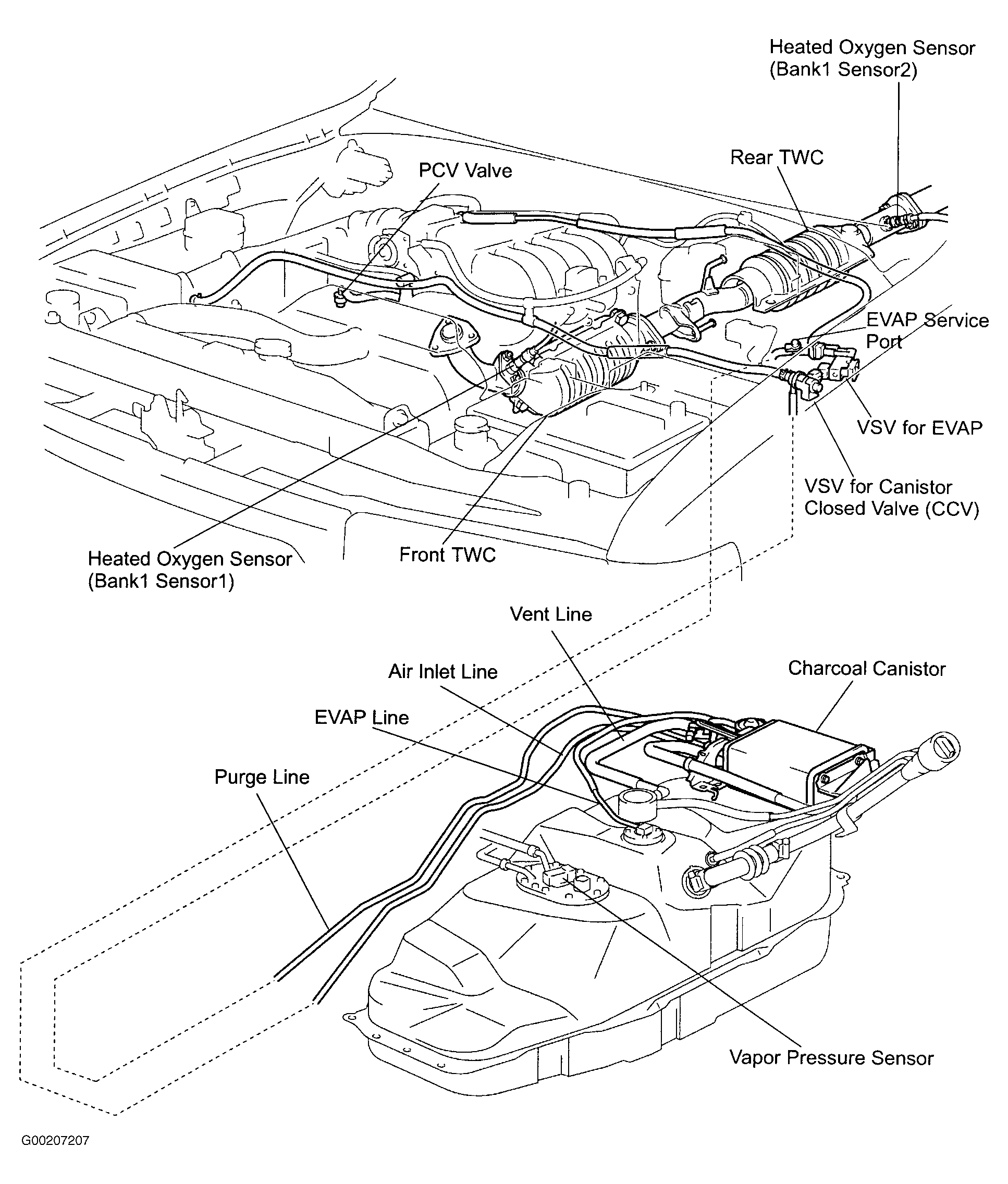

Fig 36: Vacuum Diagram (Tacoma 3.4L V6 - 1 Of 2)

G00207207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

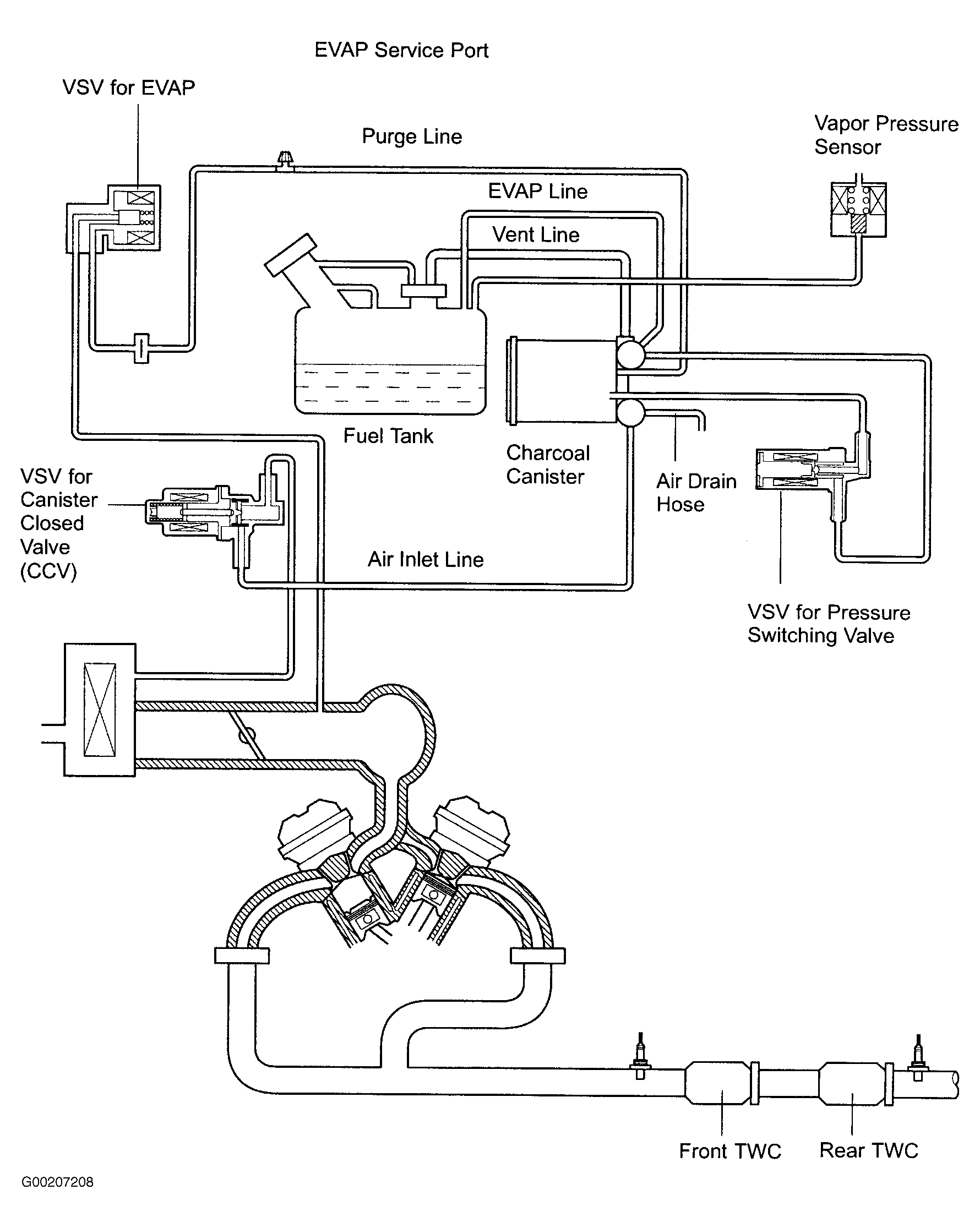

Fig 37: Vacuum Diagram (Tacoma 3.4L V6 - 2 Of 2)

G00207208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

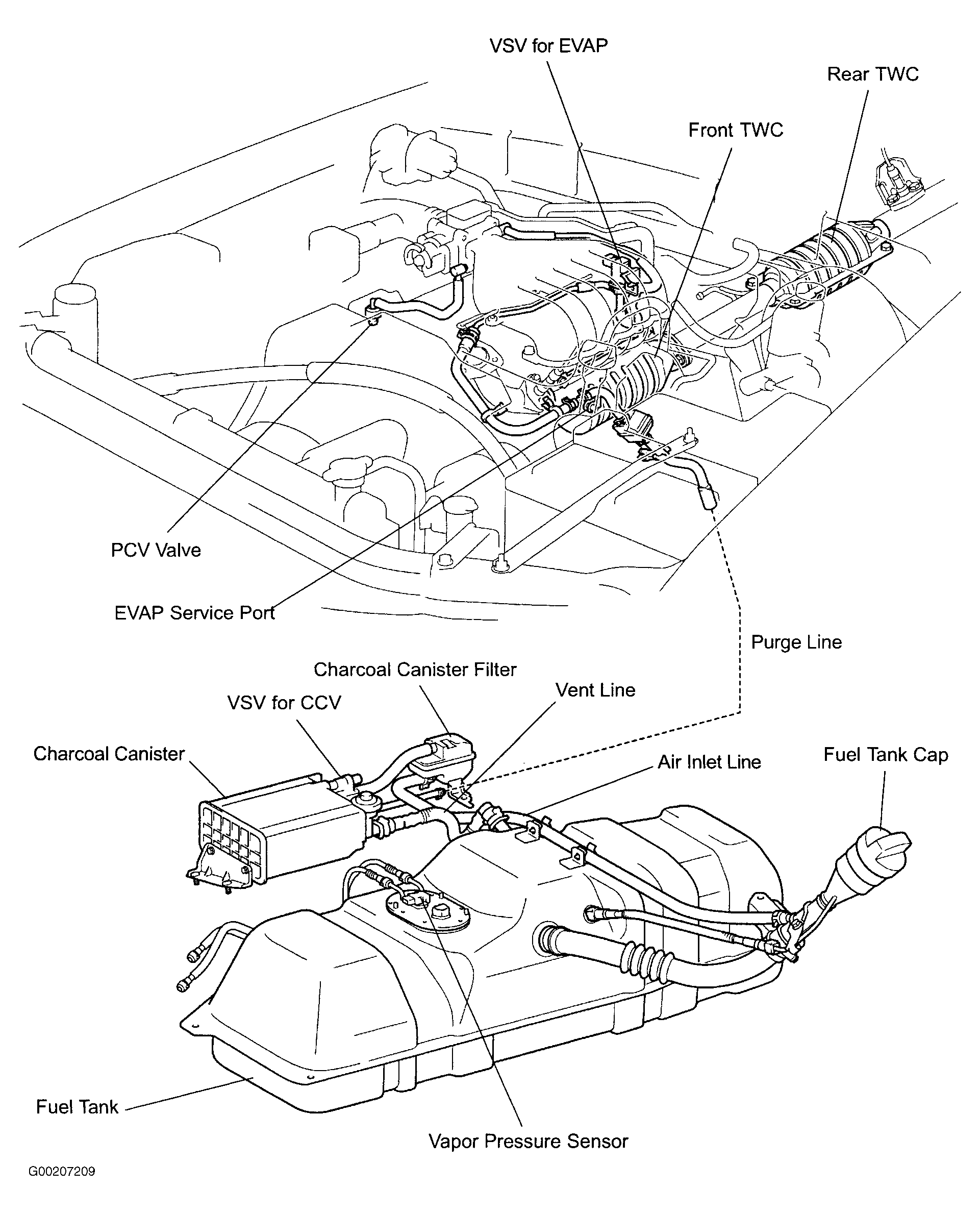

Fig 38: Vacuum Diagram (Tundra 3.4L V6 - 1 Of 2)

G00207209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

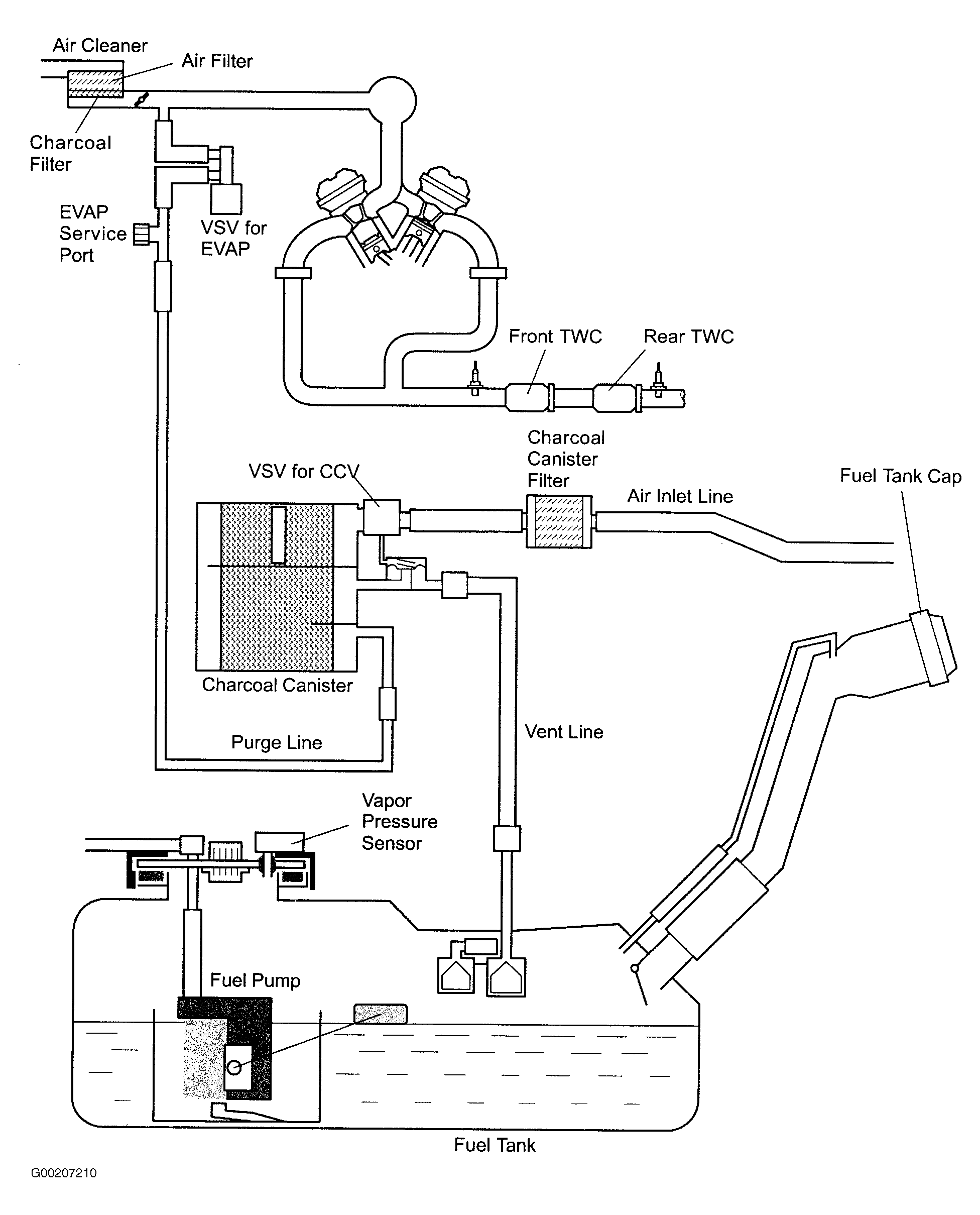

Fig 39: Vacuum Diagram (Tundra 3.4L V6 - 2 Of 2)

G00207210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

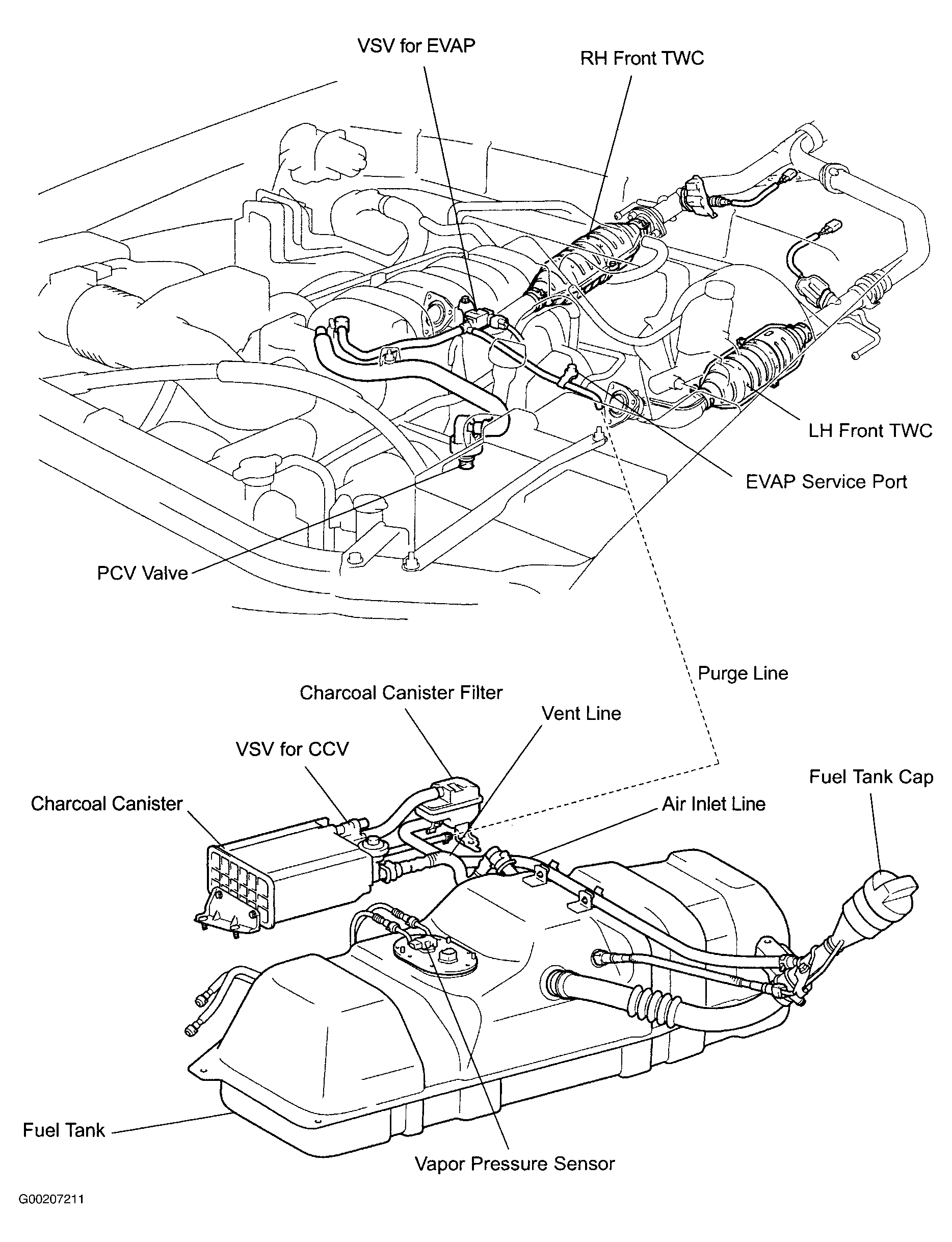

Fig 40: Vacuum Diagram (Tundra 4.7L V8 - 1 Of 2)

G00207211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

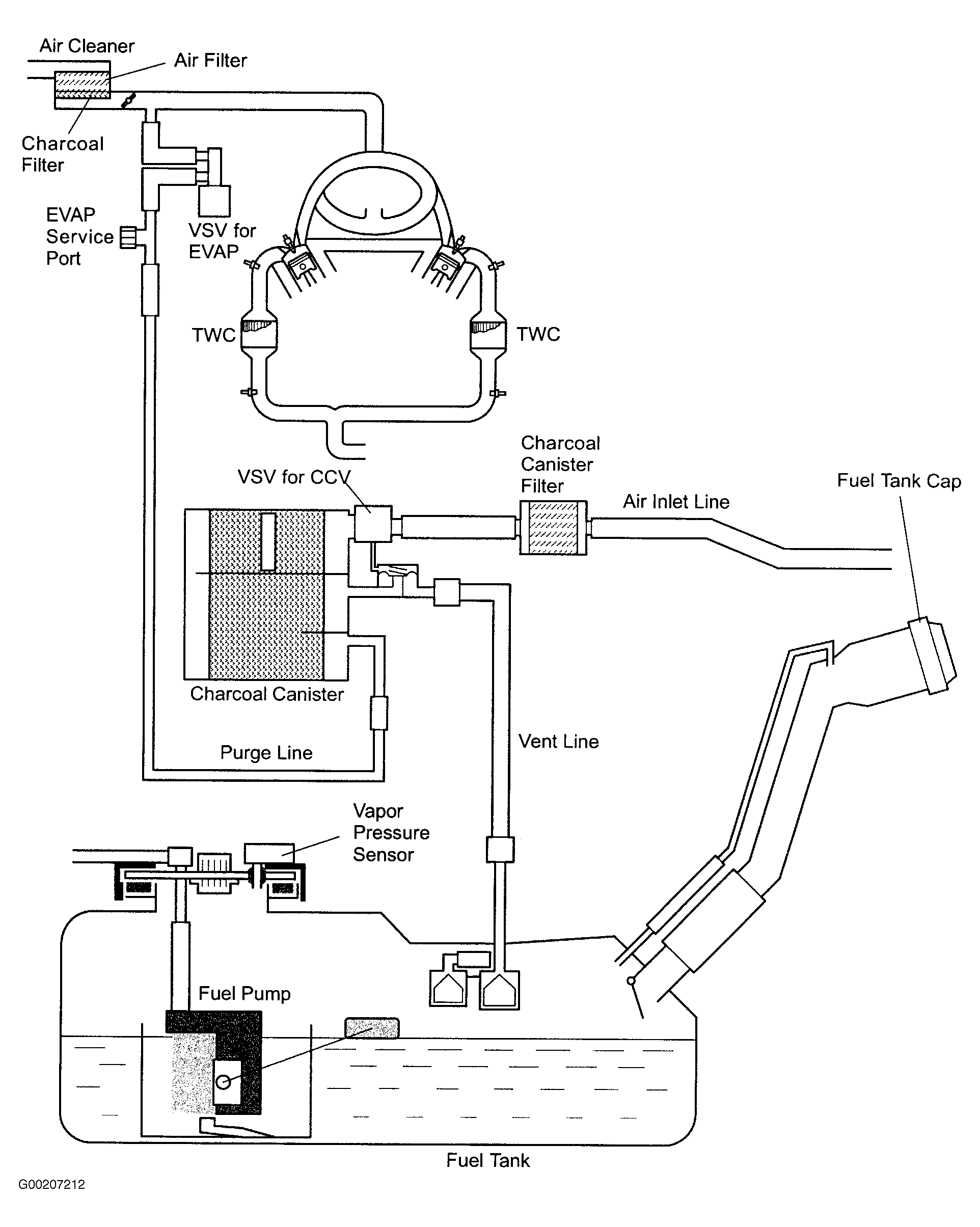

Fig 41: Vacuum Diagram (Tundra 4.7L V8 - 2 Of 2)

G00207212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

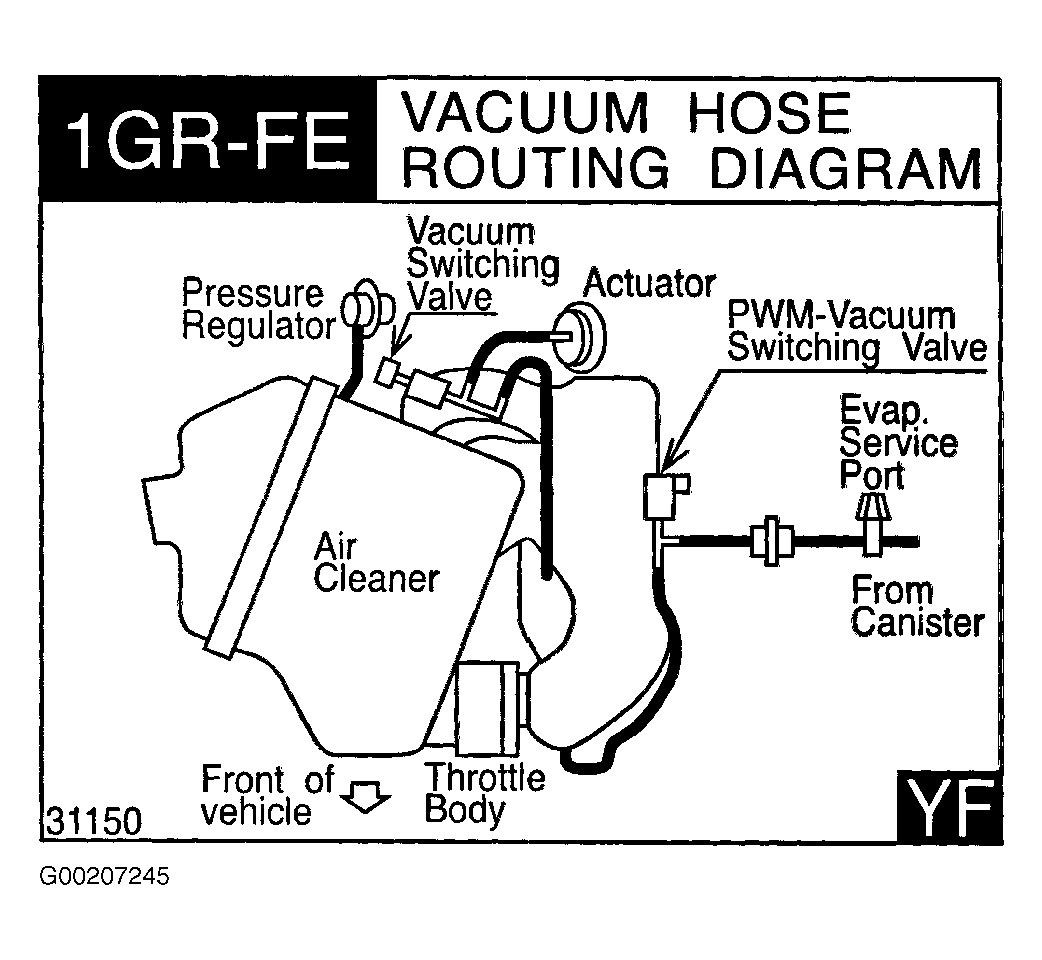

Fig 42: Vacuum Diagram (4Runner 4.0L V6)

G00207245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

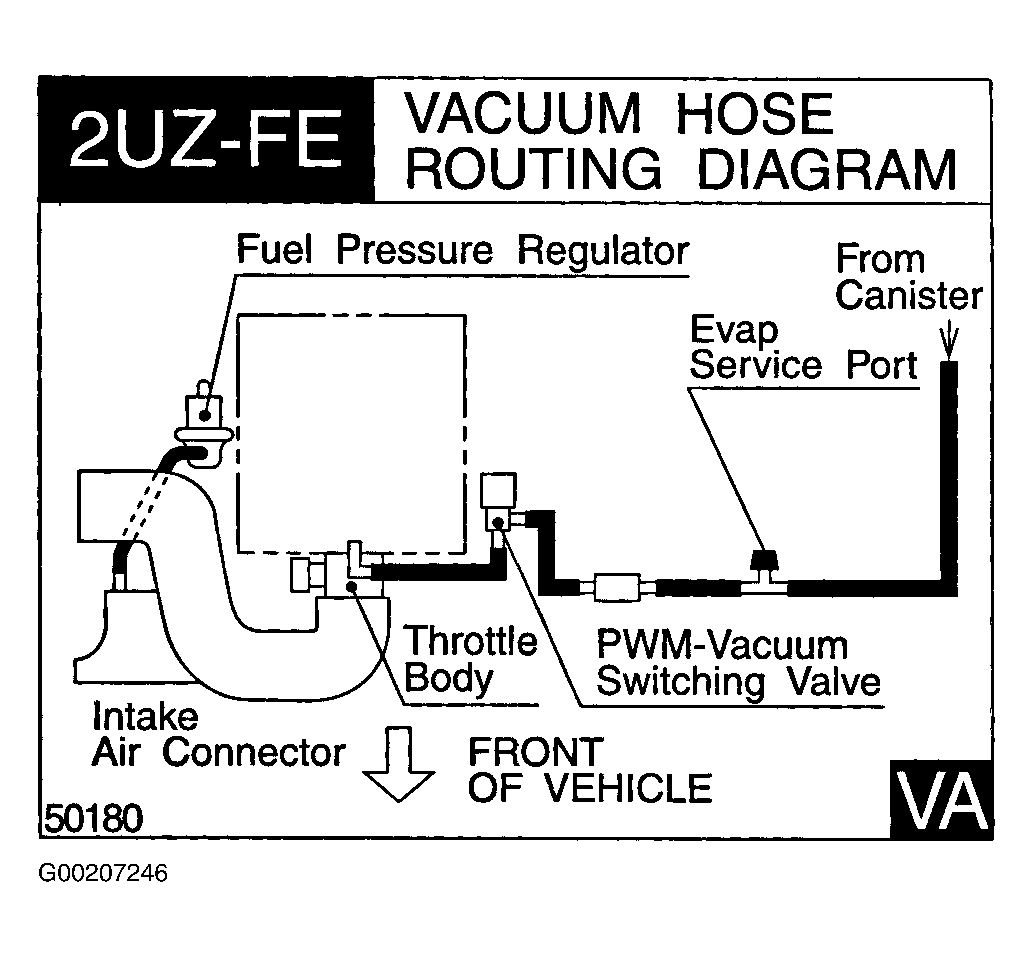

Fig 43: Vacuum Diagram (4Runner 4.7L V8)

G00207246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
