Section 380 (Power Window Control System): Location

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

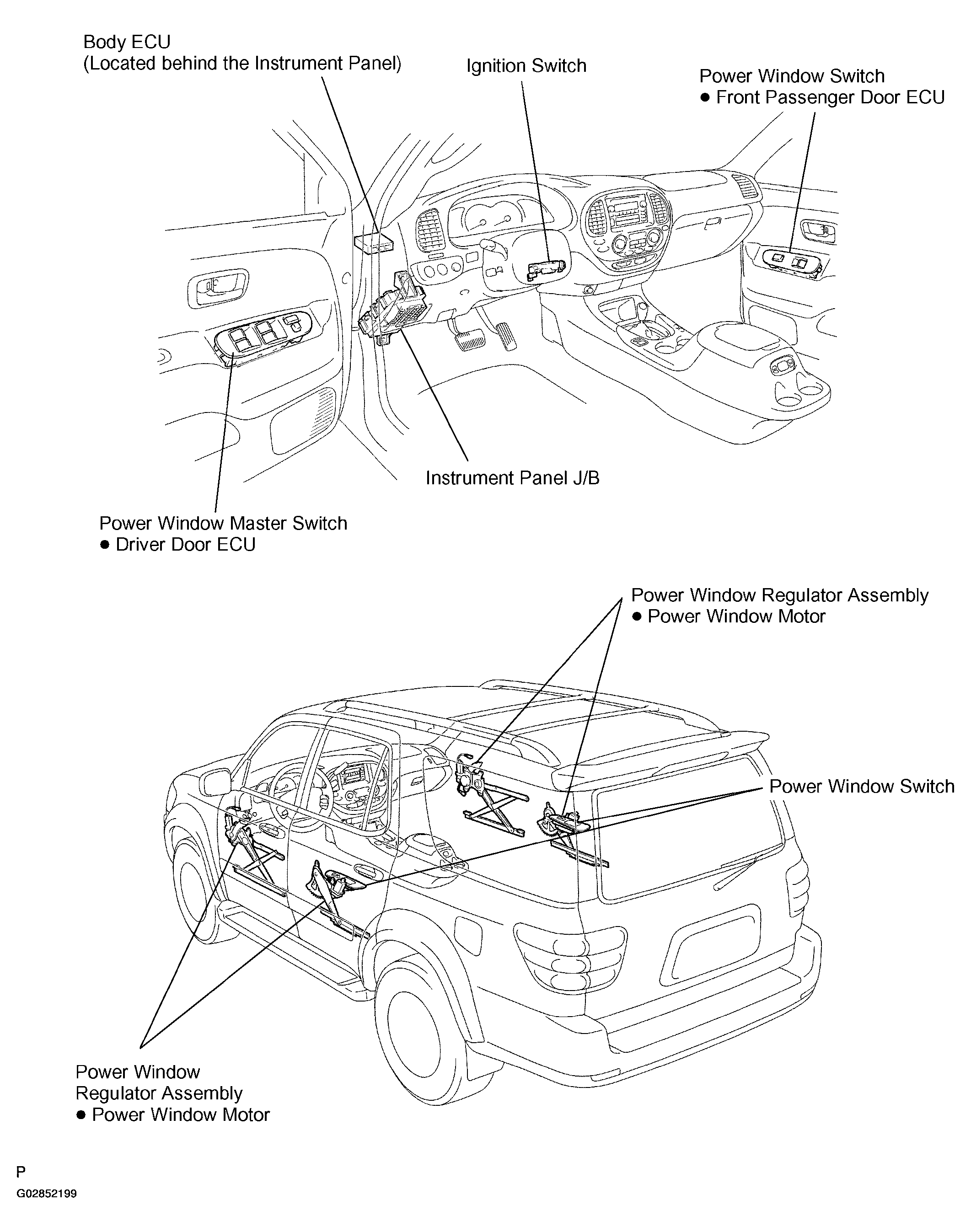

Fig 1: Locating Power Window Control System Components
G02852199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
