Automatic Transmission Application: Transmission: 2002
TRANSMISSION APPLICATION (2002)

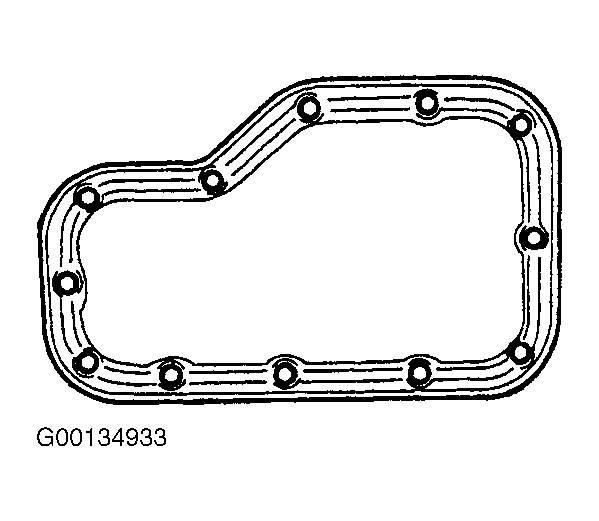

| Model | Sub-Model | Engine Liters | Trans. Code | Oil Pan Gasket |
|---|---|---|---|---|
| 4Runner | Limited | 3.4 | A340E Or A340F | Figure |
| 4Runner | SR5 | 3.4 | A340E Or A340F | Figure |
| Avalon | XL | 3.0 | A541E | Figure |
| Avalon | XLS | 3.0 | A541E | Figure |
| Camry | LE | 2.4 | U241E | Figure |
| Camry | LE | 3.0 | U140E | Figure |
| Camry | SE | 2.4 | U241E | Figure |
| Camry | SE | 3.0 | U140E | Figure |
| Camry | XLE | 2.4 | U241E | Figure |
| Camry | XLE | 3.0 | U140E | Figure |
| Camry Solara | SE | 2.4 | U241E | Figure |
| Camry Solara | SE | 3.0 | A541E | Figure |
| Camry Solara | SLE | 3.0 | A541E | Figure |
| Celica | GT | 1.8 | U341E | Figure |
| Celica | GT-S | 1.8 | U240E | Figure |
| Corolla | CE | 1.8 | A131L | Figure |
| Corolla | LE | 1.8 | A245E | Figure |
| Corolla | S | 1.8 | A245E | Figure |
| Highlander | Base | 2.4 | U140F Or U241E | Figure |
| Highlander | Base | 3.0 | U140E Or U140F | Figure |
| Highlander | Limited | 3.0 | U140E Or U140F | Figure |
| Prius | N/A | 1.5 | P111 | Figure |
| RAV4 | Base | 2.0 | U140F Or U241E | Figure |
| RAV4 | L | 2.0 | U140F Or U241E | Figure |
| Sequoia | Limited | 4.7 | A340E Or A340F | Figure |
| Sequoia | SR5 | 4.7 | A340E Or A340F | Figure |
| Sienna | CE | 3.0 | A540E Or A541E | Figure |
| Sienna | LE | 3.0 | A540E Or A541E | Figure |
| Sienna | LXE | 3.0 | A540E Or A541E | Figure |
| Tacoma | Base | 2.4 | A44D | Figure |
| Tacoma | Base | 2.7 | A340F | Figure |
| Tacoma | Base | 3.4 | A340F | Figure |
| Tacoma | PreRunner | 2.7 | A340E | Figure |
| Tacoma | PreRunner | 3.4 | A340E | Figure |
| Tundra | Base | 3.4 | A340E | Figure |
| Tundra | Limited | 4.7 | A340E Or A340F | Figure |
| Tundra | SR5 | 3.4 | A340E Or A340F | Figure |
| Tundra | SR5 | 4.7 | A340E Or A340F | Figure |
