Back Window Stay Assembly LH: Replacement

NOTE:
  • Installation is in the reverse order of the removal.
  • In the RH side, work in the same procedure as in the LH side.
  1. REMOVE BACK WINDOW STAY ASSY LH
    1. Using a screwdriver, remove the back door stay from the back door panel.

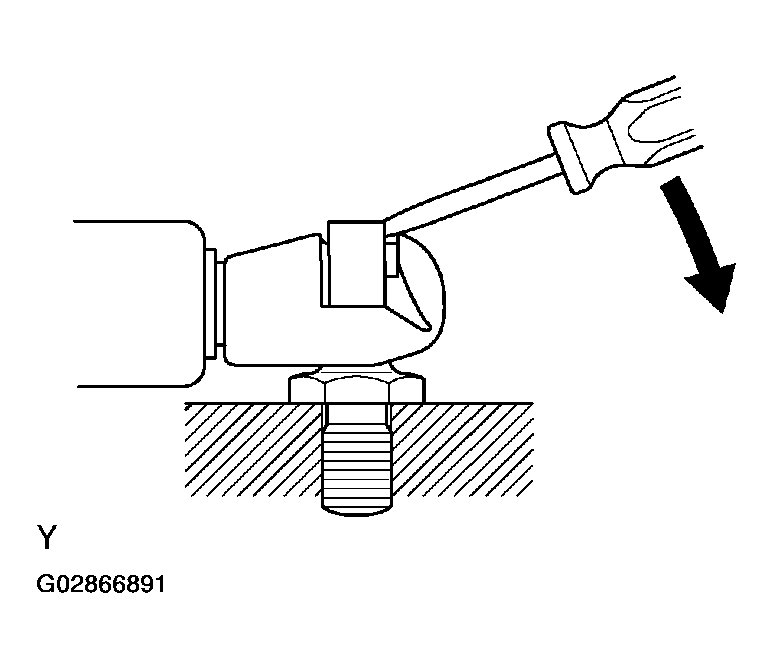

      2. Fig 1: Removing Back Door Stay Using A Screwdriver
      G02866891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and back door stay from the body.
    NOTE: While supporting the back door by hand, remove the back door stay.
