Diagnostic Tests: Notes

NOTE: Before performing any diagnostic test, see SELF-DIAGNOSTIC SYSTEM  for diagnostic system functions and system diagnostic procedures. Also check for any related Technical Service Bulletins (TSBs). For component location, see appropriate illustration in THEORY & OPERATION article.
NOTE: To identify ECM terminals referenced in testing, see illustration. See Fig 2 or Fig 1 .

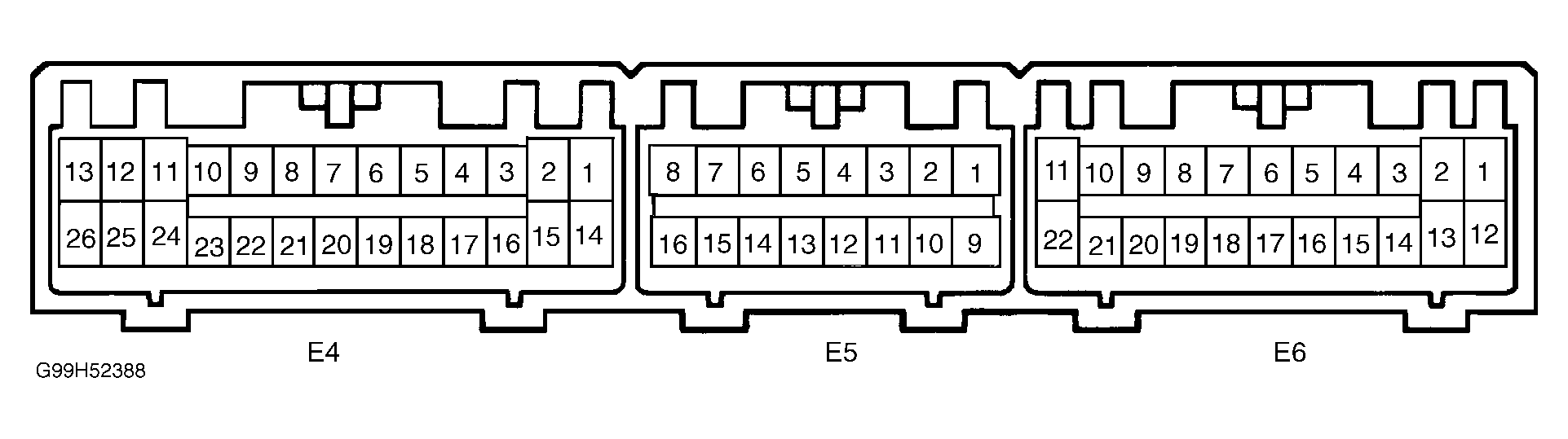

Fig 1: Identifying Engine Control Module Connector Terminals (3-Speed A/T & M/T)
G99H52388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

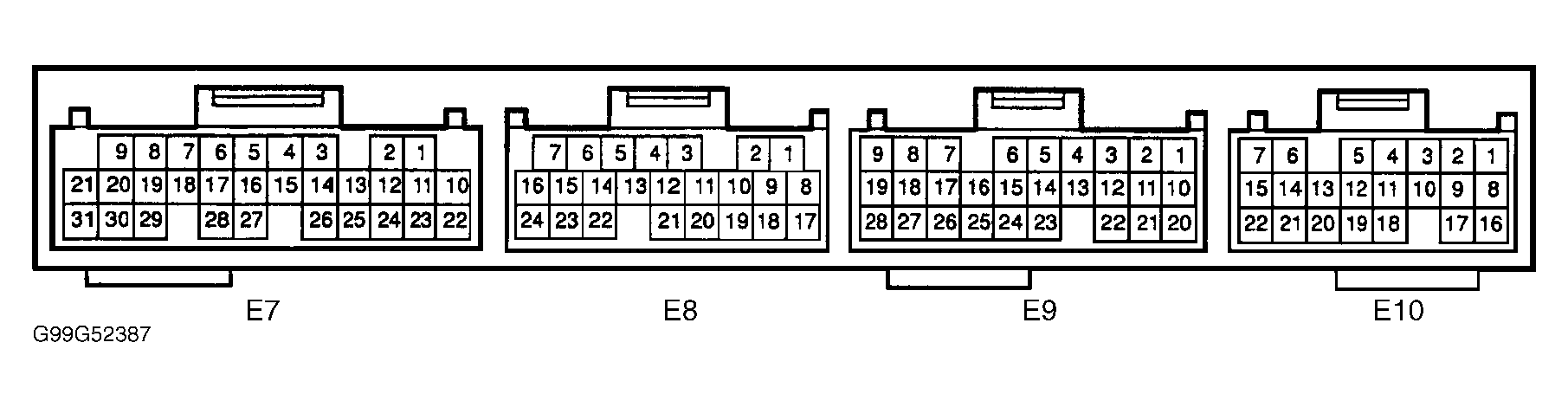

Fig 2: Identifying Engine Control Module Connector Terminals (4-Speed A/T)
G99G52387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
