A/C Compressor Lock Sensor Circuit: Camry

For A/C compressor lock sensor circuit inspection, see Fig 1-Fig 3 .

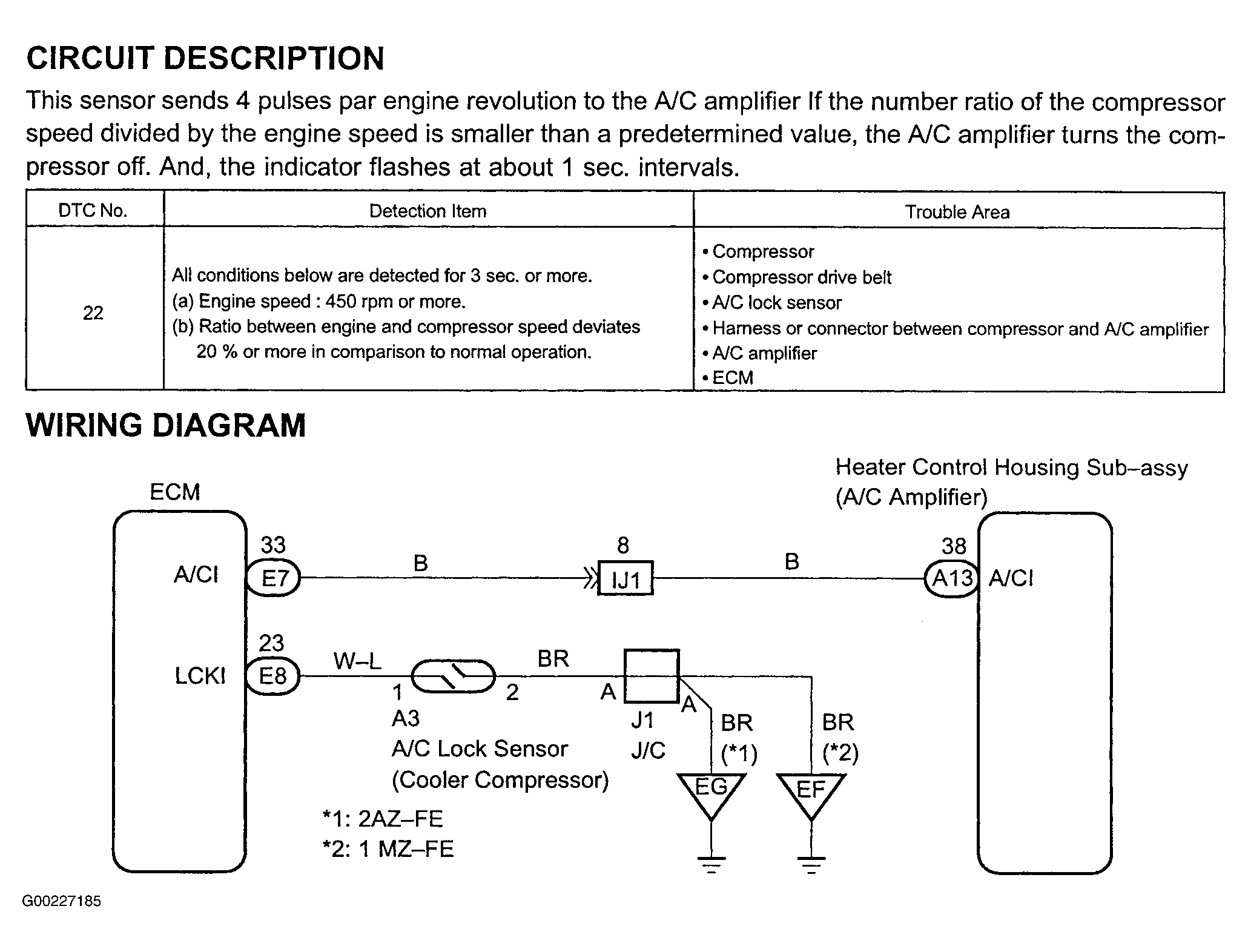

Fig 1: A/C Compressor Lock Sensor Circuit Description & Diagram (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

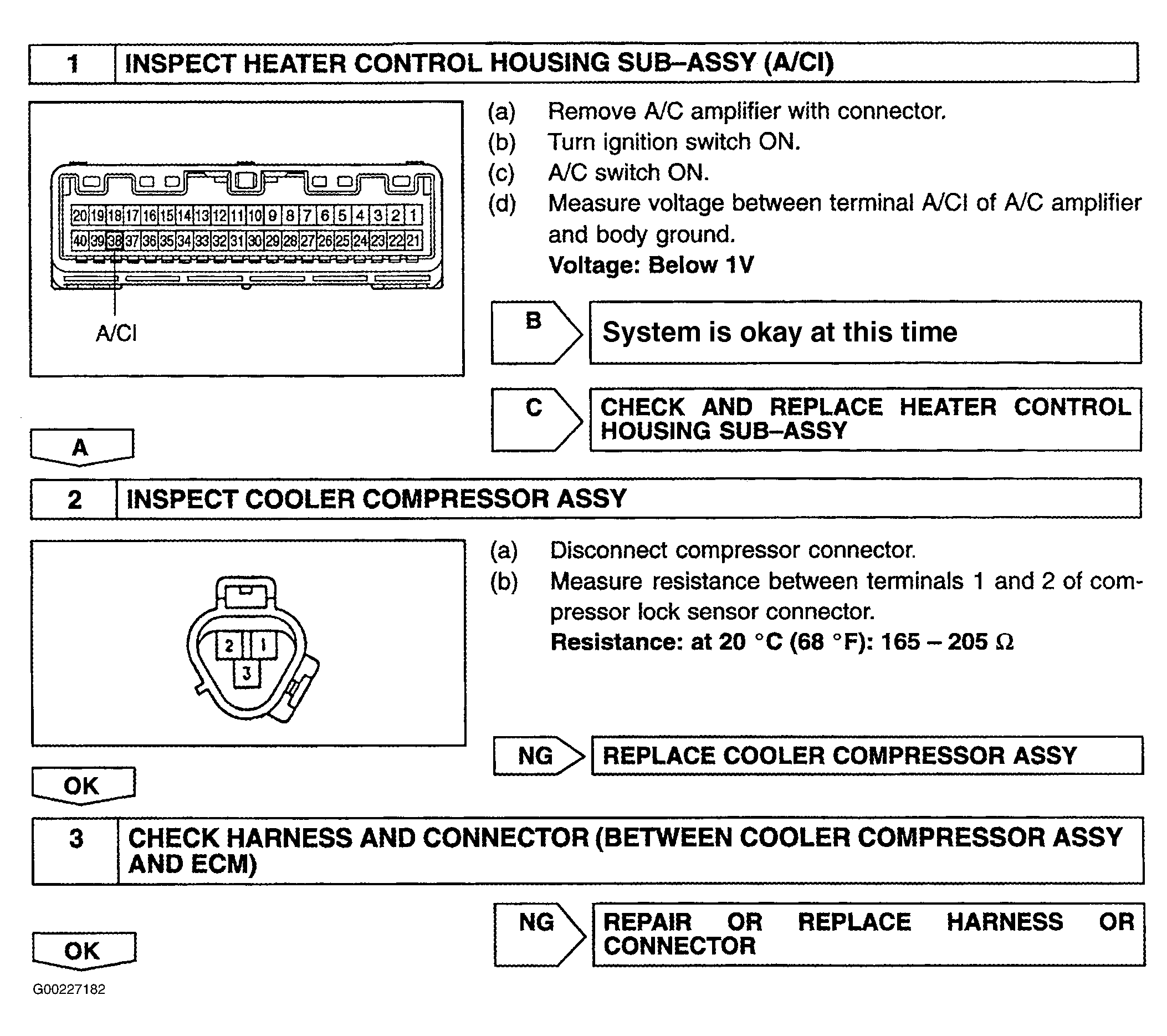

Fig 2: A/C Compressor Lock Sensor Circuit Inspection - Steps 1-3 (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

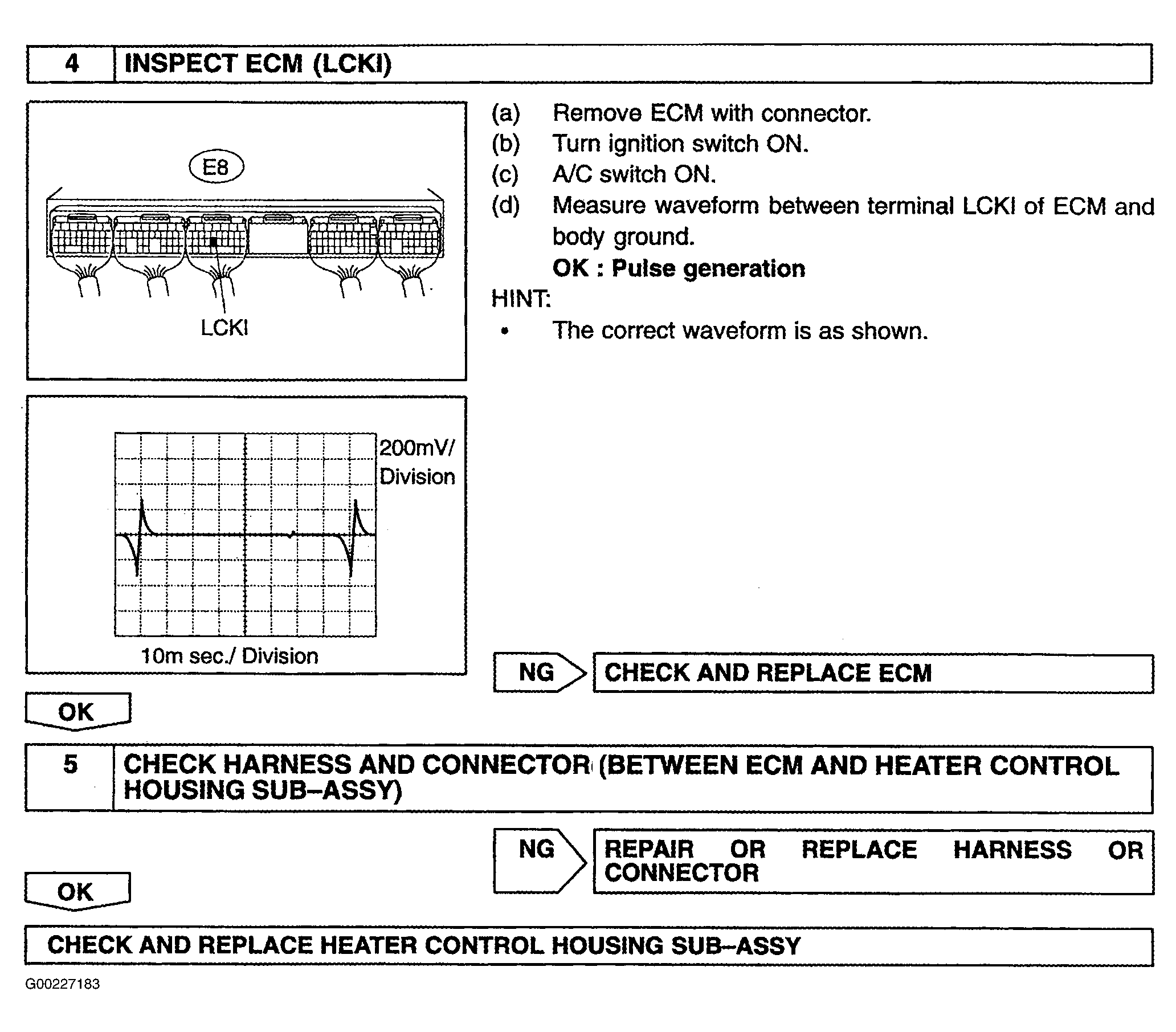

Fig 3: A/C Compressor Lock Sensor Circuit Inspection - Steps 4-5 (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
