A/C Evaporator Temperature Sensor Circuit: Prius

WARNING: On Prius, read service precautions before proceeding with service procedure. See SERVICE PRECAUTIONS .

For A/C evaporator temperature sensor circuit inspection, see Fig 1-Fig 3 .

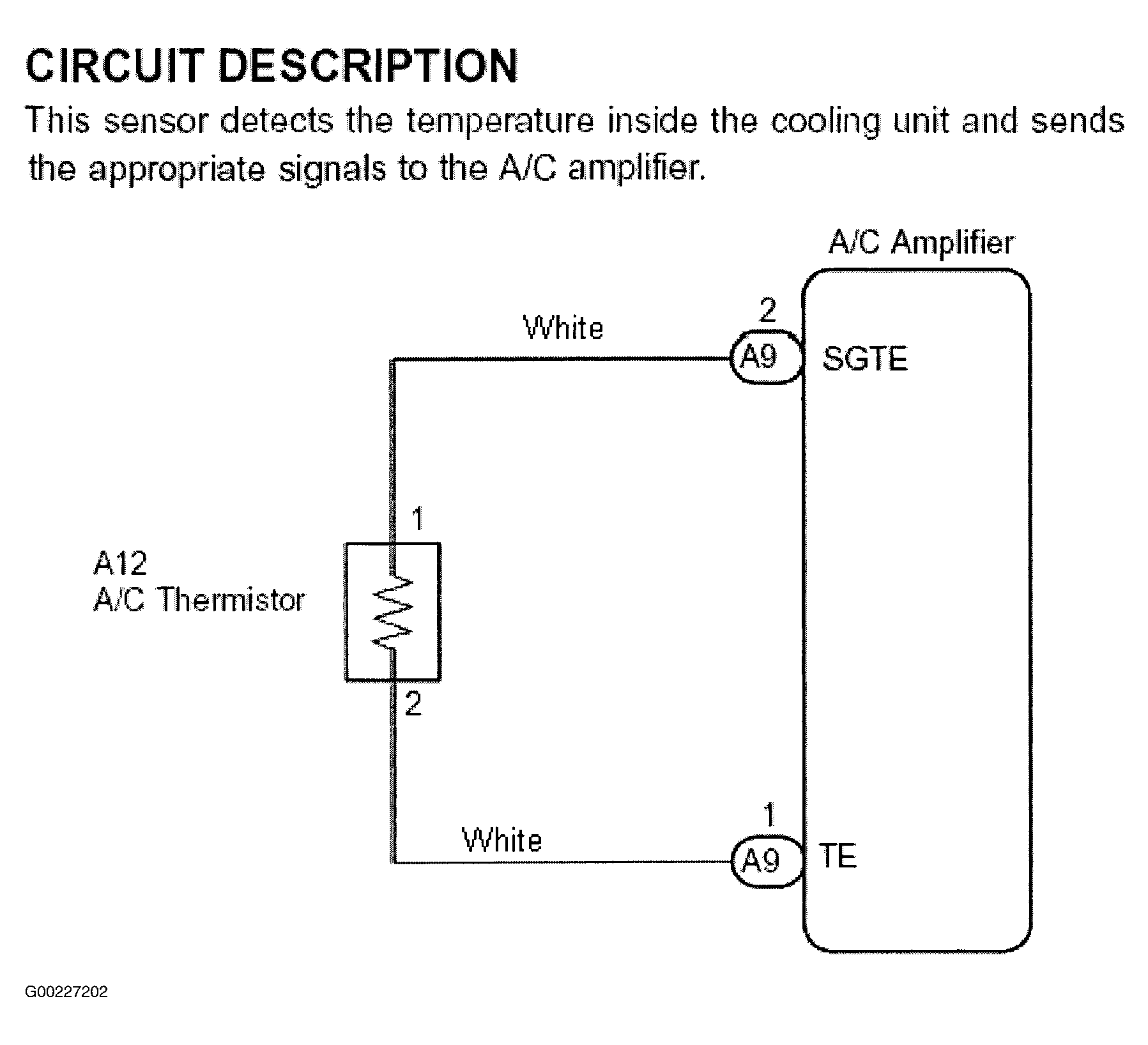

Fig 1: A/C Evaporator Temperature Sensor Circuit Description & Diagram (Prius)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

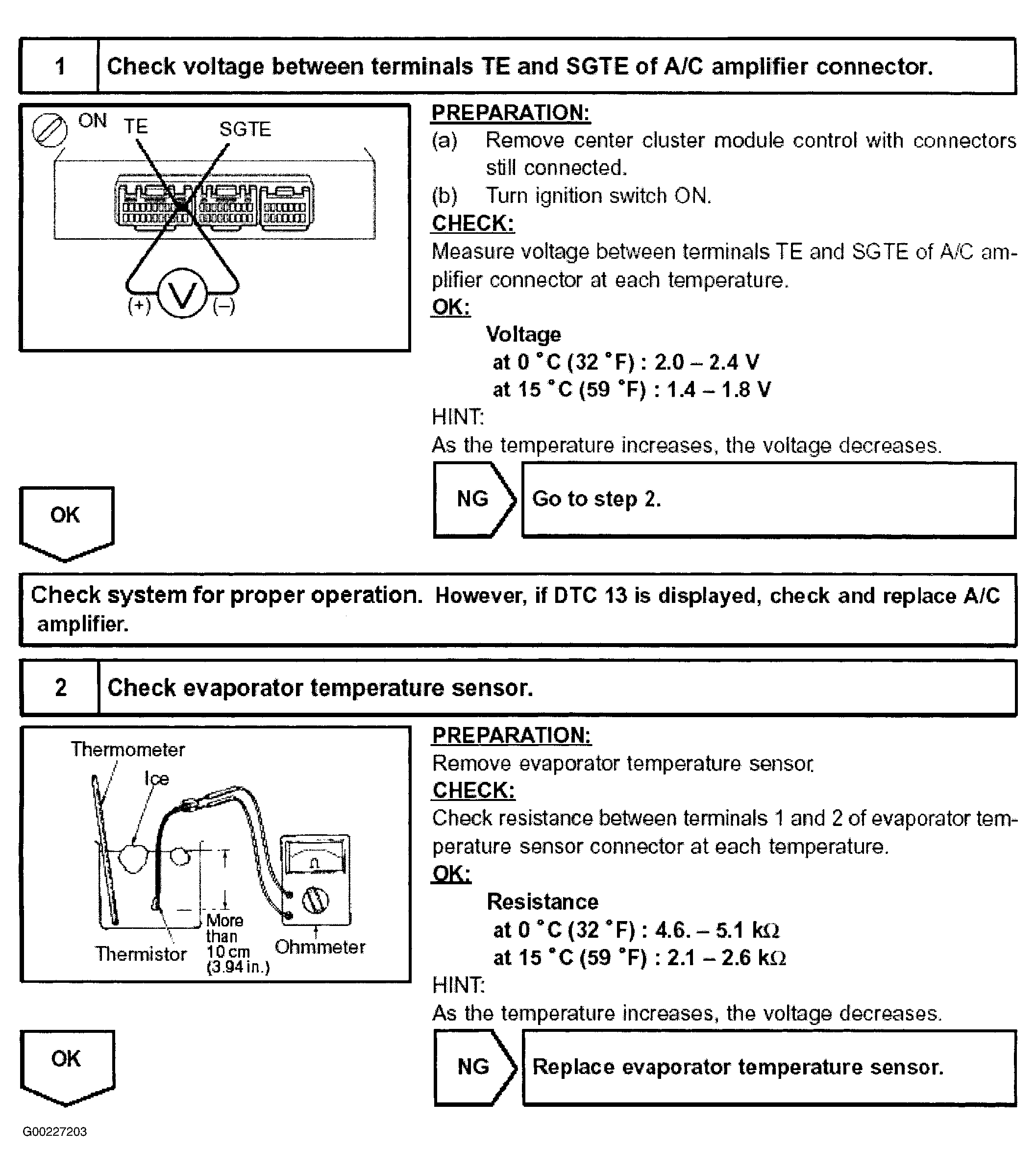

Fig 2: A/C Evaporator Temperature Sensor Circuit Inspection - Steps 1-2 (Prius)

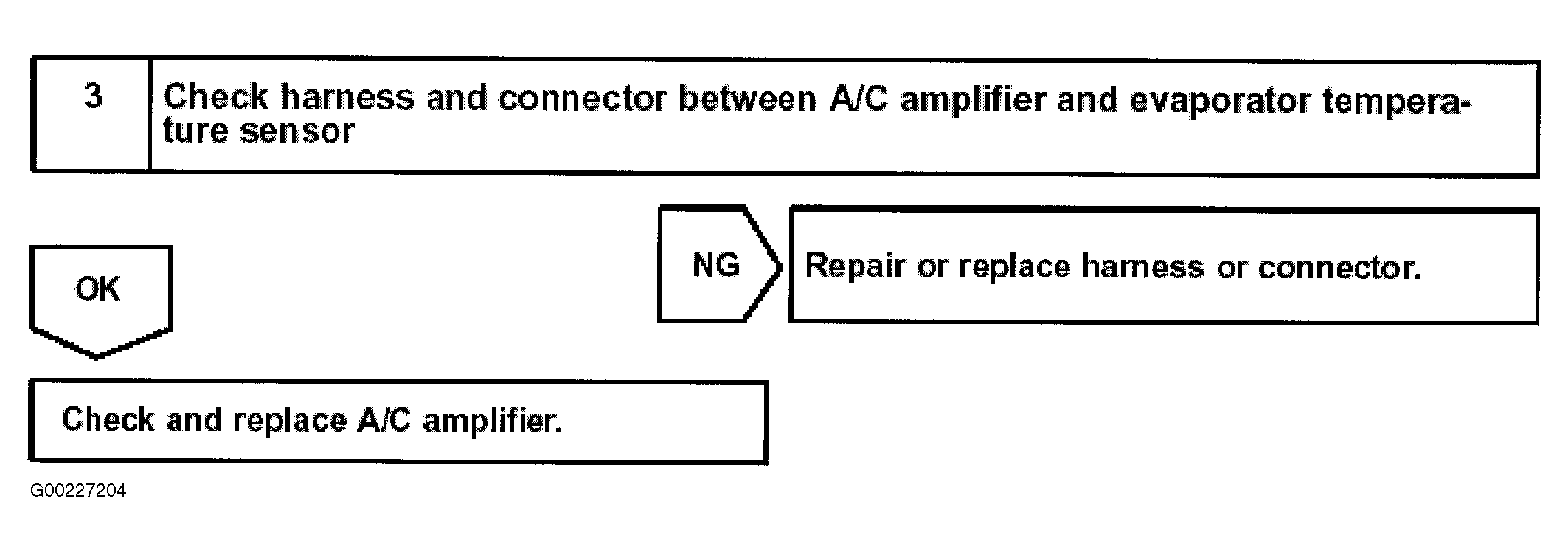

Fig 3: A/C Evaporator Temperature Sensor Circuit Inspection - Step 3 (Prius)
