Camry Solara

For fuel pump control circuit inspection and wiring diagram, see Fig 1-Fig 6 . Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS .

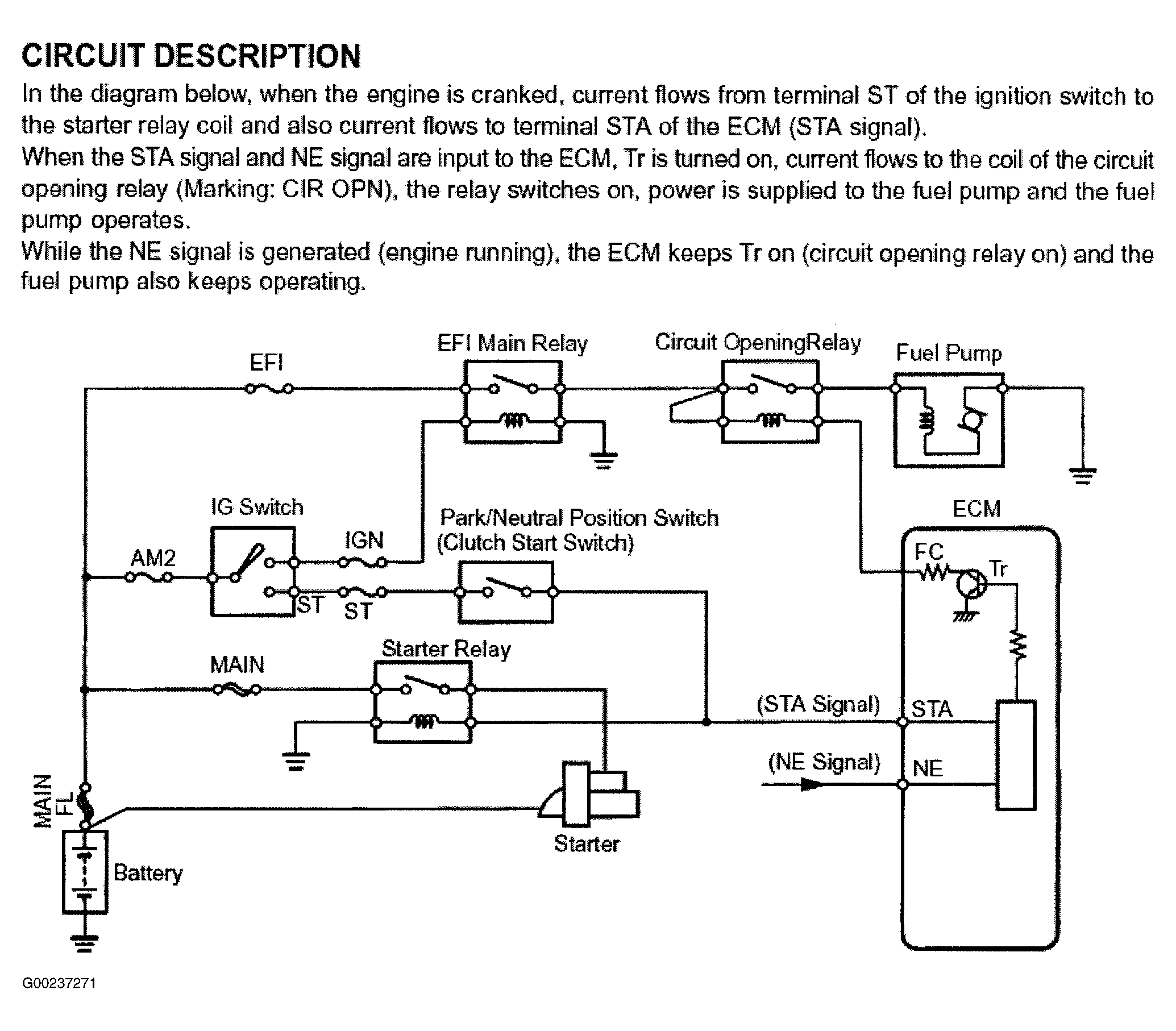

Fig 1: Fuel Pump Control Circuit Description & Diagram (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

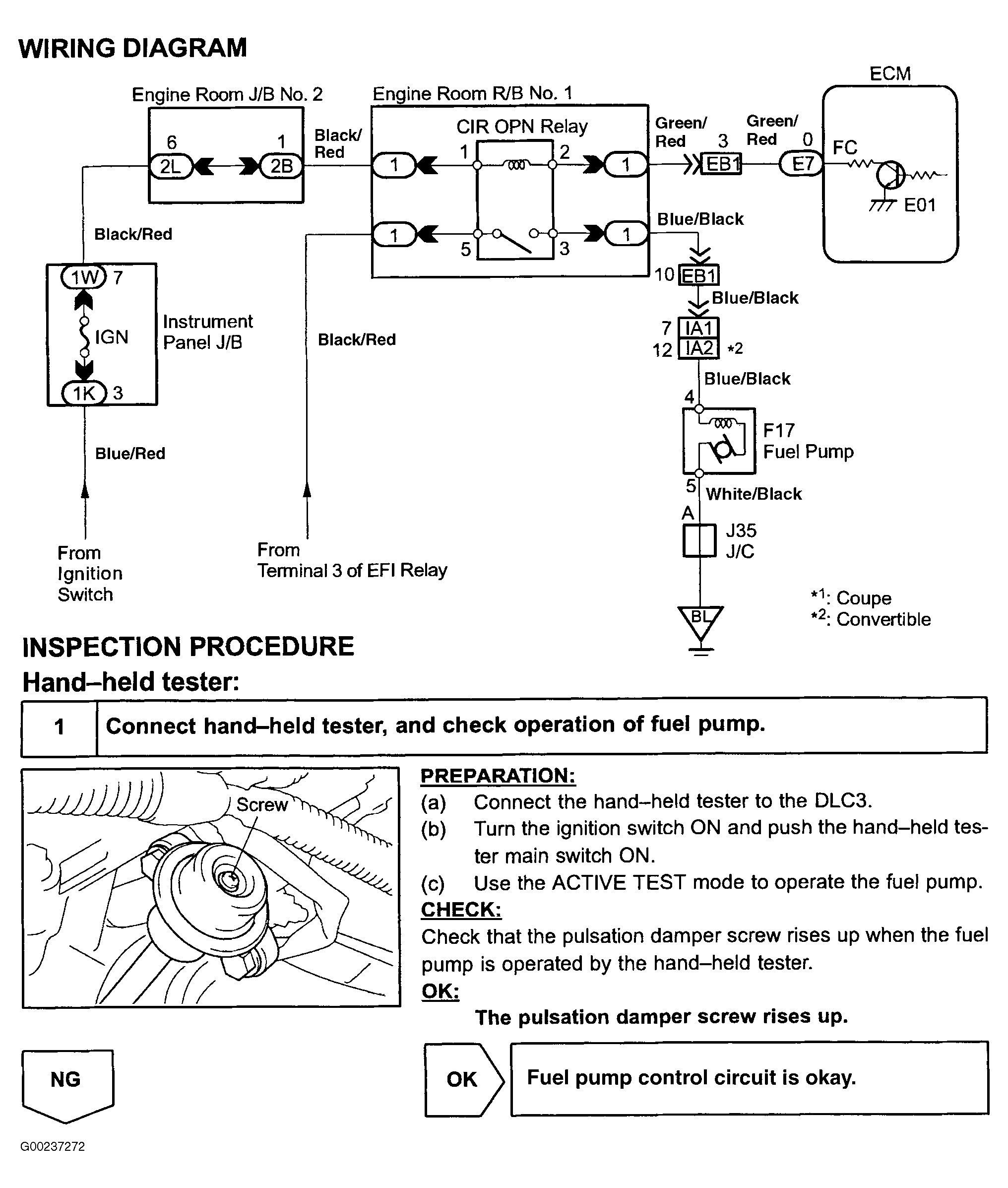

Fig 2: Fuel Pump Control Circuit Wiring Diagram & Inspection Using Toyota Hand-Held Tester - Step 1 (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

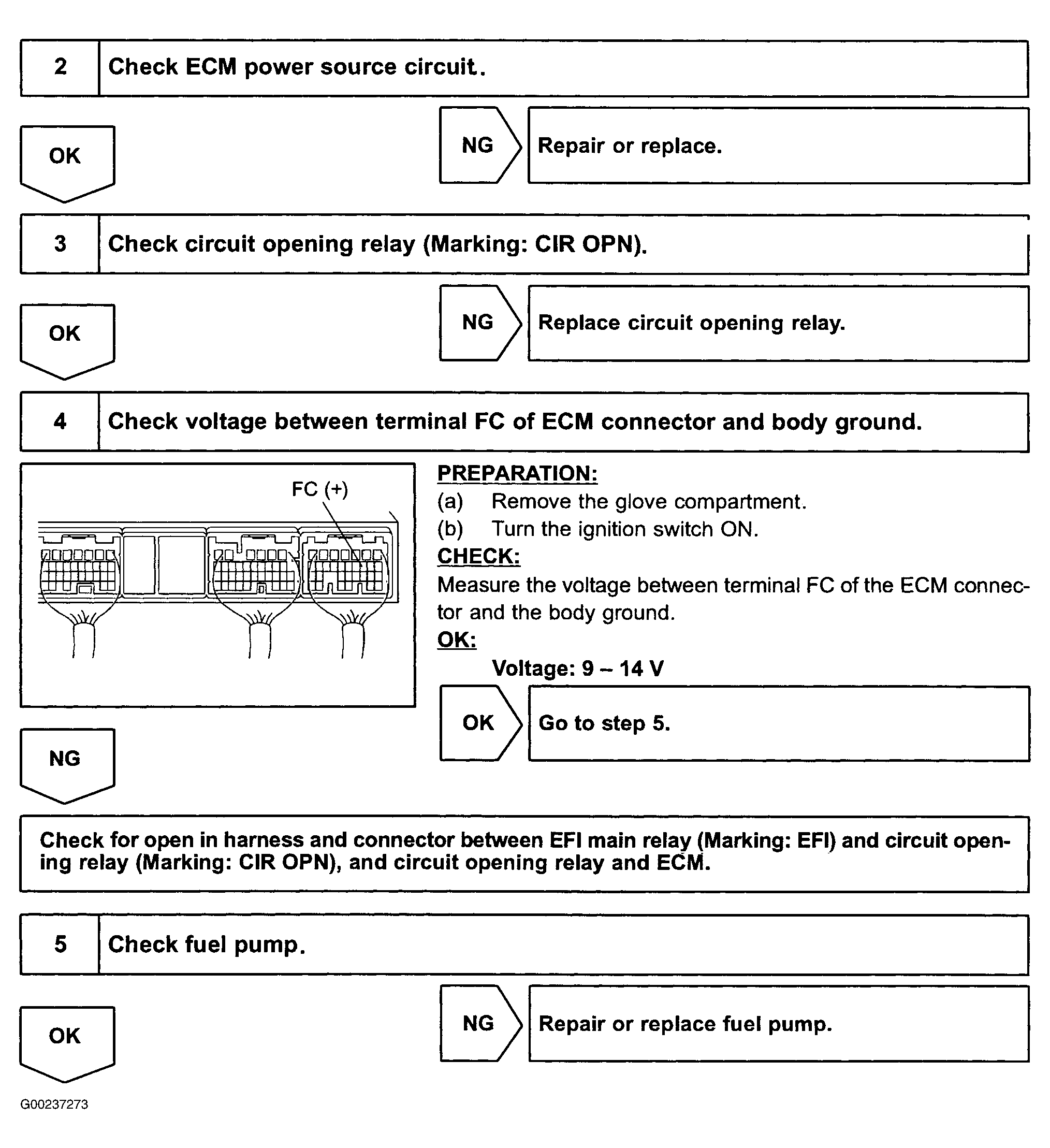

Fig 3: Fuel Pump Control Circuit Inspection Using Toyota Hand-Held Tester - Steps 2-5 (Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

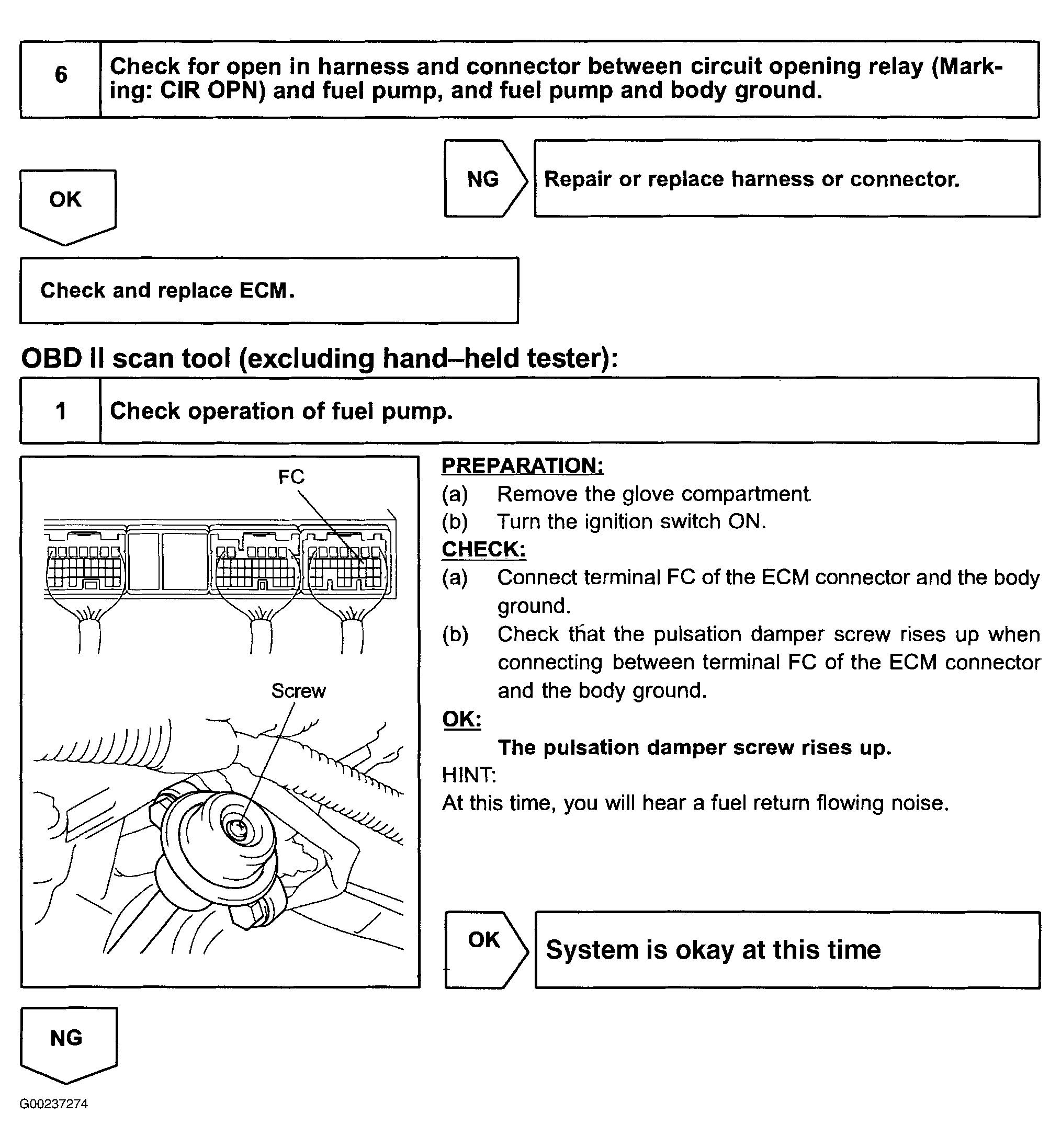

Fig 4: Fuel Pump Control Circuit Inspection Using Toyota Hand-Held Tester - Step 6; Using OBD II Scan Tool - Step 1 (Camry Solara)

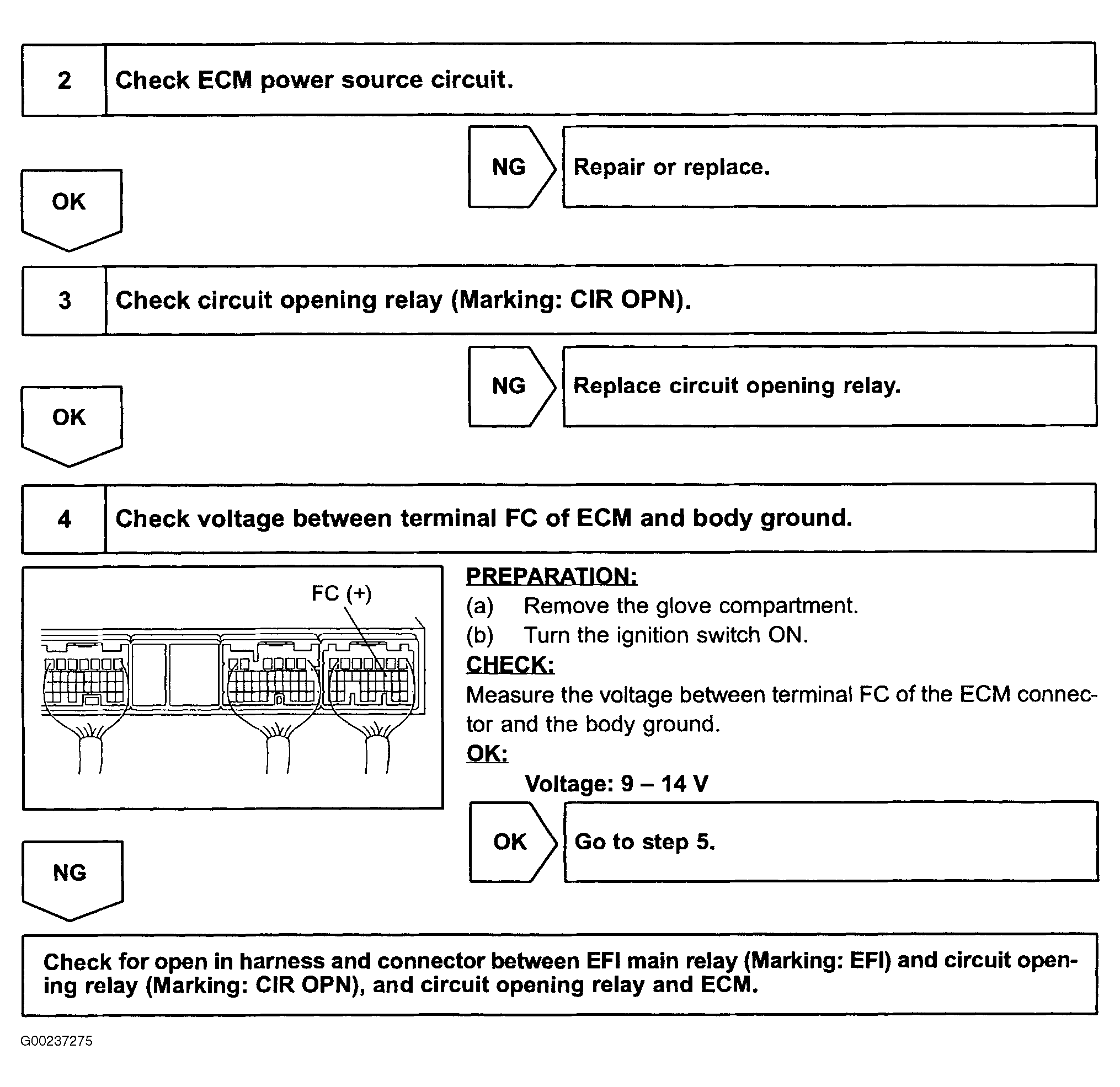

Fig 5: Fuel Pump Control Circuit Inspection Using OBD II Scan Tool - Steps 2-4 (Camry Solara)

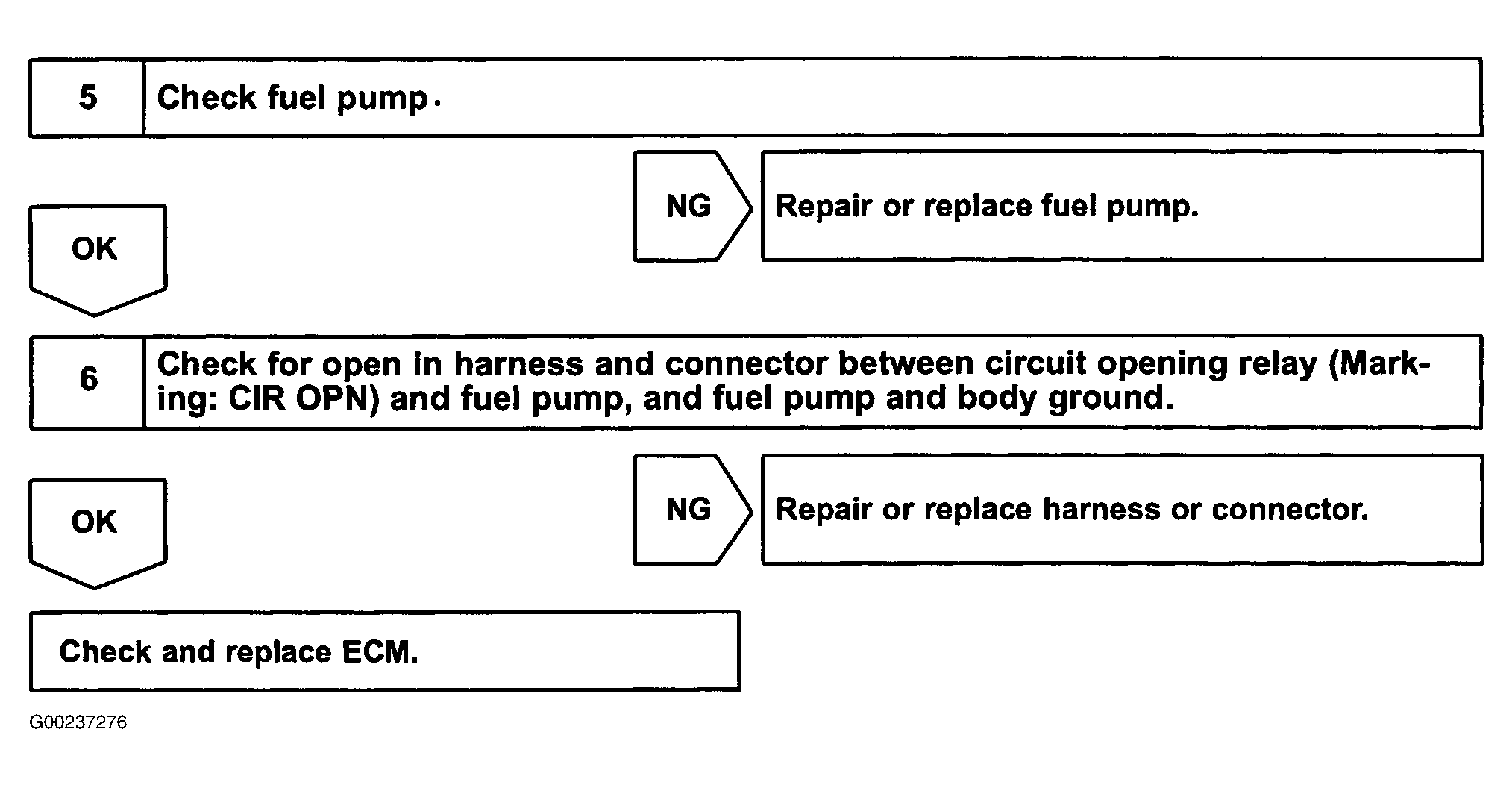

Fig 6: Fuel Pump Control Circuit Inspection Using OBD II Scan Tool - Steps 5-6 (Camry Solara)
