Corolla & Matrix

For throttle body inspection procedure, see Fig 1.

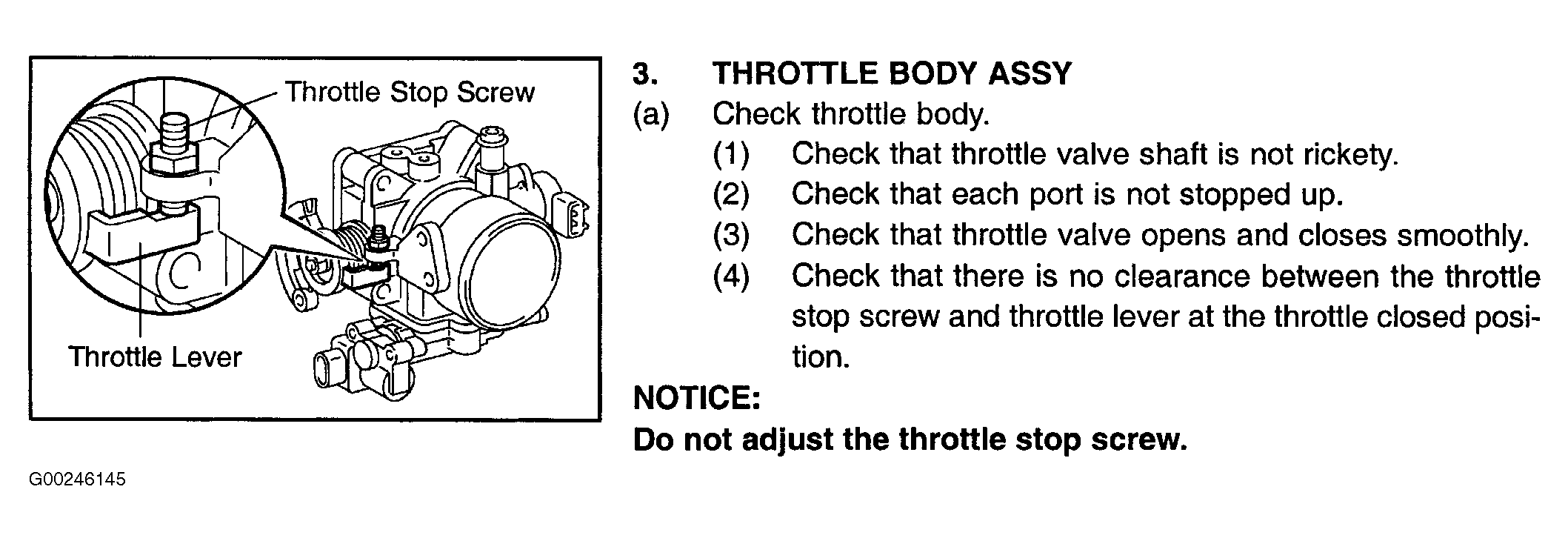

Fig 1: Inspecting Throttle Body (Corolla Shown; Matrix Is Similar)
G00246145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
