Front Bumper: Components

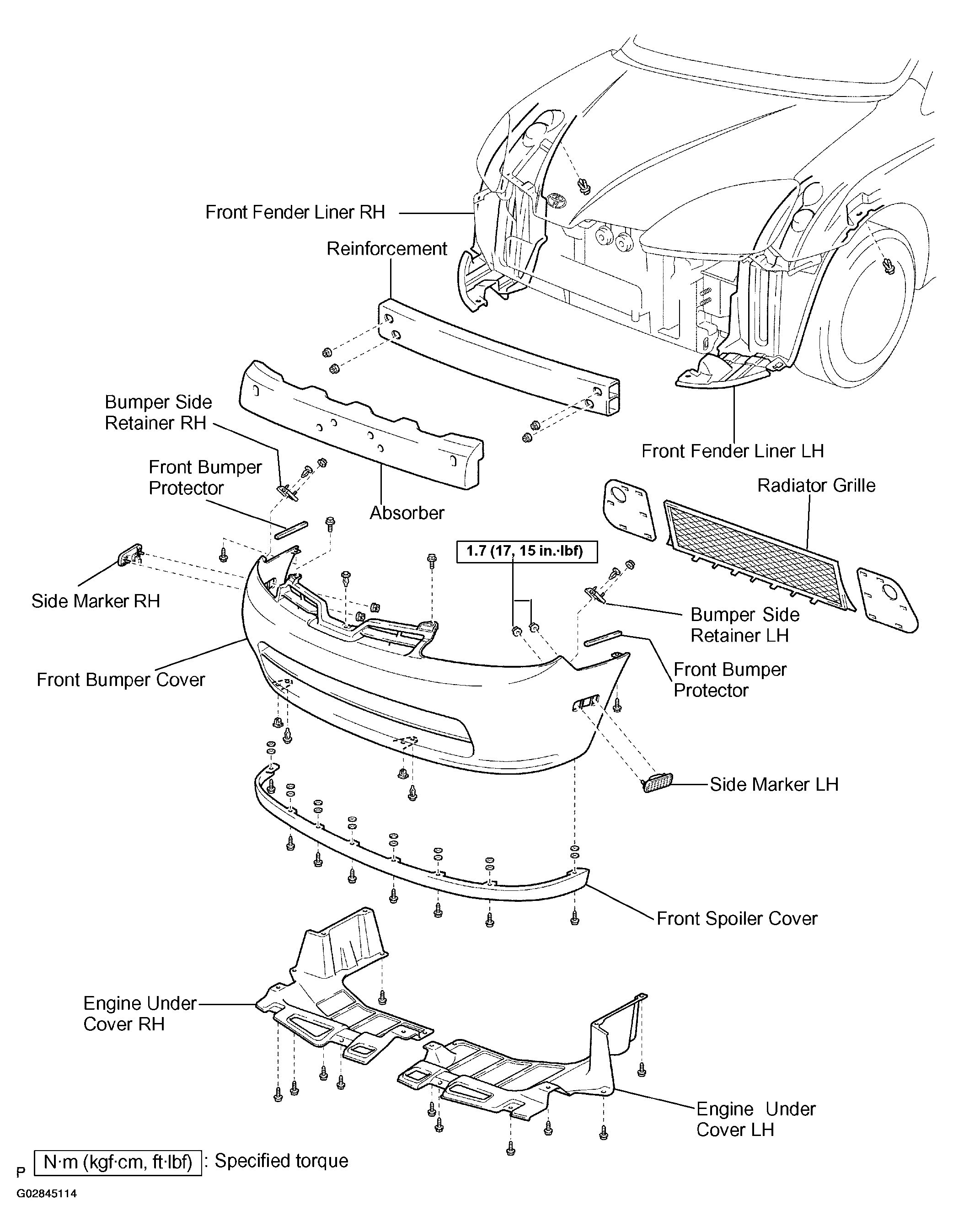

Fig 1: Identifying Components Of Front Bumper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
