Power Window Control System: Inspection

INSPECT ONE TOUCH POWER WINDOW SYSTEM/ CURRENT OF CIRCUIT (Using an ammeter)
1. Disconnect the connector from the master switch.
2. Connect the positive (+) lead from the ammeter to terminal 1 on the wire harness side connector and the negative (-) lead to negative (-) terminal of the battery.
3. Connect the positive (+) lead from the battery to terminal 2 on the wire harness side connector.
4. As the window goes down, check that the current flow is approximately 7 A.

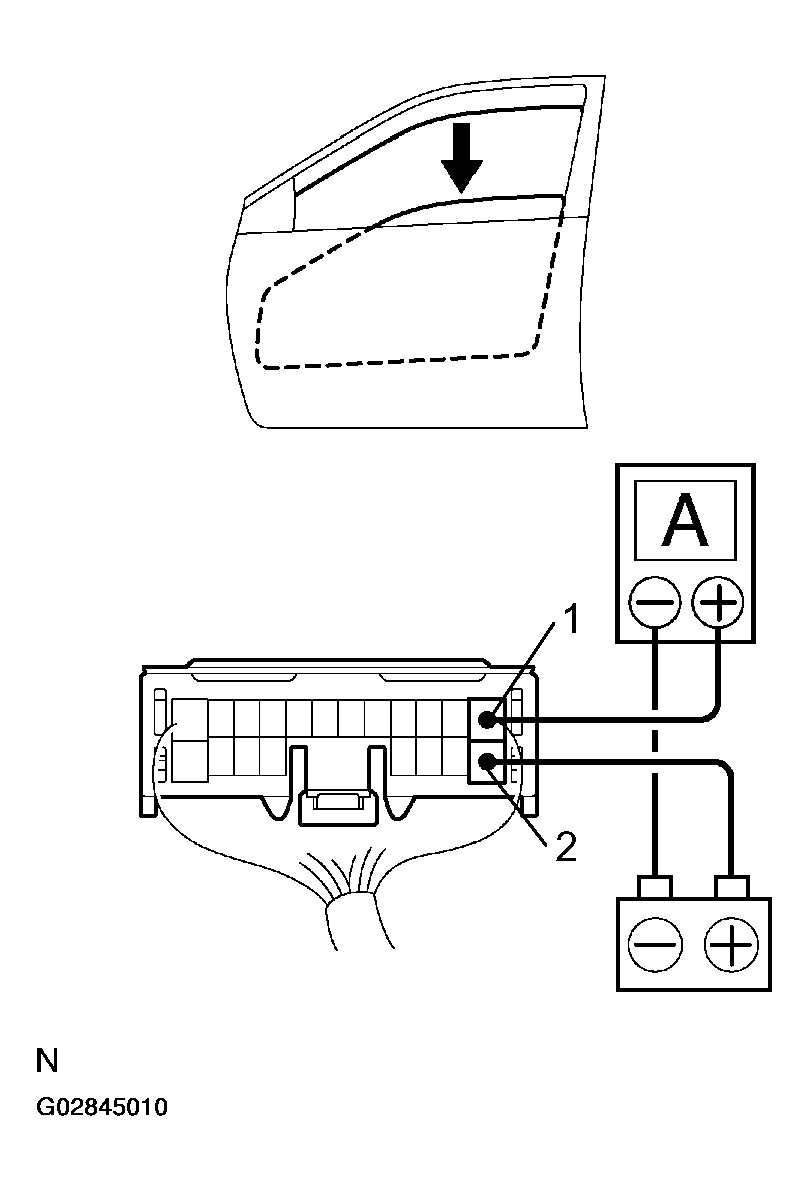

  Fig 1: Checking Power Window System Amperage
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check that the current increases up to approximately 14.5 A or more when the window stops going down.
  NOTE: The PTC opens some 4-90 seconds after the window stops going down, so that check must be made before the PTC operates.

  If the operation is as specified, replace the master switch.
INSPECT ONE TOUCH POWER WINDOW SYSTEM/ CURRENT OF CIRCUIT (Using an ammeter with a current-measuring probe)
1. Remove the driver door ECU with connectors connected.
2. Attach a current-measuring probe to terminal 5 of the wire harness.

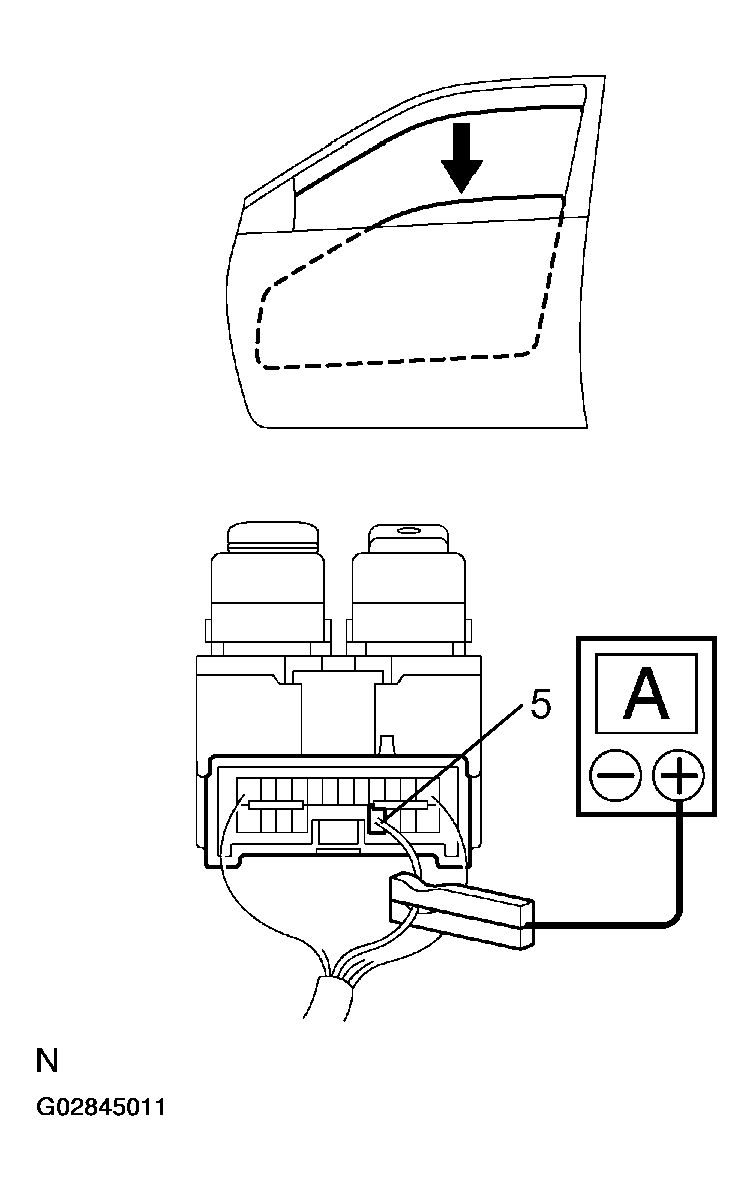

  Fig 2: Inspecting One Touch Power Window System Amperage
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn the ignition switch ON and set the power window switch in the down position.
4. As the window goes down, check that the current flow is approximately 7 A.
5. Check that the current increases up to approximately 14.5 A or more when the window stops going down.
  NOTE:
  The PTC opens some 4 - 90 seconds after the window stops going down, so that check must be made before the PTC operates.

  If operation is as specified, replace the driver door ECU.

INSPECT POWER WINDOW SWITCH CONTINUITY

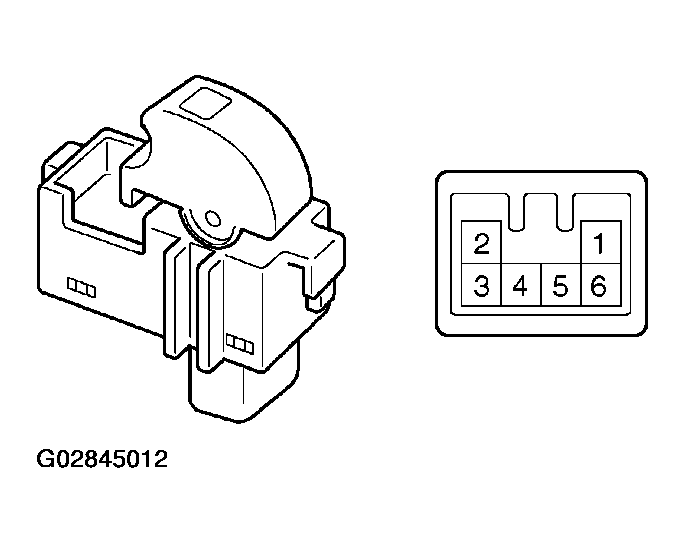

Fig 3: Inspecting Power Window Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER WINDOW SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
UP	2 - 3, 4 - 5	Continuity
OFF	2 - 3 - 5	No continuity
DOWN	2 - 4, 3 - 5	Continuity

If continuity is not as specified, replace the switch.

INSPECT POWER WINDOW SWITCH CIRCUIT ) .

INSPECT POWER MAIN RELAY CONTINUITY

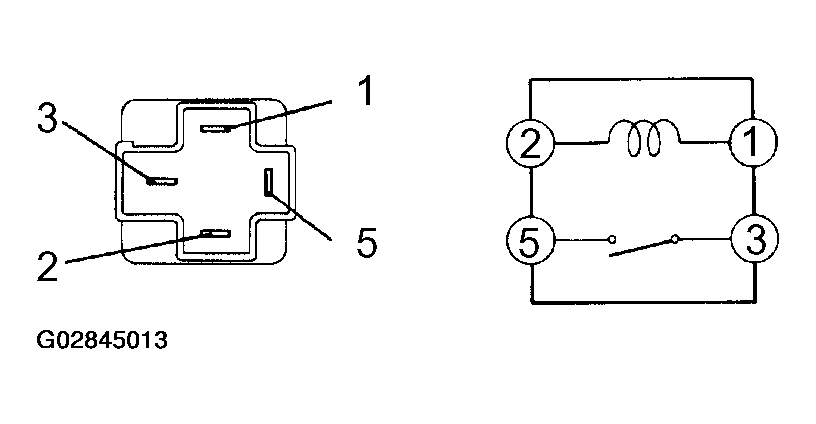

Fig 4: Inspecting Power Main Relay Continuity

POWER MAIN RELAY CONTINUITY

Condition	Tester connection	Specified condition
Constant	1 - 2	Continuity
Apply B+ between terminals 1 and 2	3 - 5	Continuity

If continuity is not as specified, replace the relay.

Driver's door: INSPECT POWER WINDOW MOTOR OPERATION

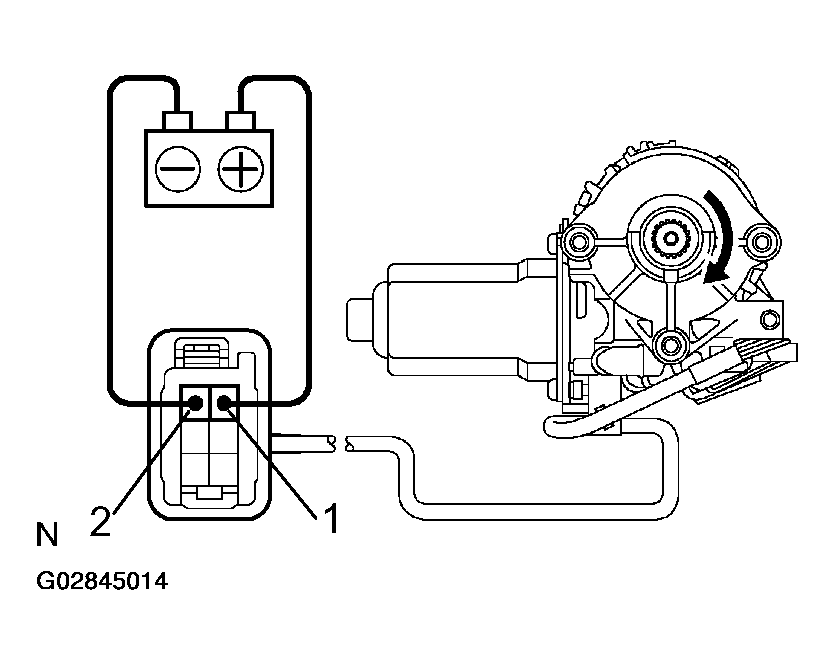

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns clockwise.

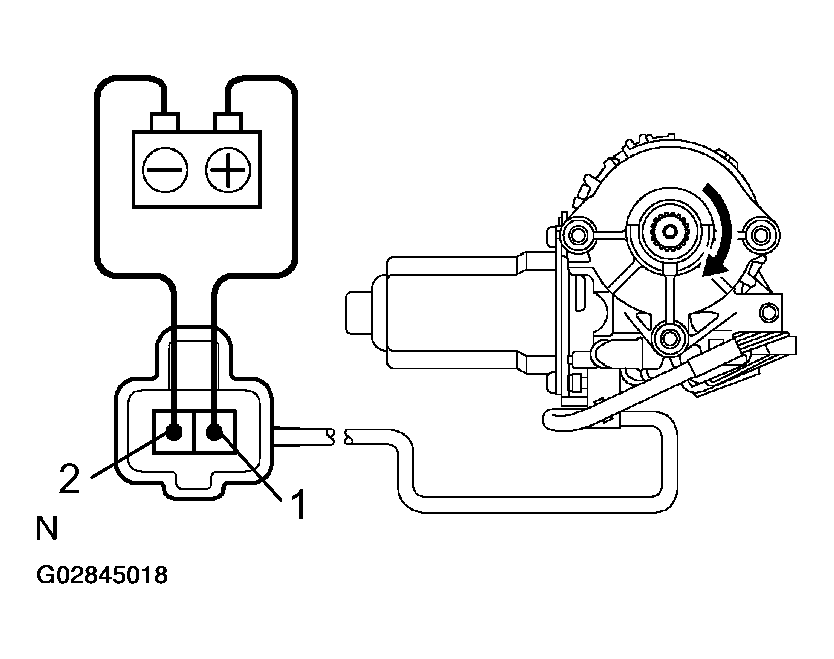

  Fig 5: Inspecting Power Window Motor Operation (Driver's Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

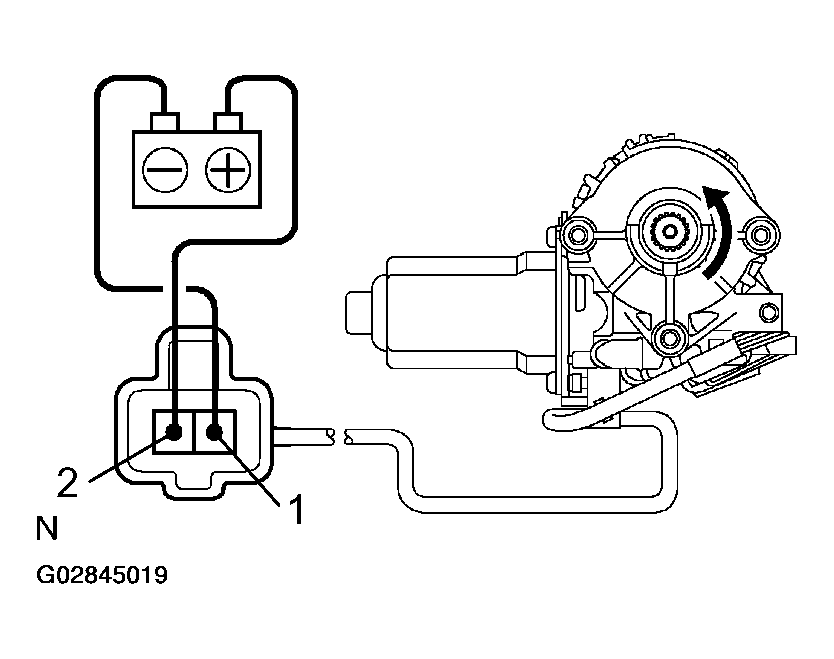

2. Reverse the polarity, check that the motor turns counterclockwise.

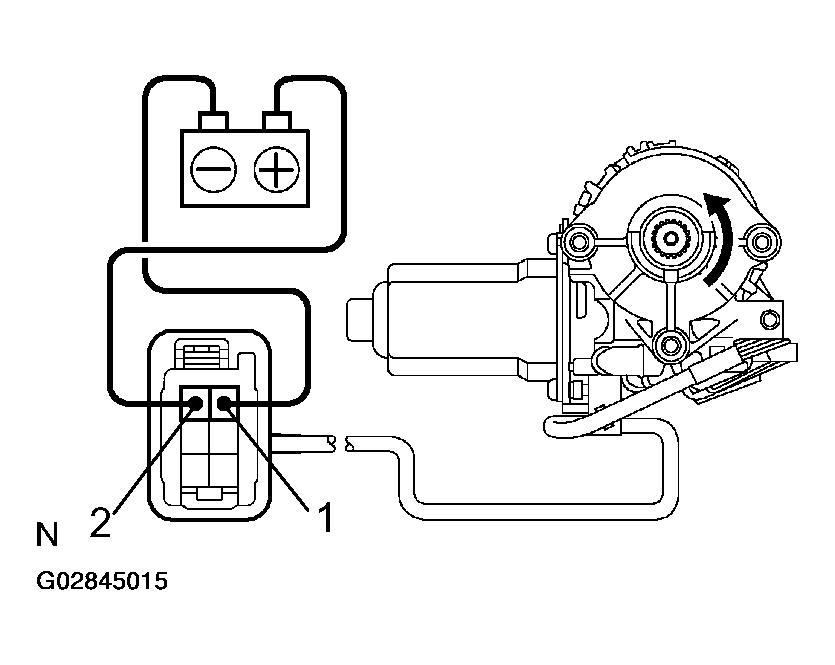

  Fig 6: Inspecting Power Window Motor Operation (Driver'S Door) (By Reversing Polarity)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If operation is not as specified, replace the motor.

  NOTE: Since the jam protection may not work properly be sure to conduct procedures described in "HOW TO RESET POWER MOTOR (RESET AND PULSE SWITCH )" after this inspection.
Passenger's door and rear right door: INSPECT POWER WINDOW MOTOR OPERATION

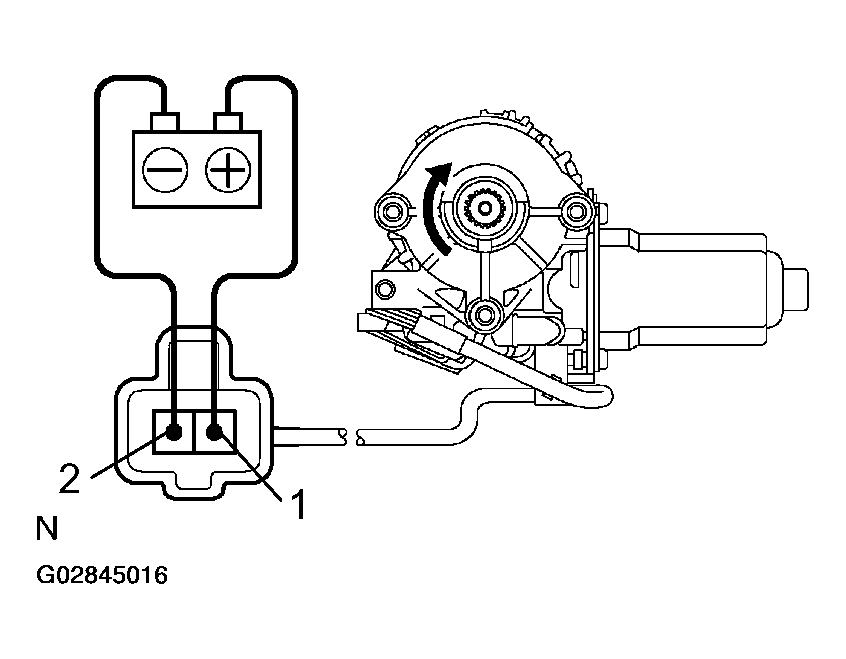

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns clockwise.

  Fig 7: Inspecting Power Window Motor Operation (Passenger'S Door And Rear Right Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

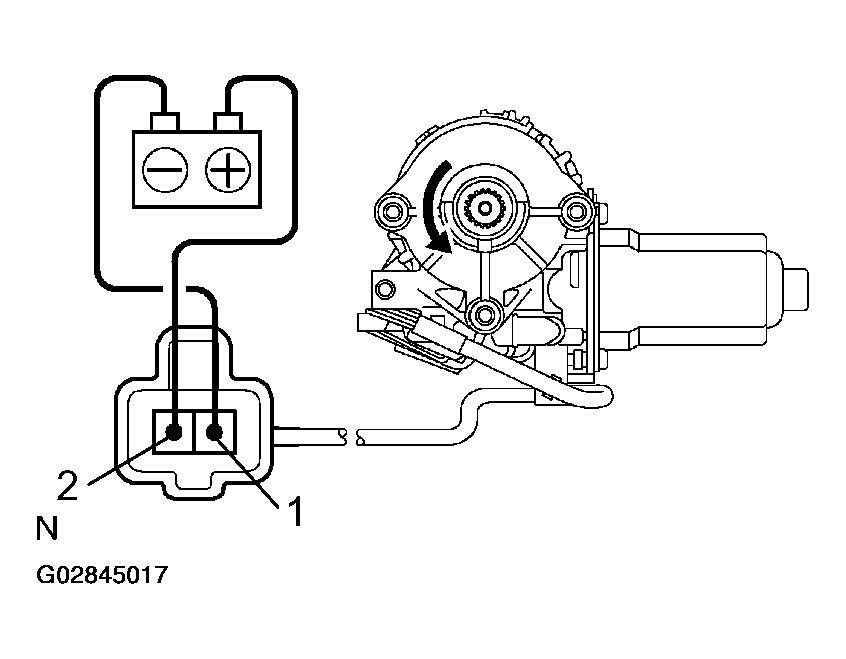

2. Reverse the polarity, check that the motor turns counterclockwise.

  Fig 8: Inspecting Power Window Motor Operation (Passenger'S Door And Rear Right Door) (By Reversing Polarity)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If operation is not as specified, replace the motor.
Rear left door: INSPECT POWER WINDOW MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns clockwise.

  Fig 9: Inspecting Power Window Motor Operation (Rear Left Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the motor turns counterclockwise.

  Fig 10: Inspecting Power Window Motor Operation (Rear Left Door) (By Reversing Polarity)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If operation is not as specified, replace the motor.
Driver's door: INSPECT PTC OPERATION
1. Disconnect the connector from the window motor.
2. Connect the positive (+) lead from the ammeter to terminal 1 of the wire harness side connector and the negative (-) lead to negative terminal of the battery.

  Fig 11: Inspecting PTC Operation (Driver'S Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the positive (+) lead from the battery to terminal 2 of the wire harness side connector, and raise the window to the fully closed position.
4. Continue to apply voltage, check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
5. Disconnect the leads from terminals.

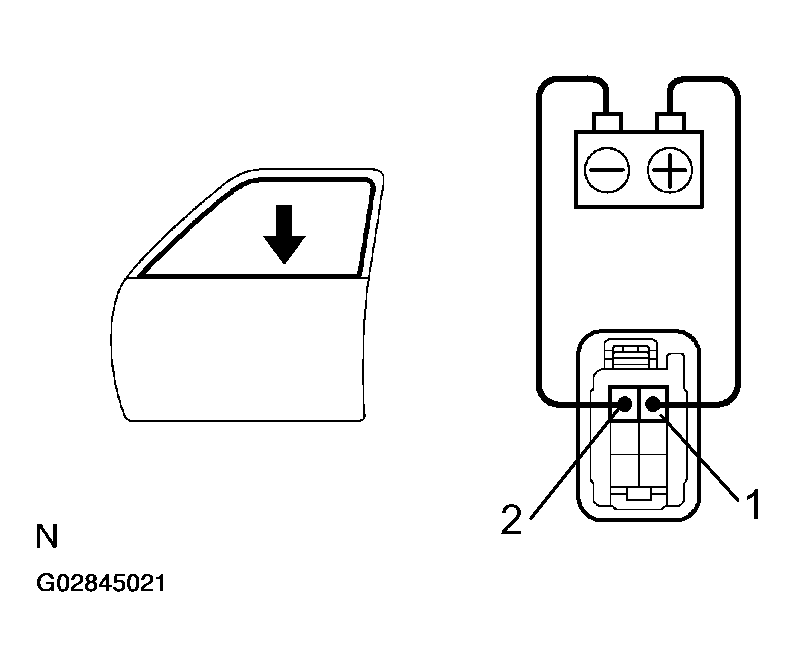

6. Approximately 90 seconds later, connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the window begins to descend.

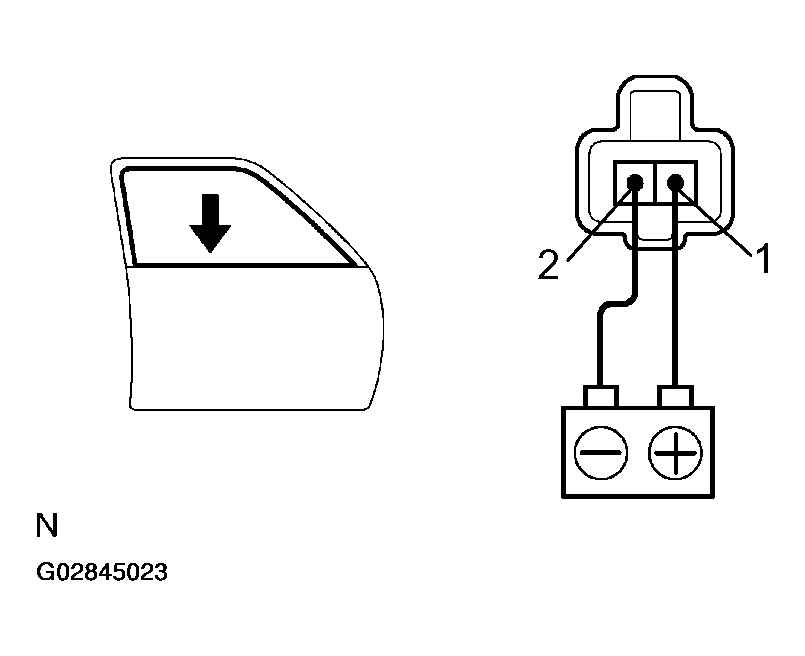

  Fig 12: Inspecting PTC Operation (Driver'S Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If operation is not as specified, replace the motor.
Except driver's door: INSPECT PTC OPERATION
1. Disconnect the connector from the power window switch.

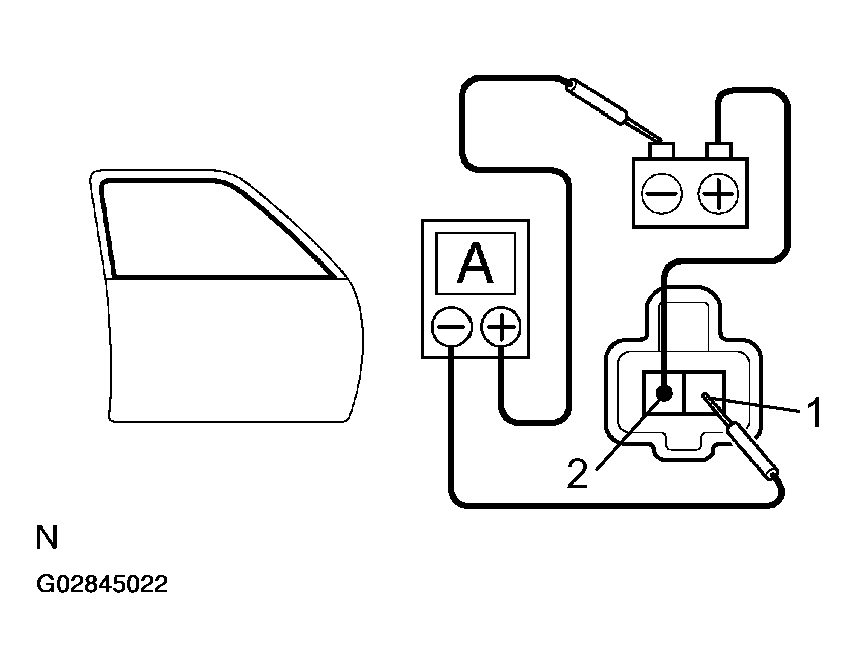

2. Connect the positive (+) lead from the ammeter to terminal 1 of the wire harness side connector and the negative (-) lead to negative terminal of the battery.

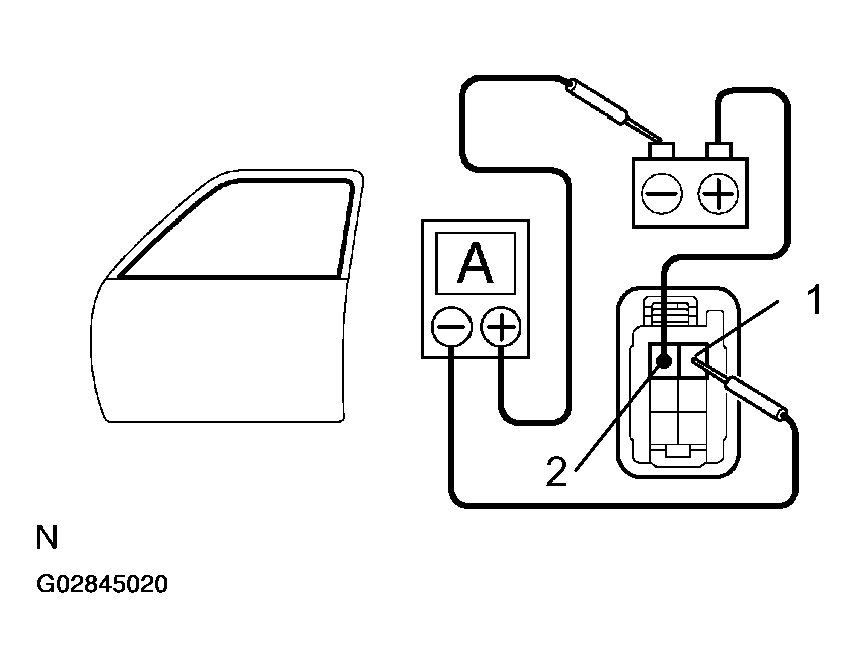

  Fig 13: Inspecting PTC Operation (Except Driver'S Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the positive (+) lead from the battery to terminal 2 of the wire harness side connector, and raise the window to the fully closed position.
4. Continue to apply voltage, check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
5. Disconnect the leads from terminals.
6. Approximately 90 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the window begins to descend.

  Fig 14: Inspecting PTC Operation (Except Driver's Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If operation is not as specified, replace the motor.
INSPECT JAM PROTECTION FUNCTION
WARNING: Never, ever be caught any part of your body when checking.

NOTE:
In case of performing resetting of the limit switch, do checking after repeating up and down of the glass with automatic operation.
1. Confirmation of AUTO up operation:
  Confirm that the window will be fully close with AUTO up operation.
2. Checking of the operation of the jam protection function:
  1. Move up the window with AUTO up operation and check that the window will go down when it touches the handle of the hammer stetted.
  2. Confirm that the window will then stop going down about 200 mm.
    NOTE:
    In case of removing the glass, glass guide, regulator and etc. be sure to perform checking of the jam protection function. If the jam protection is not function properly, adjust power window motor reset switch and pulse switch.
