Power Window Control System: Troubleshooting

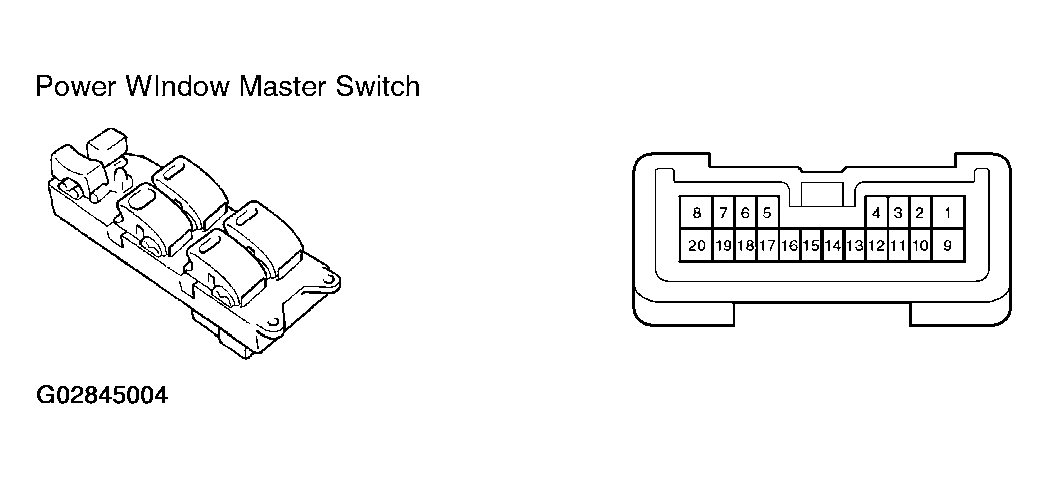

Fig 1: Identifying Power Window Master Switch And Connector Terminals
G02845004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. One touch power window does not move up and down.

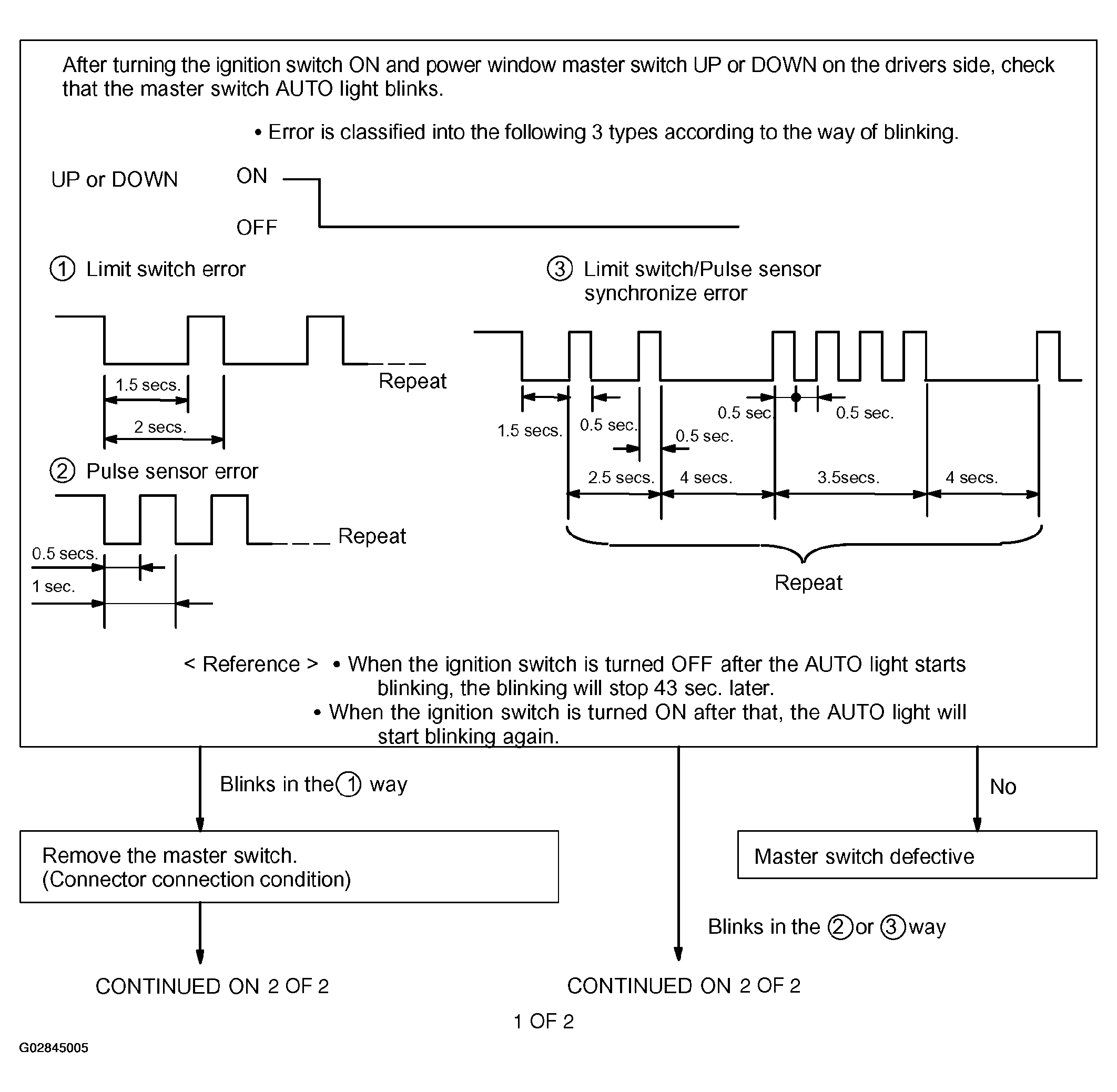

    Fig 2: One Touch Power Window Does Not Move Up And Down Troubleshooting Chart (1 Of 2)
    G02845005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

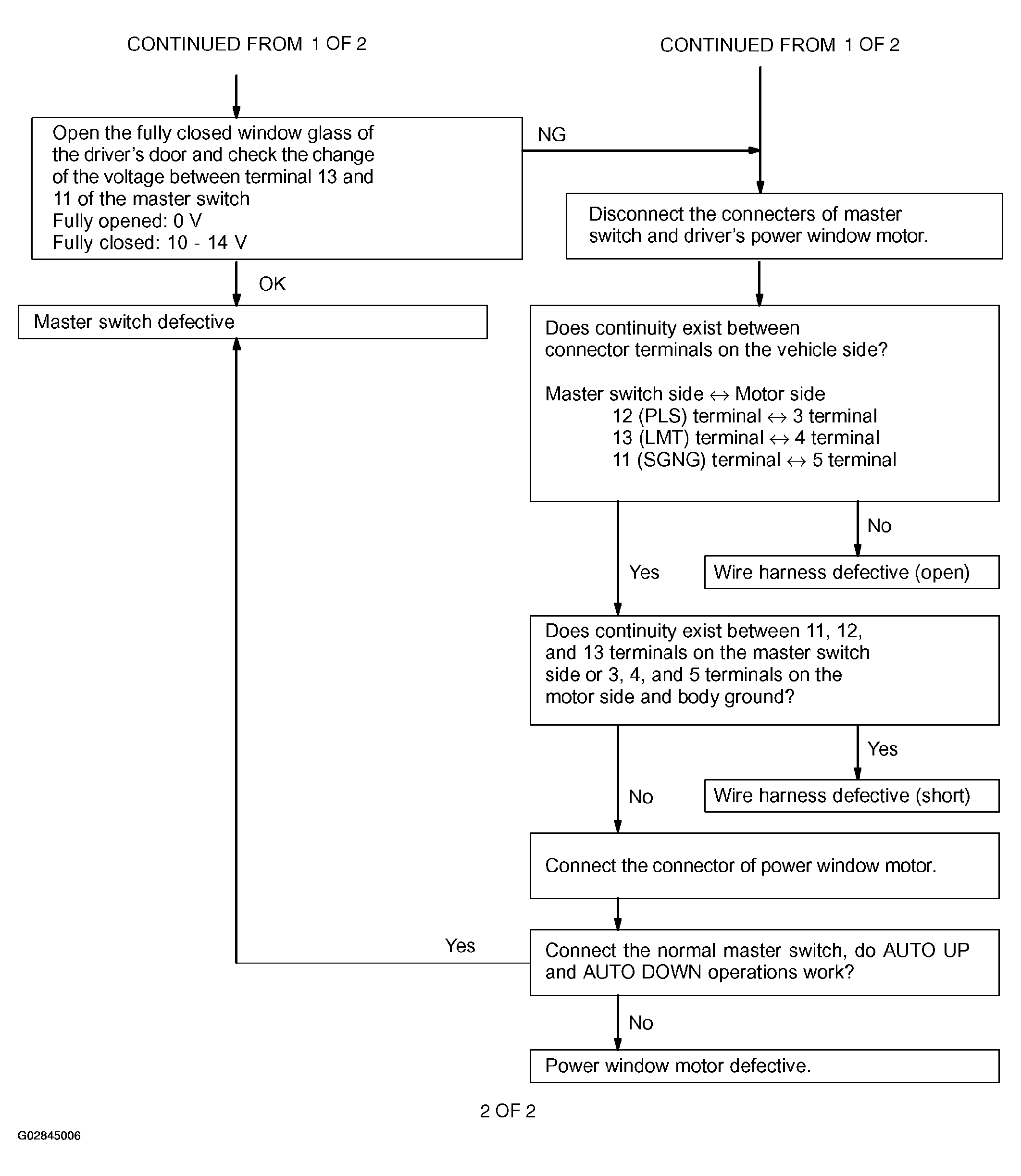

    Fig 3: One Touch Power Window Does Not Move Up And Down Troubleshooting Chart (2 Of 2)
    G02845006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. During AUTO UP operation, the power window moves down.

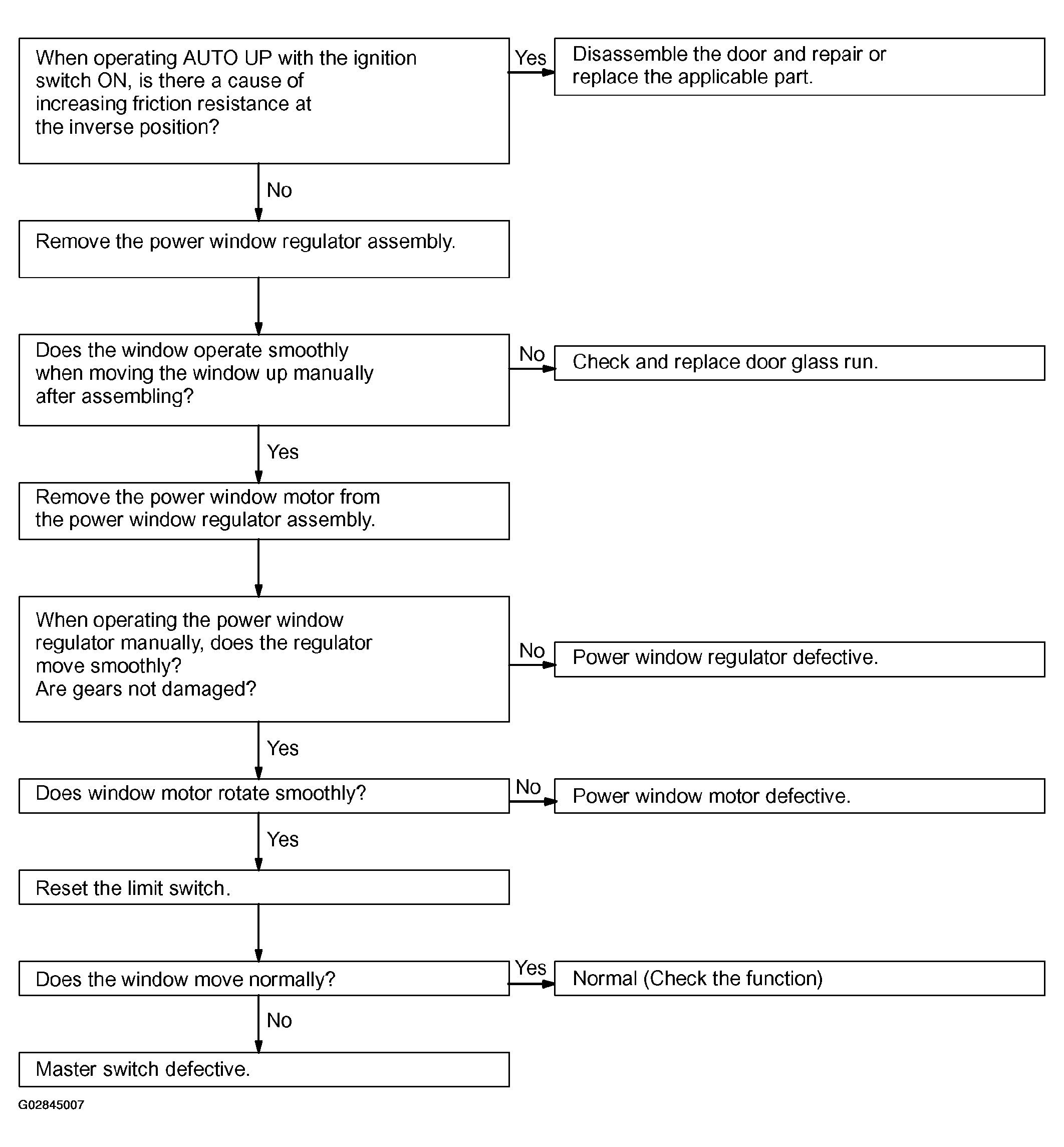

    Fig 4: During AUTO UP Operation, Power Window Moves Down Troubleshooting Chart
    G02845007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. The DOWN function does not work though some other objects are caught in the power window glass.

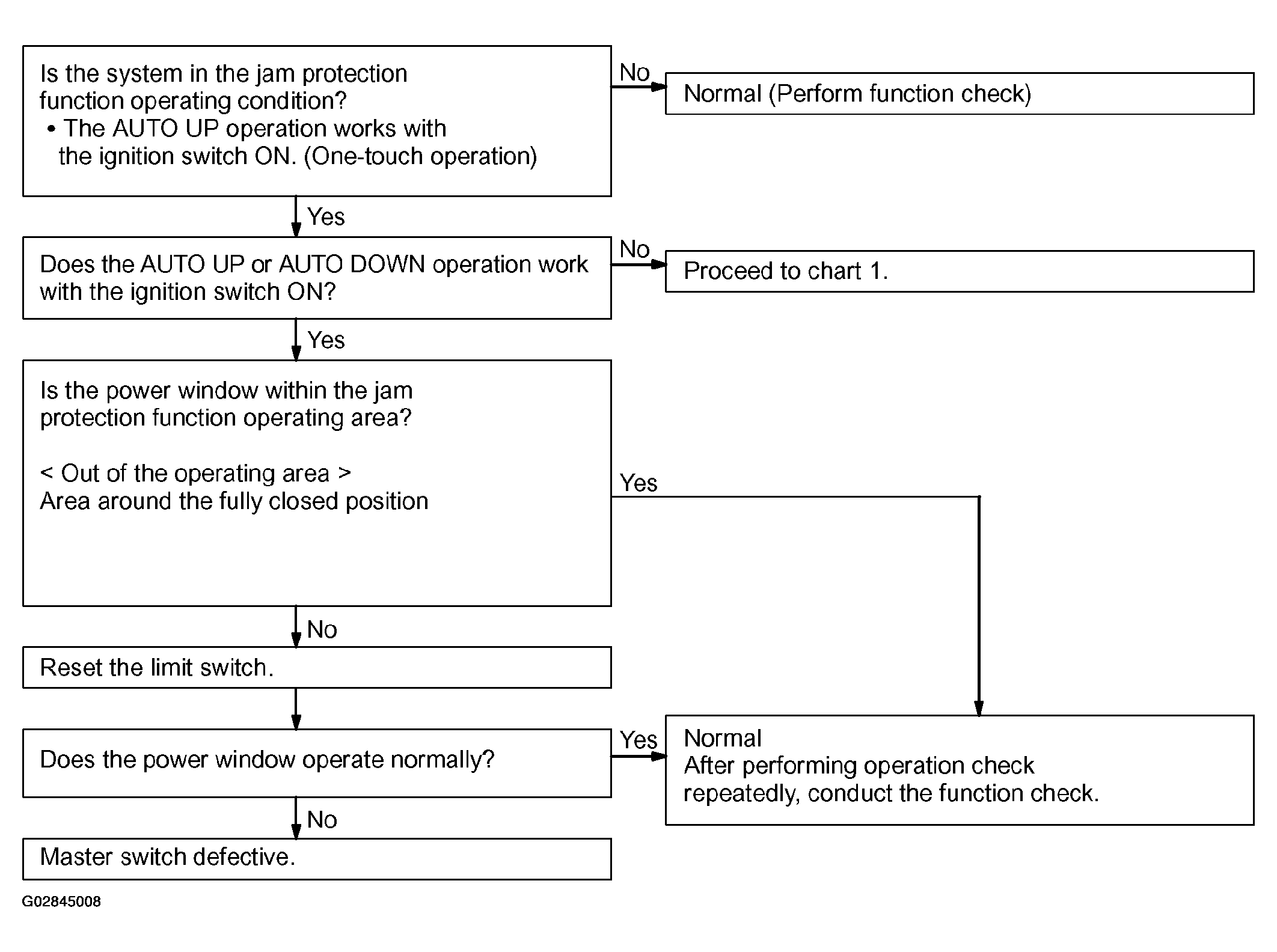

    Fig 5: Down Function Does Not Work Troubleshooting Chart
    G02845008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
