Testing Procedures

For wiring diagram, see Fig 1. For testing procedures, see Fig 2.

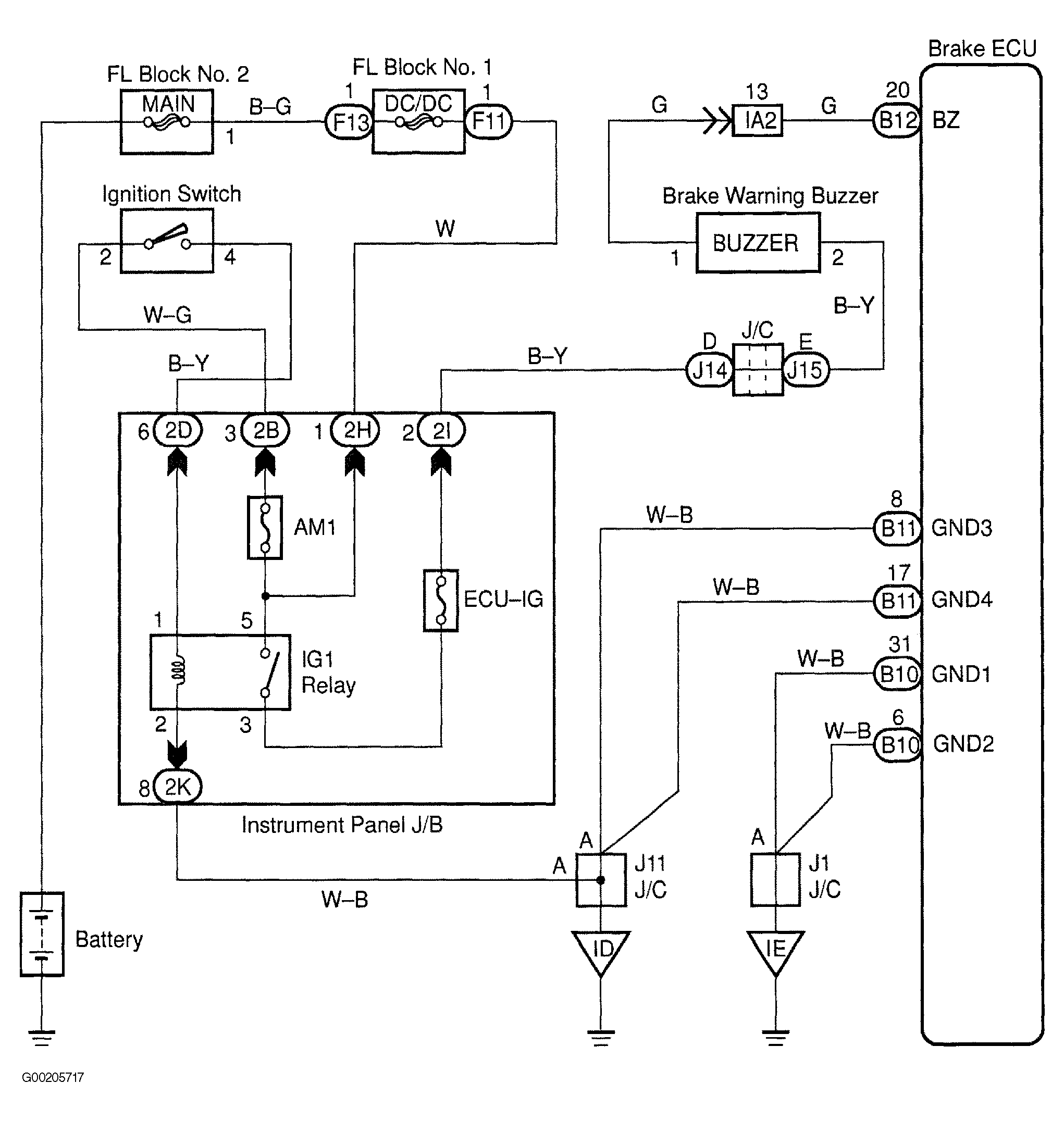

Fig 1: Brake Warning Buzzer Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

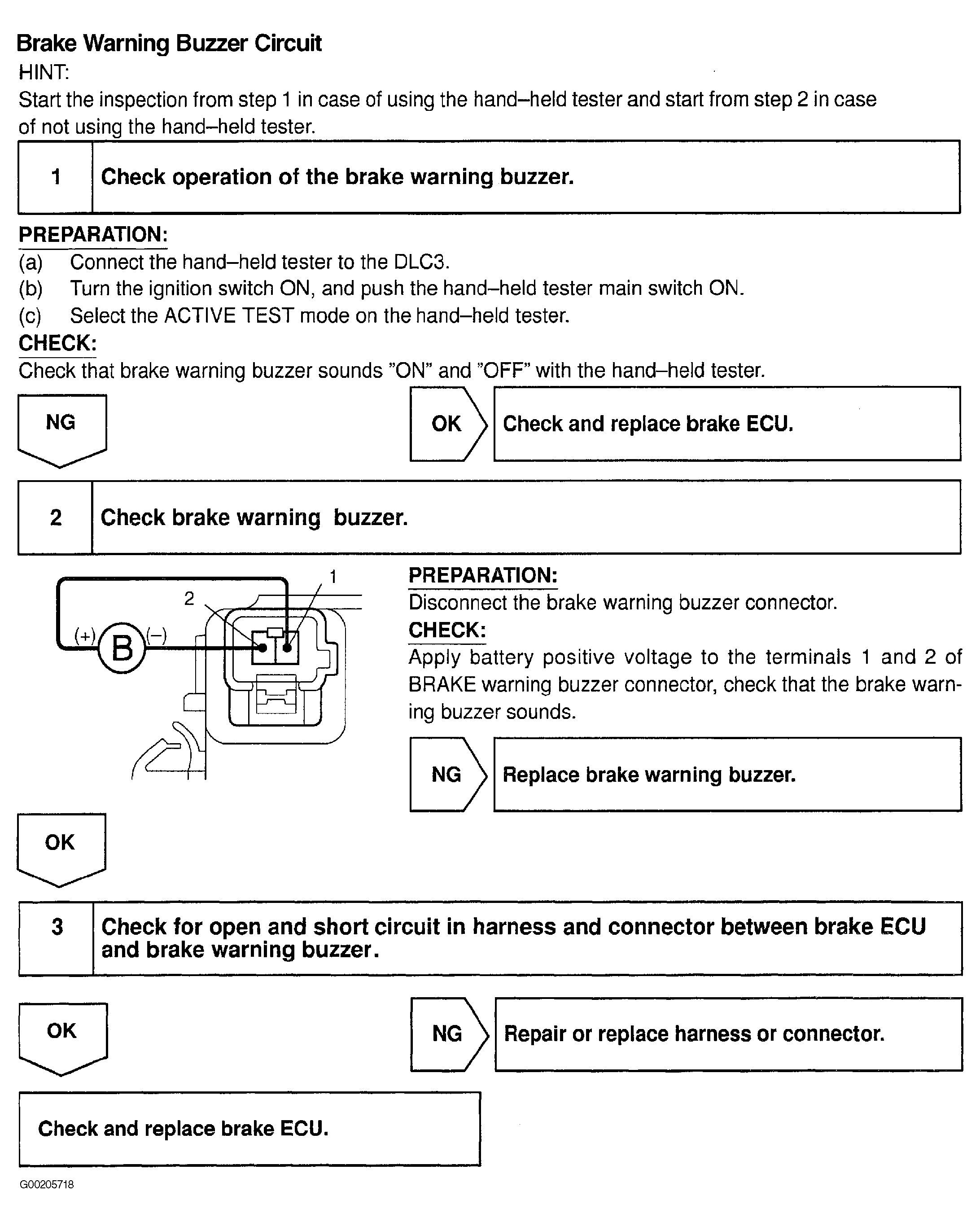

Fig 2: Brake Warning Buzzer circuit Testing Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
