Inspection Procedure

Combination meter is located top center of dashboard. To inspect combination meter circuit and speedometer (on-vehicle), see Fig 1 & Fig 2 .

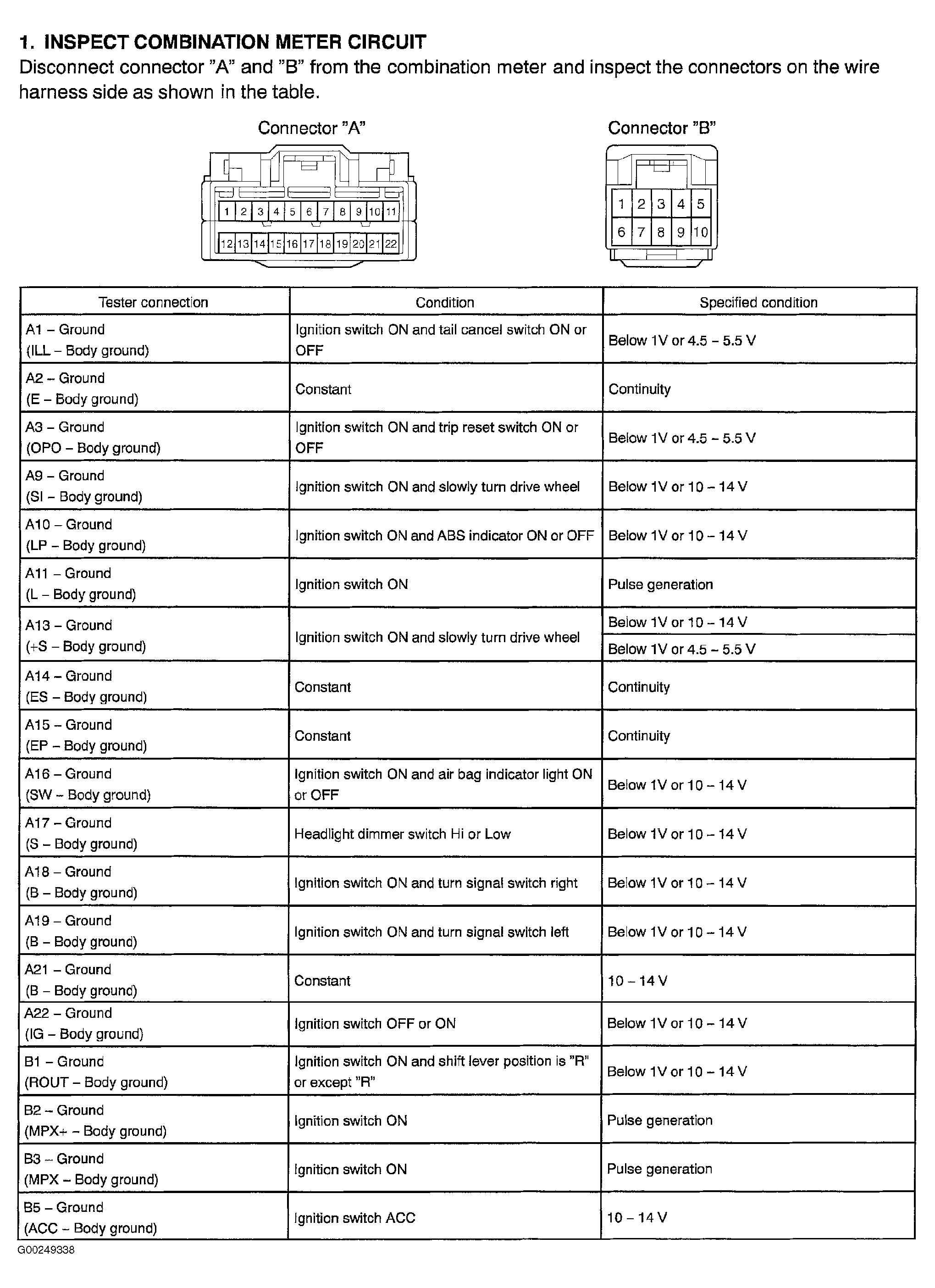

Fig 1: Combination Meter Circuit Diagnostic Procedure (Step 1)
G00249338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

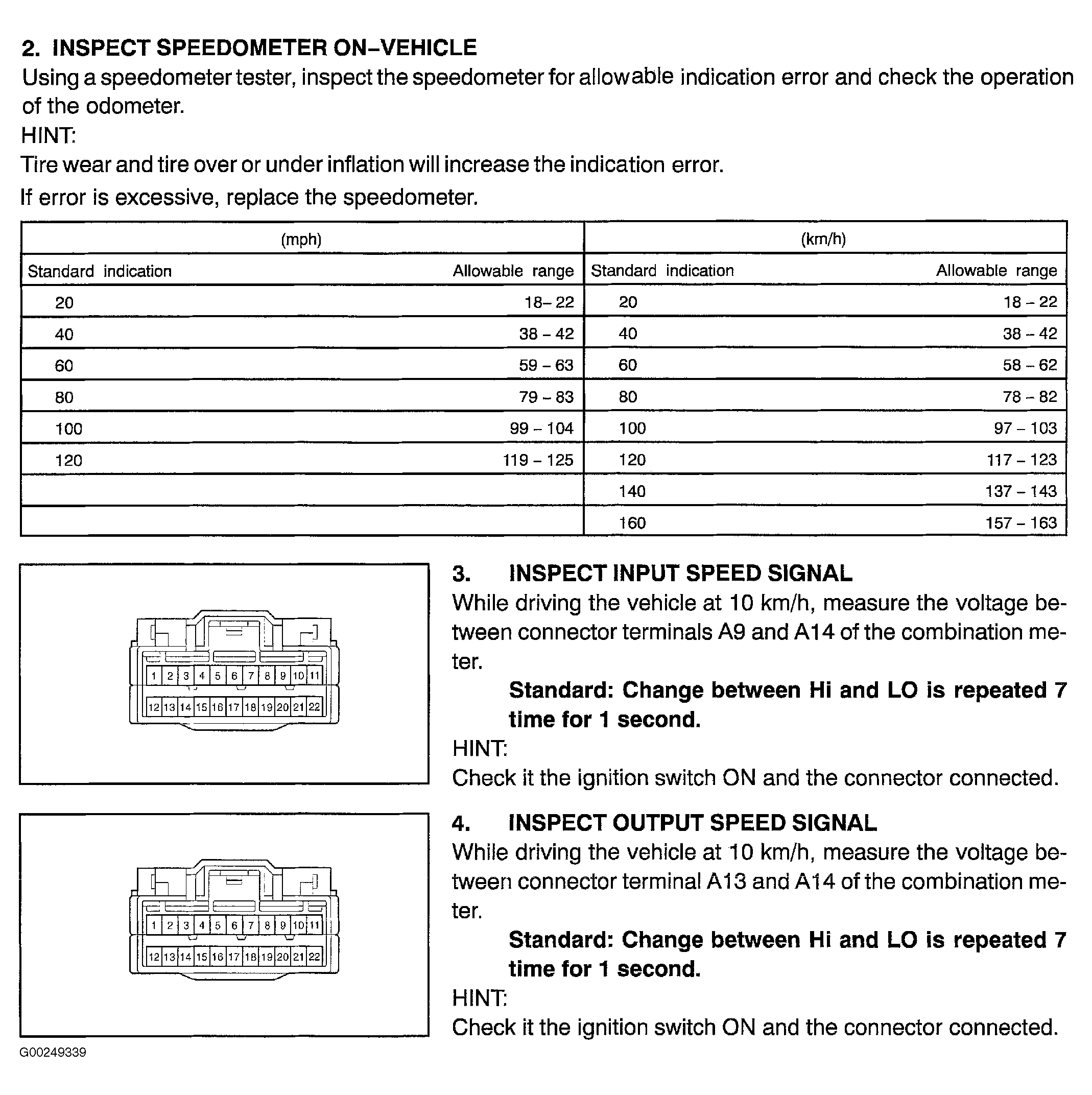

Fig 2: Combination Meter Circuit Diagnostic Procedure (Steps 2-3)
G00249339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
