Converter And Inverter Assembly: Components

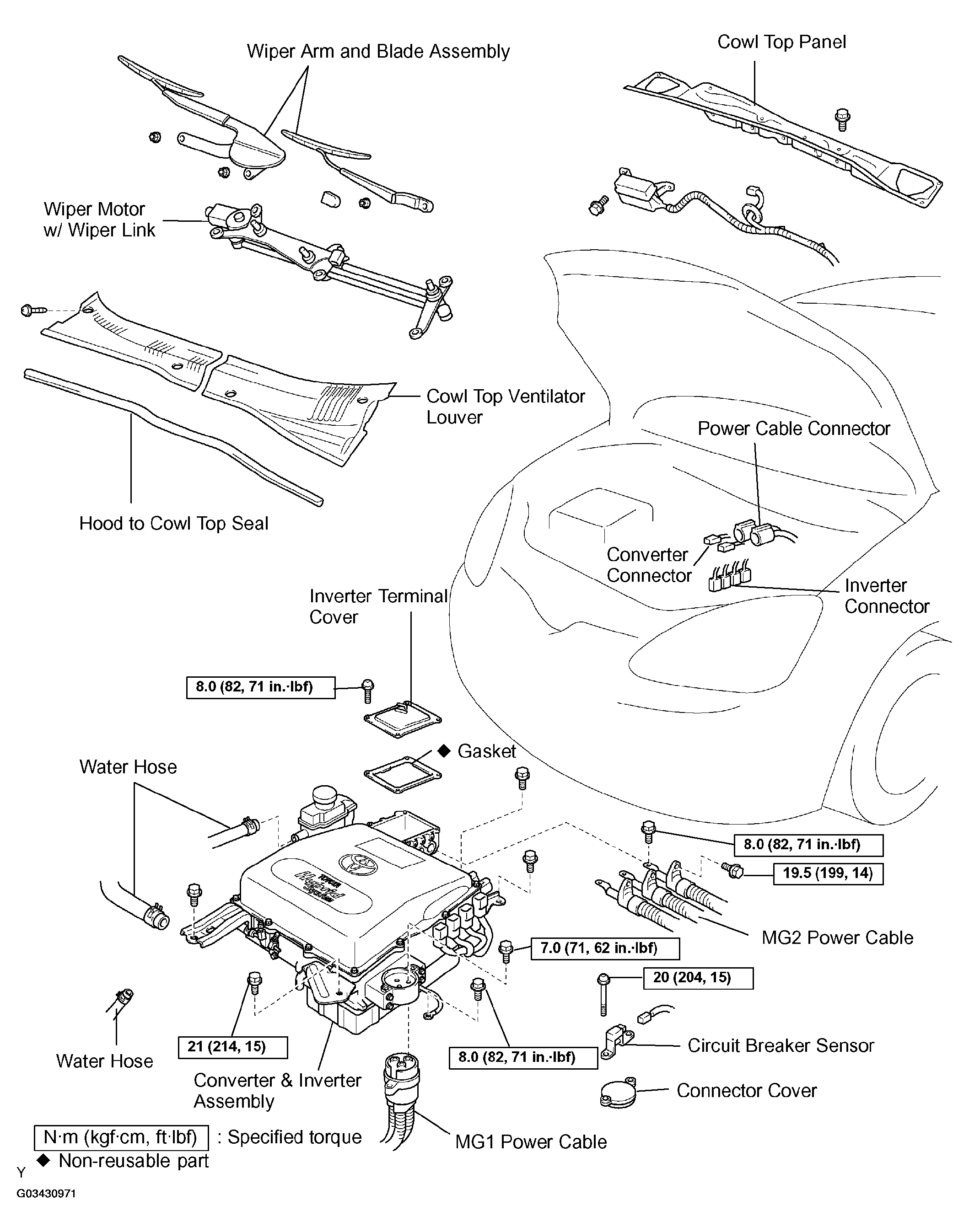

Fig 1: Identifying Converter & Inverter Assembly Components (1 Of 2)
G03430971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

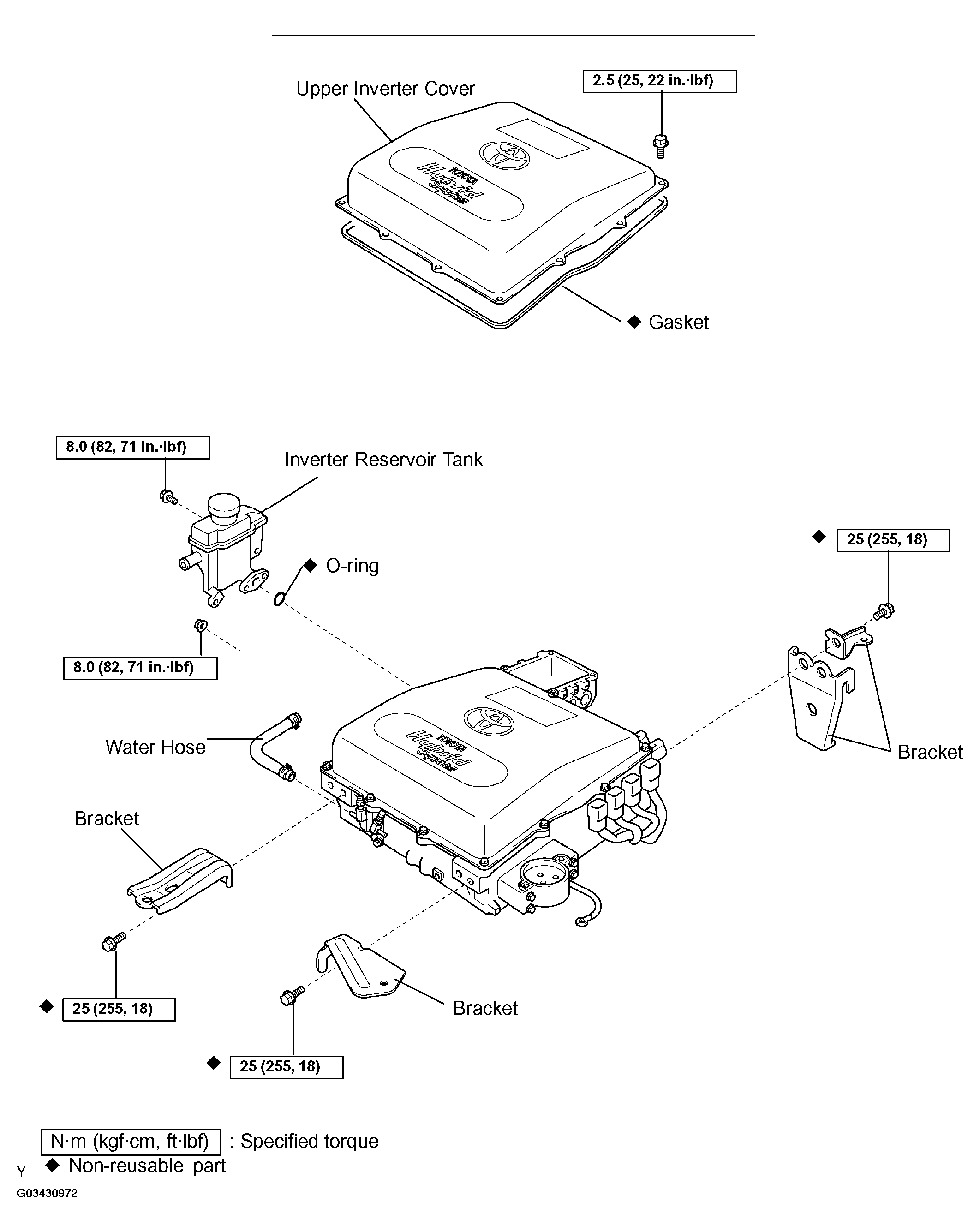

Fig 2: Identifying Converter & Inverter Assembly Components (2 Of 2)
G03430972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
