Converter And Inverter Assembly: Disassembly

REMOVE INVERTER RESERVOIR TANK
1. Remove the 2 bolts, nuts and inverter reservoir tank.
2. Remove the O-ring from the inverter reservoir tank.

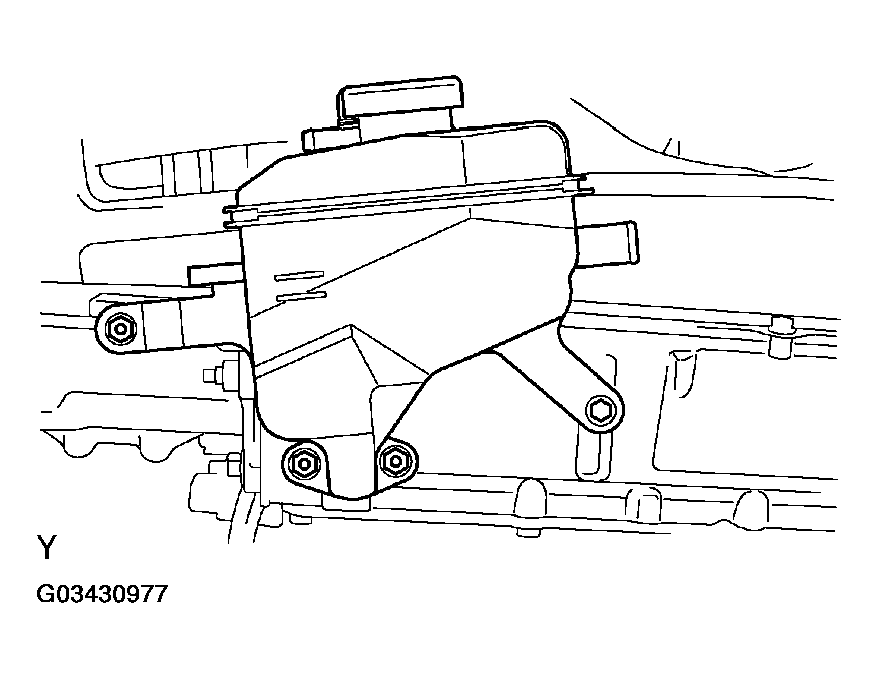

  Fig 1: Removing Inverter Reservoir Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INVERTER COVER
NOTE:
- Do not remove the inverter cover unless necessary. Doing so may result in vehicle breakdown or electric shock.
- When replacing the inverter cover, quickly replace it to prevent water, dirt or dust from entering into the inverter.
1. Remove the 12 bolts and inverter cover.

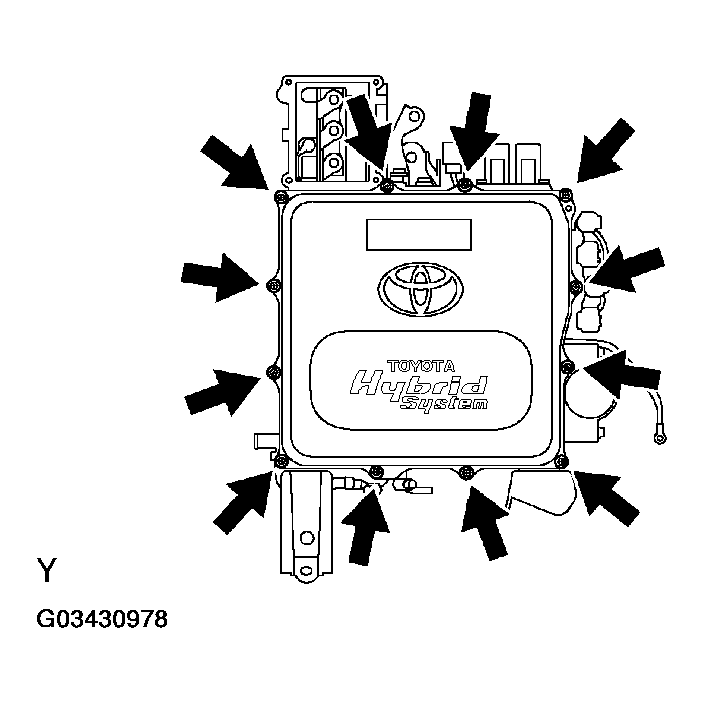

  Fig 2: Removing Inverter Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the gasket from the inverter cover.
REMOVE BRACKET
Remove the 6 bolts and 4 brackets.
REMOVE WATER HOSE
