Converter And Inverter Assembly: Reassembly

Install the 4 brackets with the 6 bolts.

Torque:  25 N.m (255 kgf.cm, 18 ft.lbf)

1. Install a new gasket to the inverter cover.
2. Install the inverter cover with the 12 bolts.

   Torque:  2.5 N.m (25 kgf.cm, 22 in.lbf)

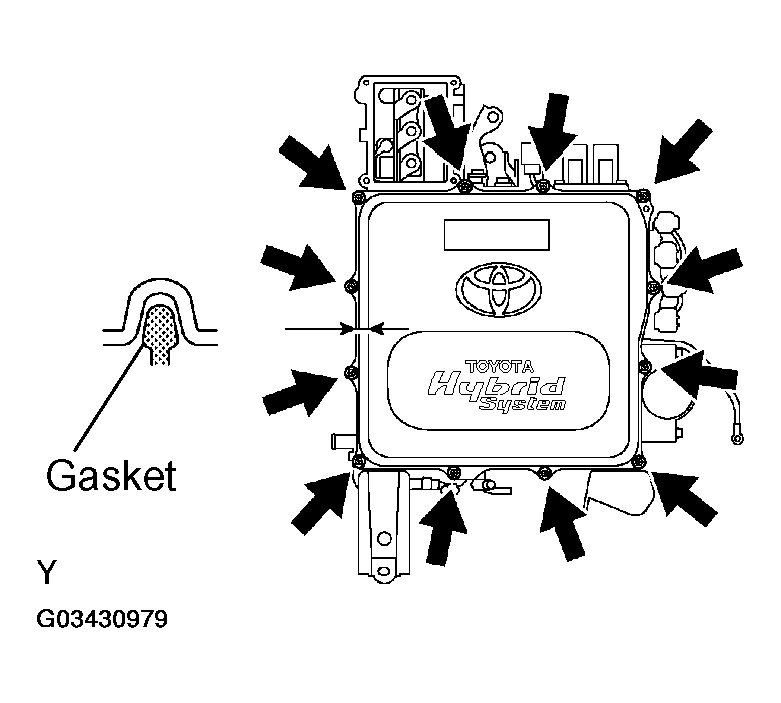

   Fig 1: Installing Inverter Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new O-ring to the inverter reservoir tank.
2. Install the inverter reservoir tank with the 2 bolts and nuts.

   Torque:  8.0 N.m (82 kgf.cm, 71 in.lbf)

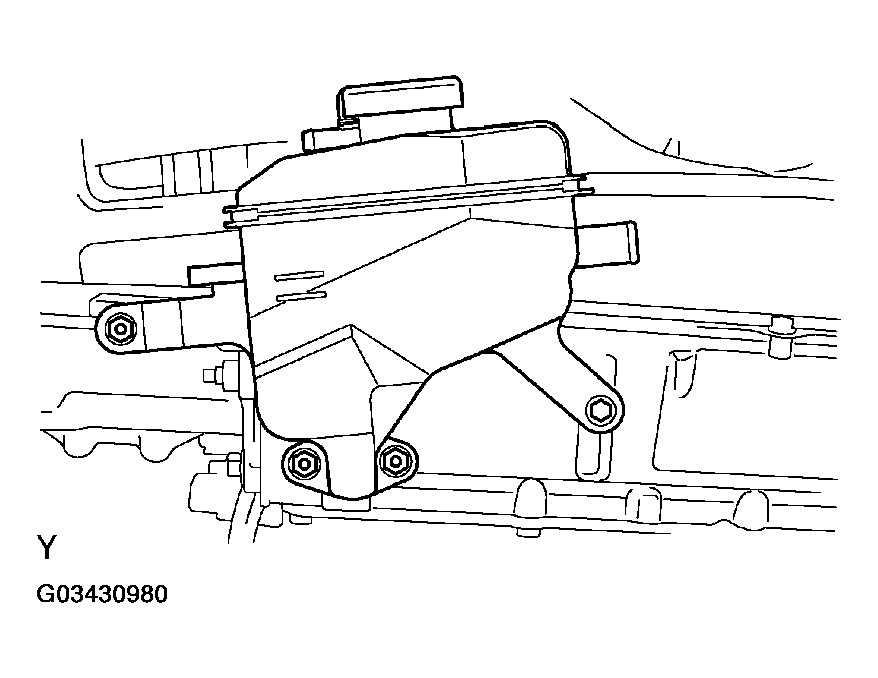

   Fig 2: Installing Inverter Reservoir Tank
