Converter And Inverter Assembly: Removal
- REMOVE SERVICE PLUG (See PRECAUTION )
- DRAIN HV COOLANT (See ON-VEHICLE REPAIR )
- REMOVE COWL TOP PANEL (See COMPONENTS )
- VERIFY 0 V NOTE:
- Before starting step a , 5 minutes or more should be passed after removing the service plug.
- Be careful to prevent foreign matter from entering the inside of connector cover.
- Disconnect the connector of the battery power cable and insulate it with packaging tape.
- Using a torx socket wrench (T30), remove the 4 screws and inverter terminal cover.
- Using a torx socket wrench (T40), remove the 2 screws, circuit breaker sensor and connector cover.
HINT:
Slide the connector cover to disconnect the circuit breaker sensor connector.
- Using a voltmeter, measure the voltage between terminals of 3 phases (U-V, V-W, U-W) and each terminal and body ground to verify them to be approx. 0 V.

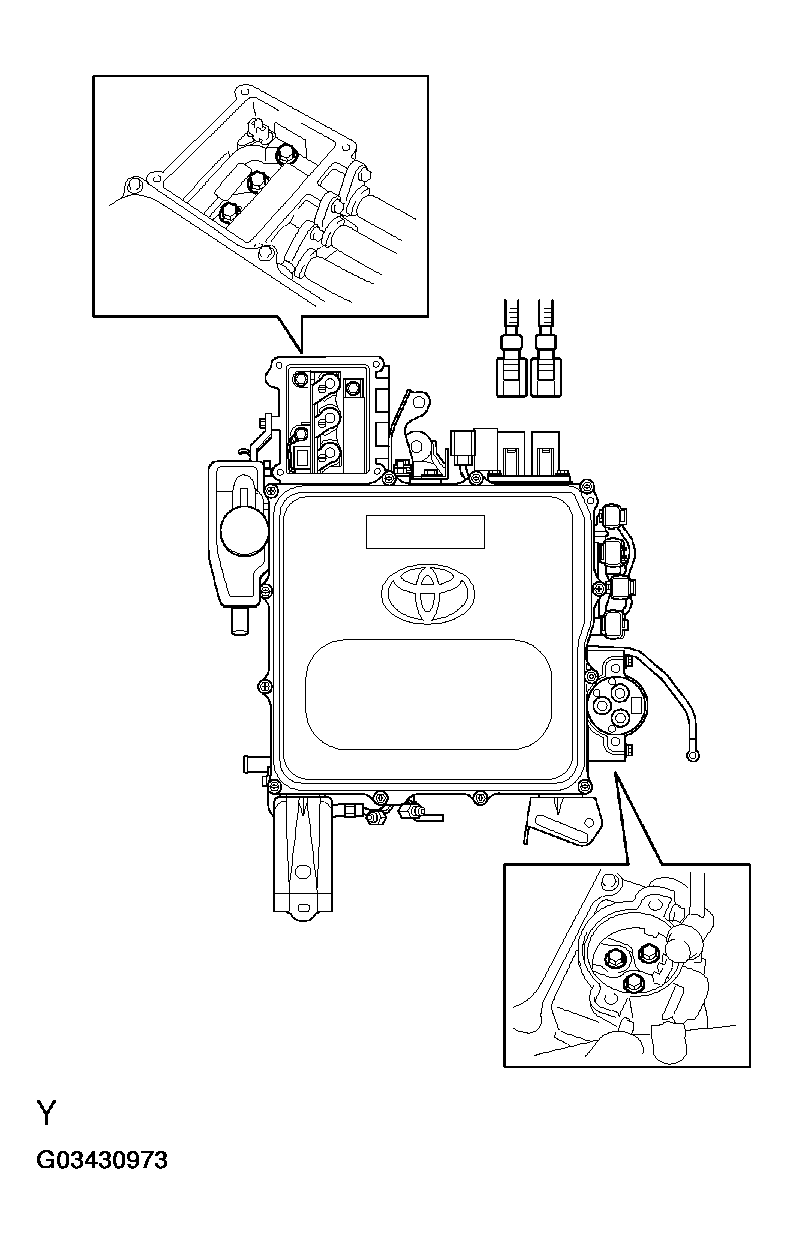

- REMOVE CONVERTER & INVERTER ASSEMBLY

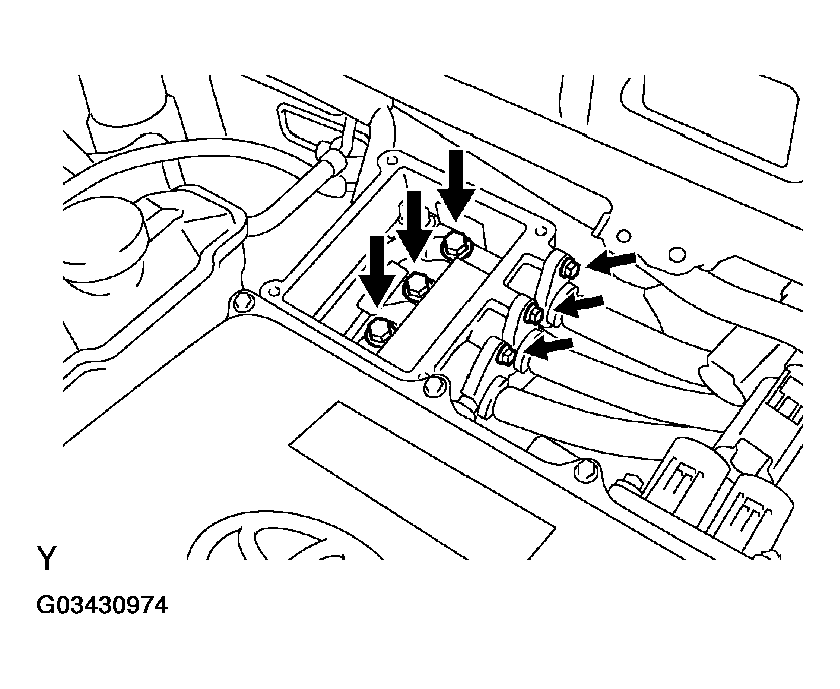

- Remove the 6 bolts and 3 power cables for MG2.NOTE: Be careful to prevent foreign matter from entering the inside of connector cover.

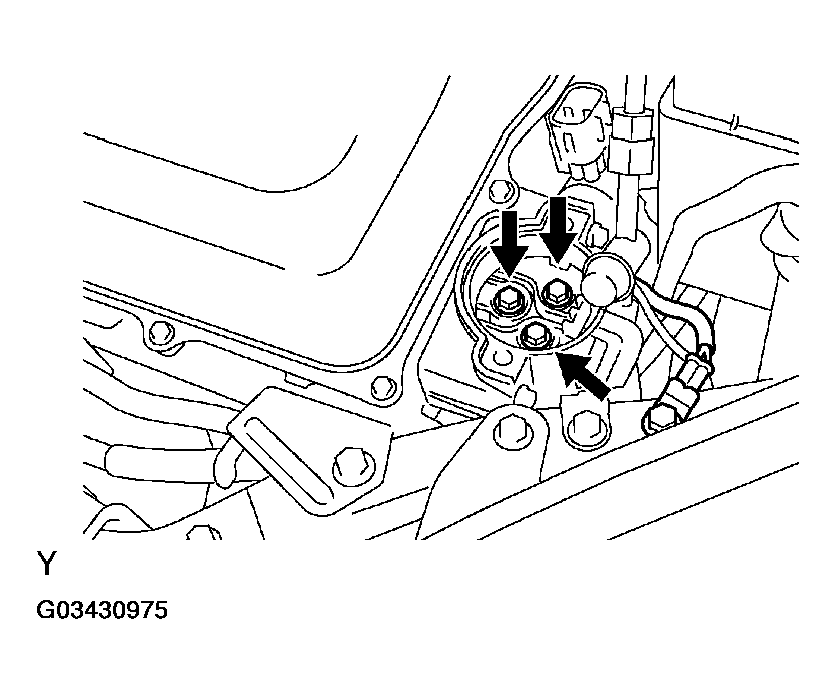

- Remove the 3 bolts and power cable for MG1.NOTE:
- Remove the power cable for MG1 together with converter & inverter assembly.
- Be careful to prevent foreign matter from entering the inside of connector cover.
- Remove the bolt and ground cable.

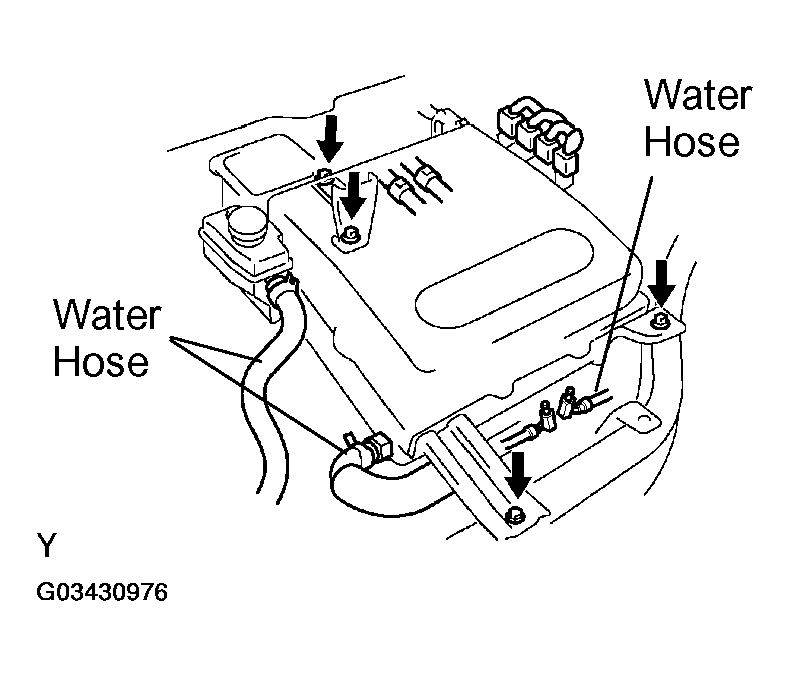

- Disconnect the 3 water hoses from the converter & inverter assembly.
- Remove the 4 bolts and converter & inverter assembly.
- Remove the 6 bolts and 3 power cables for MG2.
