Install Blower Motor Control

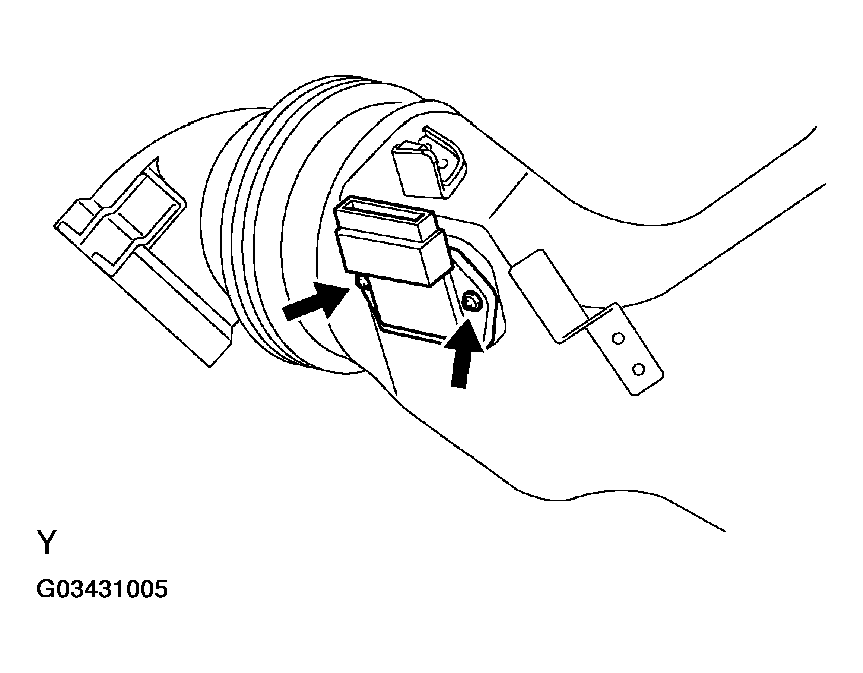

Using an air riveter or hand riveter, install the blower motor control.

Fig 1: Installing Blower Motor Control

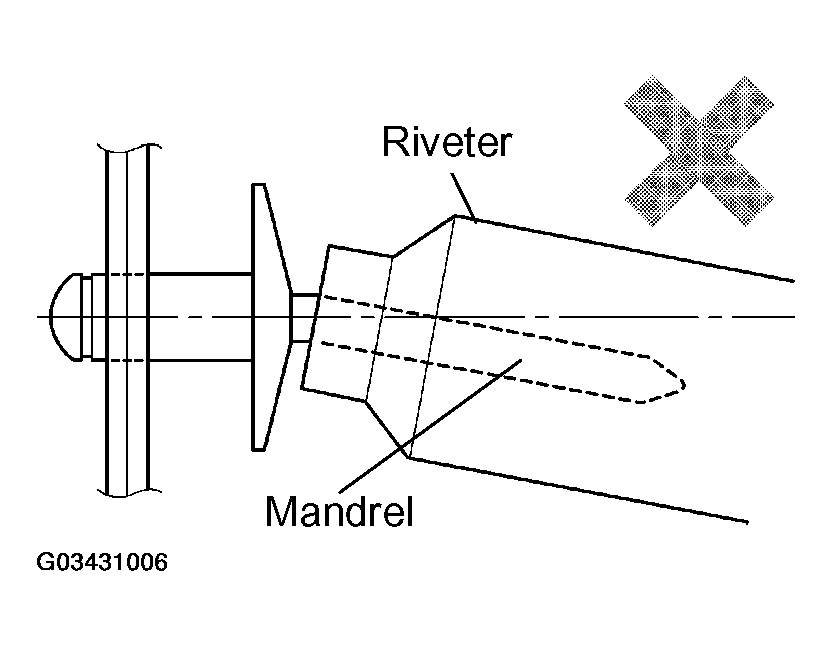

NOTE:

Do not prize a riveter, as riveter is damaged, it is not tightened and the mandrel is bent.

Fig 2: Precaution For Installing Rivet (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

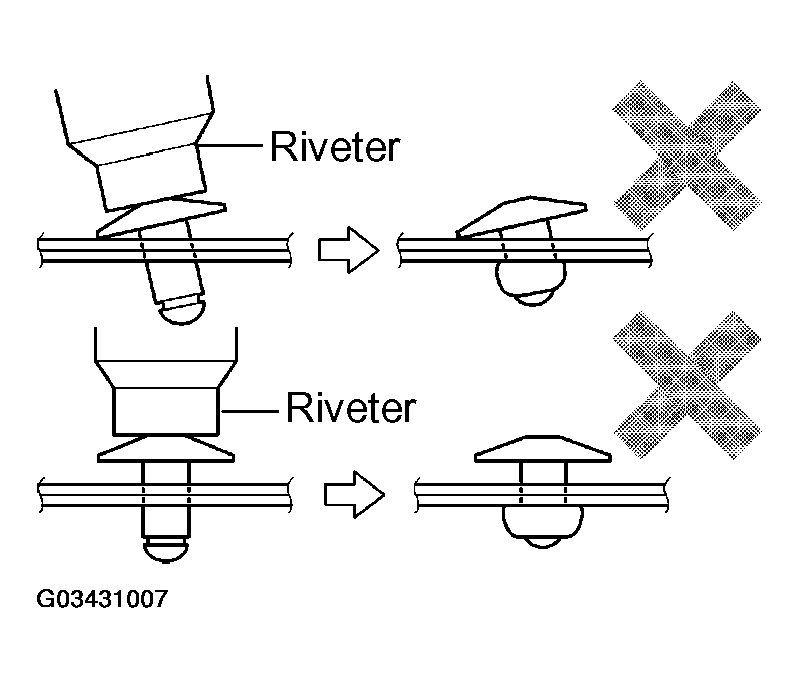

Do not tilt the riveter and disconnect the rivet from the material while handling a riveter, as the materials are not tightened firmly.

Fig 3: Precaution For Installing Rivet (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

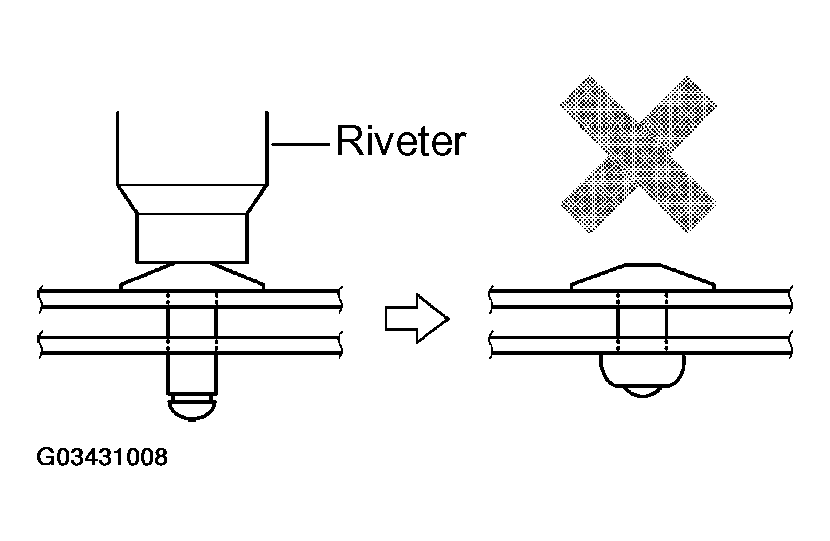

Install the rivet while attaching materials, as they are not tightened firmly.

Fig 4: Precaution For Installing Rivet (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
