HV Battery Cooling: Removal

REMOVE REAR SEAT (See COMPONENTS )
REMOVE LUGGAGE TRIM (See COMPONENTS )

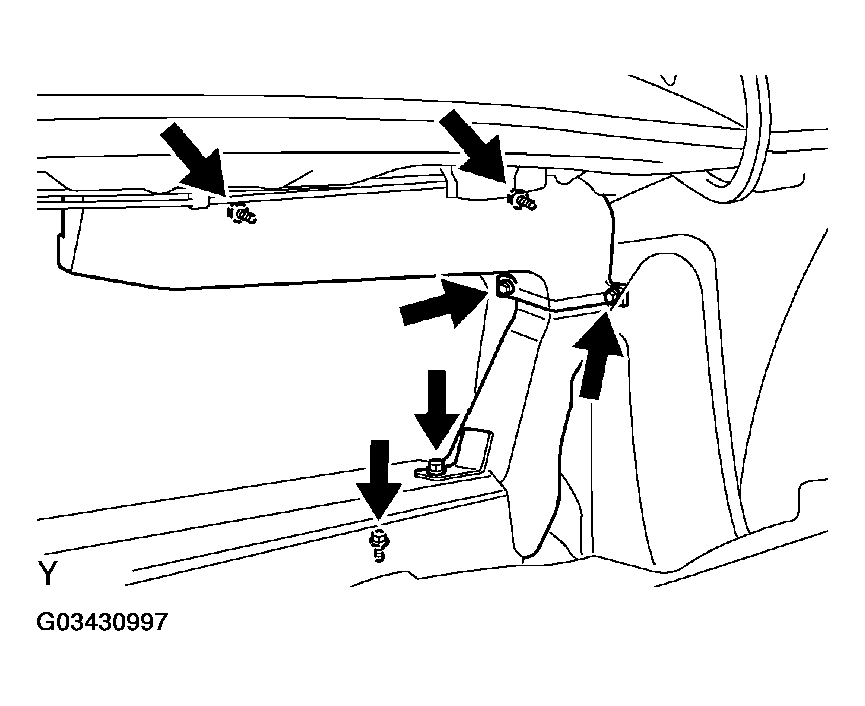

REMOVE INNER VENTILATOR DUCT
Remove the 4 bolts and inner ventilator duct.

Fig 1: Removing Inner Ventilator Duct
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER QUARTER VENTILATOR DUCT
Remove the 2 bolts and lower quarter ventilator duct.

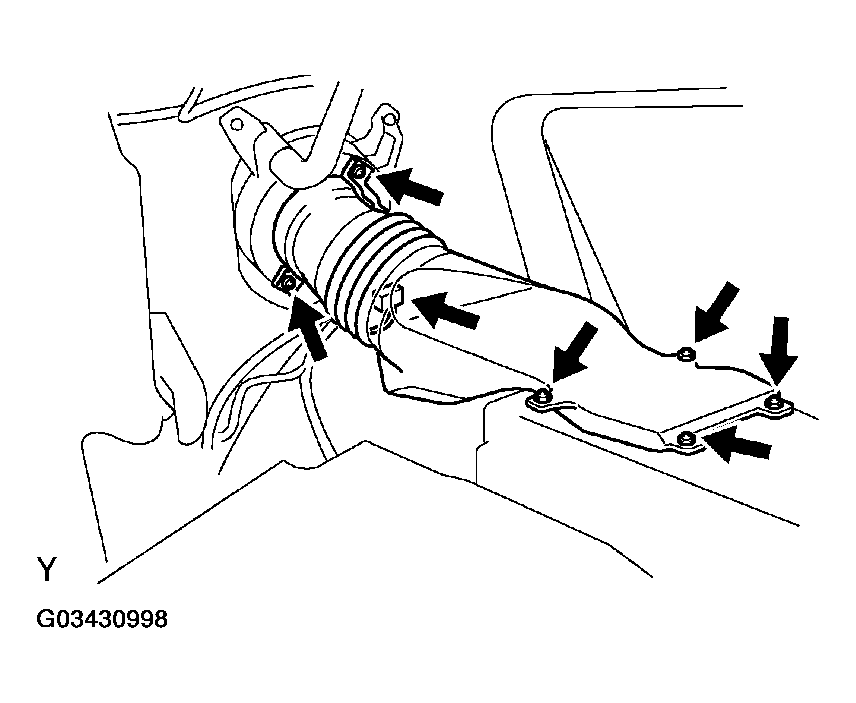

REMOVE QUARTER VENTILATOR DUCT
1. Disconnect the connector for blower motor control.
2. Remove the 6 screws and quarter ventilator duct.

  Fig 2: Removing Quarter Ventilator Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

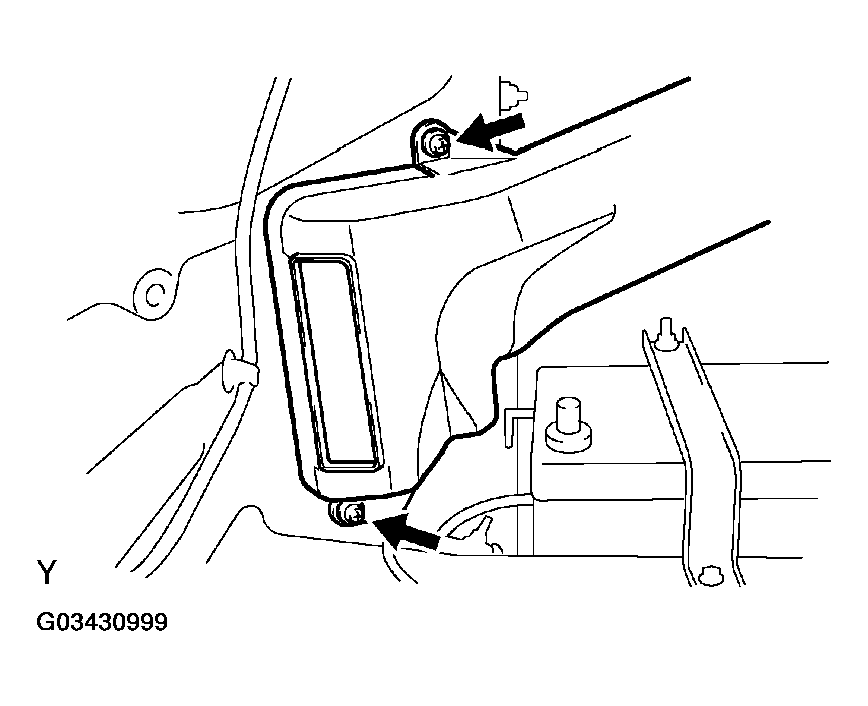

REMOVE QUARTER INNER NO. 2 DUCT
Remove the 2 screws and quarter inner No. 2 duct.

Fig 3: Removing Quarter Inner No 2 Duct
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

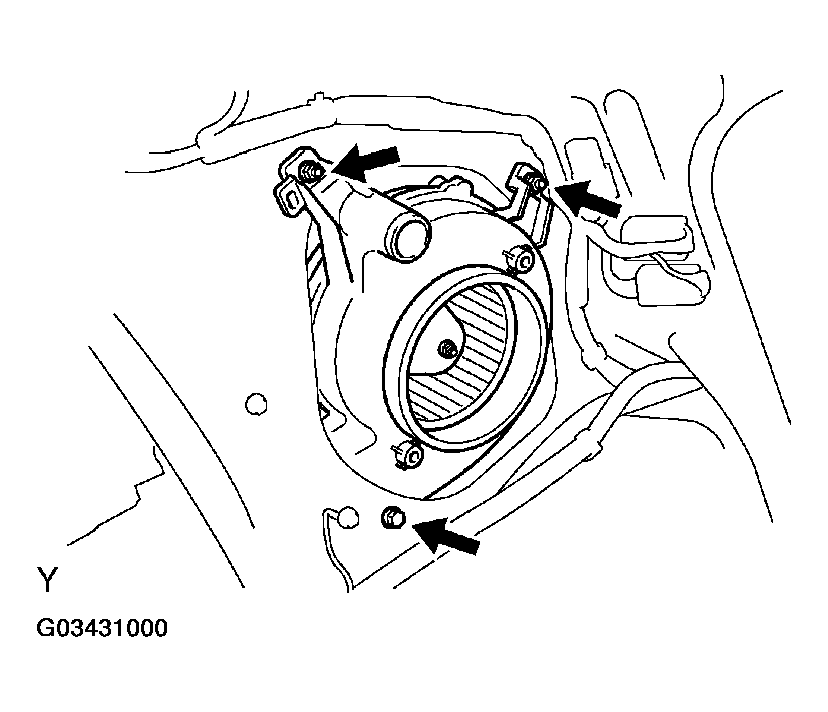

REMOVE BLOWER ASSEMBLY
1. Remove the quarter ventilation inner duct.
2. Disconnect the connector for blower motor.
3. Remove the bolt, 2 nuts and blower assembly.

  Fig 4: Removing Blower Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
