Inspect HV Battery Thermistor

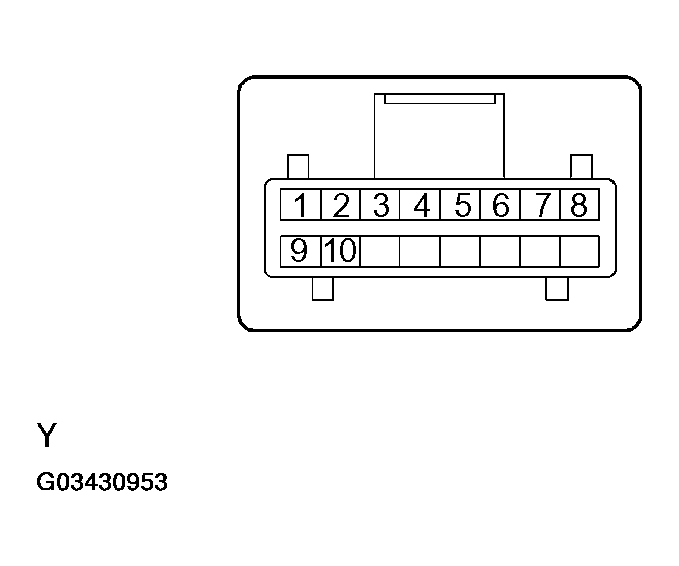

Using an ohmmeter, measure the resistance between terminals.
Standard resistance.
- 1 <=> 2: 9 - 11 kΩ at 25°C (77°F)
- 3 <=> 4: 9 - 11 kΩ at 25°C (77°F)
- 5 <=> 6: 9 - 11 kΩ at 25°C (77°F)
- 7 <=> 8: 9 - 11 kΩ at 25°C (77°F)
- 9 <=> 10: 9 - 11 kΩ at 25°C (77°F)
IF resistance is not specified, replace the HV battery thermistor.
