HV Battery: Removal

REMOVE SERVICE PLUG (See PRECAUTION )
REMOVE LUGGAGE TRIM (See COMPONENTS )
REMOVE REAR SEAT (See COMPONENTS )
REMOVE POWER CABLE
1. Using the service plug, turn the interlock counterclockwise to unlock.
2. Remove the 3 nuts and battery carrier catch bracket.
  NOTE: When the interlock is damaged, be sure to replace it with new one.

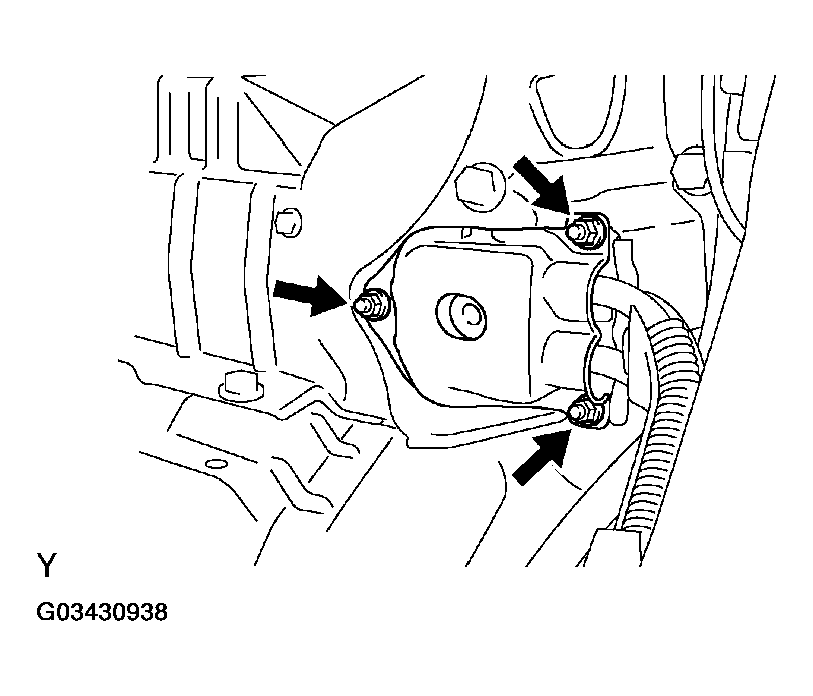

  Fig 1: Removing Battery Carrier Catch Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and power cables.

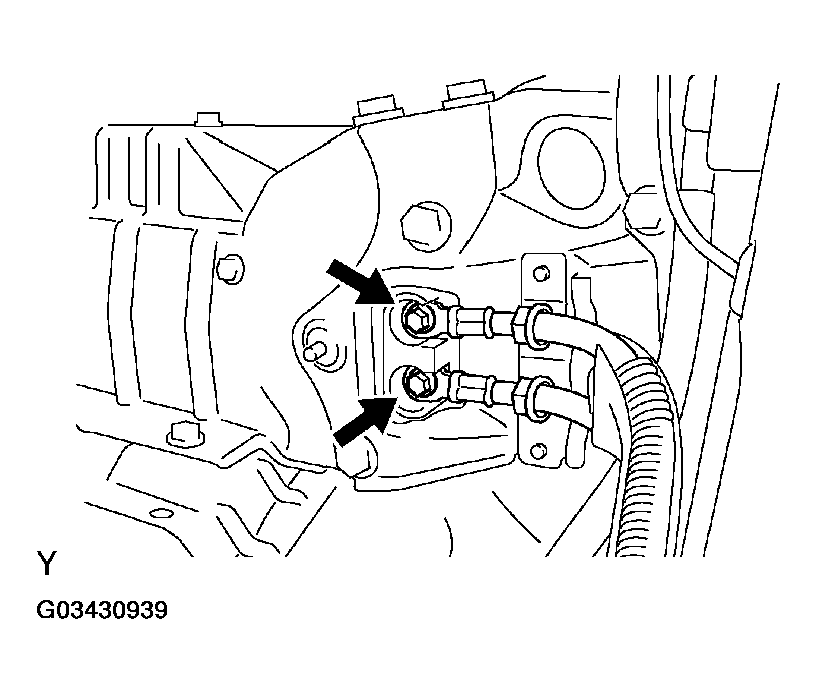

  Fig 2: Removing Power Cables
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the earth terminal.
REMOVE BATTERY BRACKET
Remove the 13 bolts and nut, RH and LH battery brackets.

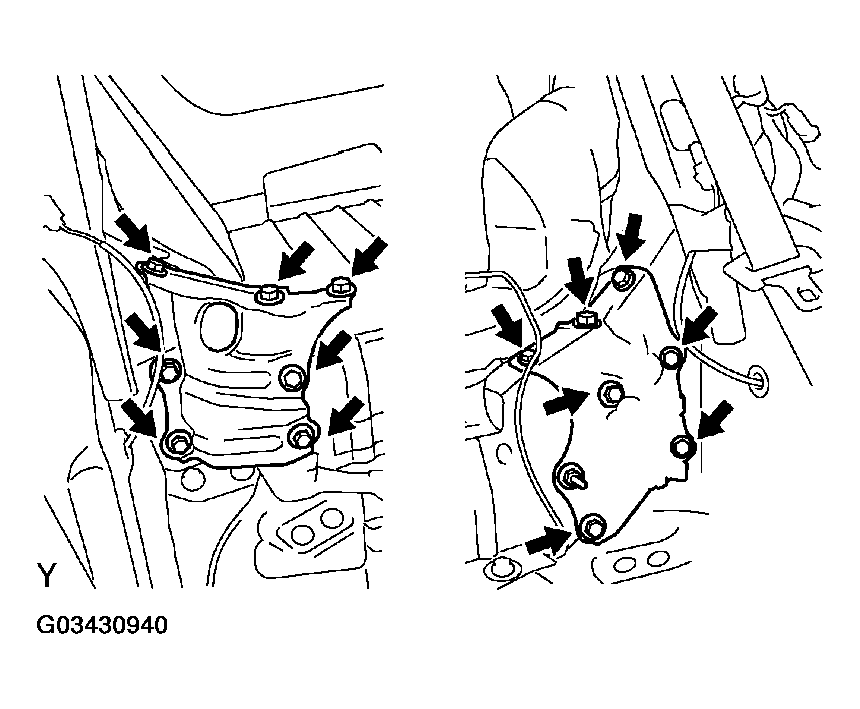

Fig 3: Removing Battery Brackets (RH & LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT CONNECTOR
1. Disconnect the 2 connectors from the battery ECU.
2. Disconnect the connector from the SMR.
3. Disconnect the connector from the service plug assembly.
REMOVE DUCT (See COMPONENTS )
REMOVE HV BATTERY
1. Disconnect the battery hose from the body.
  CAUTION: Since alkaline electrolyte may be got on the hose end, carry out the operation with considerable care.
2. Remove the 5 bolts and HV battery.

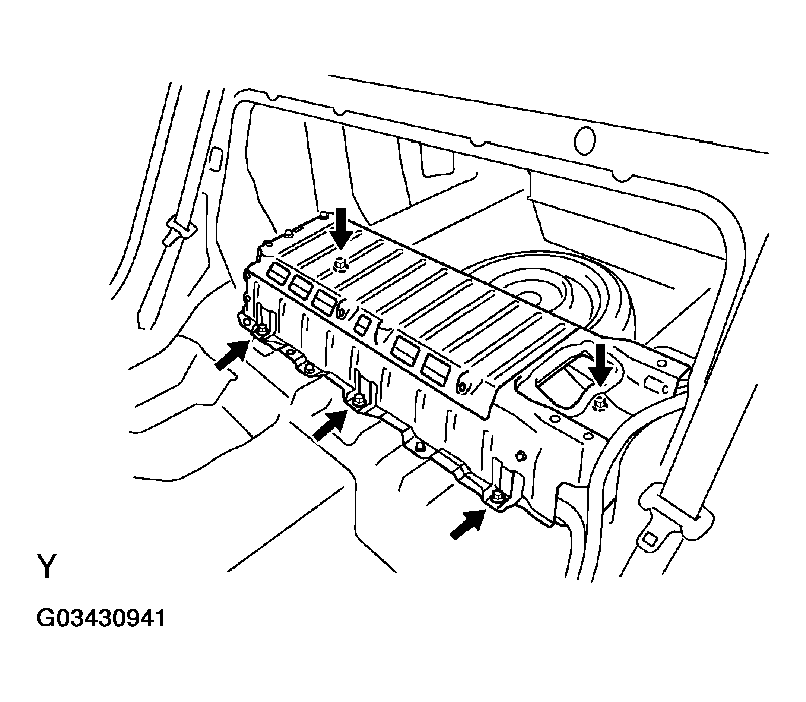

Fig 4: Removing HV Battery
