HV Water Pump: Installation

  1. INSTALL HV WATER PUMP
    1. Install the HV water pump with the 2 bolts.

      Torque:  7.0 N.m (70 kgf.cm, 62 in.lbf)

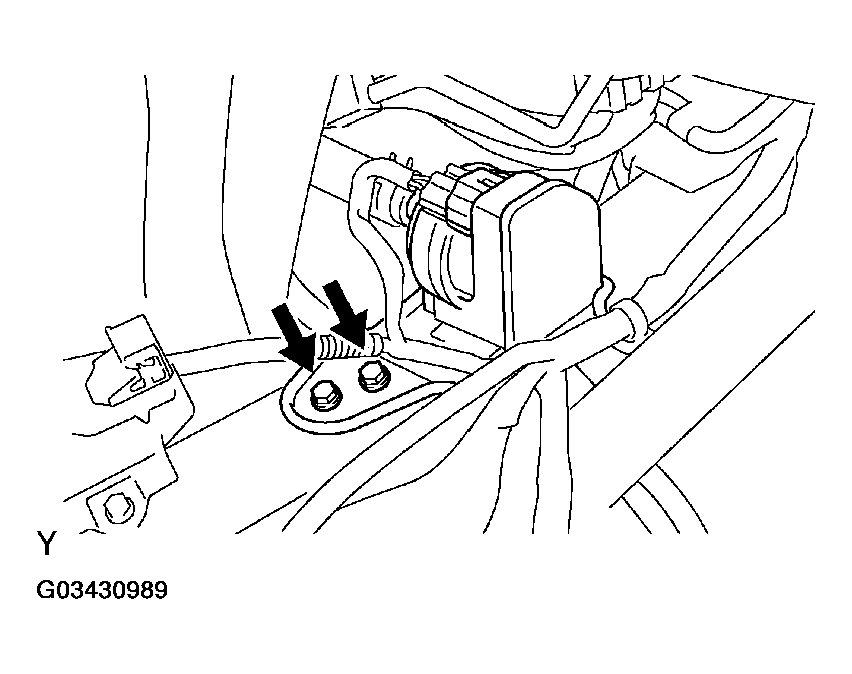

      Fig 1: Installing HV Water Pump
      G03430989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 water hoses.
    3. Connect the connector for HV water pump.
  2. INSTALL LH HEAD LIGHT
  3. INSTALL FRONT BUMPER COVER (See  COMPONENTS  )
  4. FILL WITH HV COOLANT
