HV Water Pump: Removal

  1. DRAIN HV COOLANT
  2. REMOVE FRONT BUMPER COVER (See  COMPONENTS  )
  3. REMOVE LH HEAT LIGHT
  4. REMOVE HV WATER PUMP
  1. Disconnect the connector for HV water pump.
  2. Disconnect the 2 water hoses from the HV water pump.
  3. Remove the 2 bolts and HV water pump.

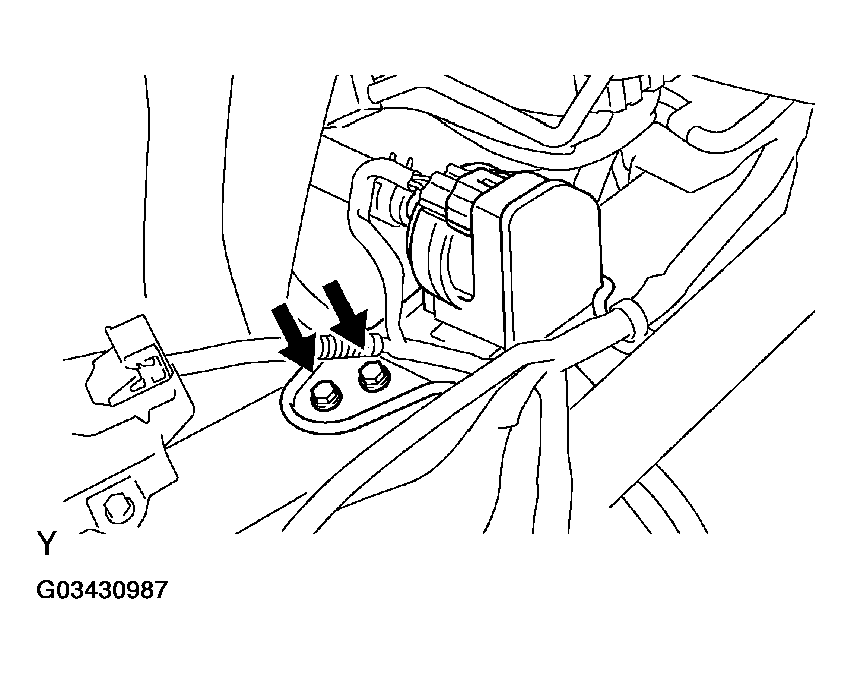

    Fig 1: Removing HV Water Pump
    G03430987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
