Inverter Radiator: Components

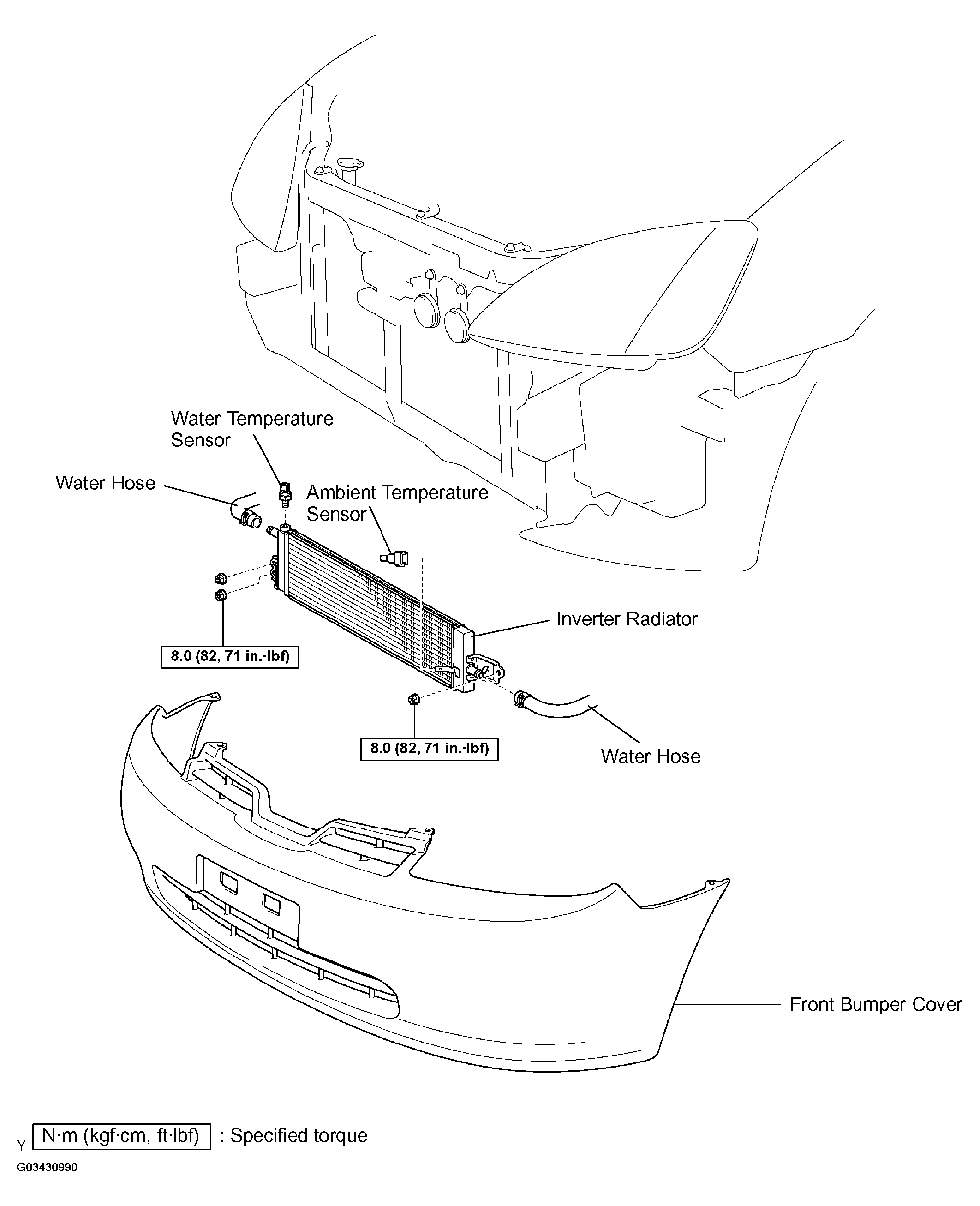

Fig 1: Identifying Inverter Radiator Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
