Inverter Radiator: Installation

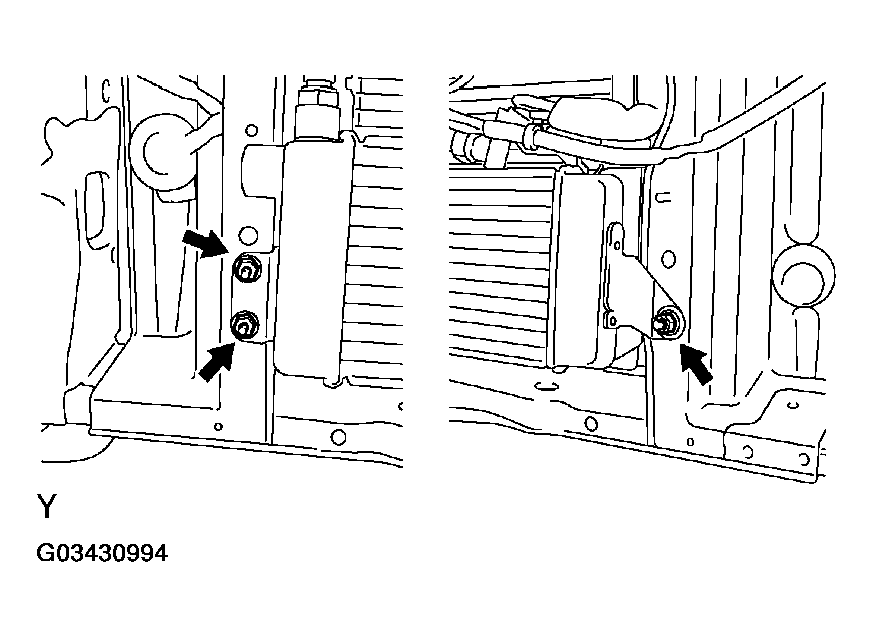

INSTALL INVERTER RADIATOR
Install the inverter radiator with the 3 nuts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

Fig 1: Installing Inverter Radiator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

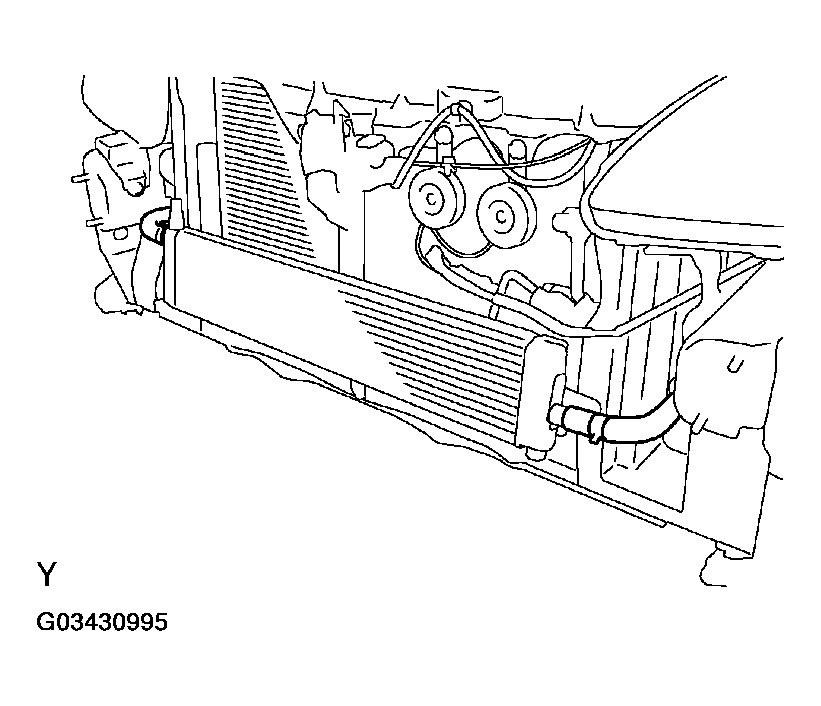

CONNECT 2 WATER HOSES

Fig 2: Connecting Water Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WATER TEMPERATURE SWITCH
Torque: 7.4 N.m (75 kgf.cm, 65 in.lbf)
CONNECT WATER TEMPERATURE SWITCH CONNECTOR
CONNECT AMBIENT TEMPERATURE SENSOR
INSTALL FRONT BUMPER COVER (See COMPONENTS )
FILL WITH HV COOLANT (See ON-VEHICLE REPAIR )
