Inverter Radiator: Removal

  1. DRAIN HV COOLANT (See  ON-VEHICLE REPAIR  )
  2. REMOVE FRONT BUMPER COVER (See  COMPONENTS  )
  3. DISCONNECT AMBIENT TEMPERATURE SENSOR
  4. DISCONNECT WATER TEMPERATURE SWITCH CONNECTOR
  5. REMOVE WATER TEMPERATURE SWITCH
  6. DISCONNECT 2 WATER HOSES

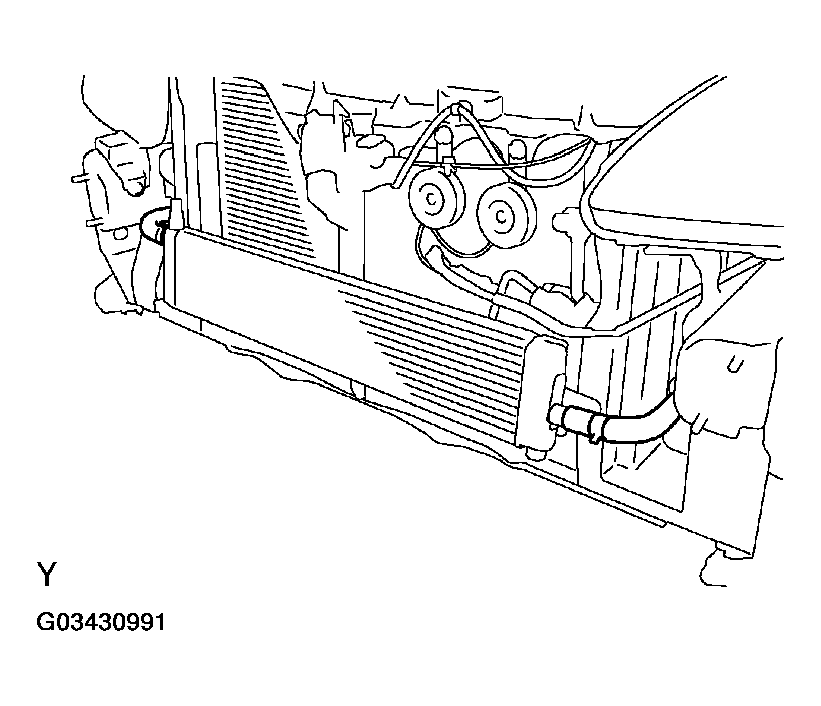

    Fig 1: Disconnecting Water Hoses
    G03430991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE INVERTER RADIATOR

    Remove the 3 nuts and inverter radiator.

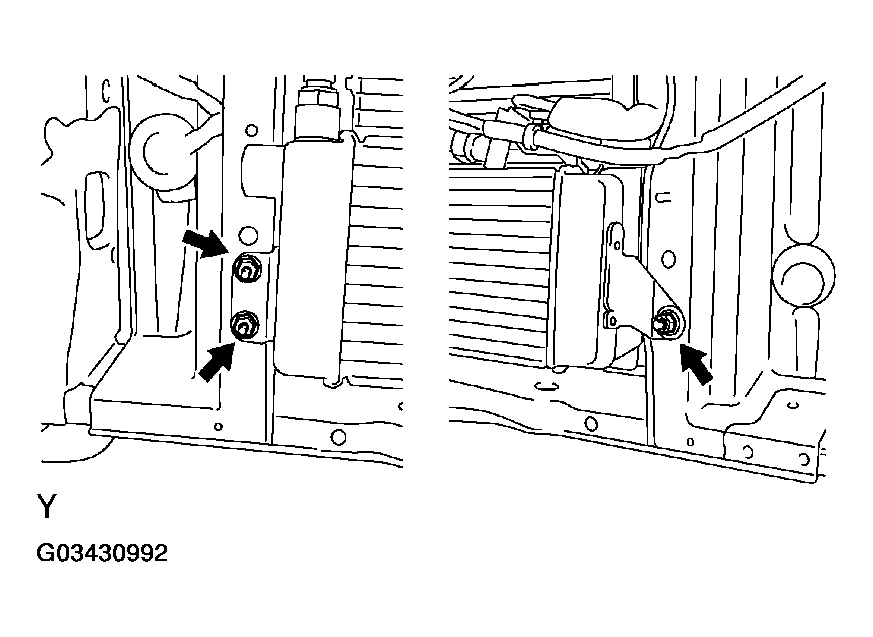

    Fig 2: Removing Inverter Radiator
    G03430992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
