Inspect Power Cable

If any damage mentioned below is identified at visual inspection, replace the power cable.

1. Area covered by protector:

   When the protector is so damaged that the corrugate tube for the power cable inside the protector is exposed.

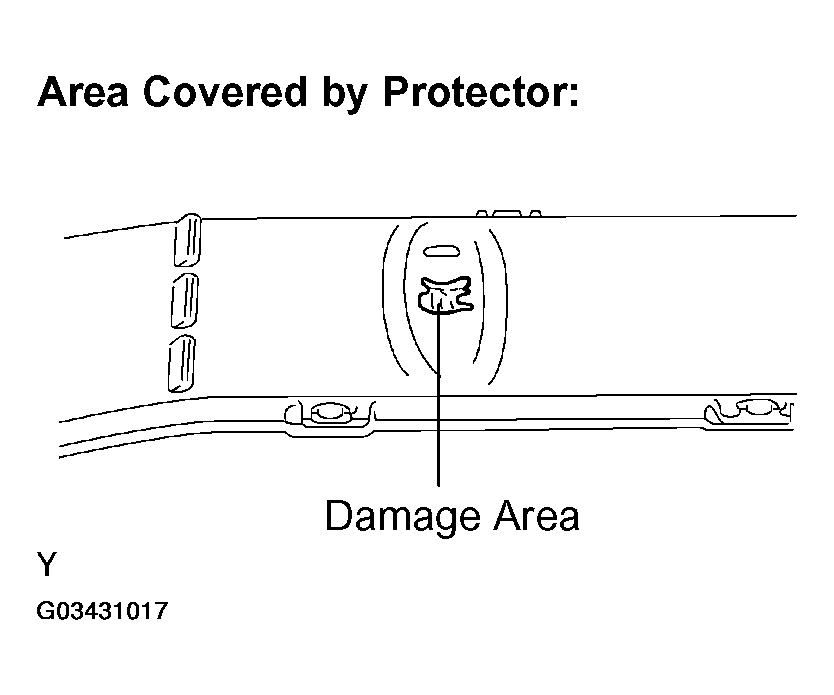

   Fig 1: Area Covered By Protector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Other area:

   When the corrugate tube is so damaged that the coating inside the power cable is exposed.

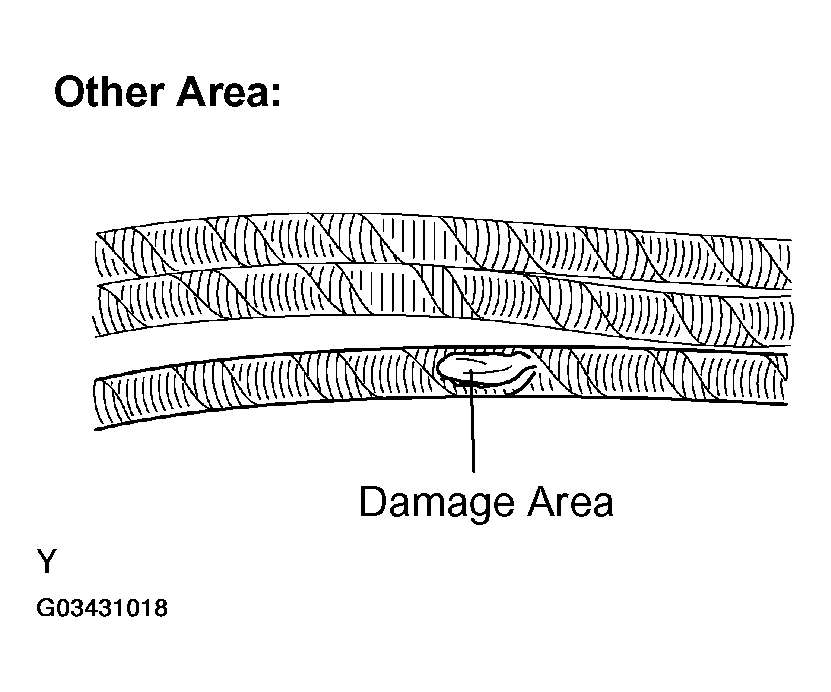

   Fig 2: Inspecting Power Cable (Other Area)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
