Inspect Fuel Level Warning Light
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

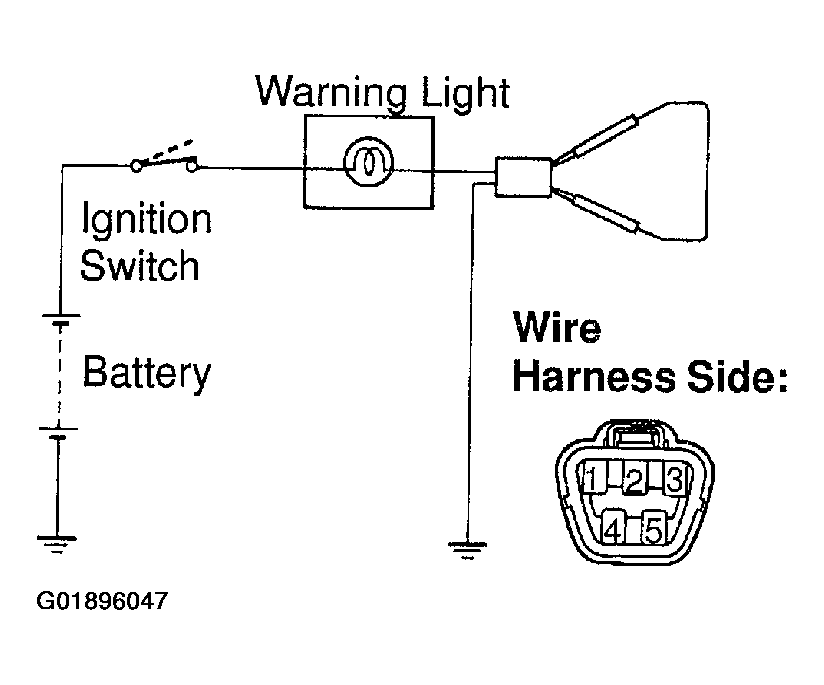

- Disconnect the connector from the sender gauge.
- Connect terminals 2 and 3 on the wire harness side connector.
- Turn the ignition switch ON, check that the warning light lights up.
If the warning light does not light up, test the bulb or inspect wire harness.
