Vehicle Lift And Support Locations

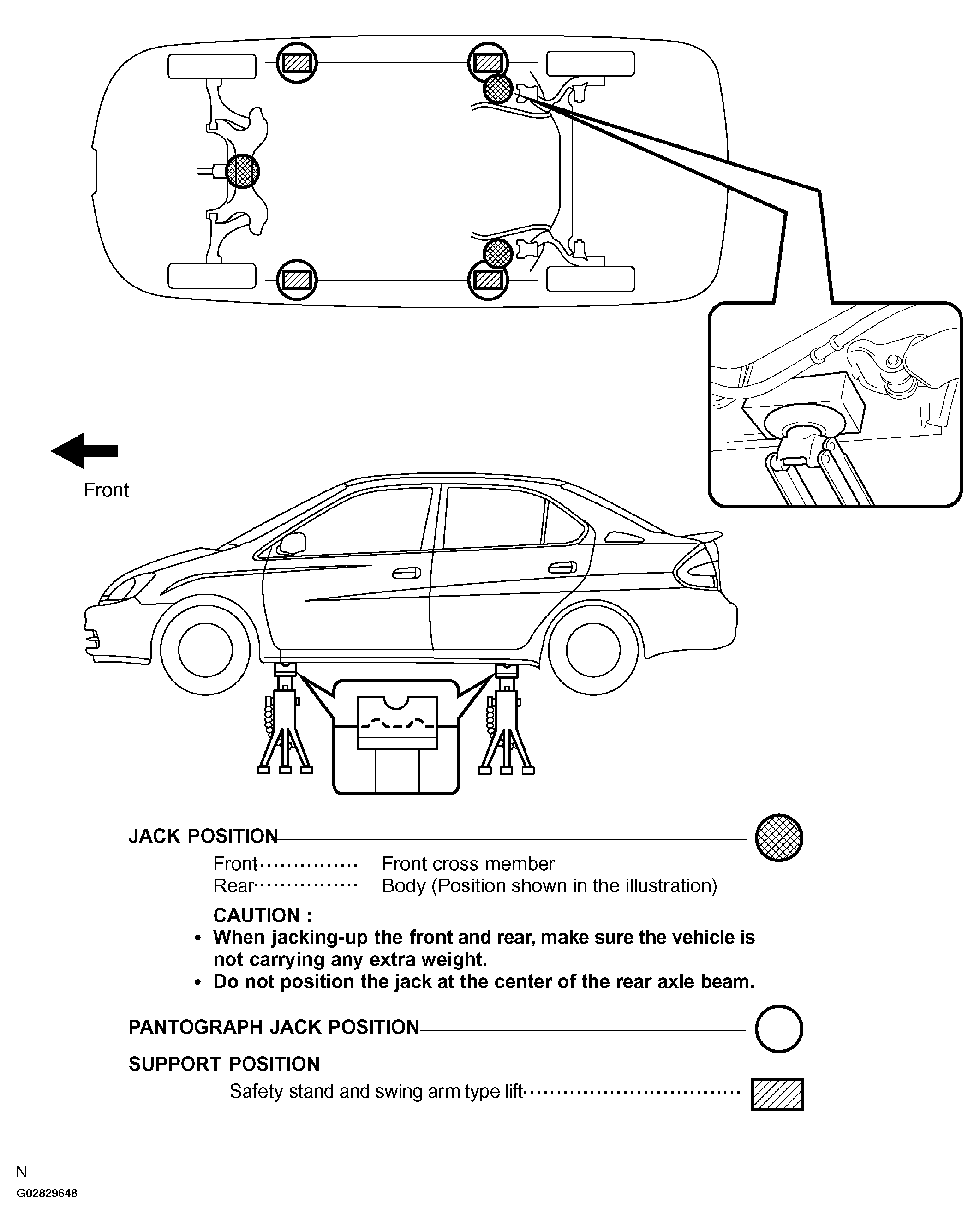

Fig 1: View Of Vehicle Lift And Support Locations (1 Of 2)
G02829648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

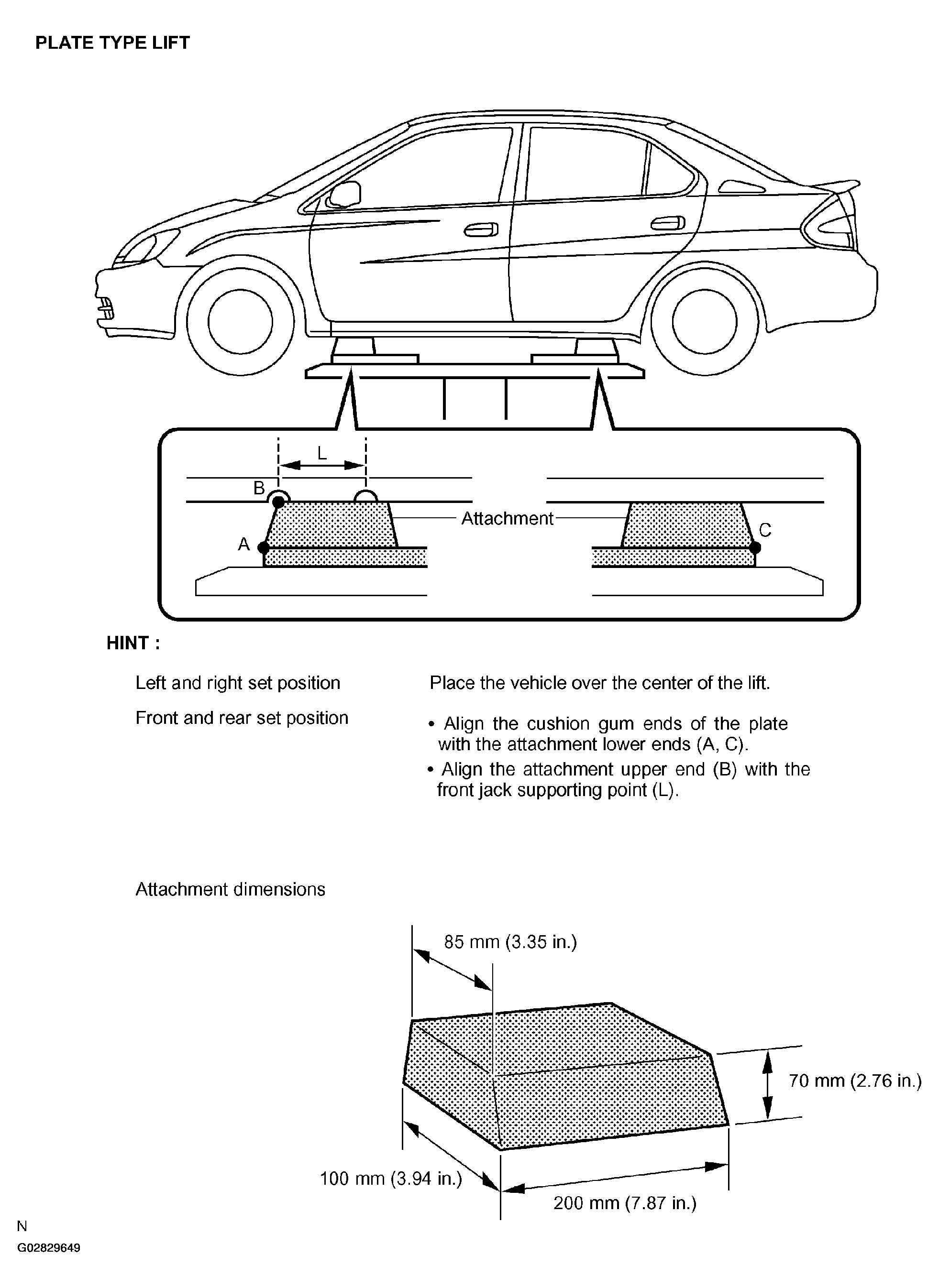

Fig 2: View Of Vehicle Lift And Support Locations (2 Of 2)
G02829649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
