Seat Belt: Components

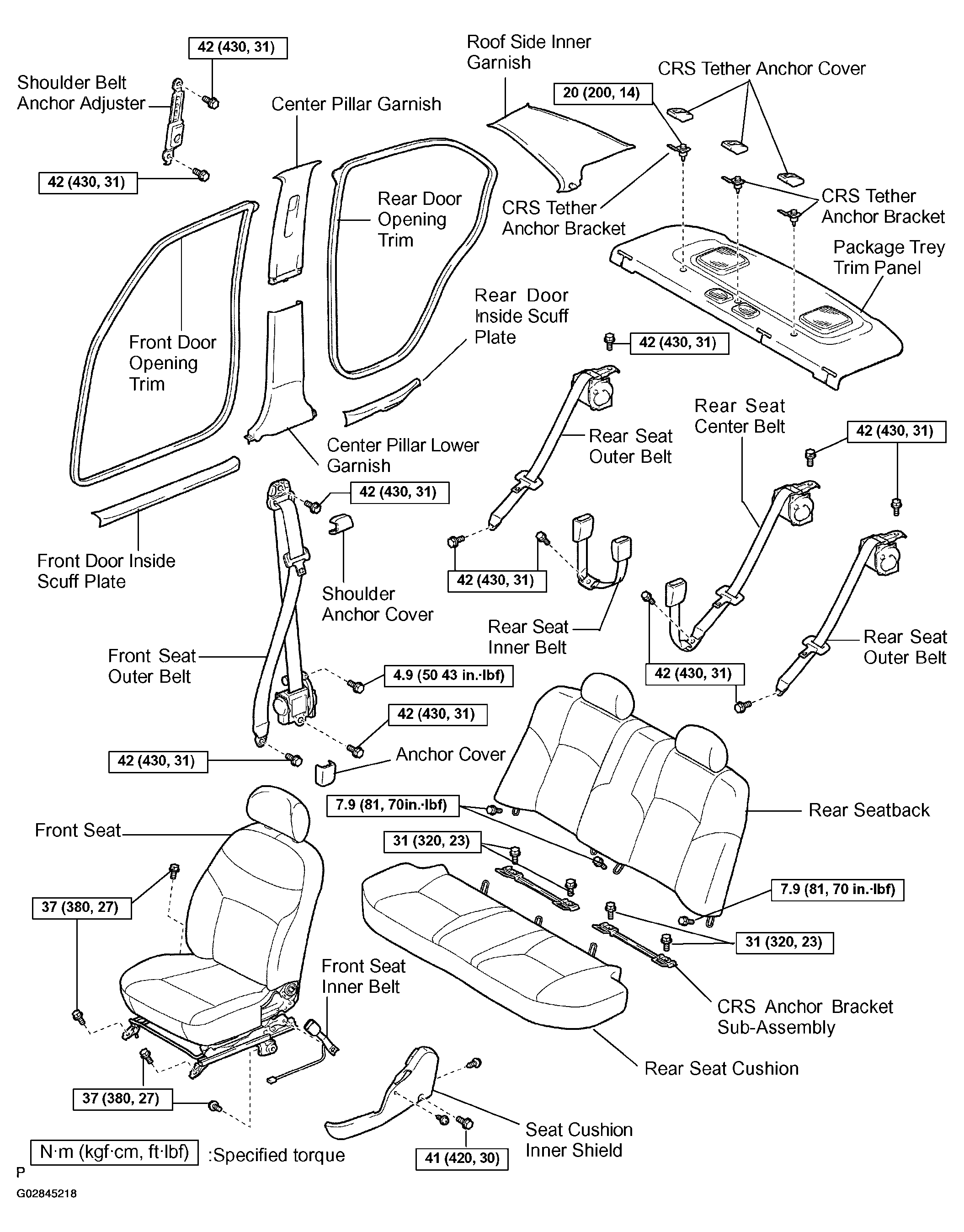

Fig 1: Exploded View Of Components For Seat Belt Removal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
