Counter Drive Gear: Disassembly

REMOVE BALL BEARING LH (MG2 side)
Using SST and a press, drive out the ball bearing.

SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

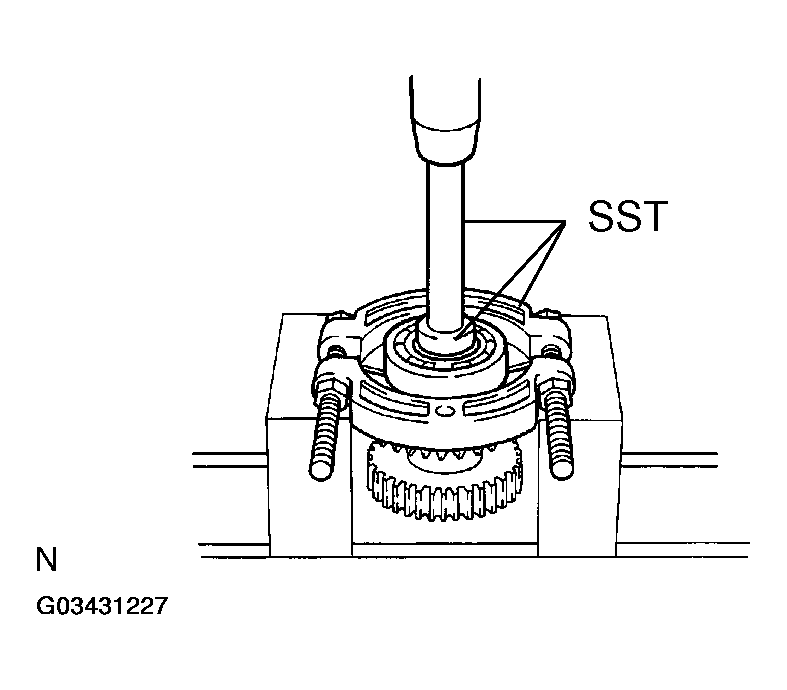

Fig 1: Driving Out Ball Bearing Using SST & Press
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BALL BEARING RH (MG2 side)
Using SST and a press, drive out the ball bearing.

SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

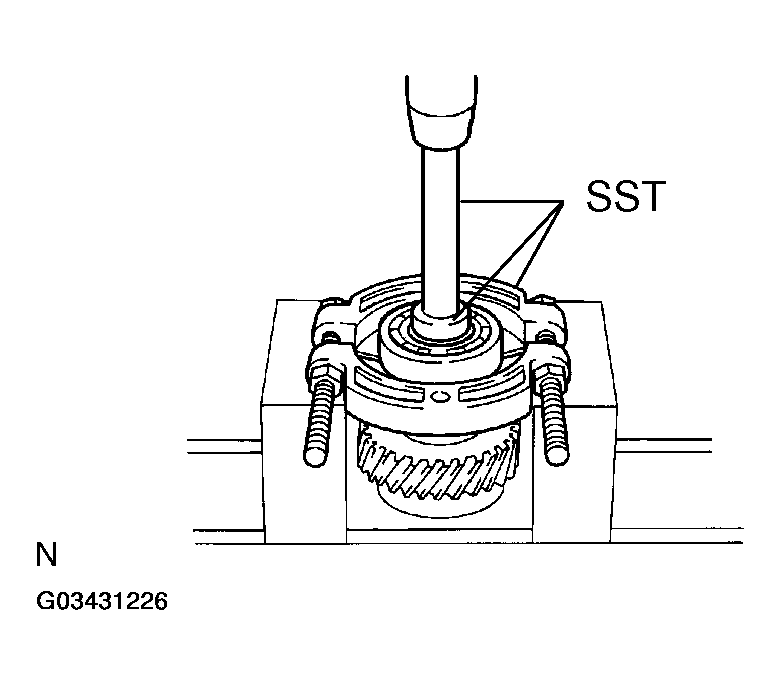

Fig 2: Driving Out Ball Bearing Using SST & Press
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
