Counter Drive Gear: Reassembly

INSTALL BALL BEARING RH (MG1 side)
Using SST and a press, press in the ball bearing.

SST 09950-60010 (09951-00460), 09950-70010 (09951-07100)

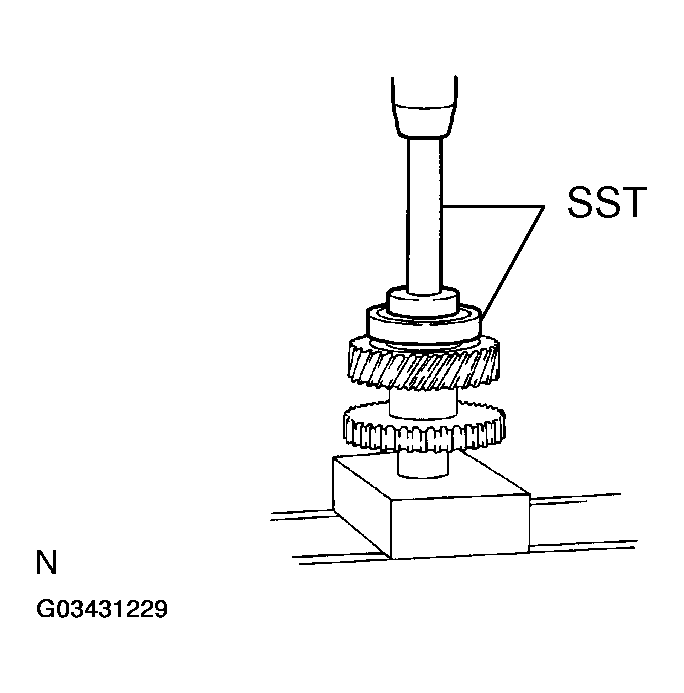

Fig 1: Pressing Ball Bearing Using SST & Press (RH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BALL BEARING LH (MG2 side)
Using SST and a press, press in the ball bearing.

SST 09950-60010 (09951-00300, 09951-00460), 09950-70010 (009951-07100)

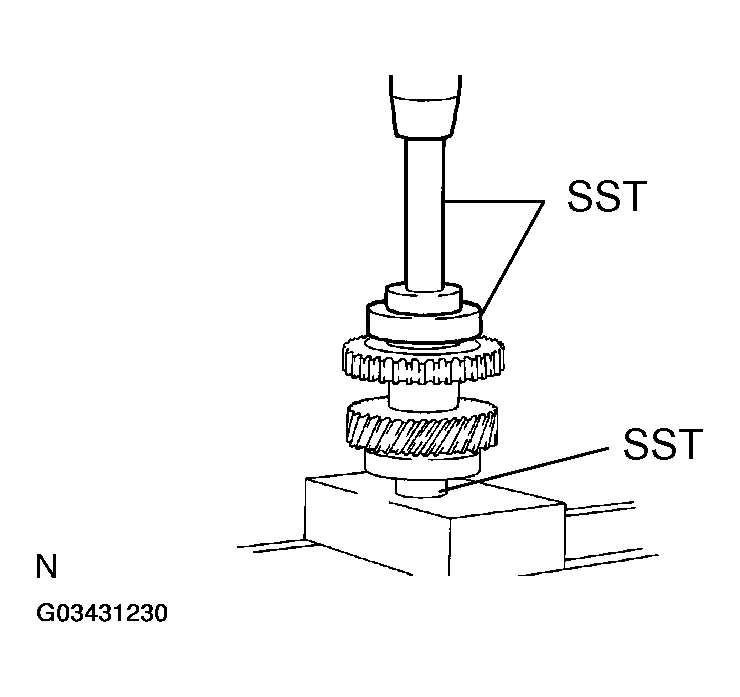

Fig 2: Pressing Ball Bearing Using SST & Press (LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
