Counter Driven Gear: Disassembly

REMOVE TAPERED ROLLER BEARING (MG1 side)
Using SST and a press, remove the tapered roller bearing.

SST 09527-1001 1, 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)

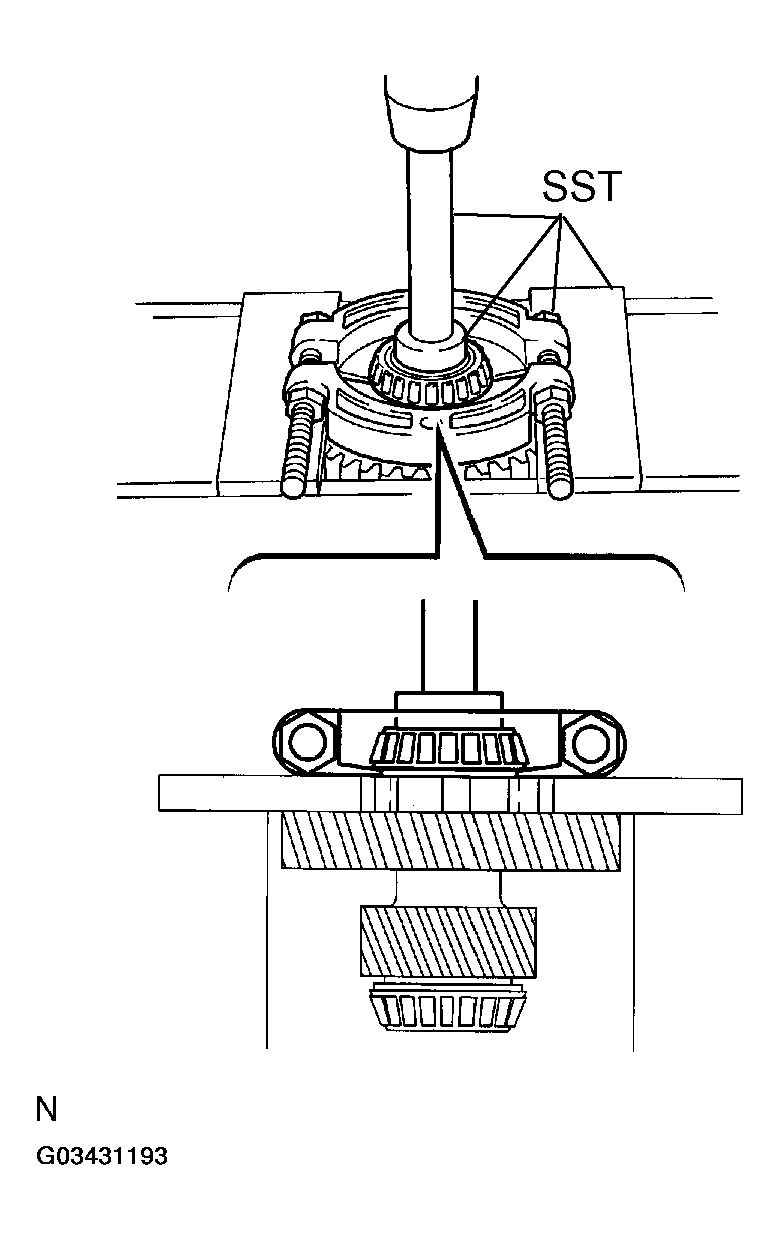

Fig 1: Removing Tapered Roller Bearing Using SST & Press
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TAPERED ROLLER BEARING (MG2 side)
Using SST and a press, remove the tapered roller bearing.

SST 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)

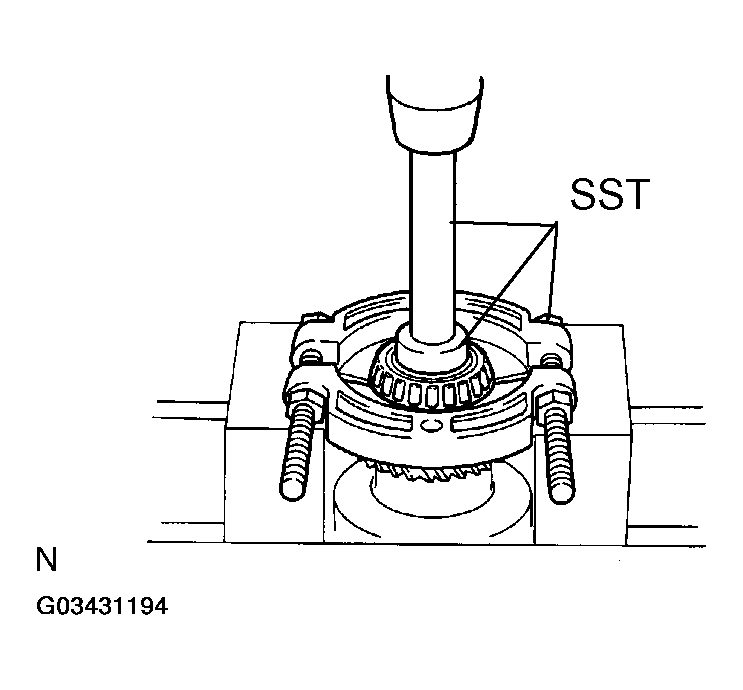

Fig 2: Removing Tapered Roller Bearing Using SST & Press
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
