Counter Driven Gear: Reassembly

INSTALL NEW TAPERED ROLLER BEARING (MG1 side)
Using SST and a press, press in a new tapered roller bearing.

SST 09608-06041

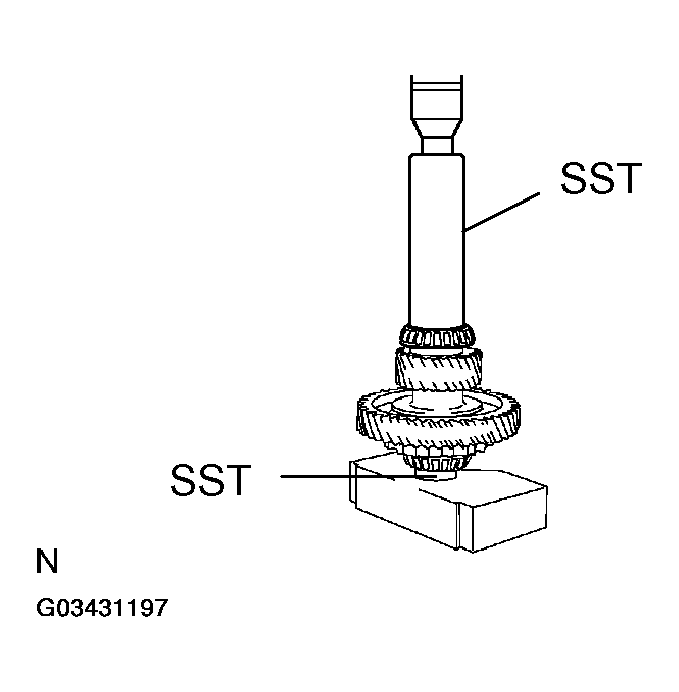

Fig 1: Pressing Tapered Roller Bearing Using SST & Press
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NEW TAPERED ROLLER BEARING (MG2 side)
Using SST and a press, press in a new tapered roller bearing.

SST 09608-06041, 09950-60010 (09951-00370)

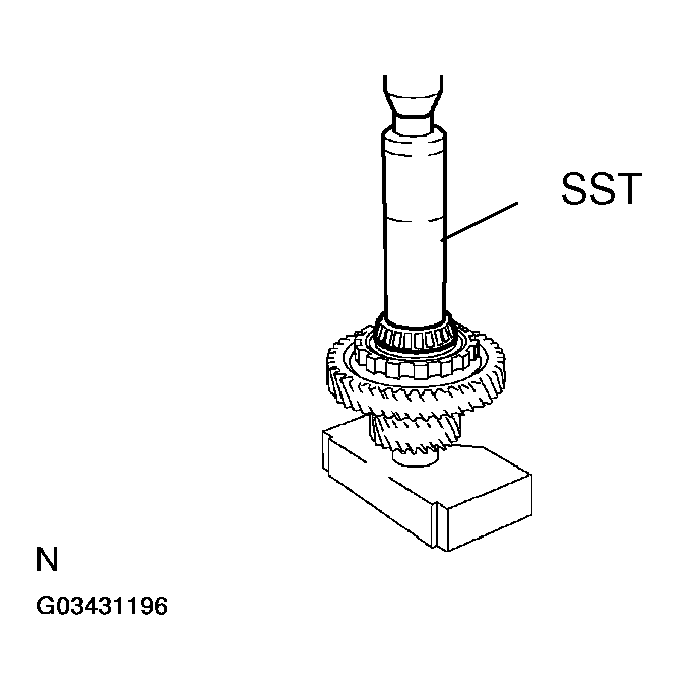

Fig 2: Pressing Tapered Roller Bearing Using SST & Press
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
