Differential Case: Disassembly

Using SST, remove the tapered roller bearing RH.

SST 09950-4001 1 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04060, 09958-04010)

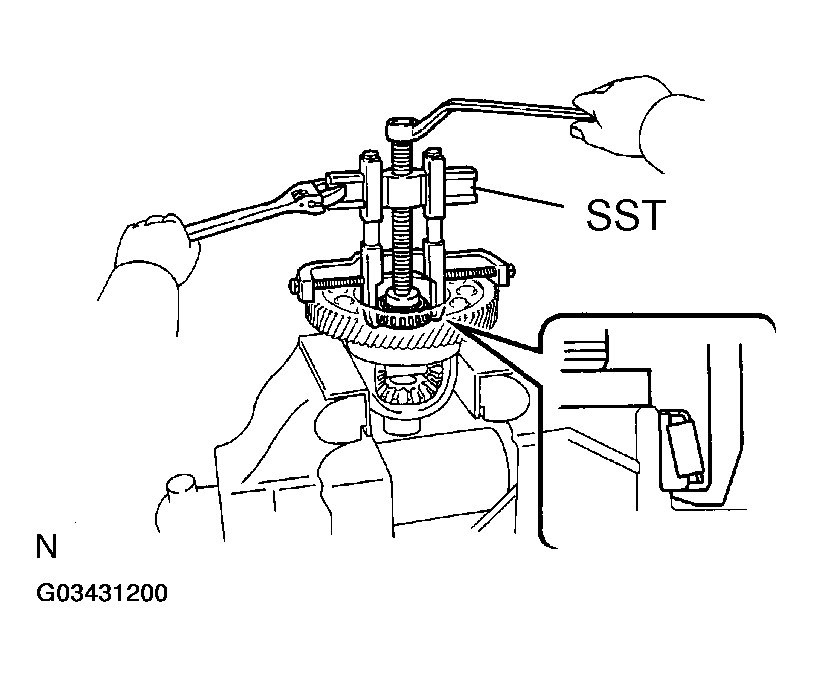

Fig 1: Removing Tapered Roller Bearing RH Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, remove the tapered roller bearing LH.

SST 09950-4001 1 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04060, 09958-04010)

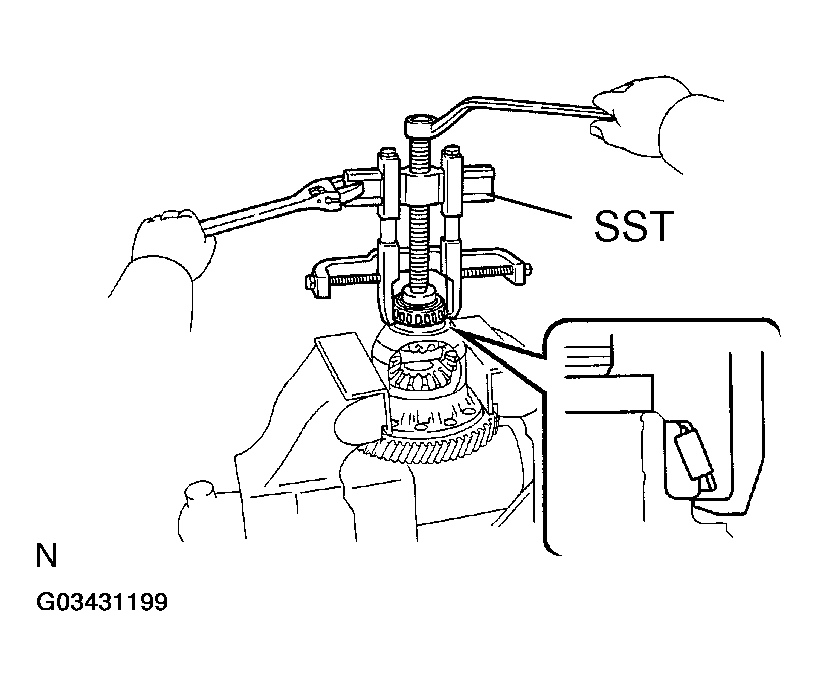

Fig 2: Removing Tapered Roller Bearing LH Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a pin punch and a hammer, drive out the straight pin.

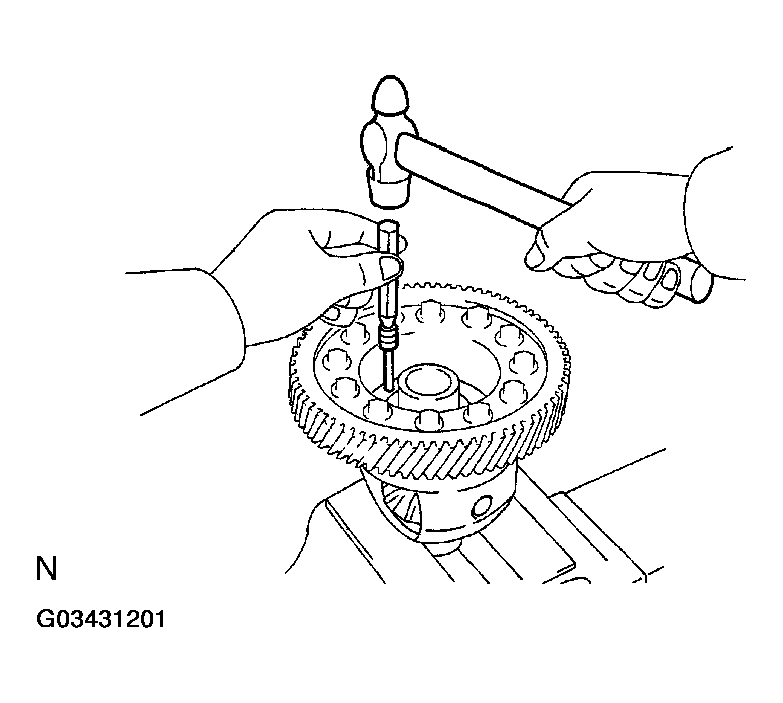

   Fig 3: Driving Out Straight Pin Using Pin Punch & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the pinion shaft, 2 pinions, 2 pinion thrust washers, 2 side gears and 2 side gear thrust washers from the case.

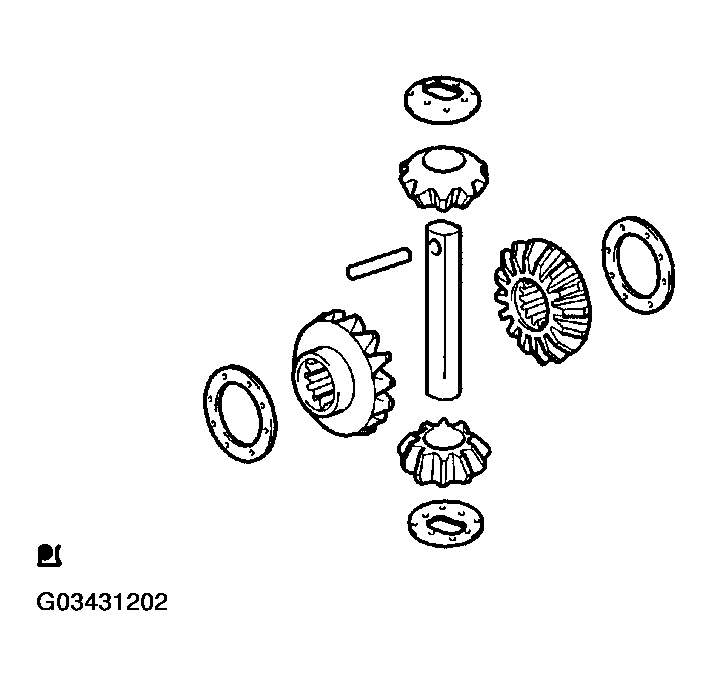

   Fig 4: Removing Pinion Shaft, Pinions, Pinion Thrust Washers, Side Gears & Side Gear Thrust Washers From Case

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
