On-Vehicle Repair

REMOVE ENGINE UNDER COVER LH AND RH
DRAIN TRANSAXLE OIL (See ON-VEHICLE REPAIR )
REMOVE FRONT DRIVE SHAFT (See REMOVAL )
REMOVE DIFFERENTIAL OIL SEAL LH AND RH
Using SST, pull out the 2 oil seals.

SST 09308-00010

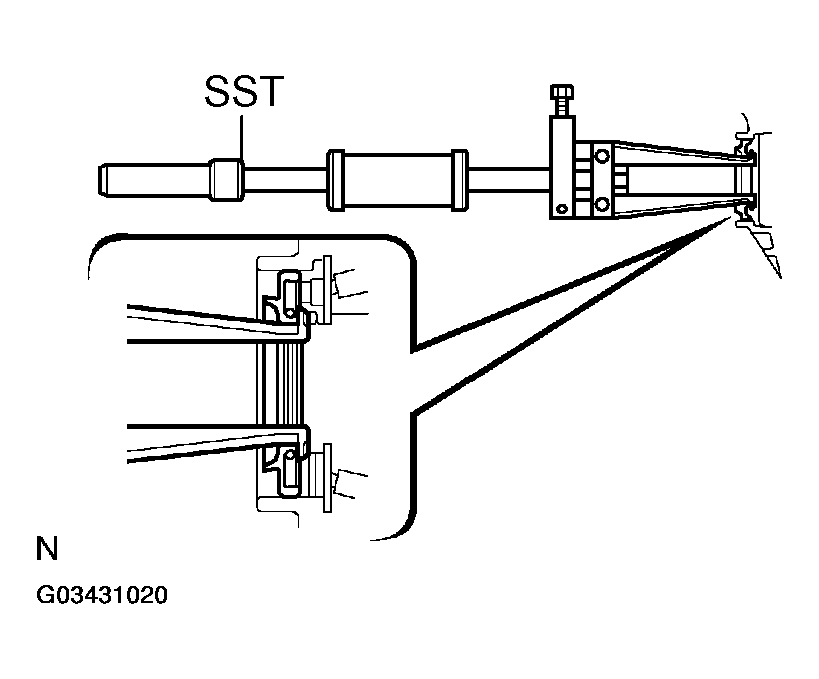

Fig 1: Removing Differential Oil Seal LH & RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DIFFERENTIAL OIL SEAL LH AND RH
1. Using SST and a hammer, drive in 2 new oil seals.
  SST 09350-32014 (09351-32130, 09351-32150)

  Oil seal depth: 2.7 +/- 0.5 mm (0.11 +/- 0.02 in.)

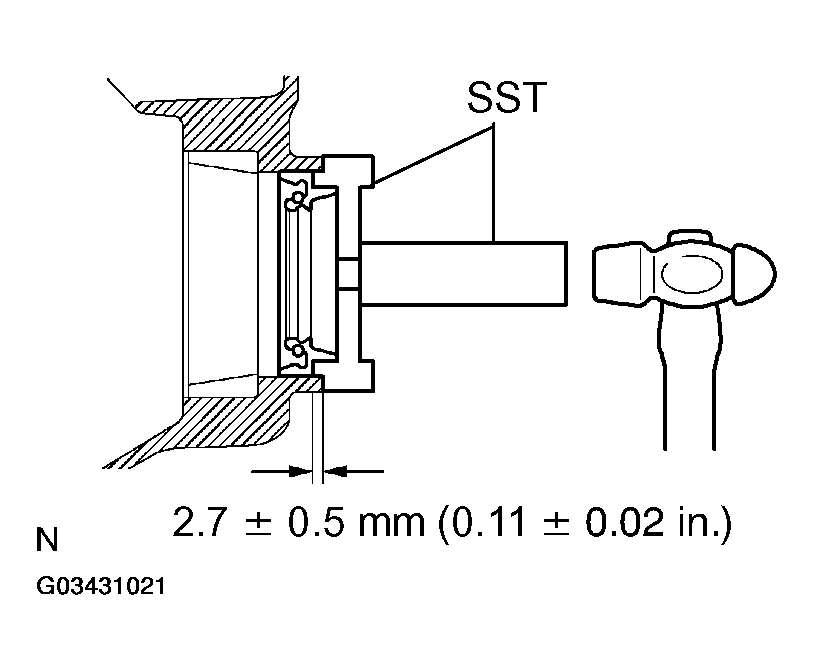

  Fig 2: Installing Oil Seals Using SST & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the lip of the 2 oil seals with MP grease.
INSTALL FRONT DRIVE SHAFT (See INSTALLATION )
ADD TRANSAXLE OIL (See ON-VEHICLE REPAIR )
CHECK TRANSAXLE OIL LEVEL (See ON-VEHICLE REPAIR )
INSTALL ENGINE UNDER COVER LH AND RH
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See INSPECTION )
