Remove Needle Bearing

Using a screwdriver, remove the snap ring.

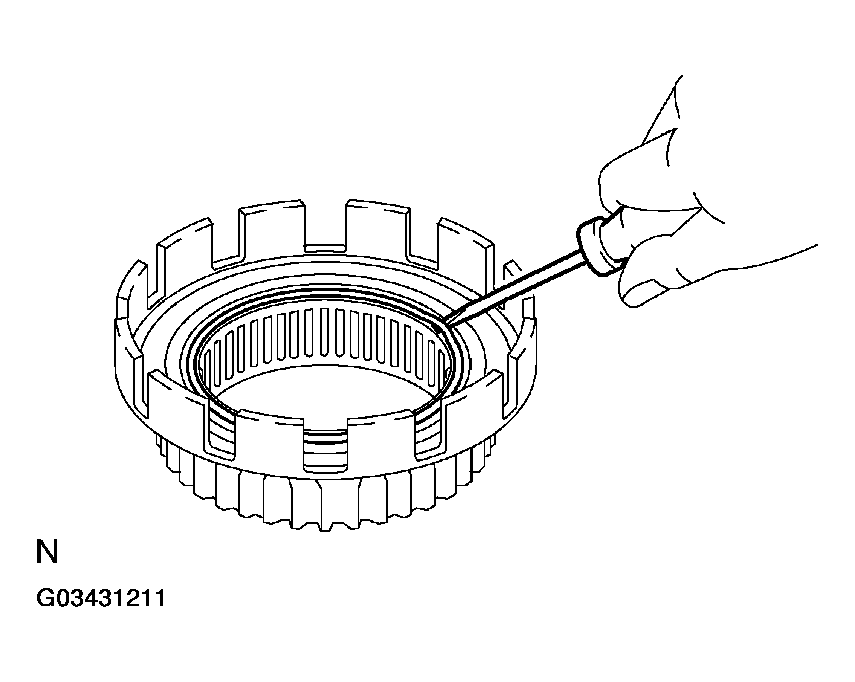

Fig 1: Removing Snap Ring Using Screwdriver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the needle bearing and spacer.

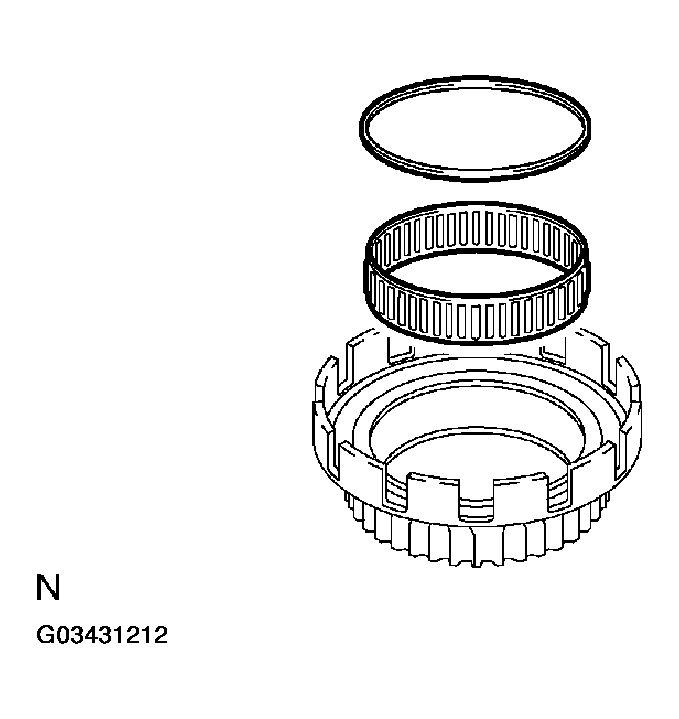

Fig 2: Removing Needle Bearing & Spacer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
