Install Needle Bearing

  1. Install the needle bearing and spacer.

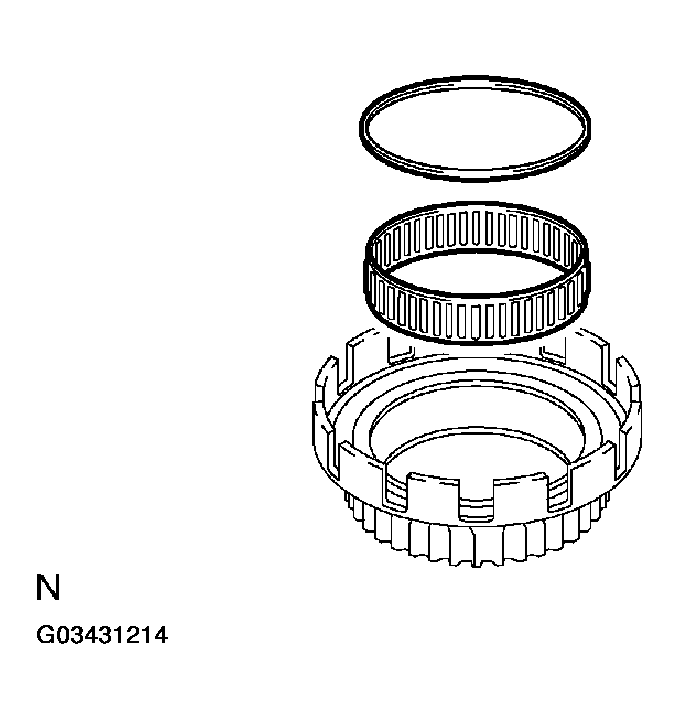

    Fig 1: Installing Needle Bearing & Spacer
    G03431214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using a screwdriver, install the snap ring.

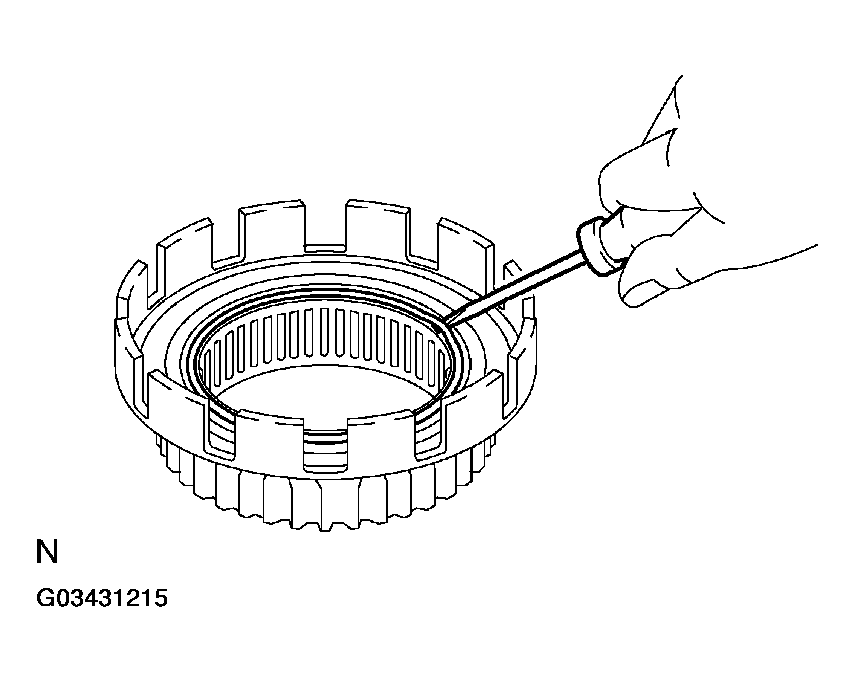

    Fig 2: Installing Snap Ring Using Screwdriver
    G03431215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
