Inspect Oil Pressure In Oil Pump

NOTE: Do the test at normal operating oil temperature 50 - 80 °C (122 - 176°F).

Lift up the vehicle.
Remove the test plug and install SST.
SST 09992-00095 (09992-00112, 09992-00271)

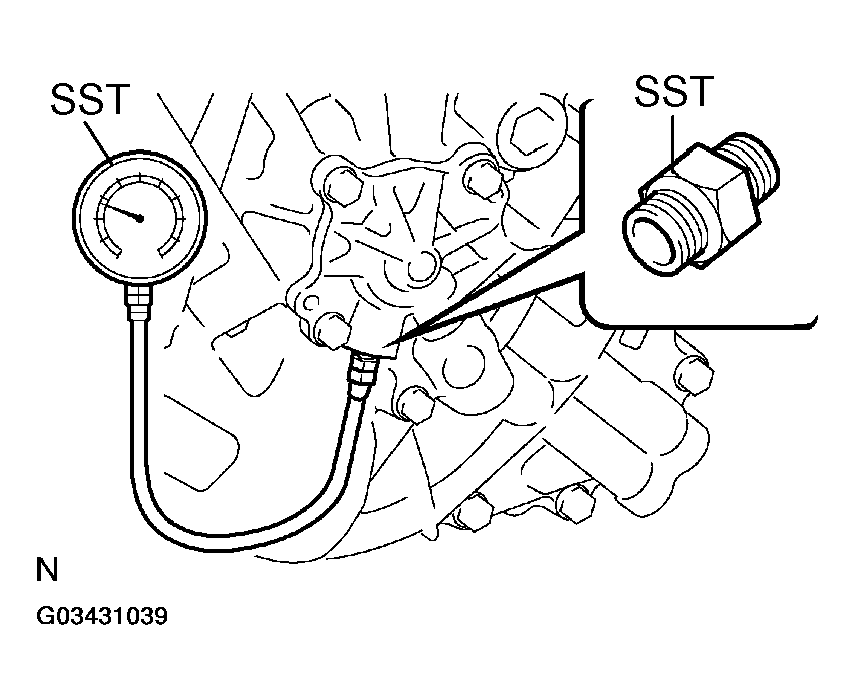

Fig 1: Removing Test Plug & Installing SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Turn the blower dial to HI.
Press the MAX switch to START and start the engine.
Keeping the engine speed of 1, 200 rpm, measure the oil pressure.
Oil pressure:

9.8 kPa (0.1 kgf/cm ² , 1.4 psi) or more

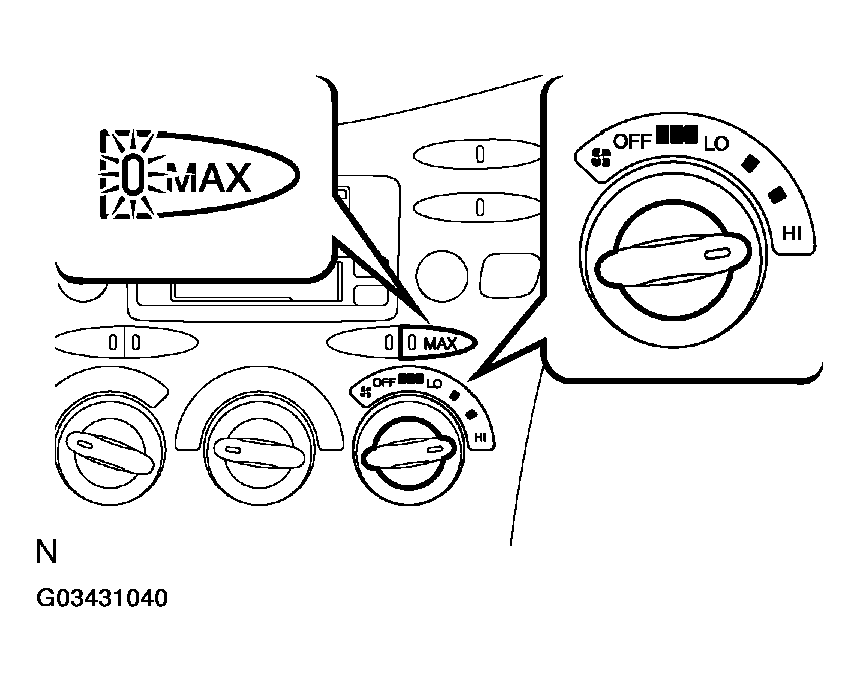

Fig 2: Identifying MAX Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
