Hybrid Transaxle Unit: Removal

DRAIN TRANSAXLE OIL
REMOVE HYBRID TRANSAXLE WITH ENGINE (See TRANSAXLE . )
SEPARATE HYBRID TRANSAXLE AND ENGINE
1. Remove the 8 bolts.
  Torque: 33 N.m (332 kgf.cm, 24 ft.lbf)
2. Separate the hybrid transaxle and the engine.

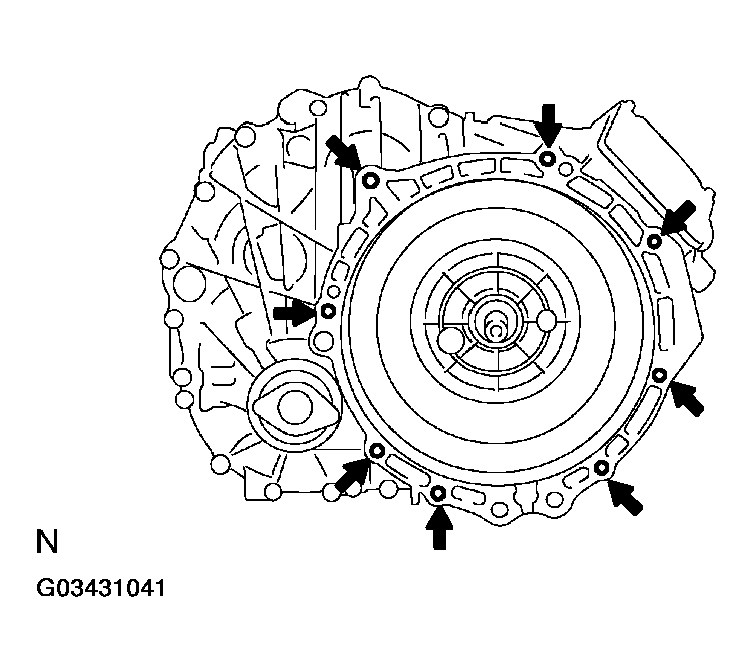

  Fig 1: Separating Hybrid Transaxle & Engine
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
