Input Shaft Oil Seal: Replacement

REMOVE HYBRID TRANSAXLE WITH ENGINE (See TRANSAXLE DISASSEMBLY , or COMPONENT DISASSEMBLY & REASSEMBLY )
SEPARATE TRANSAXLE AND ENGINE (See REMOVAL )
REMOVE INPUT SHAFT OIL SEAL
Using a flat-head screwdriver and a hammer, drive the screwdriver tip into the part shown in and pry it out Fig 1.

CAUTION: When using a screwdriver to drive in or pry out, be careful not to damage the input shaft and transaxle housing.

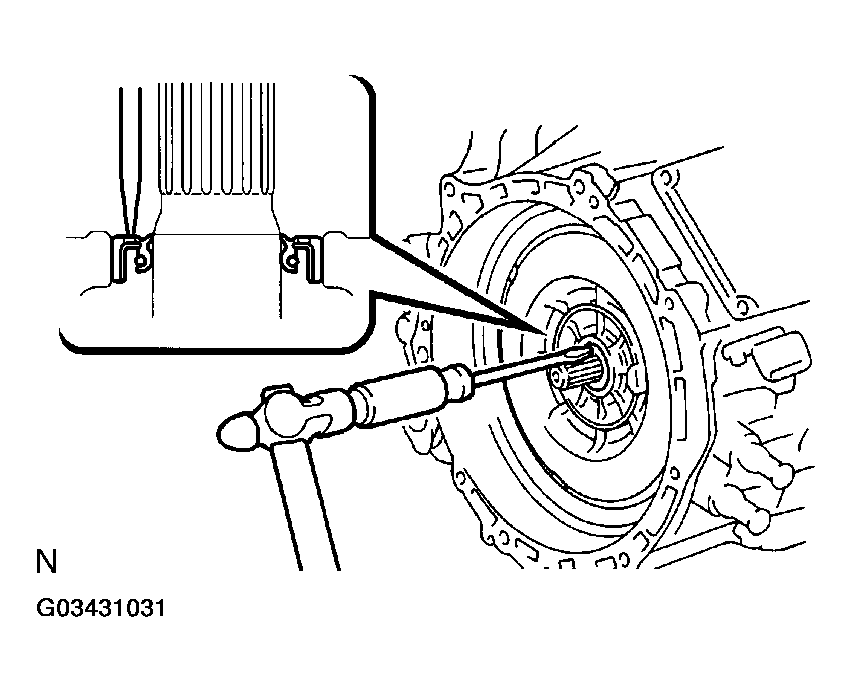

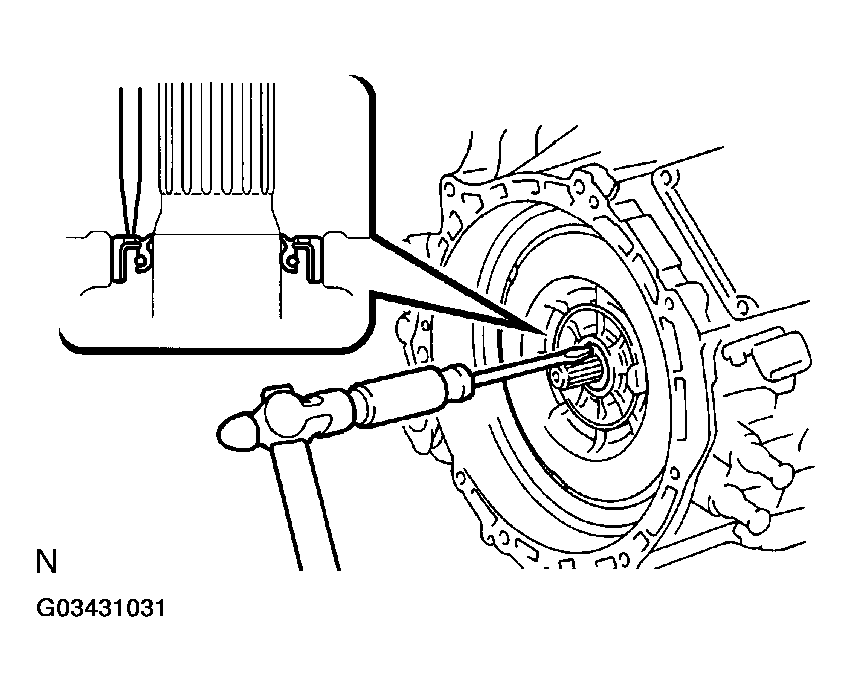

Fig 1: Removing Input Shaft Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INPUT SHAFT OIL SEAL
Using SST and a hammer, install a new input shaft oil seal.

SST 09388-40010

Oil seal depth: 1 - 1.5 mm (0.039 - 0.059 in.)

HINT:

Drive in the oil seal unit SST comes into contact with the case.

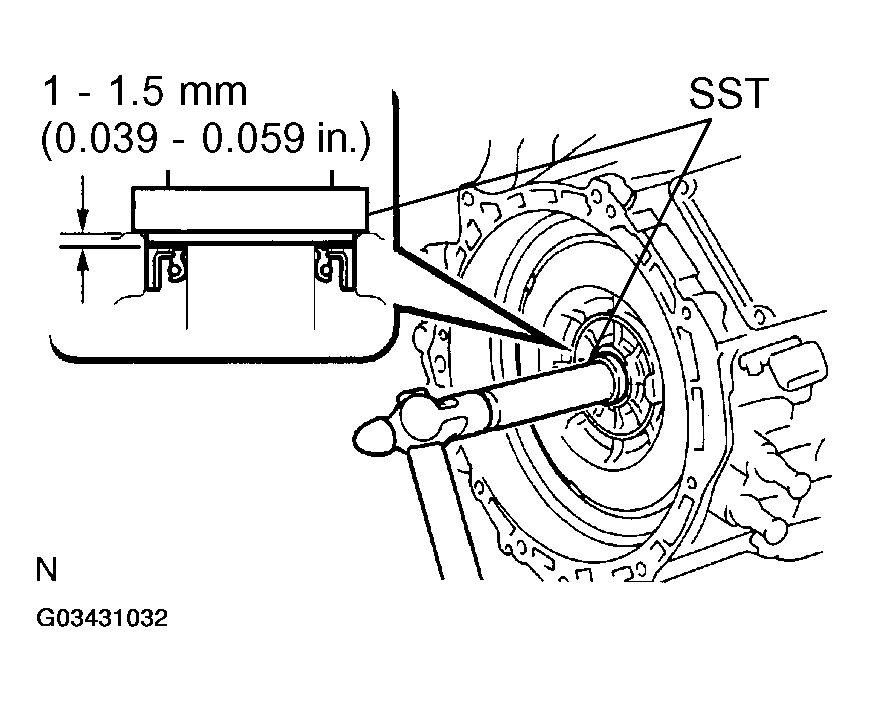

Fig 2: Installing Input Shaft Oil Seal Using SST & Hammer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSAXLE TO ENGINE (See INSTALLATION )
INSTALL TRANSAXLE AND ENGINE TO VEHICLE (See TRANSMISSION REASSEMBLY , and INSTALLATION )
