Input Shaft: Disassembly

REMOVE PLANETARY SUN GEAR FROM INPUT SHAFT

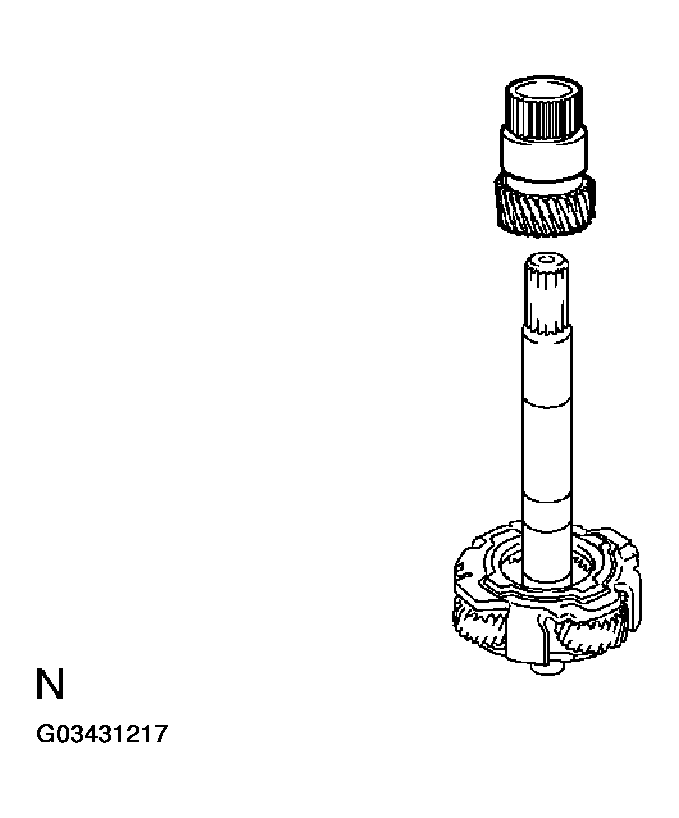

Fig 1: Removing Planetary Sun Gear From Input Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NEEDLE ROLLER BEARING AND BEARING RACE
Using a screwdriver, remove the needle roller bearing and 2 bearing races.

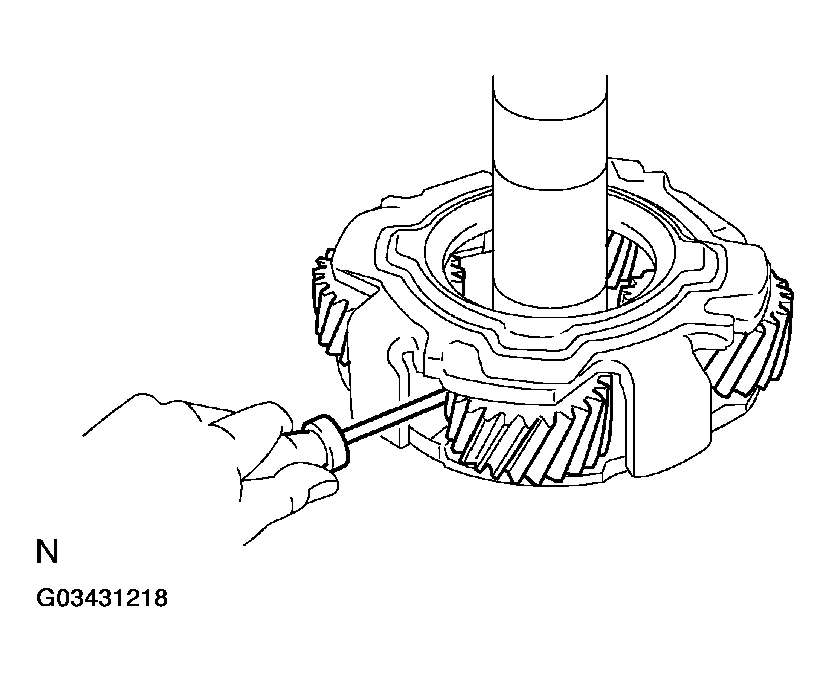

Fig 2: Removing Needle Roller Bearing Using Screwdriver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

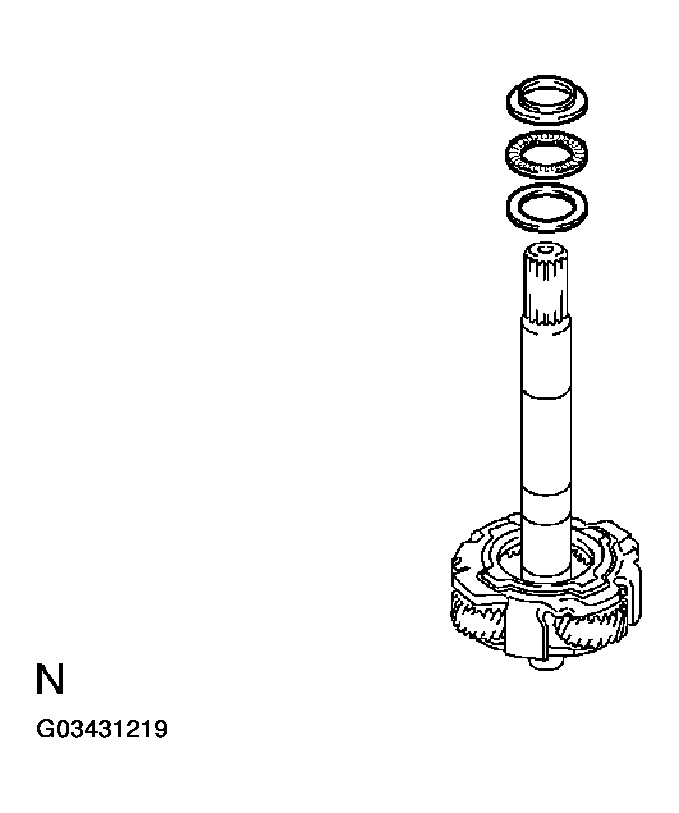

Fig 3: Removing Needle Roller Bearing & Bearing Races
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
