On-Vehicle Repair

REMOVE ENGINE UNDER COVER LH
REMOVE OIL PUMP
1. Remove the plug.

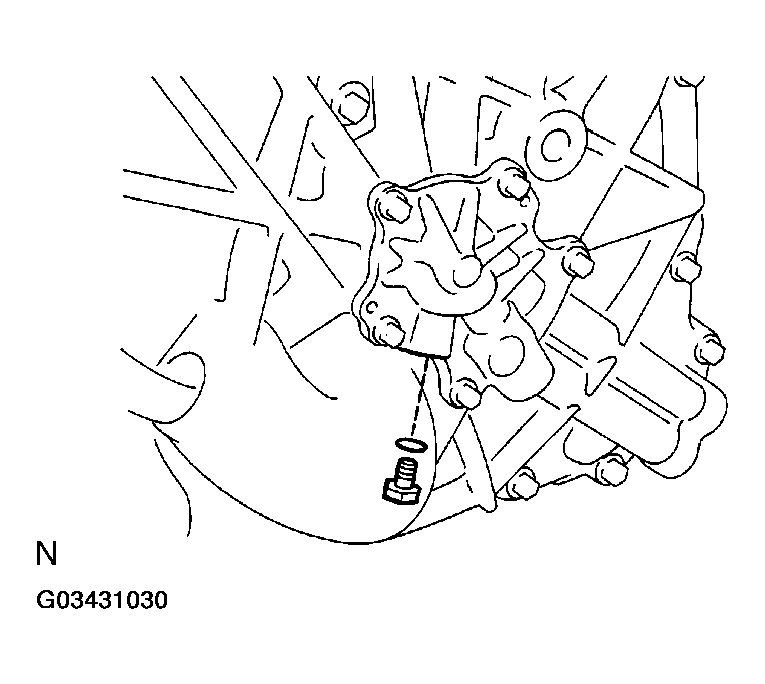

2. Remove the O-ring from the plug.

  Fig 1: Removing O-Ring From Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

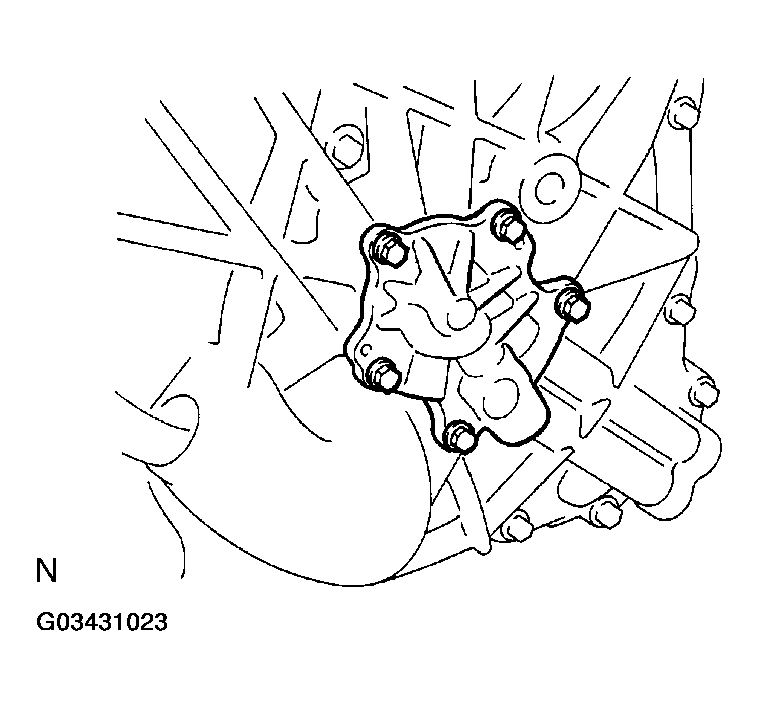

3. Remove the 5 bolts and oil pump cover.

  Fig 2: Removing & Oil Pump Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

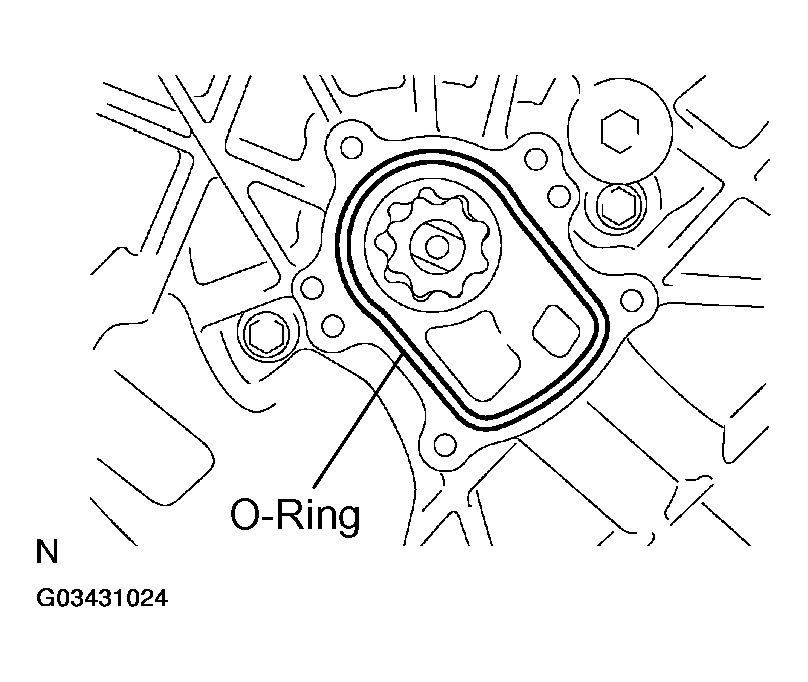

4. Remove the O-ring.

  Fig 3: Removing O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the oil pump driven rotor and drive rotor.

  Fig 4: Removing Oil Pump Driven Rotor & Drive Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the oil pump drive shaft.
INSTALL OIL PUMP
1. Apply ATF to each sliding part.

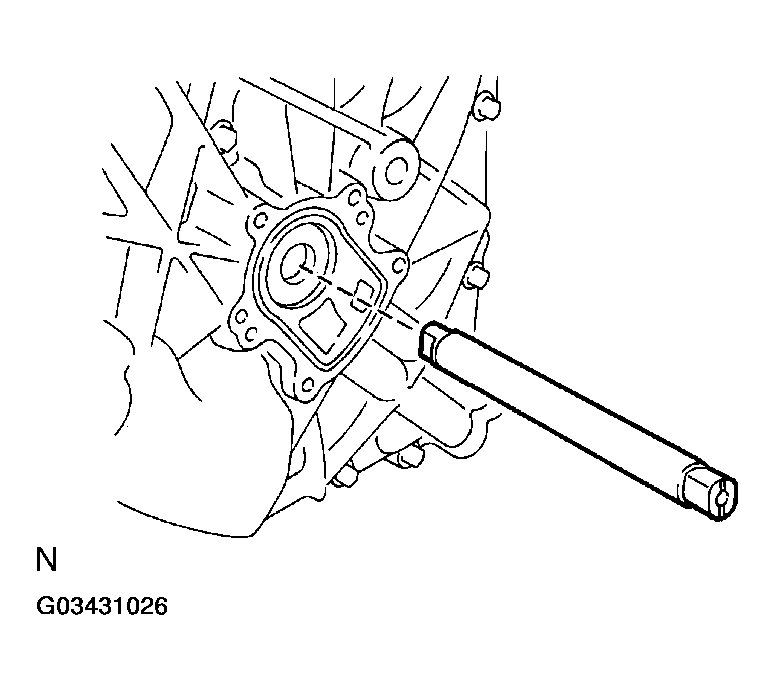

2. Install the oil pump drive shaft.

  Fig 5: Installing Oil Pump Drive Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

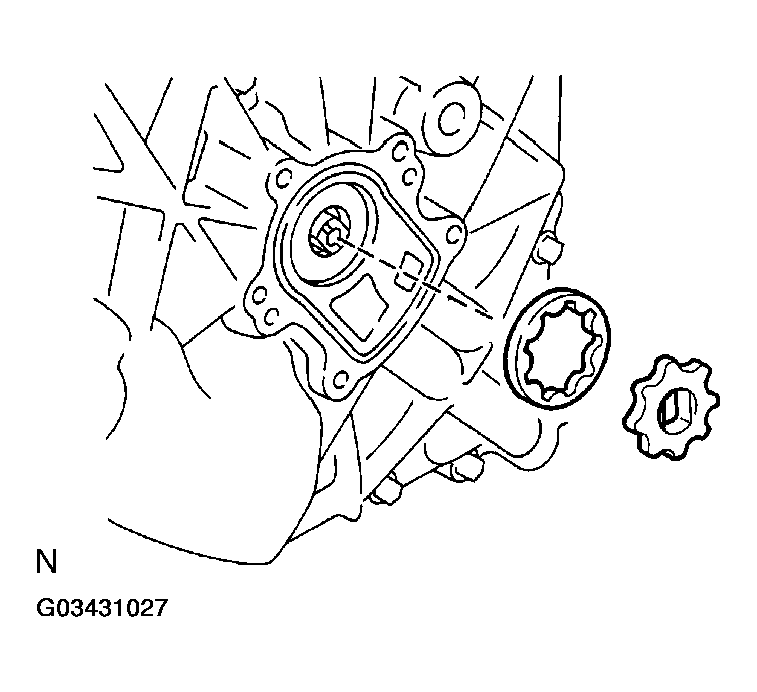

3. Install the oil pump driven rotor and drive rotor.

  Fig 6: Installing Oil Pump Driven Rotor & Drive Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

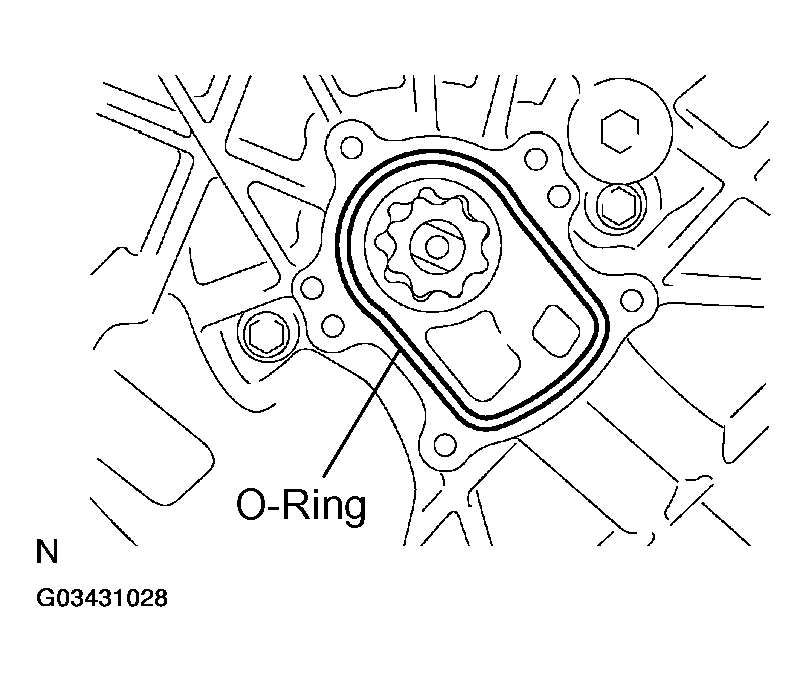

4. Install a new O-ring.

  Fig 7: Installing O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Apply liquid sealer to 2 or 3 threads of the bolt end.
  Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
6. Install the oil pump cover with the 5 bolts.
  Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

  Fig 8: Installing Oil Pump Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install a new O-ring and the plug.
  Torque: 7.35 N.m (75 kgf.cm, 65 in.lbf)

  Fig 9: Installing O-Ring & Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE UNDER COVER LH
