Glossary Of Sae And TOYOTA Terms

This glossary lists all SAE-J1930 terms and abbreviations used in this manual in compliance with SAE recommendations, as well as their TOYOTA equivalents.

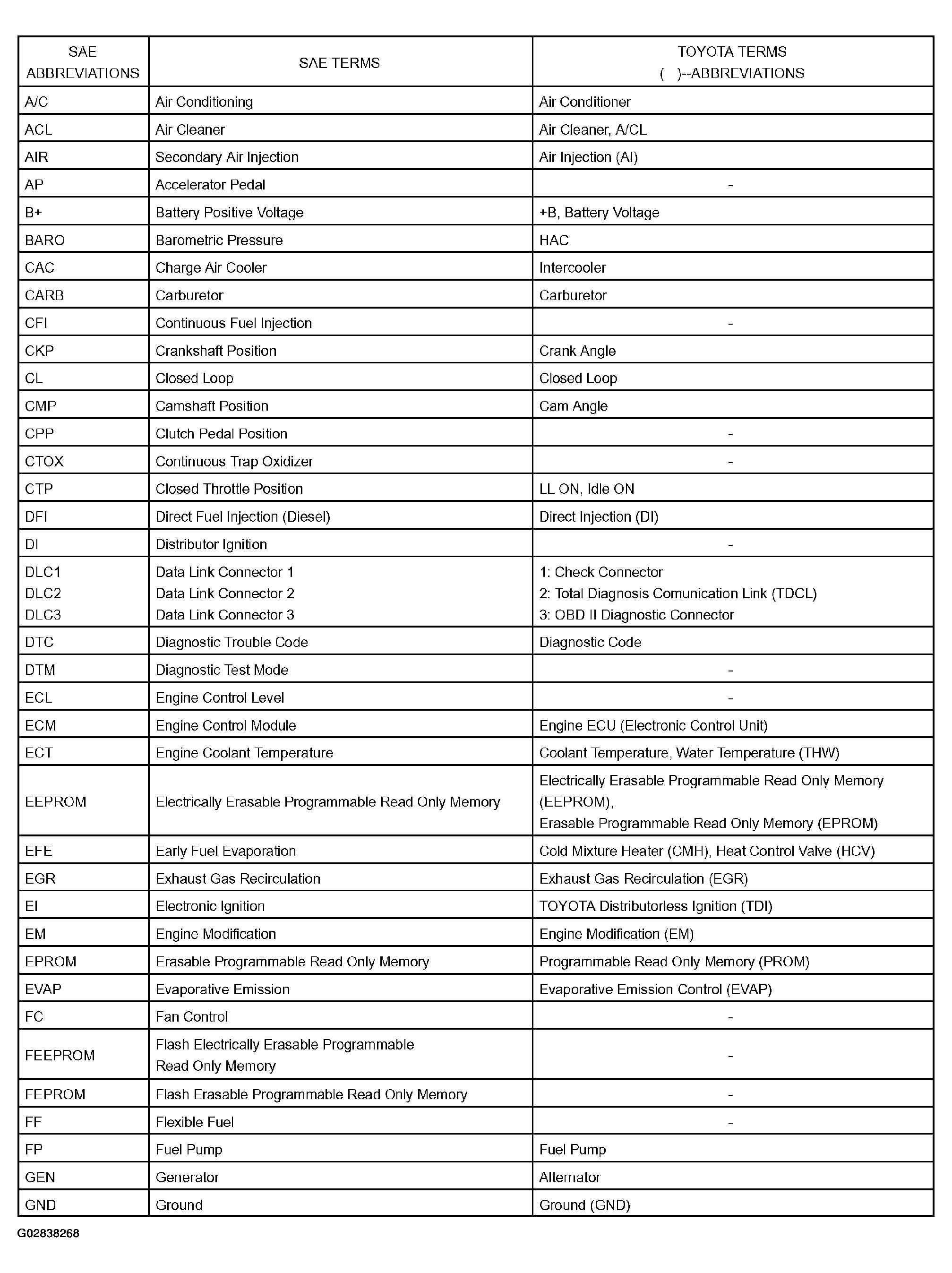

Fig 1: Sae-J1930 Terms & Abbreviations (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

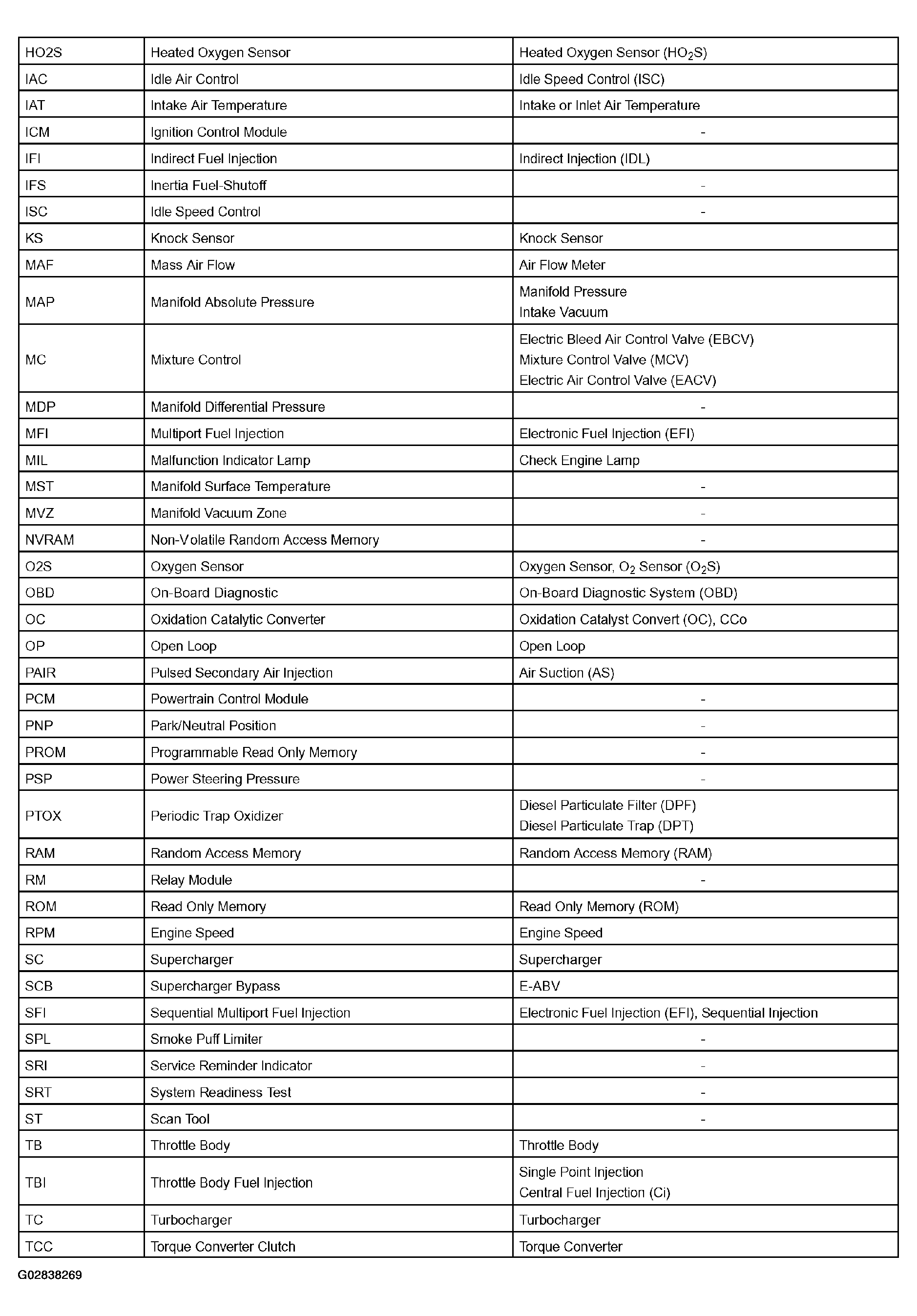

Fig 2: Sae-J1930 Terms & Abbreviations (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

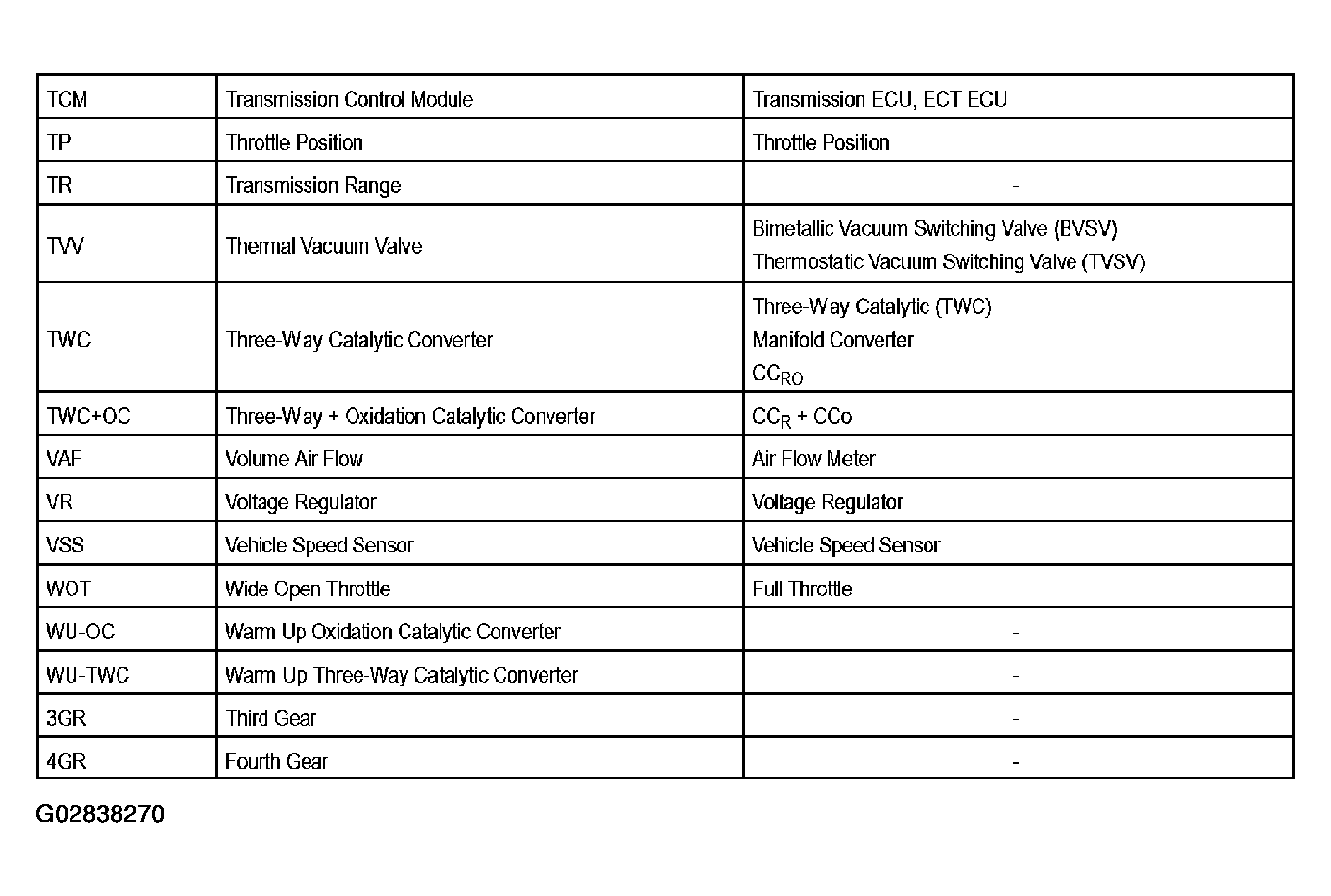

Fig 3: Sae-J1930 Terms & Abbreviations (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
