Body & Frame: Windows: Windshield: Components

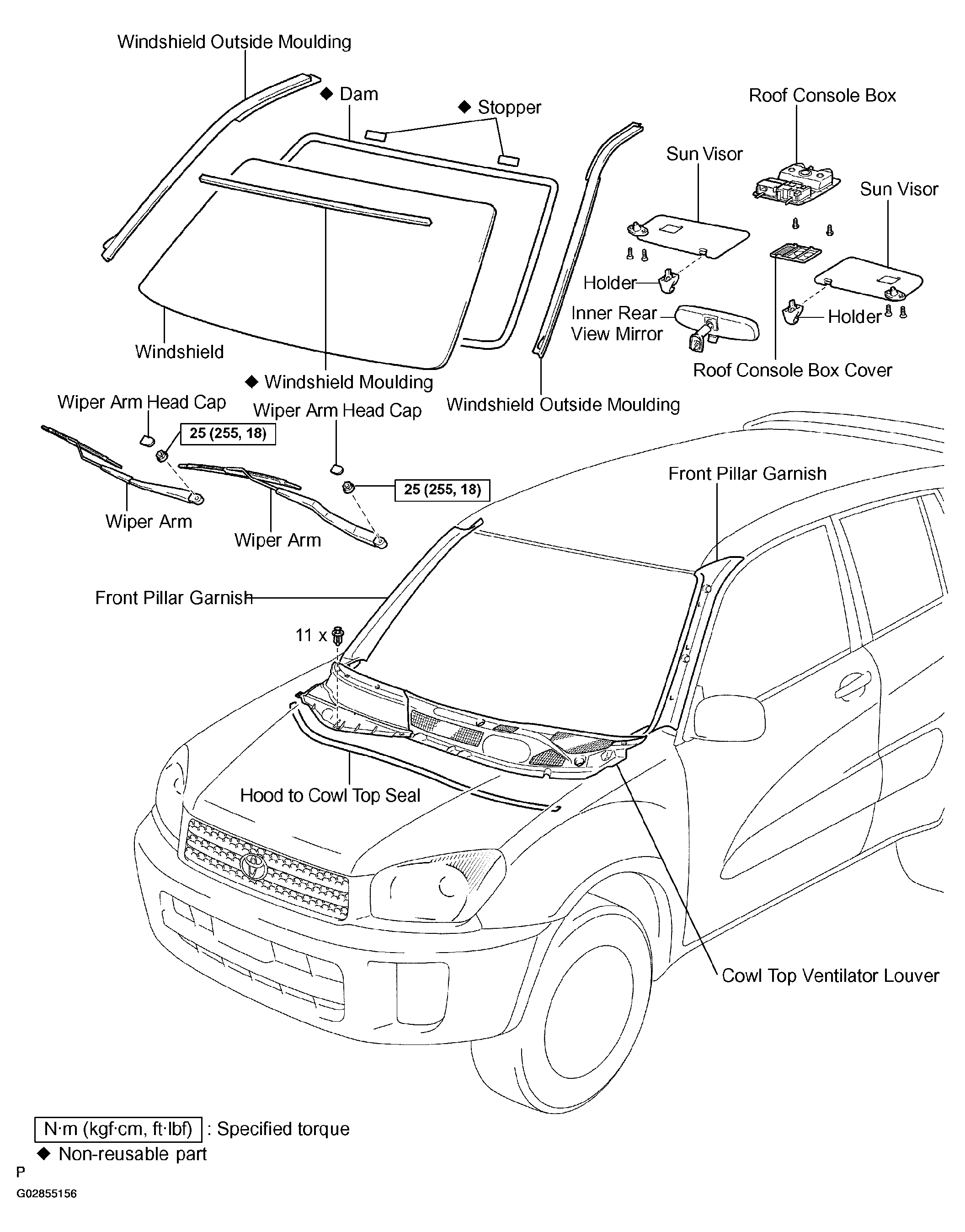

Fig 1: Identifying Components For Windshield Removal
G02855156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
