Body & Frame: Windows: Windshield: Removal

REMOVE INNER REAR VIEW MIRROR
REMOVE ROOF CONSOLE BOX
1. Using a screwdriver, remove roof console box cover.
  NOTE: Tape the screwdriver tip before use.
2. Remove the 3 screws and roof console box, then disconnect the connector.
REMOVE SUN VISORS AND HOLDERS
1. Remove the 4 screws and 2 sun visors.
2. Remove the 2 holders.
REMOVE FRONT PILLAR GARNISHES
REMOVE WIPER ARMS
REMOVE COWL TOP VENTILATOR LOUVER AND HOOD TO COWL TOP SEAL
REMOVE WINDSHIELD OUTSIDE MOULDING
REMOVE WINDSHIELD MOULDING

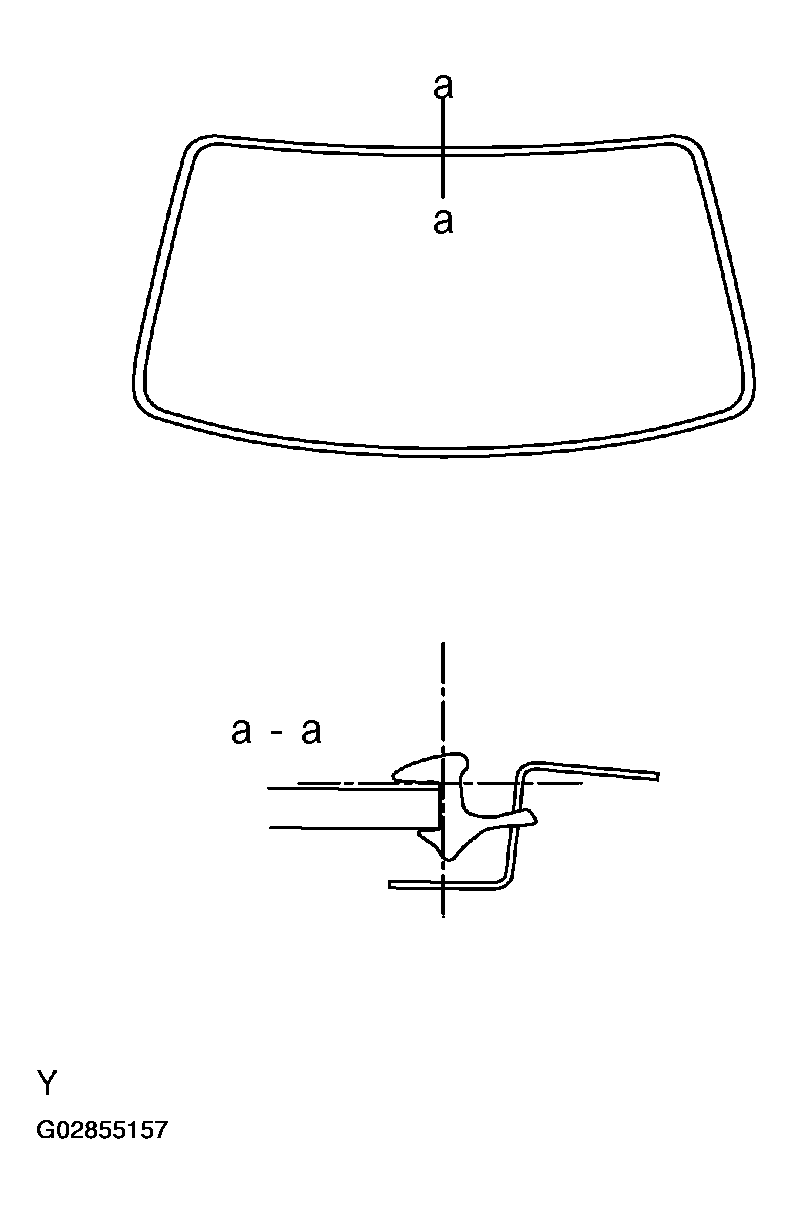

Fig 1: Removing Windshield Moulding
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a knife, cut off the moulding as shown in the illustration.
  NOTE: Do not damage the body with the knife.
2. Remove the remaining moulding.
REMOVE WINDSHIELD GLASS
1. Push a piano wire through between the body and glass from the interior.
2. Tie both wire ends to wooden blocks or similar objects.

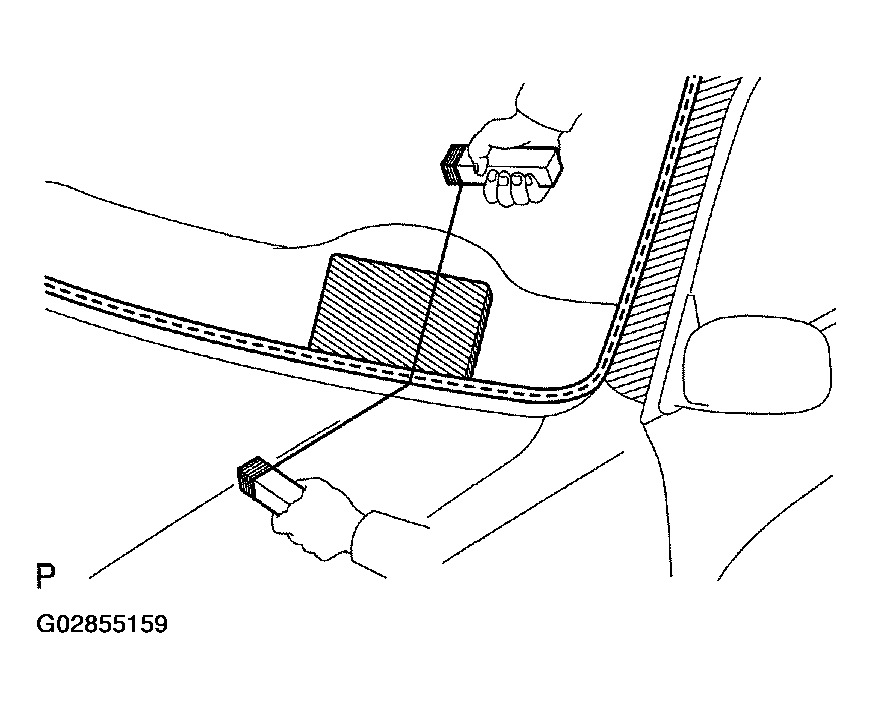

  Fig 2: Tie Both Wire Ends To Wooden Blocks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Apply protective tape to the outer surface to keep the surface from being scratched.

  NOTE: When separating the glass, take care not to damage the paint and interior and exterior ornaments. To prevent scratching the safety pad when removing the windshield, place a plastic sheet between the piano wire and safety pad.

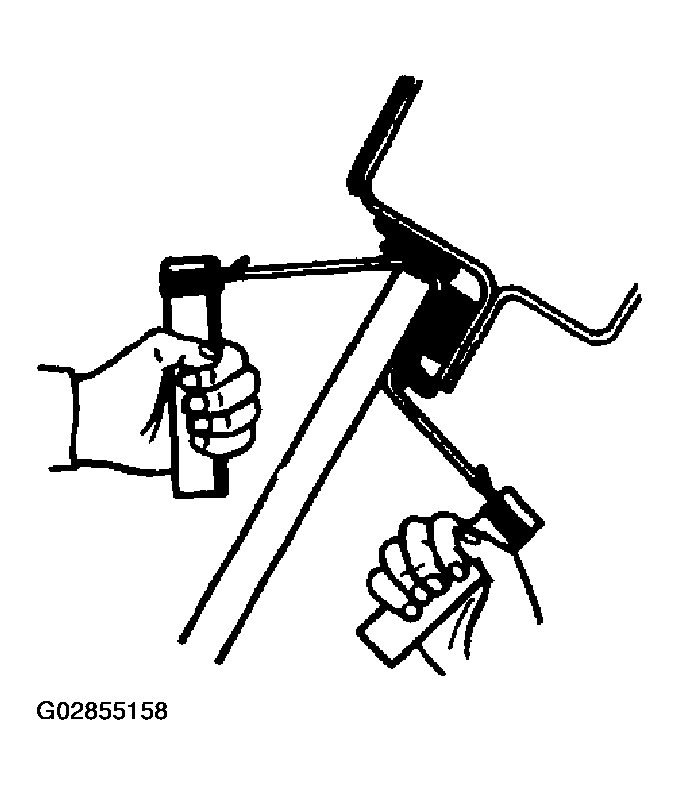

3. Cut the adhesive by pulling the piano wire around it.
4. Remove the glass.
NOTE: Leave as much of the adhesive on the body as possible when cutting off the glass.
