Engine Control Module Location

Engine Control Module (ECM) is located at passenger's side of instrument panel, just below glove box. See Fig 1.

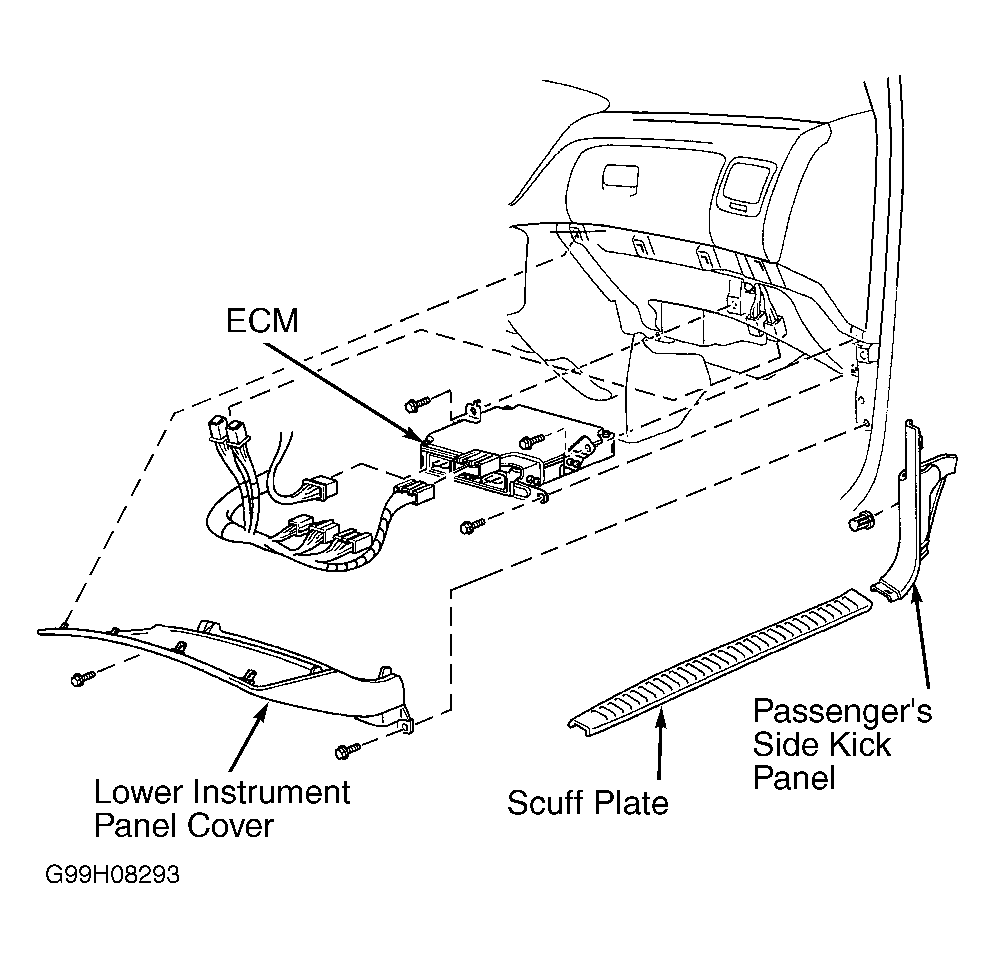

Fig 1: Locating Engine Control Module

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
