Home >> Toyota >> 2003 >> Tundra Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Slide Back Window System >> Location
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Power Slide Back Window System: Location

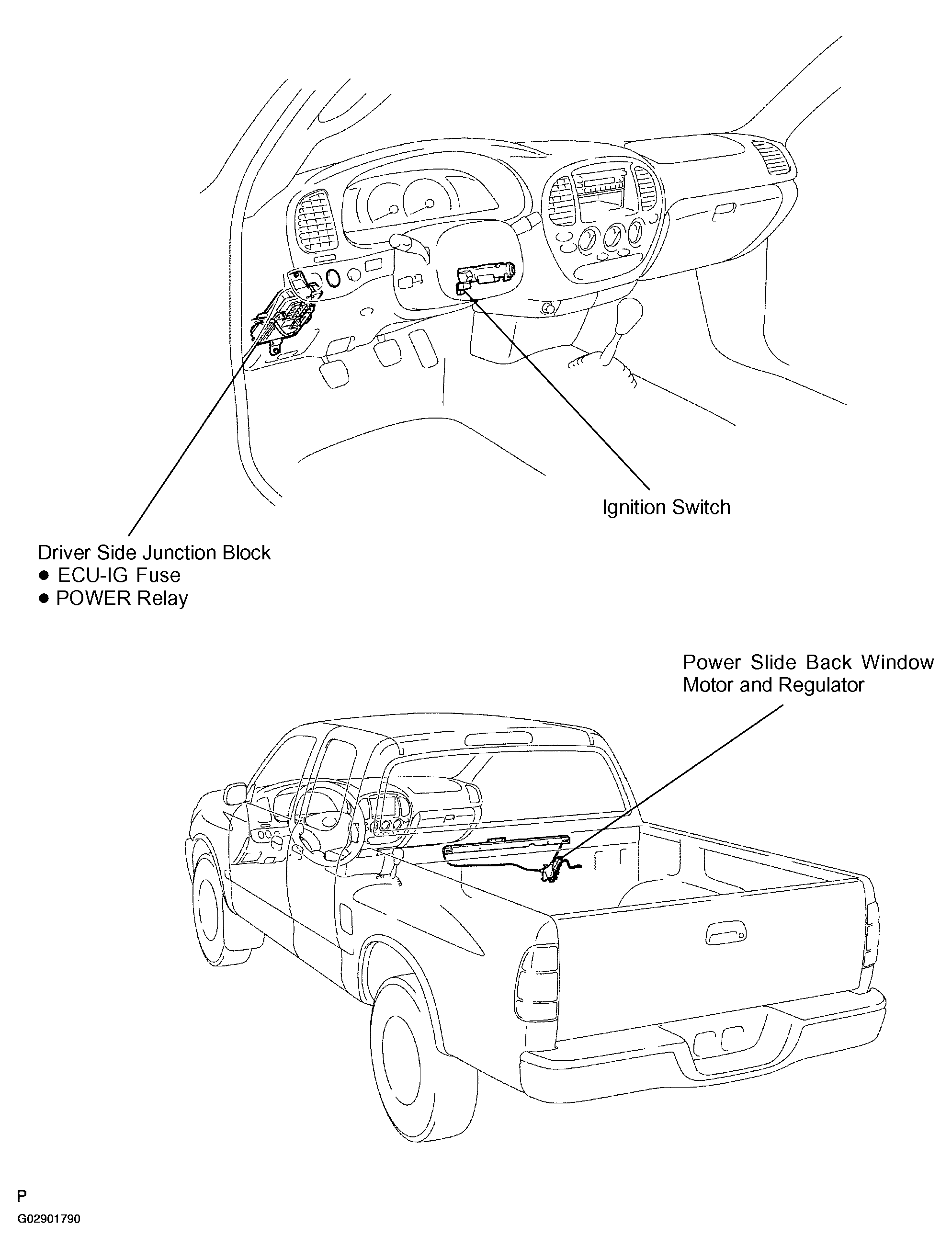

Fig 1: Identifying Power Slide Back Window System Component Locations
G02901790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
